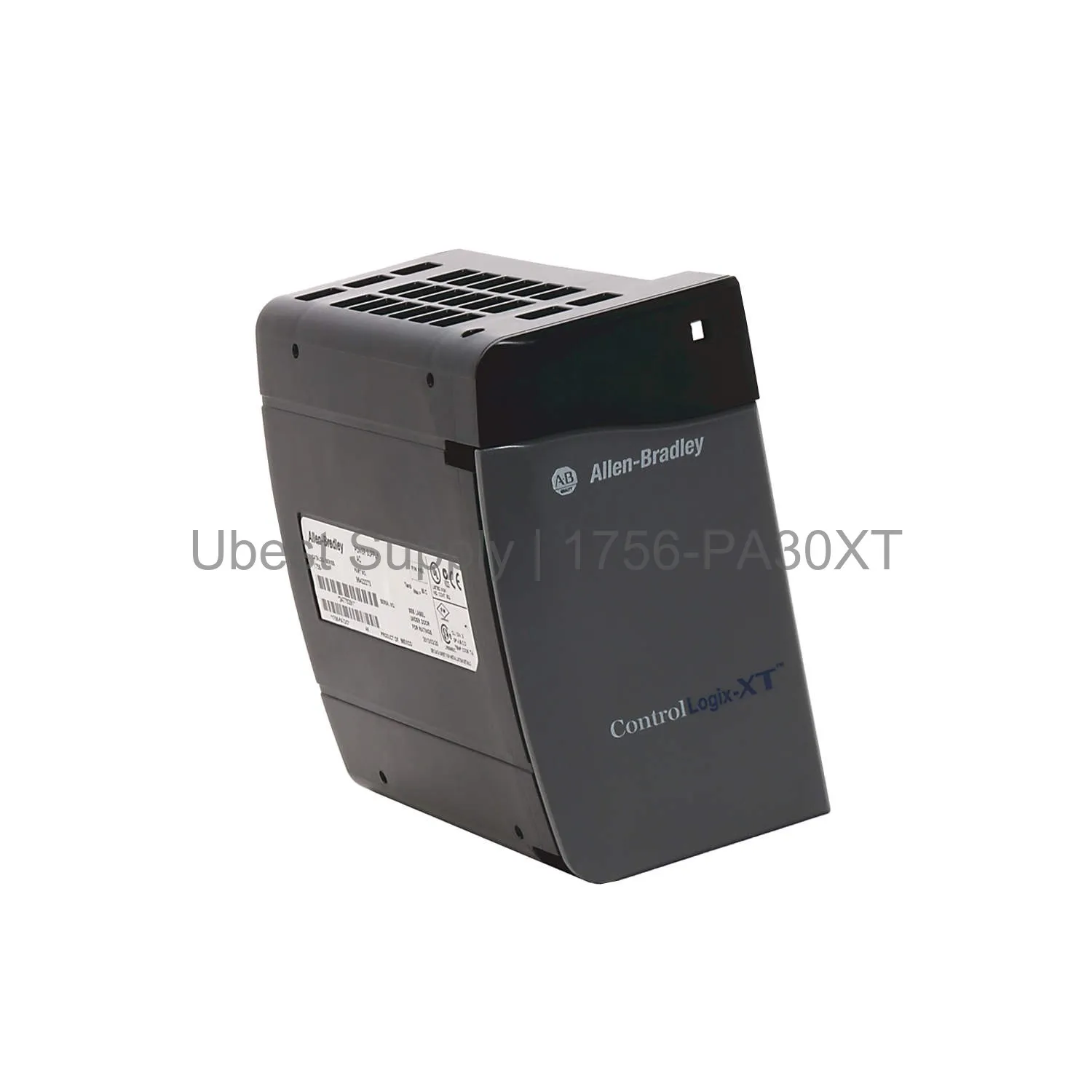

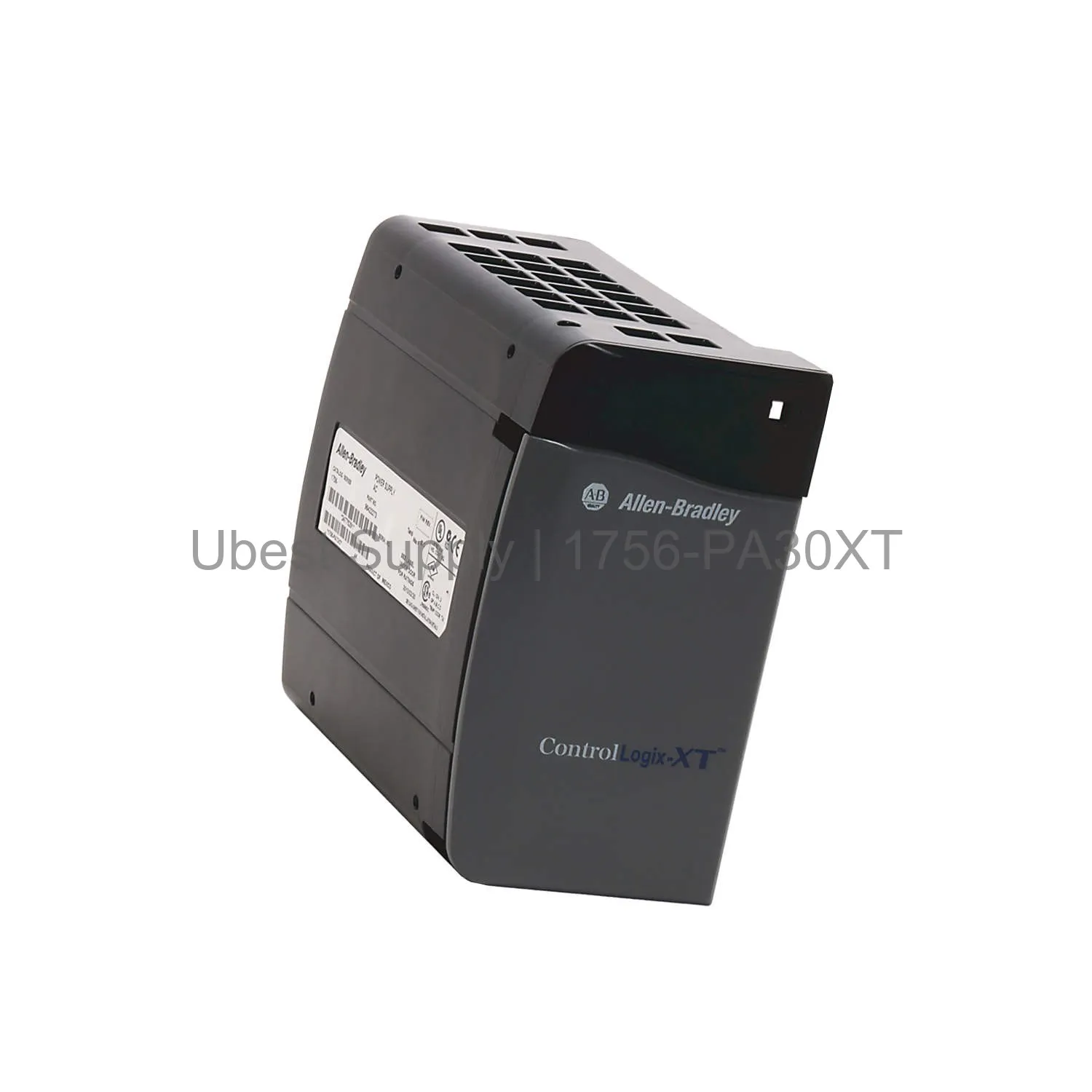

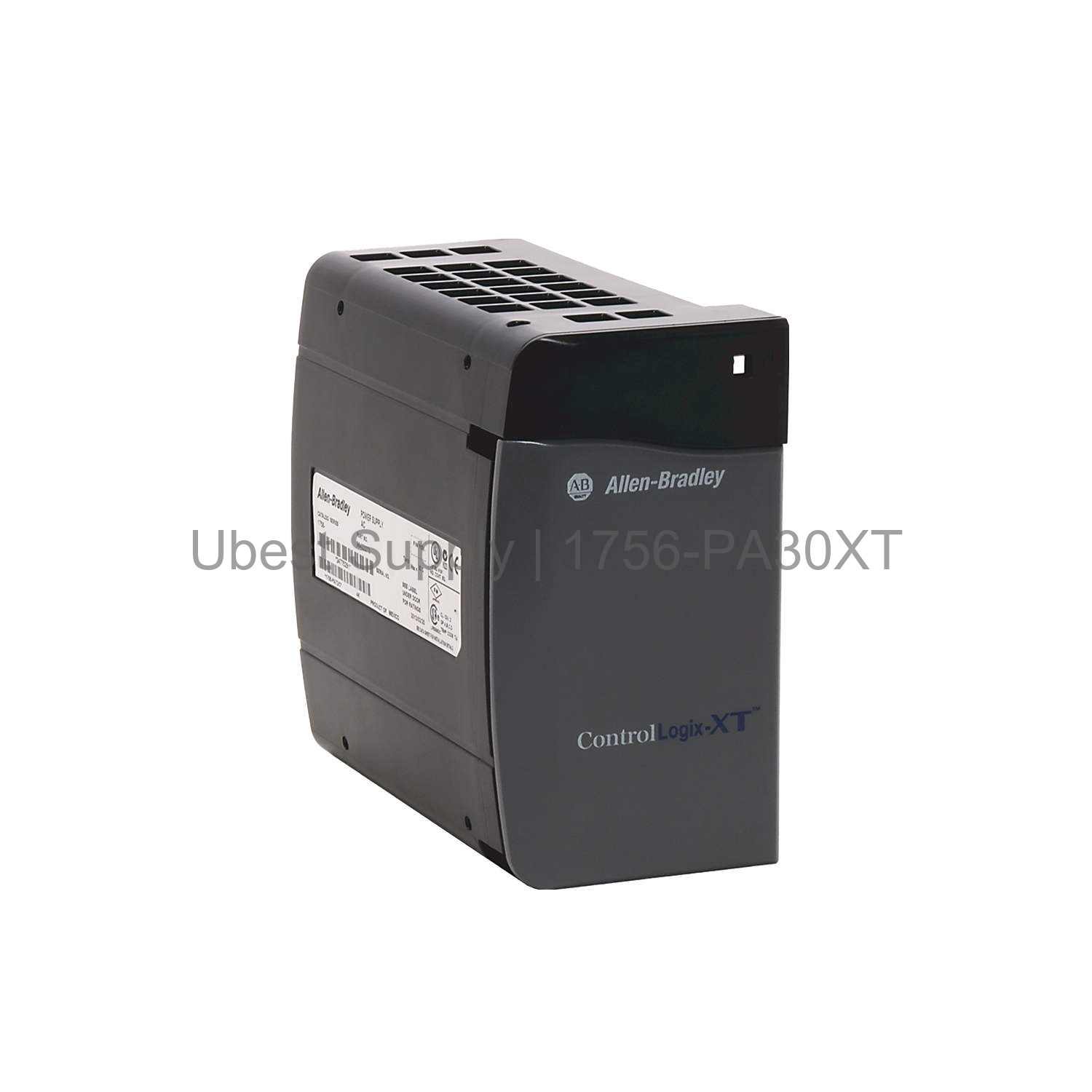

ControlLogix-XT Power Supply Allen-Bradley 1756-PA30XT 30W

Product Overview

The Allen-Bradley 1756-PA30XT is a robust power supply module. It belongs to the ControlLogix-XT series. This unit provides reliable power for your automation system. It operates on a 24 Volts DC input. The input voltage range is 18-32 Volts DC. It delivers a maximum output power of 30 Watts. This module is built for harsh industrial environments. It ensures stable performance in extreme conditions.

This power supply fits in the left side of a 1756 chassis. It supports multiple voltage rails. It provides 1.5 A at 1.2 V. It also offers 2 A at 3.3 V. You get 6 A at 5.1 V. Additionally, it supplies 1.25 A at 24 V. The 1756-PA30XT has a maximum input power of 50 Watts. Its isolation voltage is 250 Volts continuous. The max inrush current is 30 Amperes.

Application Scenarios

This power supply is ideal for demanding control systems. Use it in oil and gas applications. It works well in chemical processing plants. It is perfect for mining operations. The XT coating protects against moisture and corrosion. Use it in pulp and paper mills. It is suitable for water treatment facilities. It powers critical automation controllers. It ensures uptime in harsh environments.

Technical Specifications

The module dimensions are 5.51 x 3.07 x 5.71 inches. That is 14.0 x 7.8 x 14.5 cm. It weighs 1.7 lbs or 0.77 kg. The nominal input voltage is 24 Volts DC. The input range is 18-32 Volts DC. The isolation voltage is 250 Volts continuous. The max inrush current is 30 Amperes. The current capacity is 1.5 A at 1.2 V. It has 2 A at 3.3 V. It provides 6 A at 5.1 V. It offers 1.25 A at 24 V. The max input power is 50 Watts. The max output power is 30 Watts.

Installation & Maintenance Guide

Install this module in the left slot of the chassis. Ensure the chassis is powered off. Slide the module into the guide rails. Push firmly until it locks. Secure it with the screws. Connect the input power cable. Verify the voltage is within range. Check the LEDs for proper status. Keep the area clean and dry. Inspect the module periodically for damage. Replace it if the fan fails. Use only certified replacement parts.

Packing List

Your order includes one Allen-Bradley 1756-PA30XT power supply. It comes with a mounting bracket. You receive a connection terminal block. A quick start guide is included. The product is packaged securely. Shipping is via Fedex, UPS, or DHL. The package is protected against static. It is ready for immediate installation.
