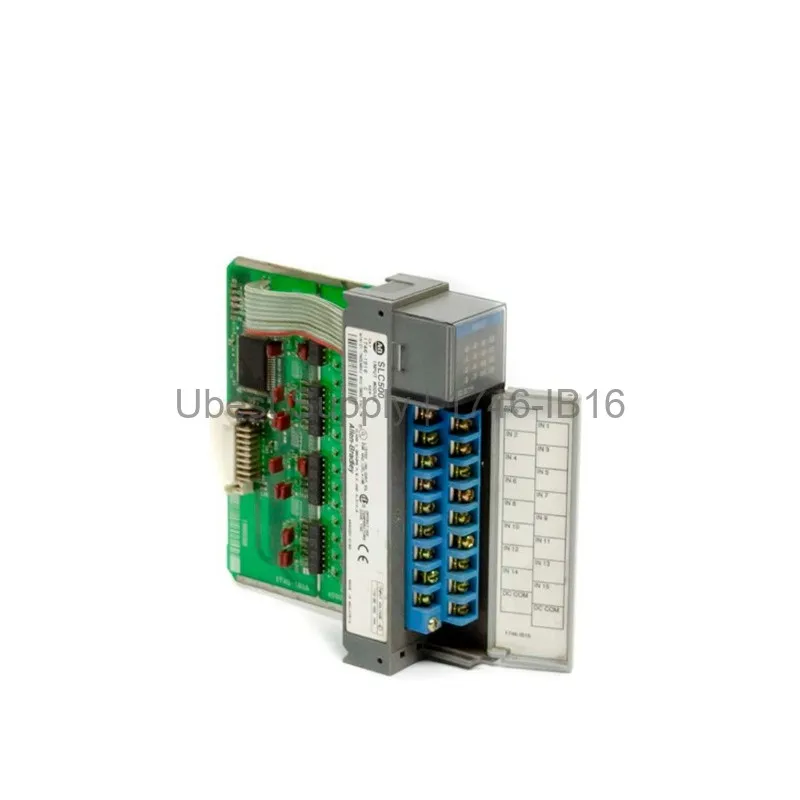

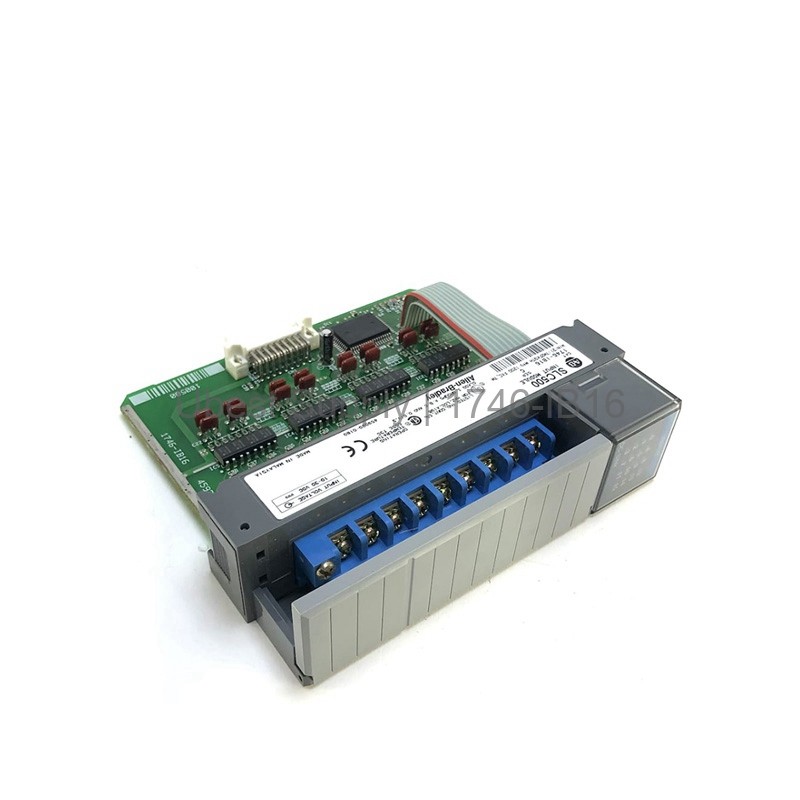

Discrete Output Module Allen-Bradley 1746-IB16 16 Input SLC 500

Product Overview

The Allen-Bradley 1746-IB16 is a digital DC sinking input module. It belongs to the SLC 500 series. This module provides 16 sinking inputs. It operates at 24 Volts DC. The input voltage range is 10-30VDC. Each input draws 8mA at 24VDC. The module offers an 8 ms signal delay on transition. It uses only 0.050 A from the backplane. Thermal dissipation is 0.20 Watts per channel. This module is ideal for general purpose DC input applications.

Application Scenarios

This module works well in factory automation. Use it for machine control systems. It handles sensor and switch inputs. It fits into SLC 500 racks. Common uses include packaging and material handling. It also works in conveyor systems. The 1746-IB16 is reliable for discrete manufacturing.

Technical Specifications

The 1746-IB16 has 16 sinking inputs. The off-state voltage is 5.0V DC max. The off-state current is 1 mA max. It uses 85 milliamps from the 5V DC backplane. Signal delay is 8 milliseconds. Step response is 100 ms in and 2.5 ms out. Use 1746-HT and 1746-HCA cables for I/O connection. The UPC is 10662468067048. The UNSPSC is 32151705.

Installation & Maintenance Guide

Install the module into any SLC 500 chassis. Ensure power is off before insertion. Secure the module with the locking tab. Wire inputs to the terminal block. Use proper DC power sources. Keep the module clean and dry. Check connections regularly. Replace damaged modules immediately.

Packing List

1x Allen-Bradley 1746-IB16 module. 1x installation manual. 1x warranty card. The module is packed in an anti-static bag. Shipping uses Fedex, UPS, or DHL.
