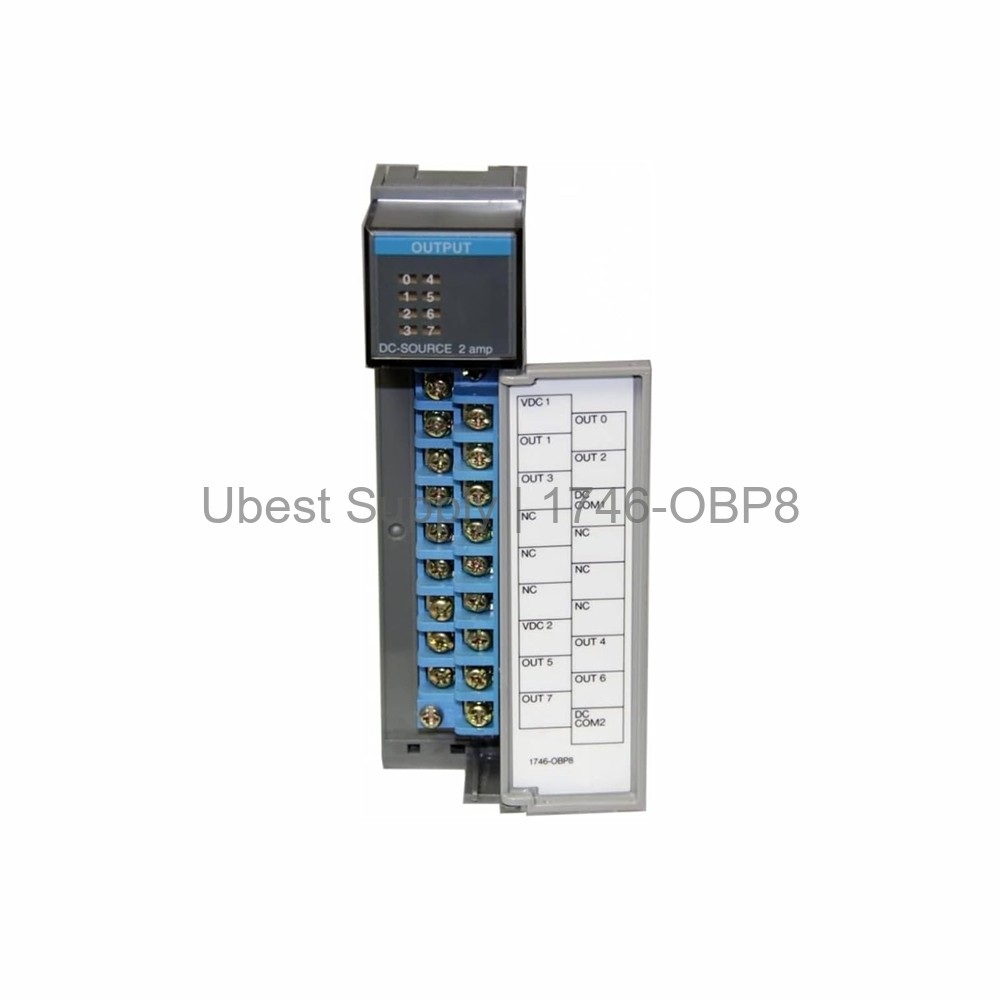

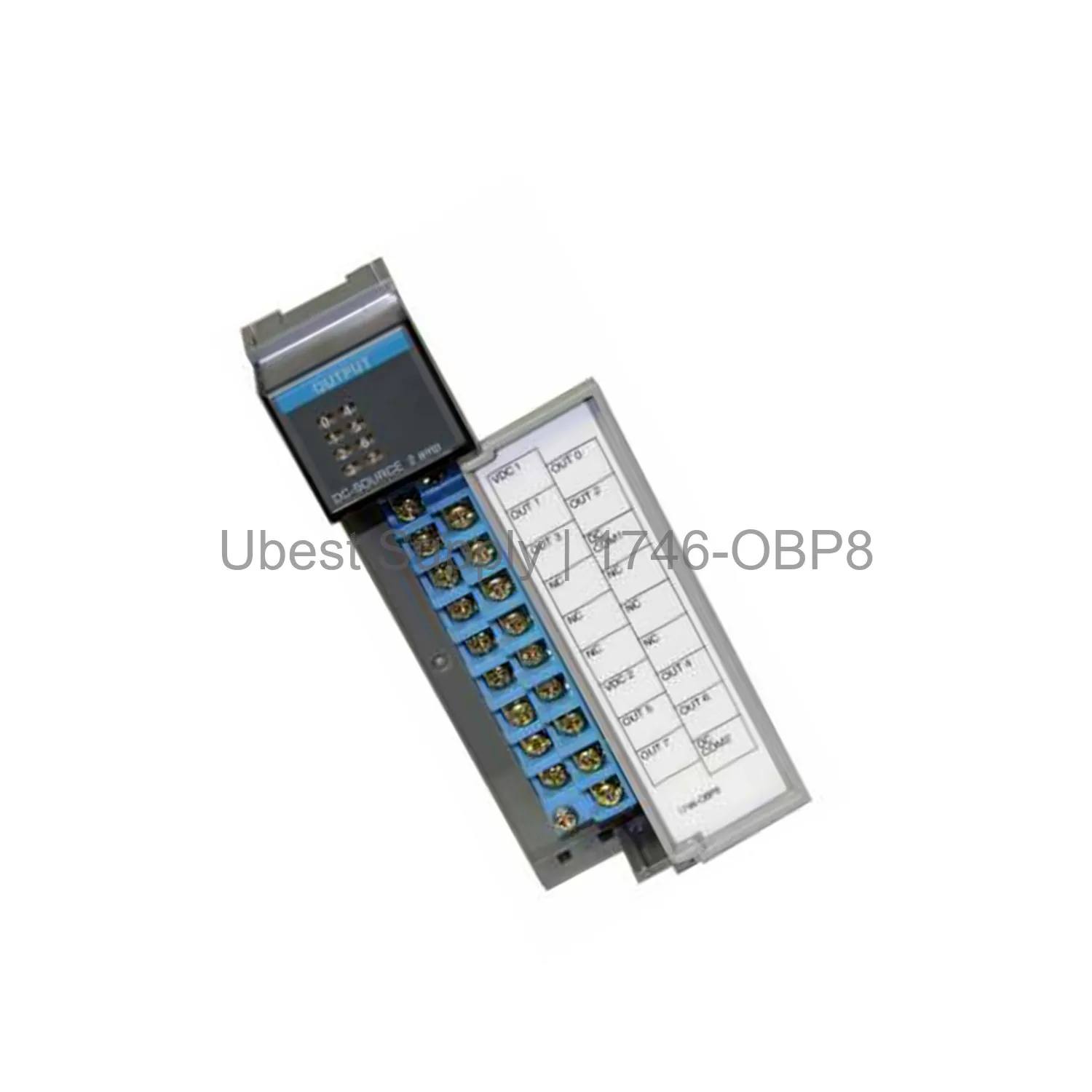

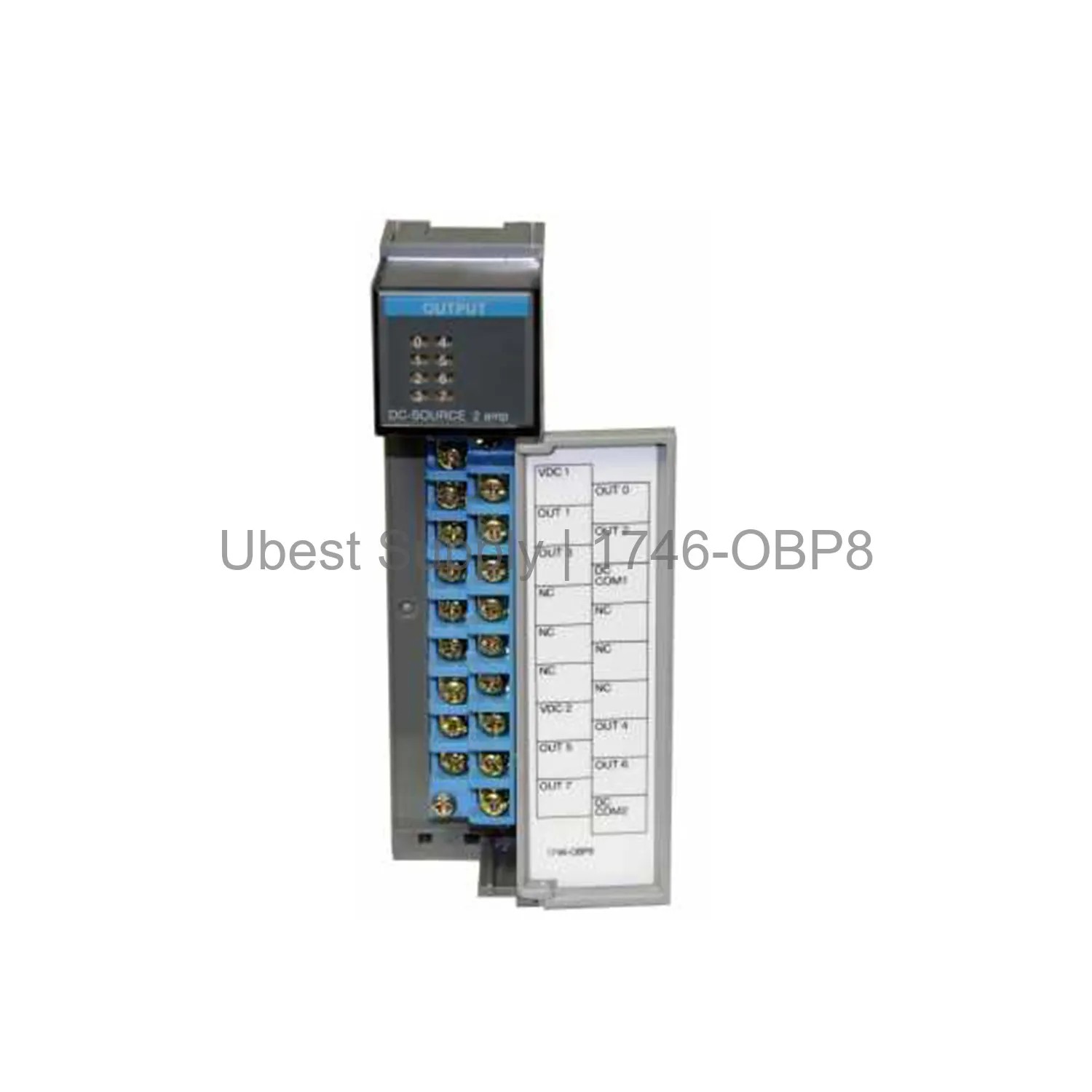

Discrete Output Module Allen-Bradley 1746-OBP8 SLC 500 8 Outputs

Product Overview

The Allen-Bradley 1746-OBP8 is a digital DC output module for the SLC 500 platform. It provides eight source outputs. Each output handles up to 2.0A at 60°C. This module works with 20.4 to 26.4 Volts DC. It is ideal for demanding industrial applications. The module uses two isolated groups of four points each. This design simplifies wiring and troubleshooting. The 1746-OBP8 offers fast signal response times. It turns on in 1.0 ms and off in 2.0 ms. The module dissipates only 0.3 Watts of power. It supports a surge current of 4A for 10 ms. The on-state voltage drop is a maximum of 1V at 2A. This ensures efficient power delivery to your loads.

Application Scenarios

Use the 1746-OBP8 module for high-current DC load control. It works well with solenoids, relays, and motor starters. The module is suitable for conveyor systems and packaging machines. It controls industrial valves and indicators. The SLC 500 platform fits many factory automation tasks. The module operates reliably in temperatures from 0 to 60°C. It withstands 30g of shock. This makes it perfect for heavy machinery environments. The module also handles 5 to 57 Hz vibration. Use it in automotive, food processing, and material handling plants. The 1746-OBP8 provides robust output switching for critical processes.

Technical Specifications

The 1746-OBP8 module has 8 sourcing outputs. It requires 20.4 to 26.4 VDC. Each output delivers 2.0A at 60°C. The total module current is 8.0A. The backplane draws 0.135A at 5 Volts. Signal delay is 1 ms on and 21 ms off. Step response is 60 ms in and 2.5 ms out. The maximum off-state leakage is 1 mA. The minimum load current is 1 mA. The module has no electronic protection. Heat dissipation is 0.3 Watts per point. Total heat dissipation is 3.08 Watts. The module provides 1500V of isolation. It meets NEMA ICS 2-230 noise immunity standards. Use 14 AWG (2 mm²) signal wires.

Installation & Maintenance Guide

Install the 1746-OBP8 module into any SLC 500 chassis slot. Ensure the backplane power is off before insertion. Secure the module with the locking tab. Connect the DC power supply to the module terminals. Wire your output devices to the correct group terminals. Do not exceed 2.0A per output point. Keep wiring separate from AC power lines. Regularly check for loose connections. Clean the module with a dry cloth. Ensure proper airflow for cooling. Replace the module if the output fails. Always follow the user manual for safety.

Packing List

One Allen-Bradley 1746-OBP8 output module. One installation and user manual. No additional accessories are included. The module is shipped in an anti-static bag. Use FedEx, UPS, or DHL for shipping.
