Product Overview

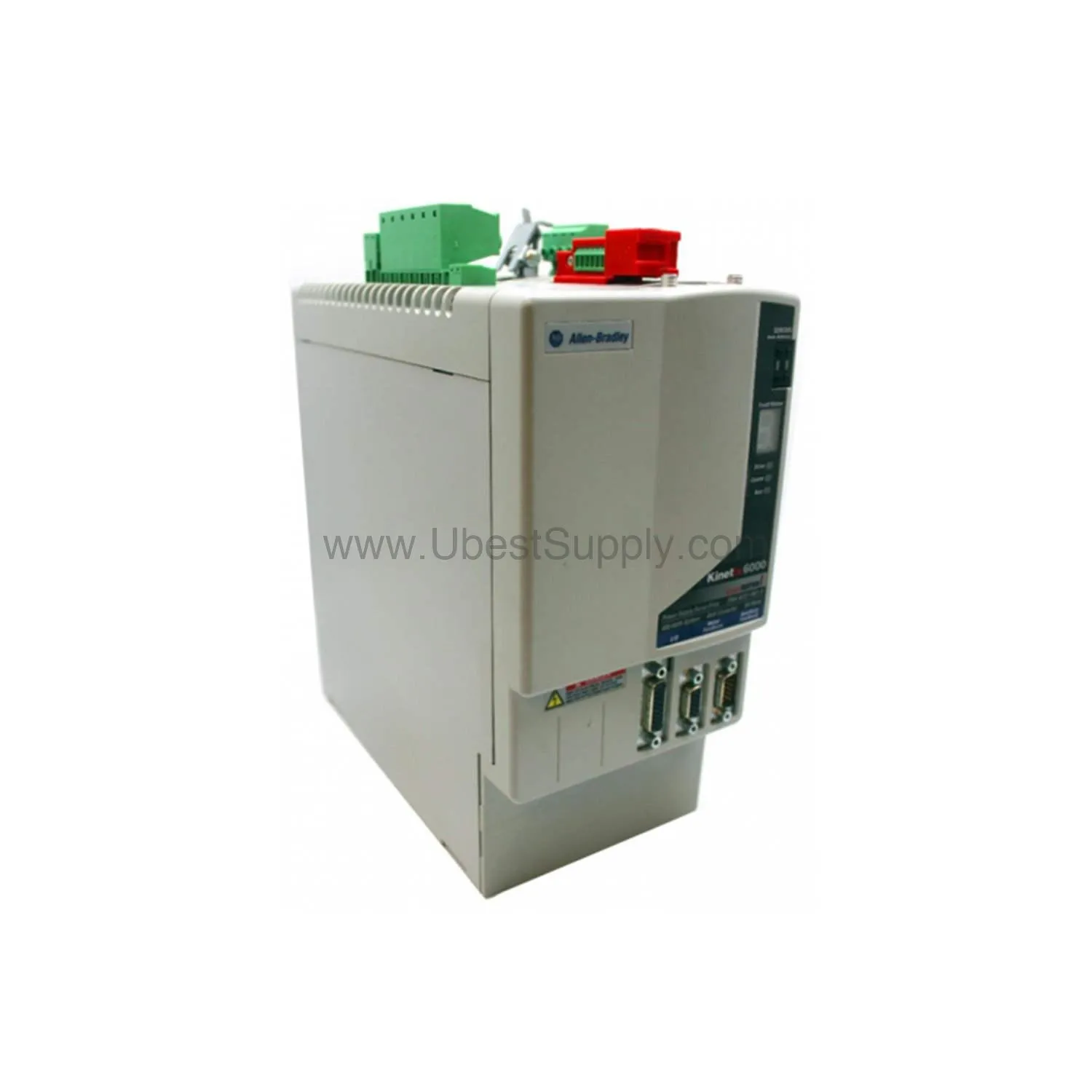

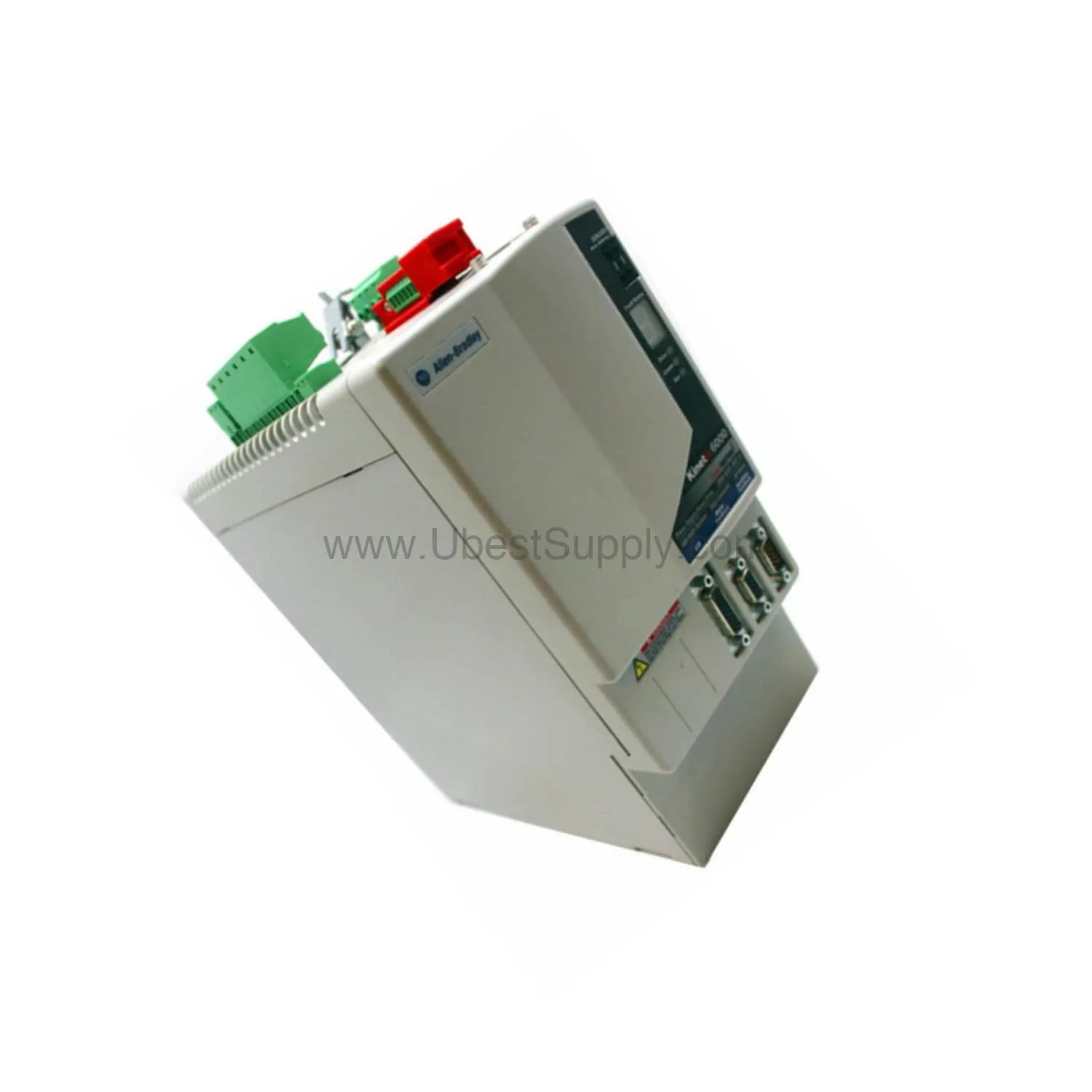

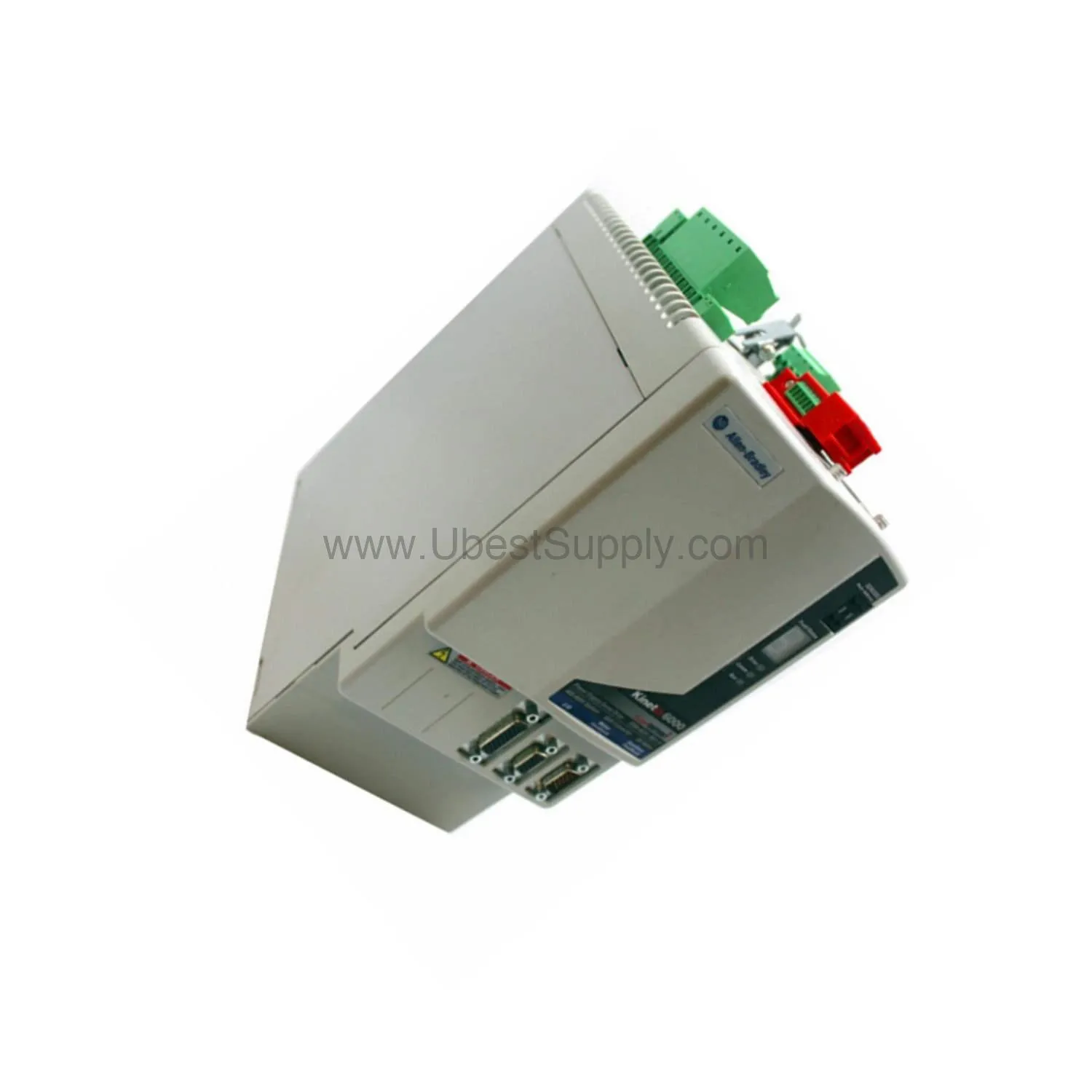

The 2094-BC02-M02-S is an Allen-Bradley Kinetix 6000 Integrated Axis Module (IAM) designed for 400 Volt Class applications. This module delivers high performance with continuous output current to bus of 22.6 A and peak output current to bus of 45.2 A for series A and 56.4 A for series B, C, and D drives. It features an efficiency of 97% and a short-circuit current rating of 200,000 A (rms) symmetrical. The module includes Safe-Torque Off functionality for enhanced safety.

Technical Specifications Analysis

The 2094-BC02-M02-S operates with an AC input voltage of 324 to 528 Volts RMS 3 Phase (360 to 480 Volts nom) and an AC input frequency of 47 to 63 Hertz. The nominal RMS AC input current is 24.0 Amps, with a maximum inrush current of 22.0 Amps. For common bus follower configurations, the DC input voltage ranges from 458 to 747 Volts, and the DC input current is 22.6 Amps. The internal shunt resistor is 115 Ohms, supporting continuous power of 50 Watts and peak power of 5.6 Kilowatts. The module weighs 11.2 pounds (5.08 kilograms) and is manufactured by Rockwell Automation.

Application Scenarios & Usage Methods

This IAM is ideal for high-speed packaging lines where precise motion control and rapid acceleration are critical. Use the 2094-BC02-M02-S in a common bus configuration to share regenerative energy across multiple axes, reducing energy costs. In material handling systems, the module’s Safe-Torque Off function allows safe maintenance without disconnecting power. For best results, pair it with a 2094-BM02-S Axis Module.

Installation Guide & Packing List

Mount the module in a clean, dry cabinet with adequate ventilation. Ensure the AC input voltage matches the 324 to 528 Volts RMS 3 Phase range. Use the recommended Bussmann FNQ-R-10 (10 Amps) or FNQ-R-7.5 (7.5 Amps) fuse for branch circuit protection. The package includes the 2094-BC02-M02-S module and a user manual. Verify all connections before powering up.

Purchasing Advice

When selecting the 2094-BC02-M02-S, confirm your drive series (A, B, C, or D) to ensure peak current compatibility. For series B, C, and D drives, the peak output current to bus is 56.4 A, while series A supports 45.2 A. Petro Auto Tech offers genuine Allen-Bradley modules with fast shipping and expert support. Order with confidence for your Kinetix 6000 system.

Repair & Maintenance Tips

Periodically inspect the module for dust buildup on heat sinks and fans. Check the internal shunt resistor (115 Ohms) for signs of overheating. Store the module in a static-safe environment when not in use. Monitor power dissipation levels: 36 W at 20% rated output, up to 75 W at 100% rated output. Replace fuses only with the specified types to maintain short-circuit protection.

Frequently Asked Questions (FAQs)

Q: What is the AC input voltage range for the 2094-BC02-M02-S?

A: The AC input voltage is 324 to 528 Volts RMS 3 Phase, with a nominal range of 360 to 480 Volts.

Q: What is the efficiency of this module?

A: The 2094-BC02-M02-S has an efficiency of 97%.

Q: Does this module support Safe-Torque Off?

A: Yes, the 2094-BC02-M02-S includes Safe-Torque Off functionality.

Q: What is the weight of the 2094-BC02-M02-S?

A: The module weighs 11.2 pounds (5.08 kilograms).

Q: What fuses are compatible with this drive?

A: Compatible fuses include the Bussmann FNQ-R-10 (10 Amps) and FNQ-R-7.5 (7.5 Amps).
