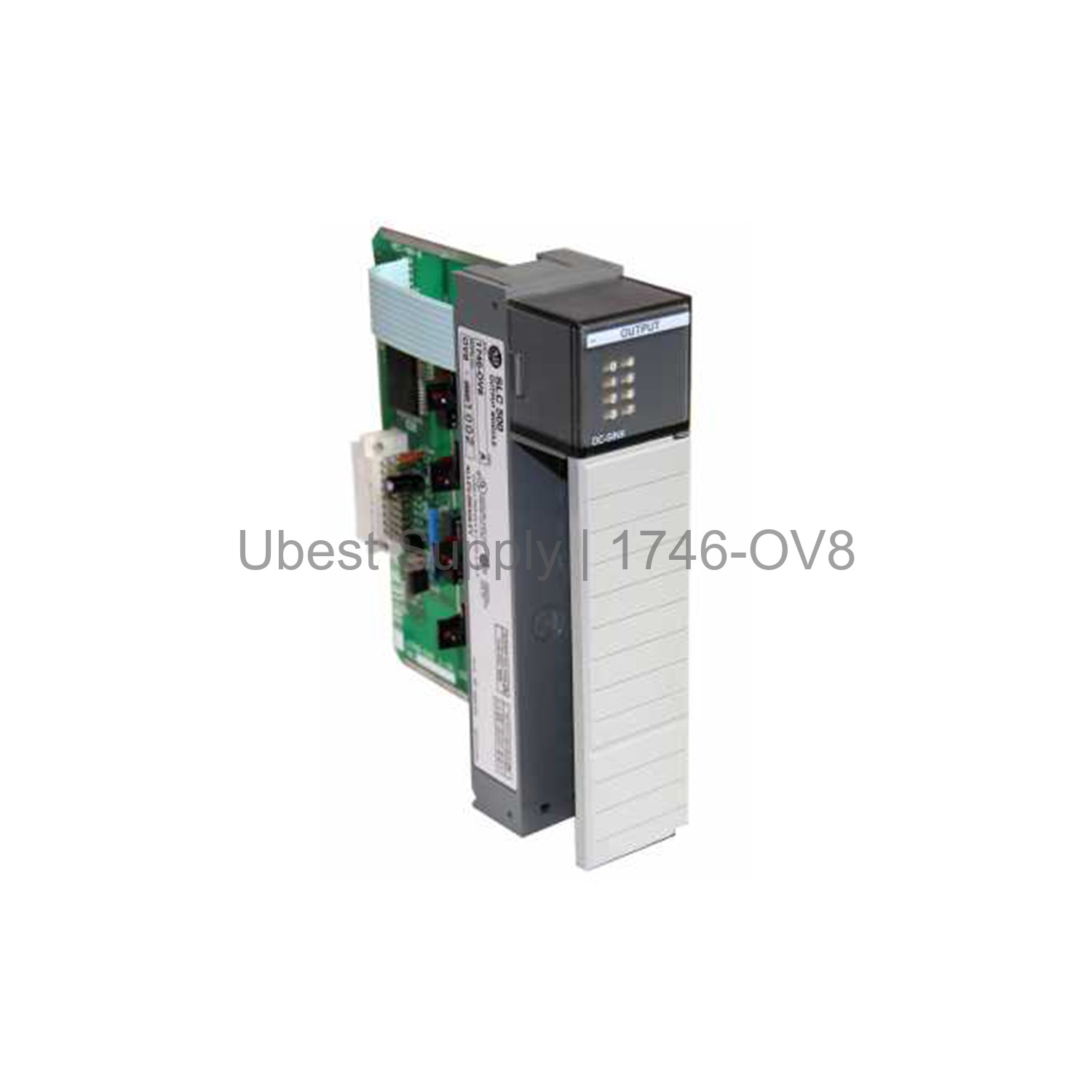

Discrete Output Module Allen-Bradley 1746-OV8 SLC 500 8 Sink Outputs

Product Overview

The Allen-Bradley 1746-OV8 is a 24VDC output module. It belongs to the SLC 500 series. This module offers 8 sink outputs. It handles high current applications well. The output voltage range is 10 to 50 VDC. Each point delivers 1.0 A at 30 °C. The module supports 8.0 A total at 30 °C. Signal delay is very fast. ON delay is 0.1 ms. OFF delay is 1.0 ms. This module works in tough environments. It operates from 0 to 60 °C. Storage range is -40 to 85 °C. It carries UL and CE certifications. The 1746-OV8 is a reliable choice for control systems.

Application Scenarios

Use this module in industrial automation. It controls solenoids and motor starters. It works well for valve actuation. Use it for indicator lights and relays. It fits in SLC 500 chassis. It suits factory floor environments. It handles high current loads safely. This module is ideal for discrete control. It supports fast switching tasks. It performs in demanding conditions.

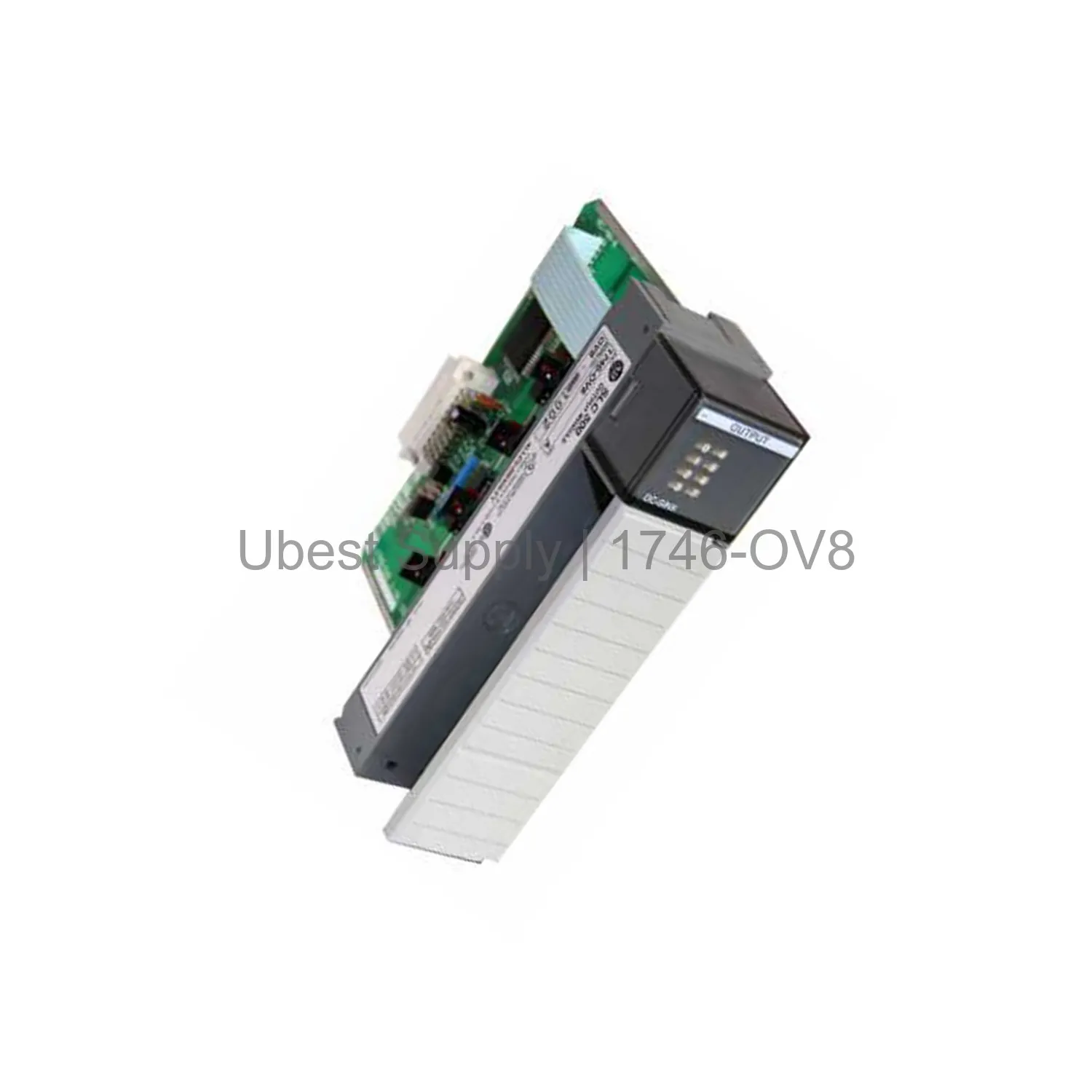

Technical Specifications

This module has one group of outputs. It uses 135 milliamps from the backplane. Continuous output per point is 1.0 A at 30 °C. It drops to 0.50 A at 60 °C. Module current is 8.0 A at 30 °C. It drops to 4.0 A at 60 °C. Step response is 60 milliseconds in. It is 2.5 milliseconds out. Humidity range is 5 to 95 percent. It is Class I, Division 2 approved. The module is C-Tick marked. It is CE marked for all directives.

Installation & Maintenance Guide

Install the module in a SLC 500 chassis. Ensure power is off before insertion. Align the module with the slot. Push firmly until it locks. Connect wiring per the manual. Use proper wire sizes for current. Keep the module within temperature limits. Clean with a dry cloth only. Check connections periodically. Replace if damage is visible.

Packing List

One Allen-Bradley 1746-OV8 module. One installation guide. No additional accessories included.
