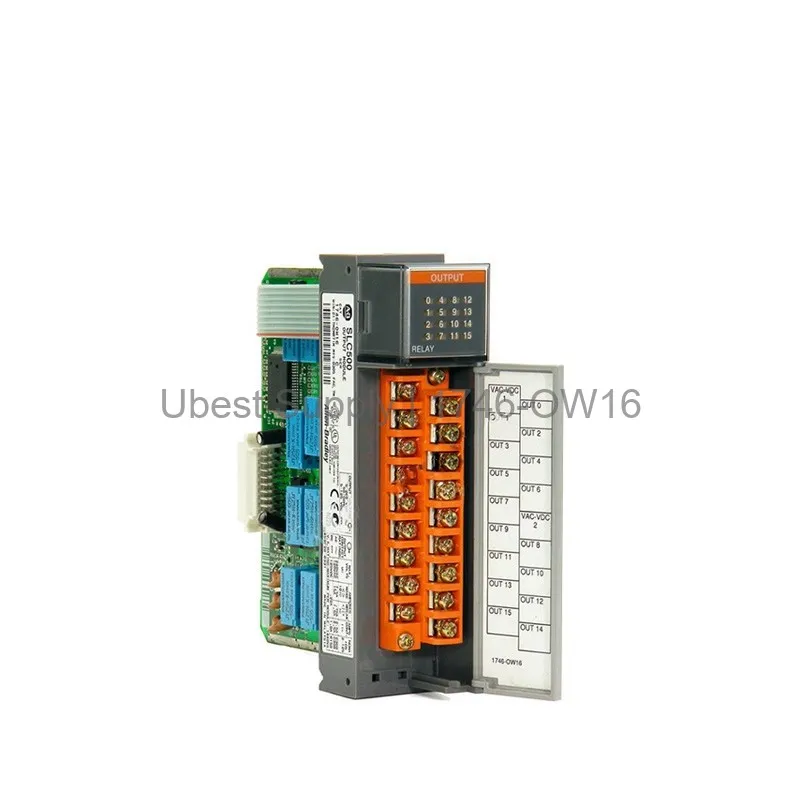

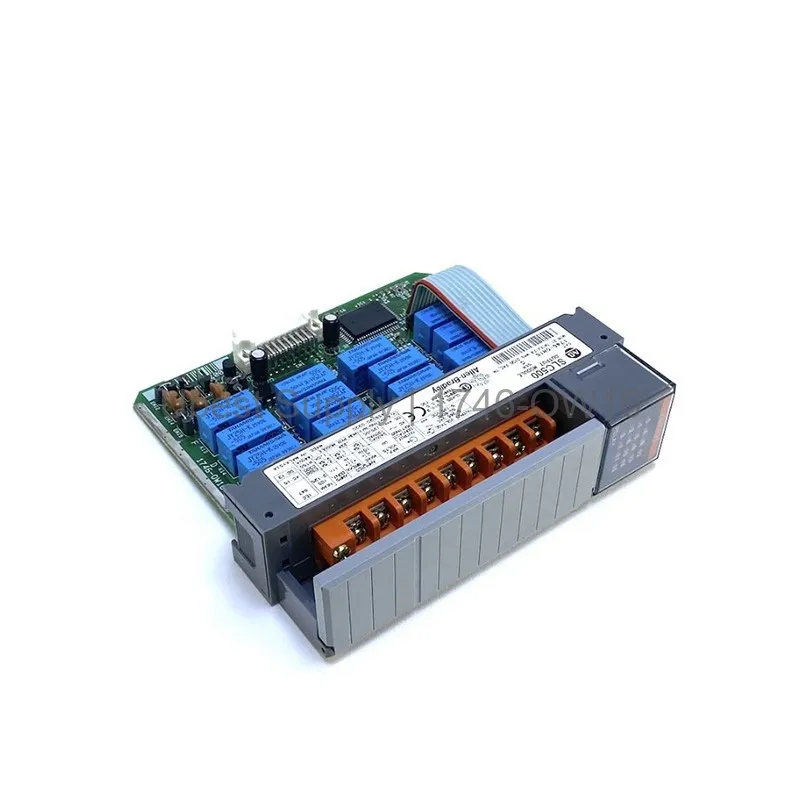

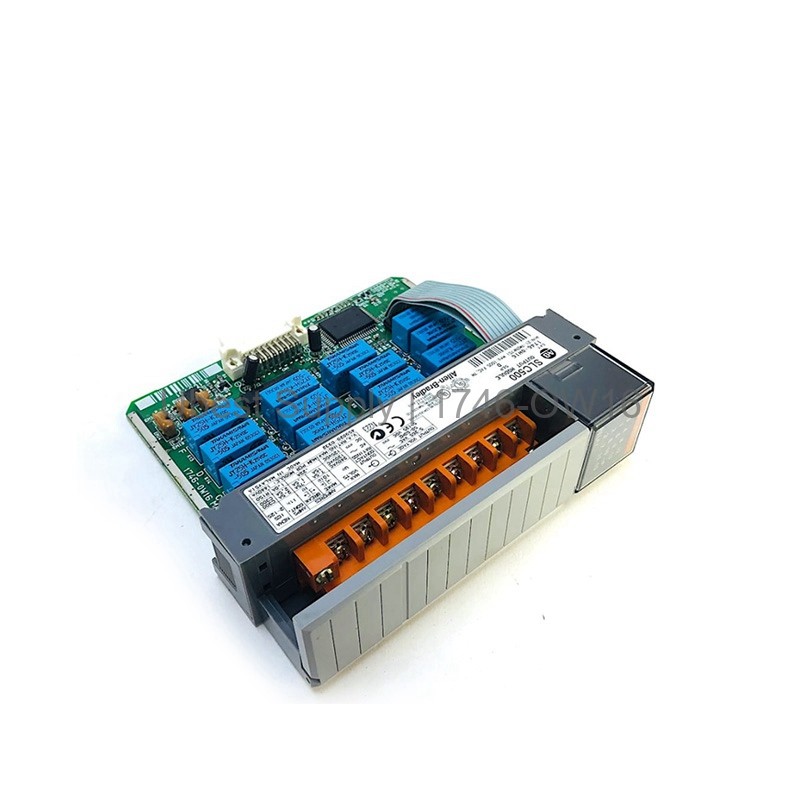

Discrete Output Module Allen-Bradley 1746-OW16 SLC 500 16-Point

Product Overview

The Allen-Bradley 1746-OW16 is a digital contact output module. It belongs to the SLC 500 series. This module provides 16 output points. It uses N.O. relay contact technology. Each group has 8 points with a common. The module operates on 5-265 Volt AC. It also works on 5-125 Volts DC. This makes it very flexible for different applications. The backplane current draw is 170-180 milliamps. It is a robust solution for industrial control.

Application Scenarios

This module is ideal for many industrial tasks. Use it for switching motors and lights. It works well for solenoid valves and contactors. The relay outputs handle both AC and DC loads. This reduces the need for extra components. Factories and process lines benefit from its design. It integrates easily into existing SLC 500 systems. The 16 points offer good density for medium-sized panels.

Technical Specifications

The 1746-OW16 has 16 N.O. relay contact outputs. It comes in 2 isolated groups. Each group has 8 points. The operating voltage is 5-265V AC or 5-125V DC. The maximum current per output is 1.5 amps at 120V AC. It is 1.2 amps at 24V DC. The signal delay is 10.0 ms on and 10.0 ms off. Step response is 60 ms in and 2.5 ms out. The module uses 170-180 mA from the backplane.

Installation & Maintenance Guide

Install the module into any SLC 500 chassis. Ensure the backplane connector is clean. Secure the module with the locking tab. Wire the outputs to the terminal block. Use proper wire sizes for the current load. Check all connections for tightness. Test the module with a low voltage first. Replace the module if it shows fault signs. Keep the area free of dust and moisture.

Packing List

Your order includes one Allen-Bradley 1746-OW16 module. It also contains the installation manual. A quick reference guide is provided. No other accessories are included. The module is packed in anti-static material. We ship via Fedex, UPS, or DHL.
