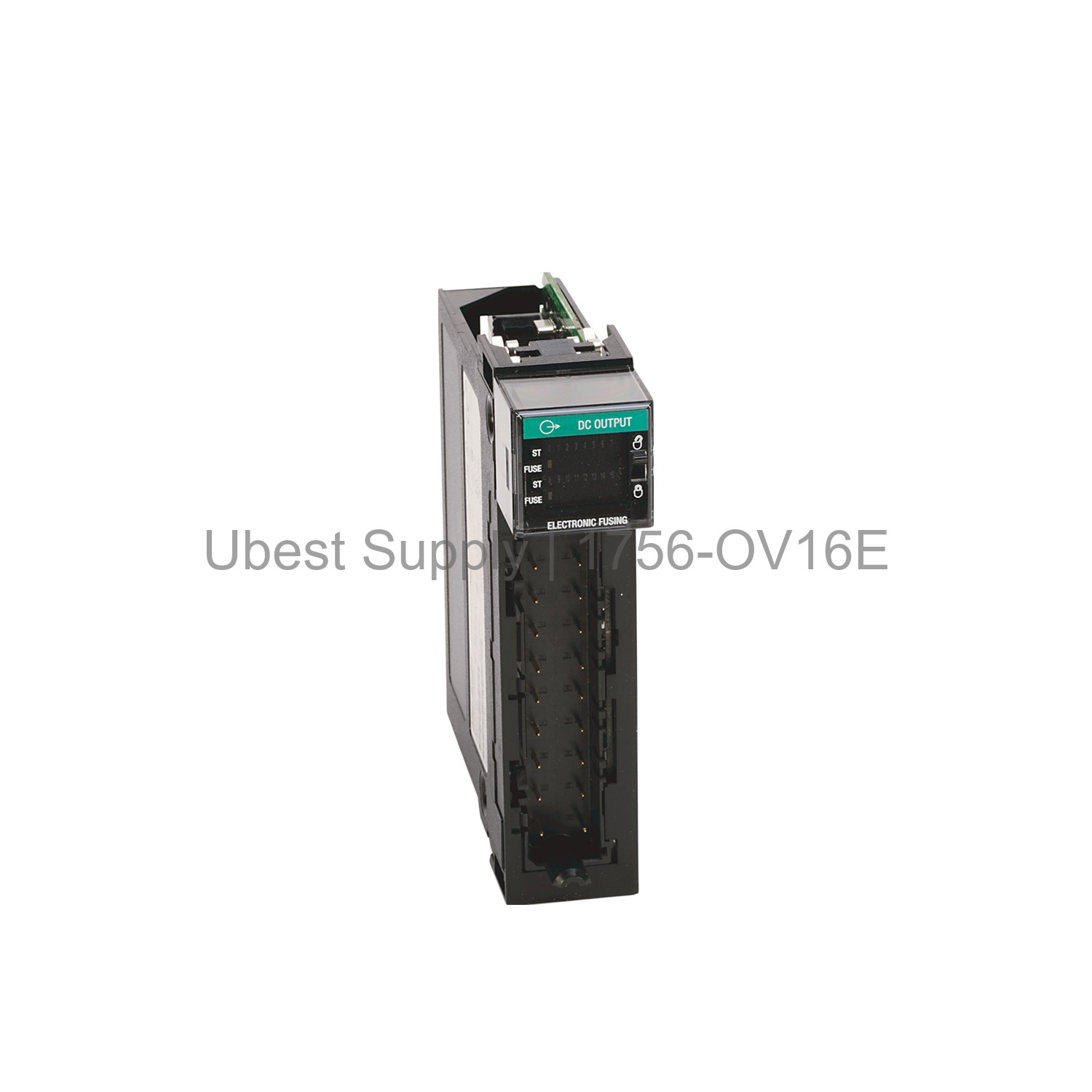

Discrete Output Module Allen-Bradley 1756-OV16E Electronically Fused

Product Overview

The Allen-Bradley 1756-OV16E is a high-performance output module. It belongs to the ControlLogix family. This module provides 16 sinking outputs. It uses electronic fusing for protection. Each point can handle 1 Amp at 60 Celsius. The operating voltage range is 10-30 Volts DC. It is ideal for industrial automation tasks. This module ensures reliable switching. It reduces downtime with built-in diagnostics.

Application Scenarios

This module is perfect for factory automation. It controls valves, motors, and indicators. Use it in material handling systems. It works well in packaging machinery. The 1756-OV16E suits discrete manufacturing. It also fits process control environments. Its electronic fusing protects against overloads. This makes it safe for critical applications. Use it with 1756-TBNH or 1756-TBSH terminal blocks.

Technical Specifications

The module has 16 output points. It operates at 12-24 Volts DC sink. The maximum current per point is 1 Amp. The aggregate current is 8 Amps at 60 Celsius. Power dissipation is 6.72 Watts. Backplane current is 210 milliamps at 5 Volts. Signal delay from OFF to ON is 75μs. Signal delay from ON to OFF is 360μs. Isolation voltage is 50 Volts continuous. It has basic insulation at 1350V AC for 2s. The operating temperature is 0-60 Celsius. Humidity range is 5-95% non-condensing.

Installation & Maintenance Guide

Install the module into a ControlLogix chassis. Use a 1756-TBNH or 1756-TBSH terminal block. Ensure the backplane power is off. Secure the module with the locking mechanism. Wire outputs according to the manual. Do not exceed 1 Amp per point. Keep the enclosure free of debris. Check the module status indicators regularly. Replace the module if the fuse trips. Use only recommended cables and accessories.

Packing List

1 x Allen-Bradley 1756-OV16E module. 1 x 1756-TBNH terminal block (optional). 1 x 1756-TBSH terminal block (optional). 1 x Installation manual. 1 x Product documentation. No additional accessories included. Shipping is via Fedex, UPS, or DHL.
