106769-02 Bently Nevada Interconnect Cable Assembly — Type 02

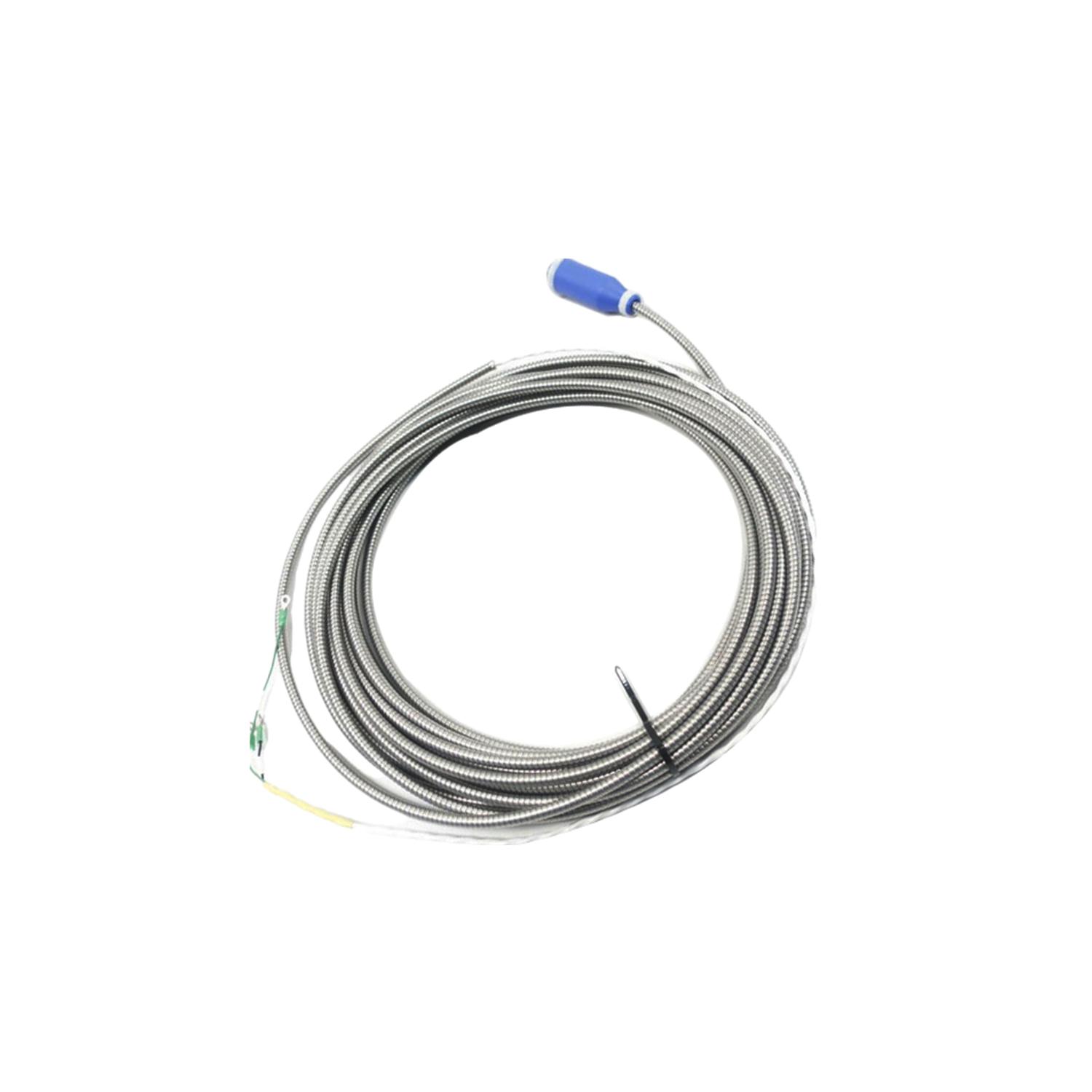

What Is the 106769-02 Bently Nevada Interconnect Cable?

When reliable signal transmission is critical for your monitoring system, the 106769-02 from Bently Nevada offers a robust solution. This interconnect cable serves as a terminal housing, providing a convenient interface between the transducer signal cable and the monitor signal cable. With a length of 2 feet (0.6 meters) and a weight of 0.5 kg, it is designed for easy integration into existing setups. Manufactured in the U.S.A., this cable ensures quality and consistency for industrial automation applications.

Key Features and Technical Specs

• Length: 2 feet (0.6 meters) for compact installations.
• Weight: 0.5 kg for lightweight handling.
• Type: Interconnect cable with terminal housing for signal interface.
• Manufacturer: Bently Nevada, a trusted name in industrial monitoring.

One distinctive aspect of the 106769-02 is its terminal housing design, which simplifies wiring and reduces signal loss. This feature is especially valuable in environments where accurate data transmission is essential for machinery health monitoring.

Applications and Use Cases

In industrial settings, the 106769-02 excels in connecting vibration sensors to monitoring systems. For example, in a predictive maintenance program, this cable ensures that transducer signals reach the monitor without degradation. Additionally, it is ideal for retrofitting older Bently Nevada systems where a reliable interface is required. By using this interconnect cable, engineers can maintain signal integrity over short distances, reducing troubleshooting time.

Installation and Setup

Installing the 106769-02 is straightforward. First, ensure the transducer and monitor cables are properly terminated. Then, connect the cable to the terminal housing, securing it with the provided hardware. Verify that the cable length of 2 feet (0.6 meters) is adequate for your setup to avoid strain. For best results, follow the manufacturer's guidelines for cable routing and avoid sharp bends that could damage the cable.

Maintenance and Reliability

To maximize the lifespan of the 106769-02, inspect the cable periodically for wear or damage. Check connections for tightness and signs of corrosion. In harsh environments, consider using protective conduit. Regular maintenance helps prevent signal interruptions and extends the cable's service life, reducing overall costs.

Compatibility and Integration

The 106769-02 is designed to work with Bently Nevada monitoring systems that use standard transducer and monitor signal cables. It is compatible with various Bently Nevada modules, ensuring seamless integration. For specific compatibility details, refer to the system documentation or contact Petro Auto Tech.

Frequently Asked Questions about 106769-02

Q: What is the length of the 106769-02 cable?

A: The 106769-02 has a length of 2 feet (0.6 meters).

Q: What is the weight of the 106769-02?

A: The cable weighs 0.5 kg.

Q: Where is the 106769-02 manufactured?

A: It is made in the U.S.A.

Q: What is the primary function of the 106769-02?

A: It serves as a terminal housing to interface between transducer and monitor signal cables.

Product Support and Availability

The 106769-02 is in stock and ready to ship from Petro Auto Tech. As a reliable supplier of industrial automation parts, Petro Auto Tech ensures fast delivery and customer support. Contact them for pricing and availability.
