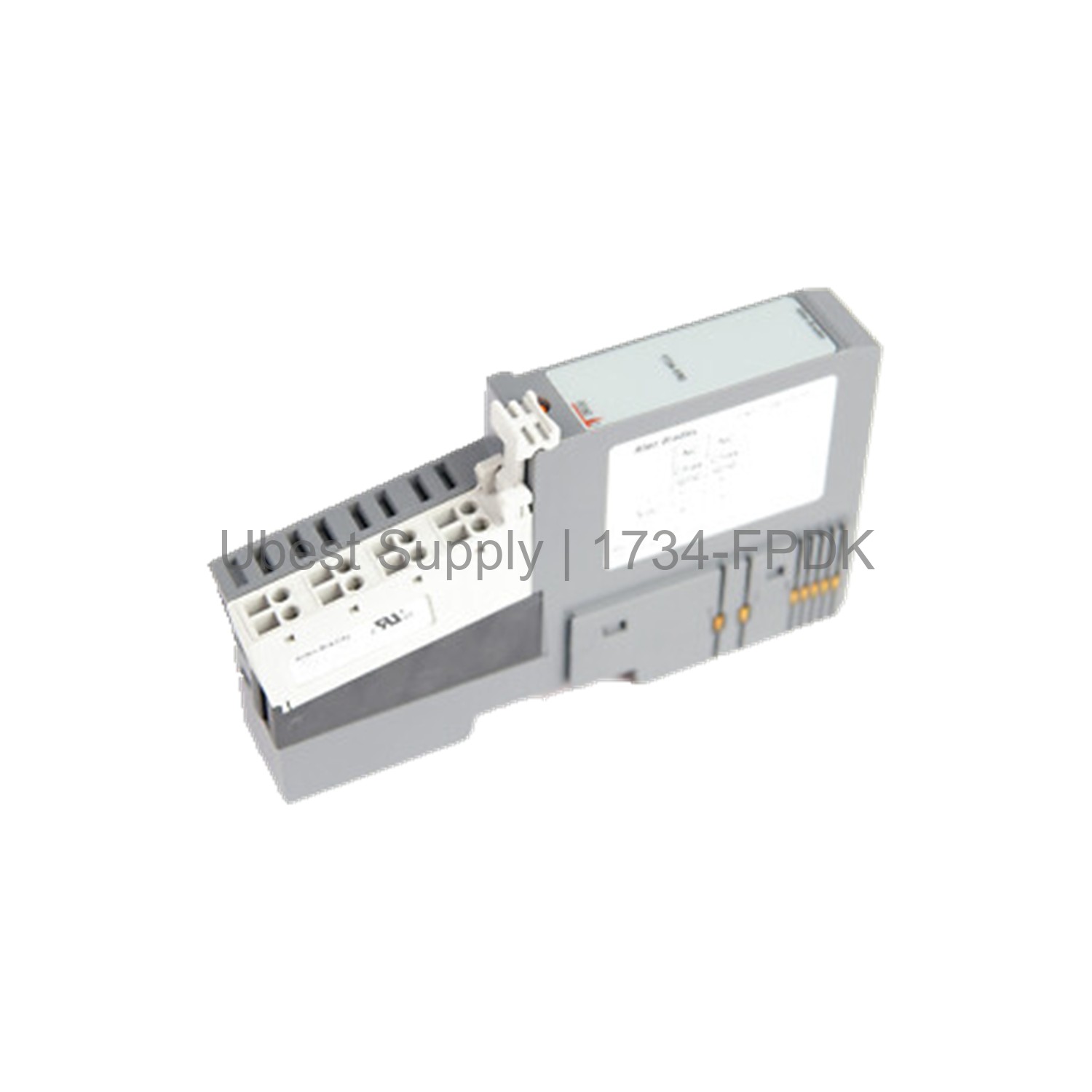

Distributor Module Allen-Bradley 1734-FPDK Point I/O

Product Overview

The 1734-FPDK from Allen-Bradley is a distributor module for Point I/O systems. It manages input signals efficiently. This unit supports AC and DC input voltages. It offers flexibility for various setups. The module handles up to 10A of current. It is ideal for robust industrial applications.

Application Scenarios

Use the 1734-FPDK in automated manufacturing. It works well for signal distribution in control panels. It suits environments with mixed AC/DC inputs. Its conformal coating protects against moisture and dust. The module fits in DIN rail cabinets. It is common in factory automation and process control.

Technical Specifications

Electrical Characteristics

Nominal AC input voltage is 120/240V AC. Nominal DC input voltage is 12/24V DC. DC input range is 10-28.8V DC. Maximum input current is 10A.

Environmental Ratings

Operating temperature ranges from -4 to 131°F. Nonoperating temperature goes from -40 to 185°F. Non-condensing relative humidity stays between 5% and 95%.

Mechanical Details

The module mounts on a DIN rail. It has a conformal coating. Screw torque for terminal base is 0.6 Nm. This ensures secure wiring.

Installation & Maintenance Guide

Mount the module on a standard DIN rail. Use the terminal base for connections. Tighten screws to 0.6 Nm. Ensure input voltage matches requirements. The module operates in wide temperature ranges. It needs minimal maintenance. Keep the environment within humidity limits.

Packing List

One Allen-Bradley 1734-FPDK distributor module. One terminal base. Installation manual available. Shipping via Fedex, UPS, or DHL.
