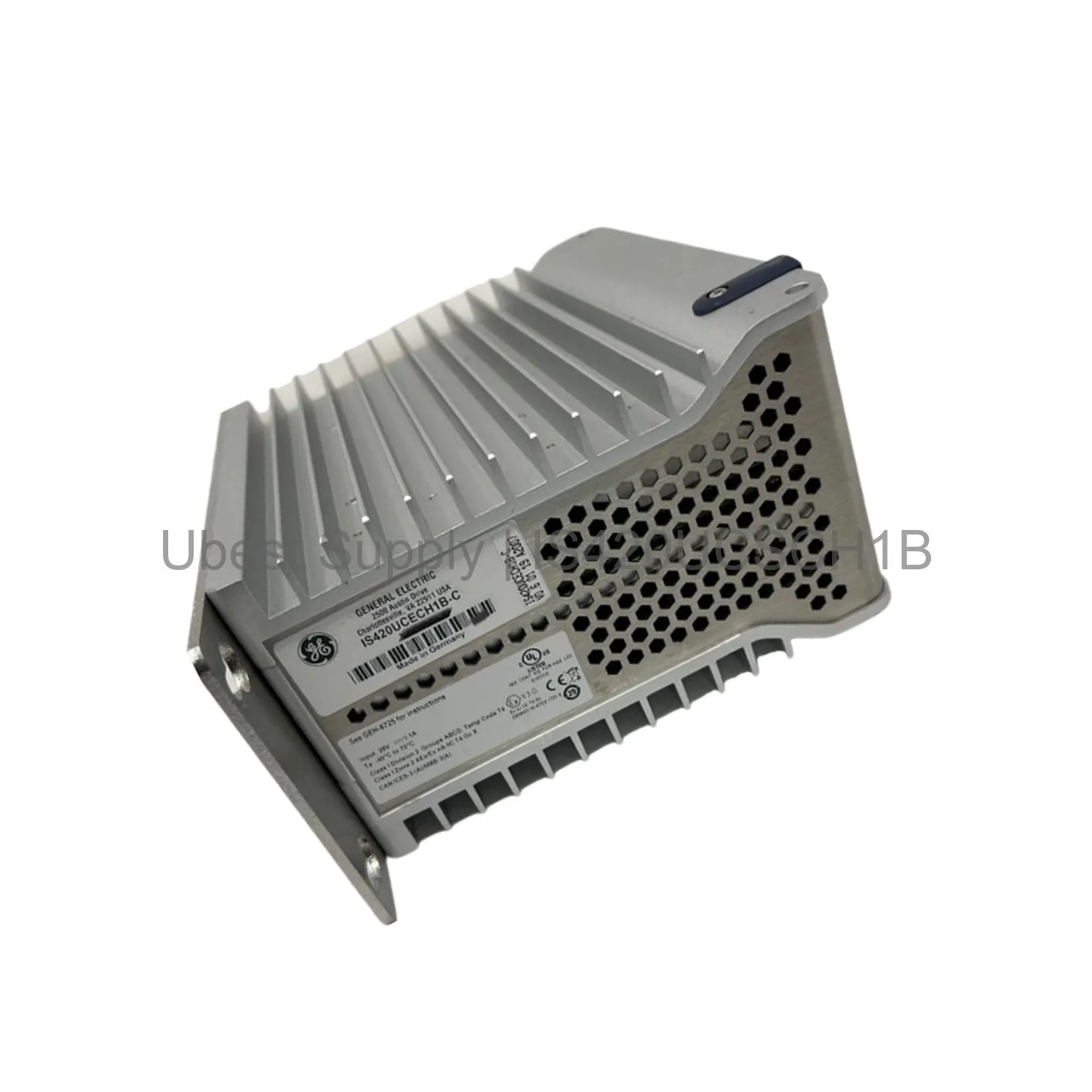

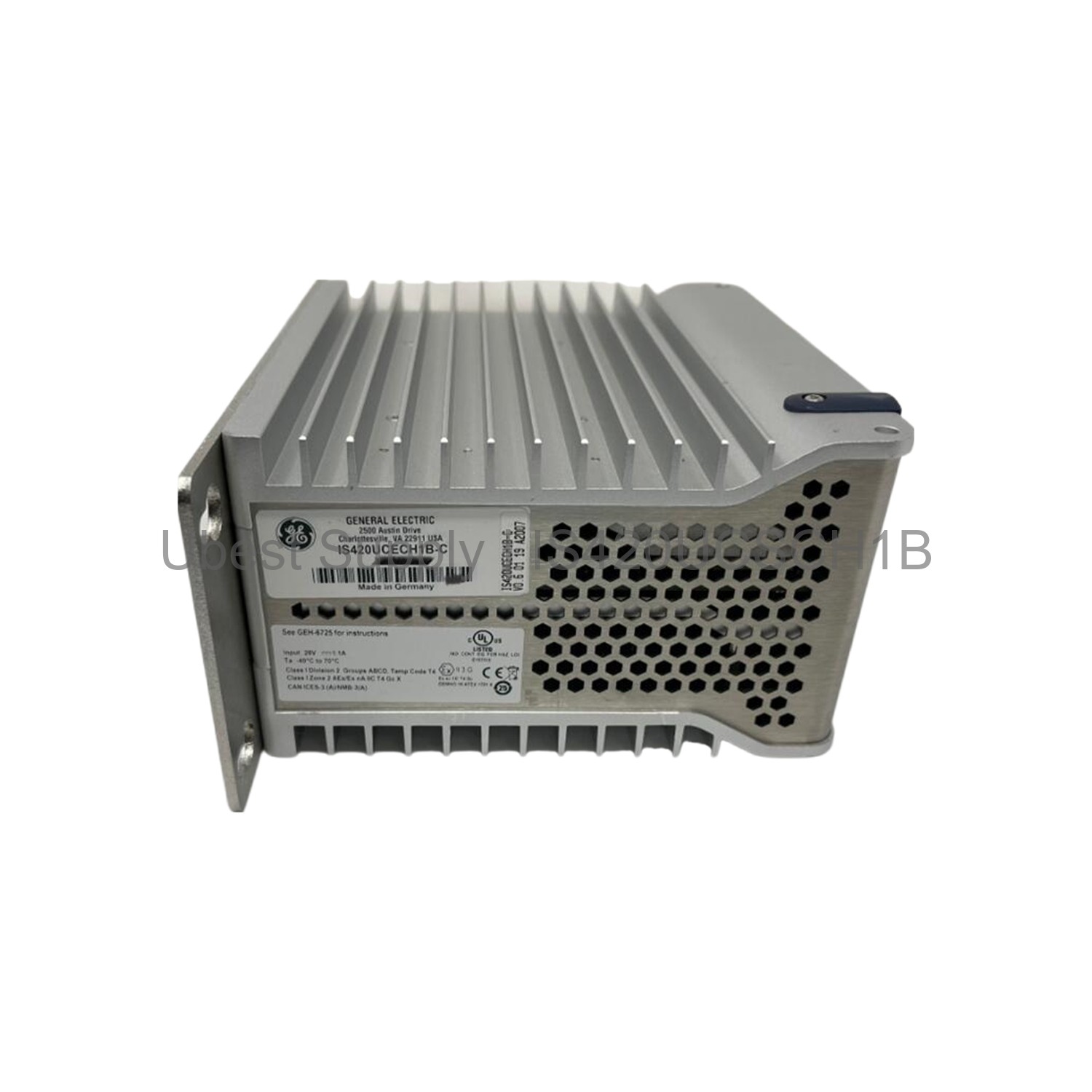

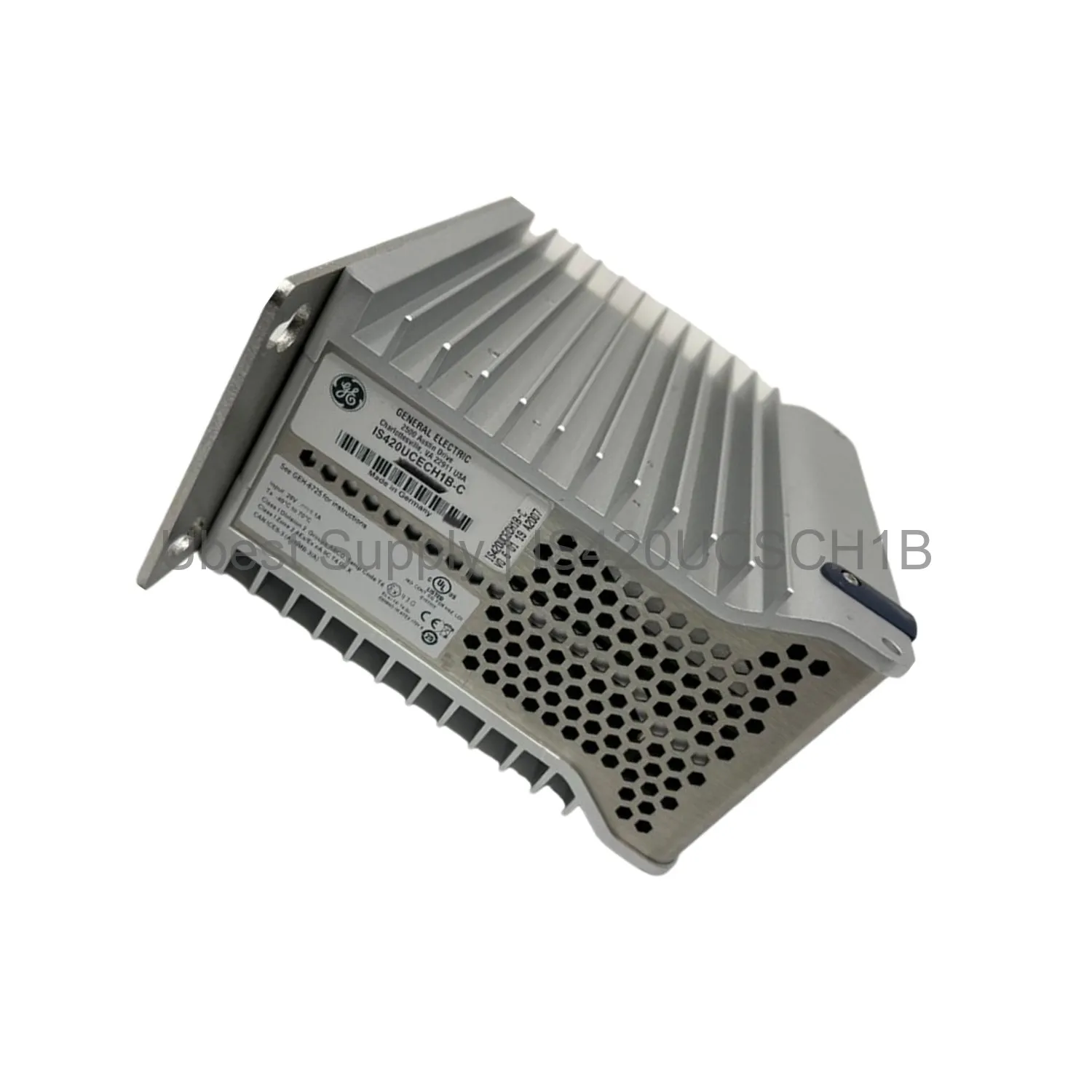

GE IS420UCSCH1B Mark VIe Controller Non-Safety

Product Overview

The Mark VIe controller is a non-safety device. It is designed for industrial control applications. This model connects to safety systems via UDH Ethernet. It uses the EGD protocol for reliable data exchange. It can act as a simple communication gateway. It provides data feedback through OPC UA Server. It also supports Modbus Master signals. This makes it very flexible for various needs.

Application Scenarios

This controller works in turbine control systems. It is ideal for non-SIF control loops. It can bridge data between safety and non-safety zones. Use it as a gateway for legacy equipment. It helps modernize plant communication networks. It fits well in power generation facilities. It also works in oil and gas applications. The device improves system data visibility.

Technical Specifications

The IS420UCSCH1B uses a powerful processor. It supports high-speed communication via Ethernet. The UDH port handles EGD protocol efficiently. It offers OPC UA server functionality. It also acts as a Modbus Master. This allows connection to many field devices. The unit is built for harsh industrial environments. It has a compact and rugged design.

Installation & Maintenance Guide

Mount the unit on a standard DIN rail. Connect the UDH Ethernet port to the network. Configure the IP address for your system. Set up EGD exchanges with the safety controller. Enable OPC UA or Modbus features as needed. Use GE configuration tools for setup. The device requires minimal maintenance. Check the status LEDs for normal operation.

Packing List

One GE Mark VIe controller. One product documentation CD. One connector kit. No additional cables are included. The unit is packaged in an anti-static bag. It is shipped in a protective box. Shipping is via Fedex, UPS, or DHL.
