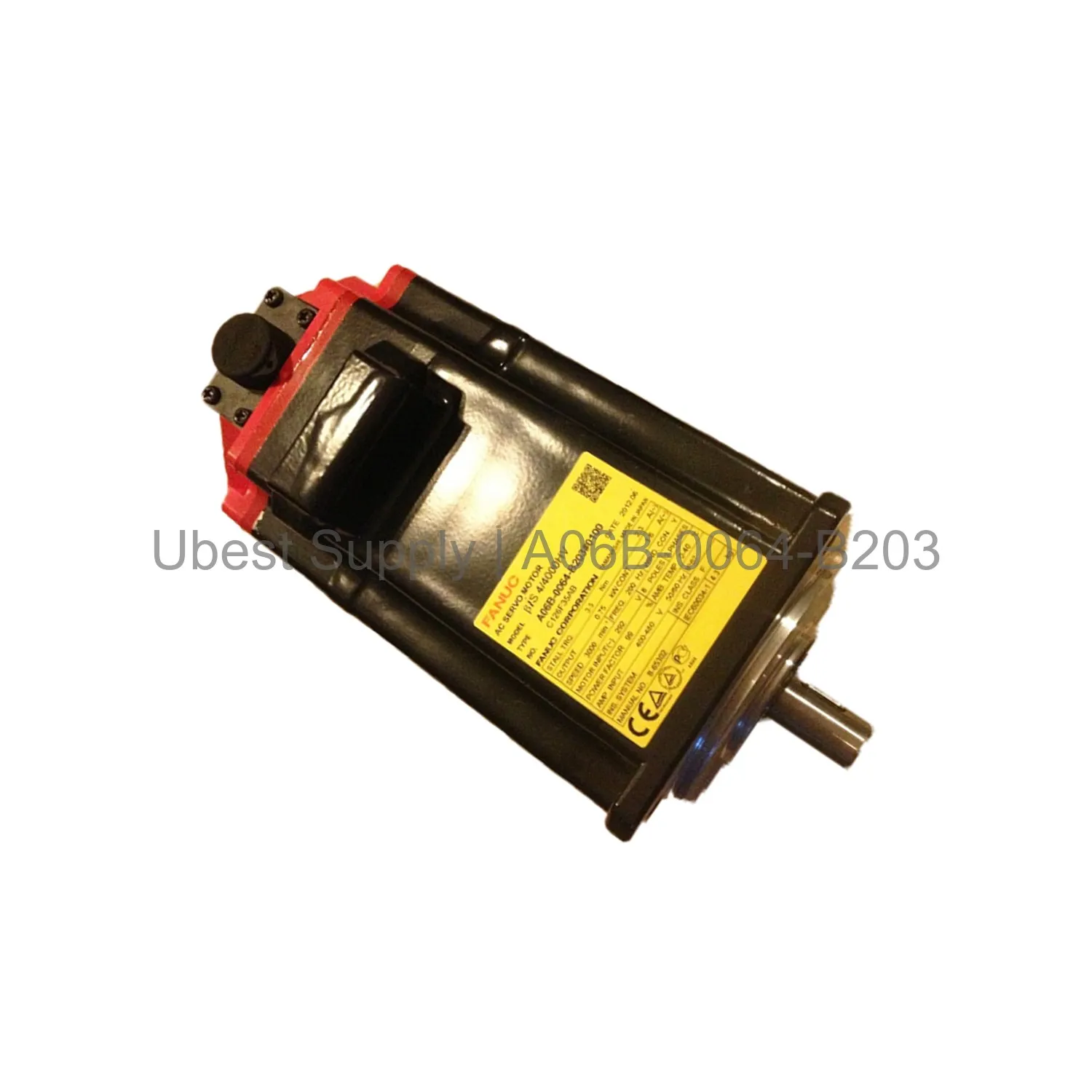

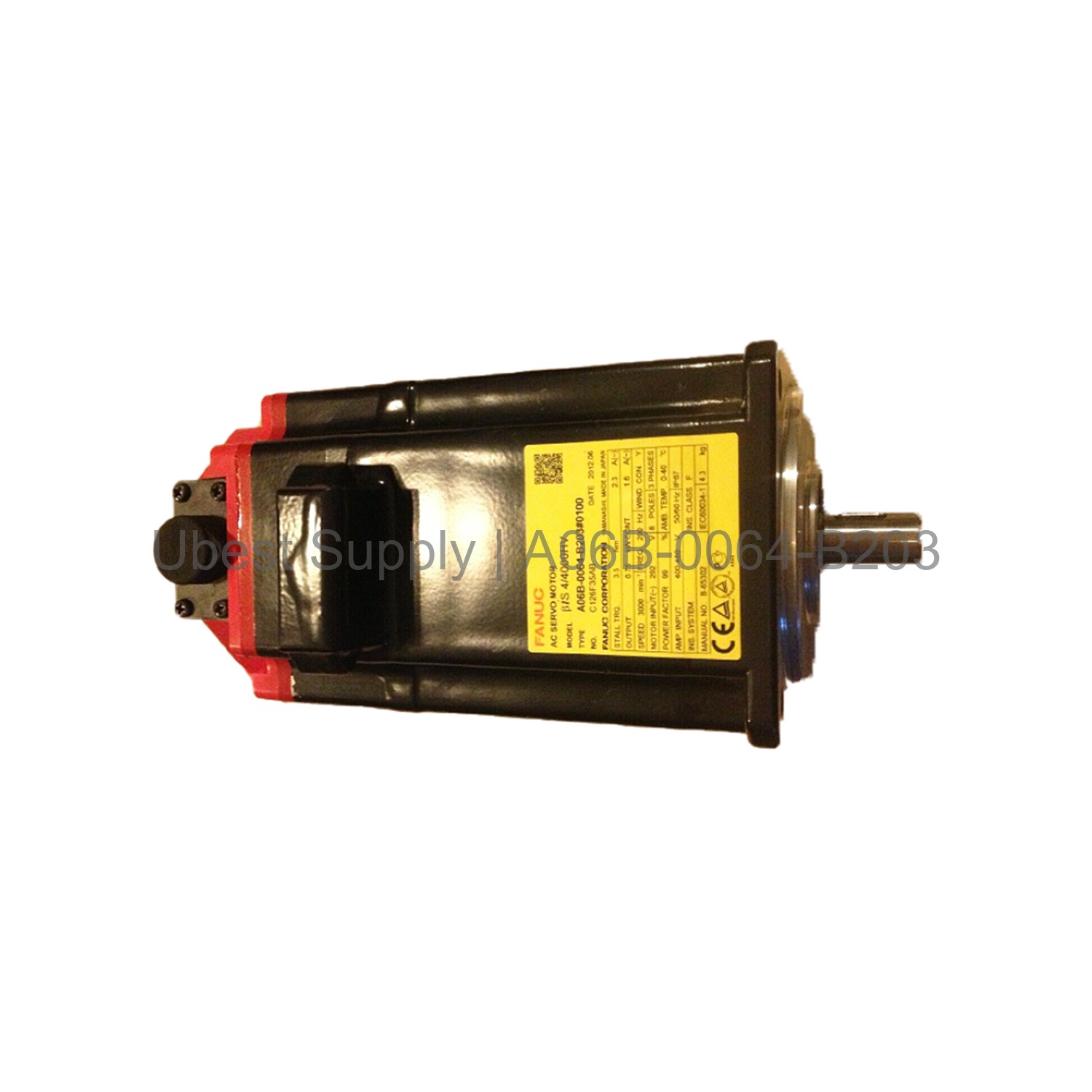

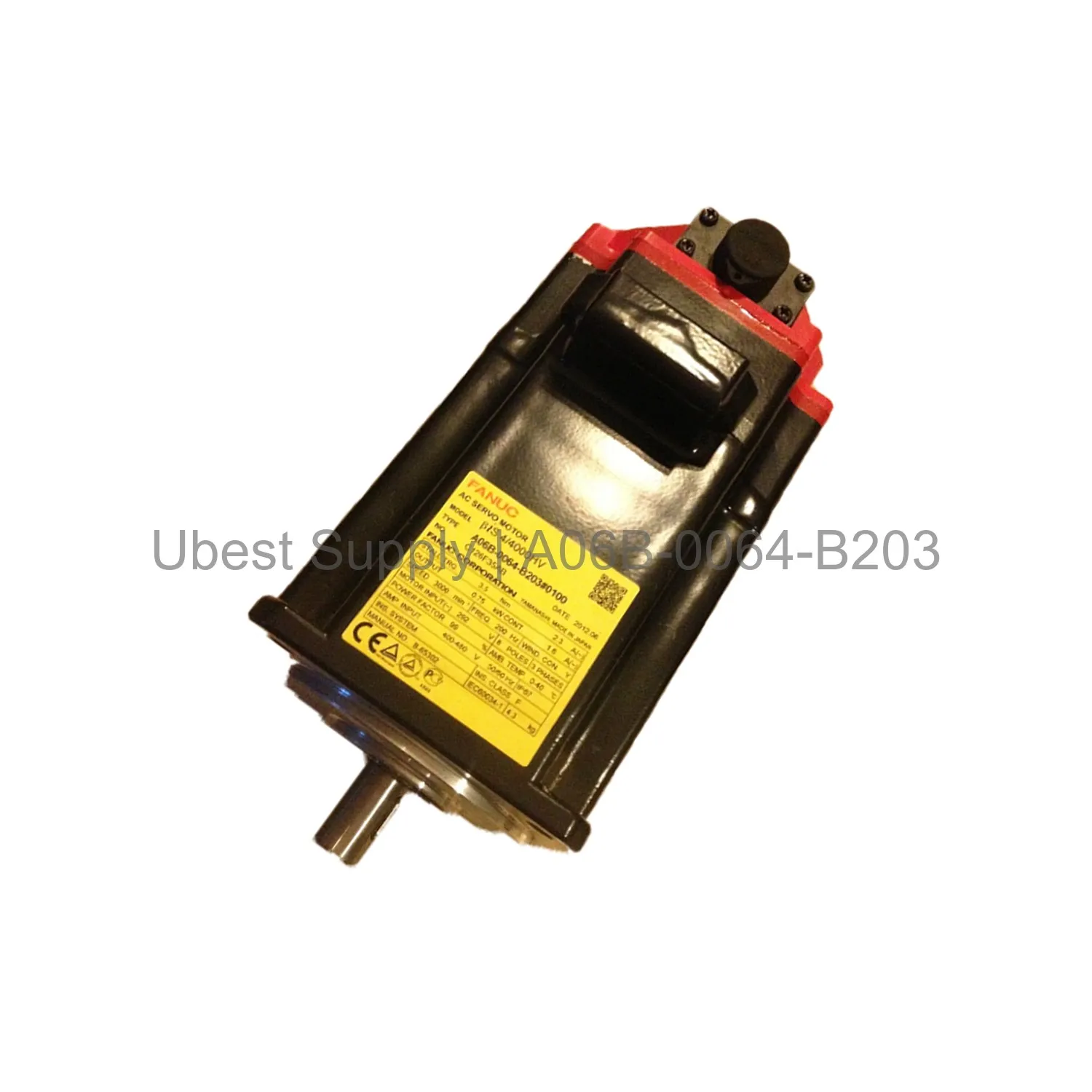

FANUC A06B-0064-B203 AC Servo Motor BIS4/4000HV IP67

Product Overview

This FANUC servo motor delivers high torque and precision. The model A06B-0064-B203 features a BIS4/4000HV design. It includes a straight shaft and keyway. The IP67 rating makes it dust-tight and waterproof. Use this AC servo motor for demanding industrial applications. It offers reliable performance for CNC machines.

Application Scenarios

This motor works in CNC milling and turning centers. It also suits robotic arms and transfer lines. The sealed IP67 housing handles coolants and washdowns. Ideal for automotive and aerospace manufacturing. Install it in high-speed spindle drives. The straight shaft and keyway ensure secure coupling.

Technical Specifications

• Model: A06B-0064-B203
• Motor Type: AC Servo Motor
• Series: BIS4/4000HV
• Shaft: Straight Shaft with Keyway
• Protection: IP67 (Sealed)
• Rated Speed: 4000 RPM (based on model HV)
• Output: High dynamic torque
• Feedback: Standard encoder (assumed)

Installation & Maintenance Guide

Mount the motor securely on a flat surface. Align the shaft with the load coupling. Use a flexible coupling to reduce stress. Tighten the keyway evenly. Connect power and feedback cables. Keep the motor clean and dry. Check seals regularly for damage. Lubricate bearings per manufacturer schedule. Ensure ambient temperature stays below 40°C.

Packing List

1x FANUC AC Servo Motor A06B-0064-B203. 1x Shaft Key. 1x Installation Manual. No additional accessories included. Ship via FedEx, UPS, or DHL. Carefully packed with anti-static foam.
