21000-16-05-00-050-03-02 | Bently Nevada 0.5m Cable Proximity Probe Housing Assembly

Introduction to the 21000-16-05-00-050-03-02

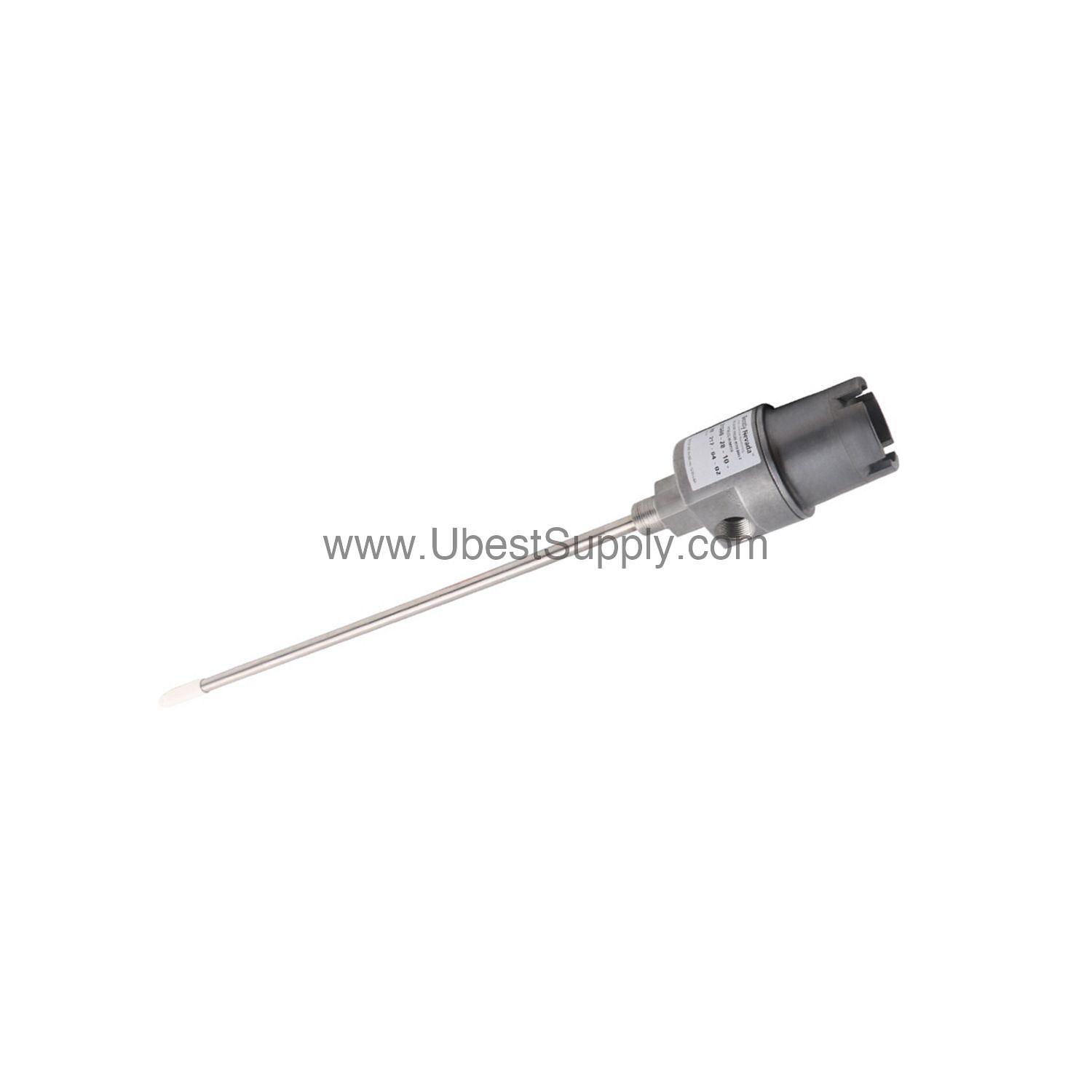

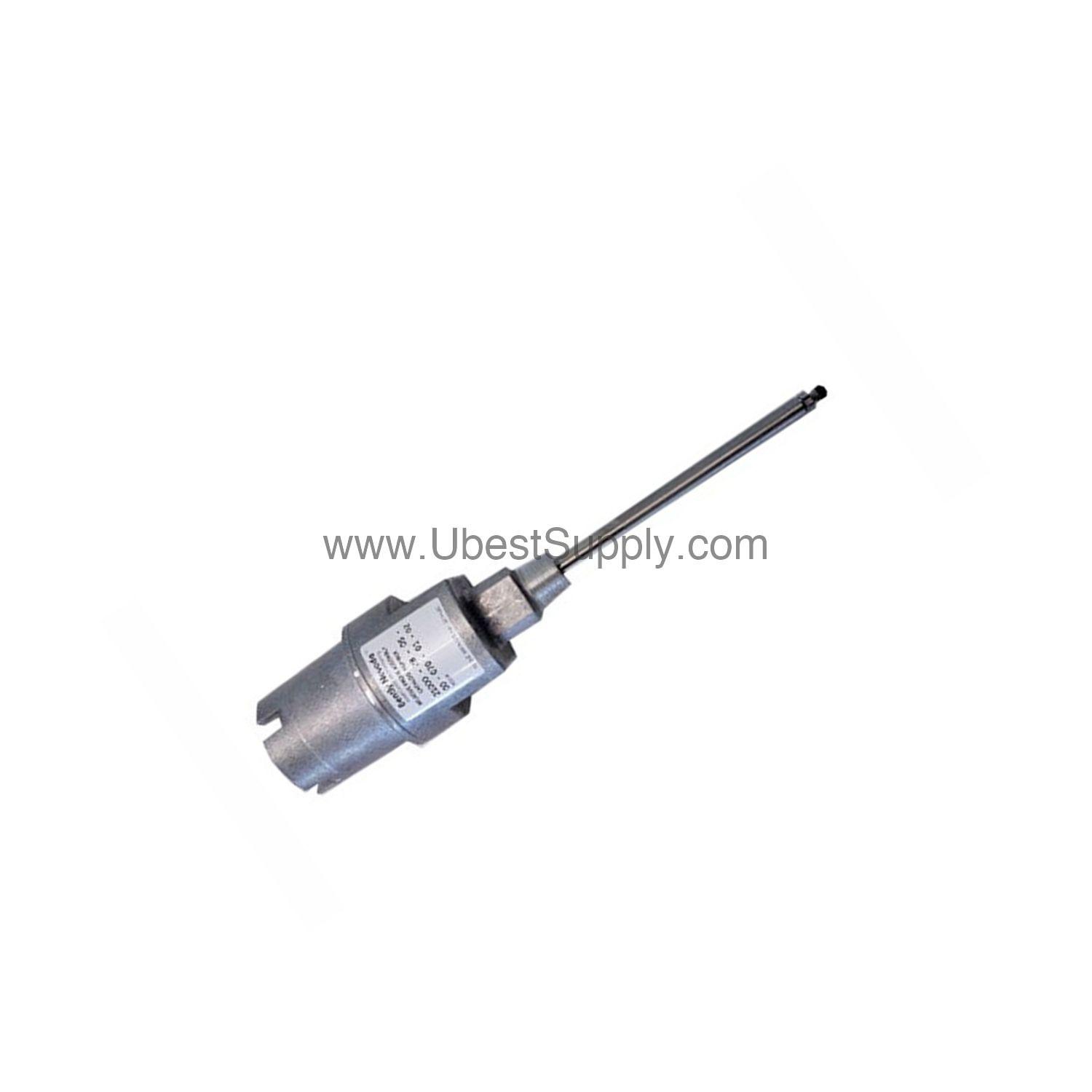

When machinery vibration threatens uptime, the 21000-16-05-00-050-03-02 from Bently Nevada provides a robust solution. This proximity probe housing assembly is designed for externally mounted probes in hazardous areas. It combines an aluminum body with a 304 stainless steel sleeve for durability. The assembly includes a 3300 XL 8 mm probe with a 0.5 m cable. Engineers trust this model for precise, continuous vibration measurement.

Key Features & Technical Specs

• The 21000-16-05-00-050-03-02 uses a 3300 XL 8 mm probe with connector.
• Probe cable length is 0.5 m (20 in).
• Probe penetration depth is 5.0 in.
• Fitting option includes one 3/4-14 NPT plug and one 3/4-14 to 1/2-14 NPT reducer.
• Mounting thread is 3/4-14 NPT.
• Body material is aluminum with a 304 stainless steel sleeve.
• Maximum (C) + (D) dimension is 13.5 in (34.3 mm).
• Typical weight is 1.1 kg (2.4 lb) without fittings.

A distinctive spec is the 0.5 m probe cable, which simplifies installation in tight spaces. This short cable reduces signal loss and interference, ensuring accurate data transmission.

Applications & Use Cases

This housing assembly is ideal for rotating machinery monitoring in refineries, power plants, and chemical facilities. It meets API 670 standards for externally mounted proximity probes. The CSA Type 4 enclosure rating makes it suitable for harsh, wet environments. Consequently, it helps prevent unplanned downtime by detecting shaft vibration early.

Installation & Setup

Mount the housing using the 3/4-14 NPT thread. Ensure the probe penetration depth is set to 5.0 in. Use the provided cable seal grip with grommets for cable sizes from 1/8 to 3/8 inches. Verify the O-rings are seated properly to maintain the explosion-proof seal. Always follow the manufacturer's manual for torque specifications.

Maintenance & Reliability

Inspect the housing periodically for signs of corrosion or damage. Check the cable seal grip and grommets for wear. Replace O-rings if they become brittle. Regular maintenance extends service life and ensures consistent performance. The aluminum and stainless steel construction resists corrosion in most industrial environments.

Compatibility & Integration

The 21000-16-05-00-050-03-02 works with Bently Nevada monitoring systems that accept 3300 XL 8 mm probes. It is fully compliant with API 670 standards. The CSA Type 4 enclosure rating ensures compatibility with hazardous area installations. For system integration, consult the Bently Nevada documentation.

FAQ about 21000-16-05-00-050-03-02

Q: What probe is included with this housing assembly?

A: The assembly includes a 3300 XL 8 mm probe with connector.

Q: What is the cable length?

A: The probe cable length is 0.5 m (20 in).

Q: What mounting thread does it use?

A: The mounting thread option is 3/4-14 NPT.

Q: Is this housing suitable for hazardous areas?

A: Yes, it is rated explosion proof for hazardous areas and has CSA approvals.

Q: What is the weight of this assembly?

A: Typical weight is 1.1 kg (2.4 lb) without fittings.

Product Support & Availability

The 21000-16-05-00-050-03-02 is in stock and ready to ship from Petro Auto Tech. We offer new and original factory-packed units with a 12-month warranty. Contact us for pricing and lead time.
