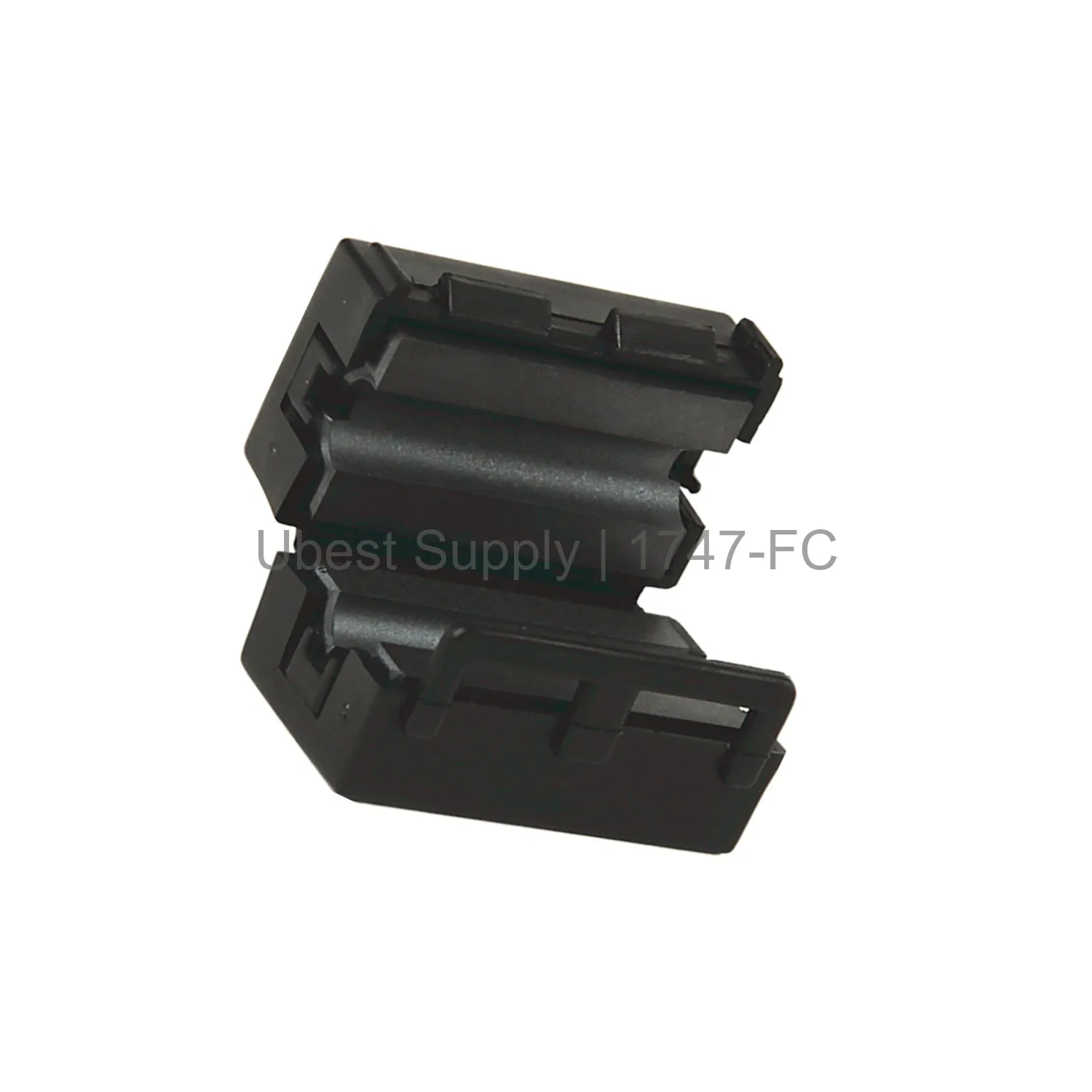

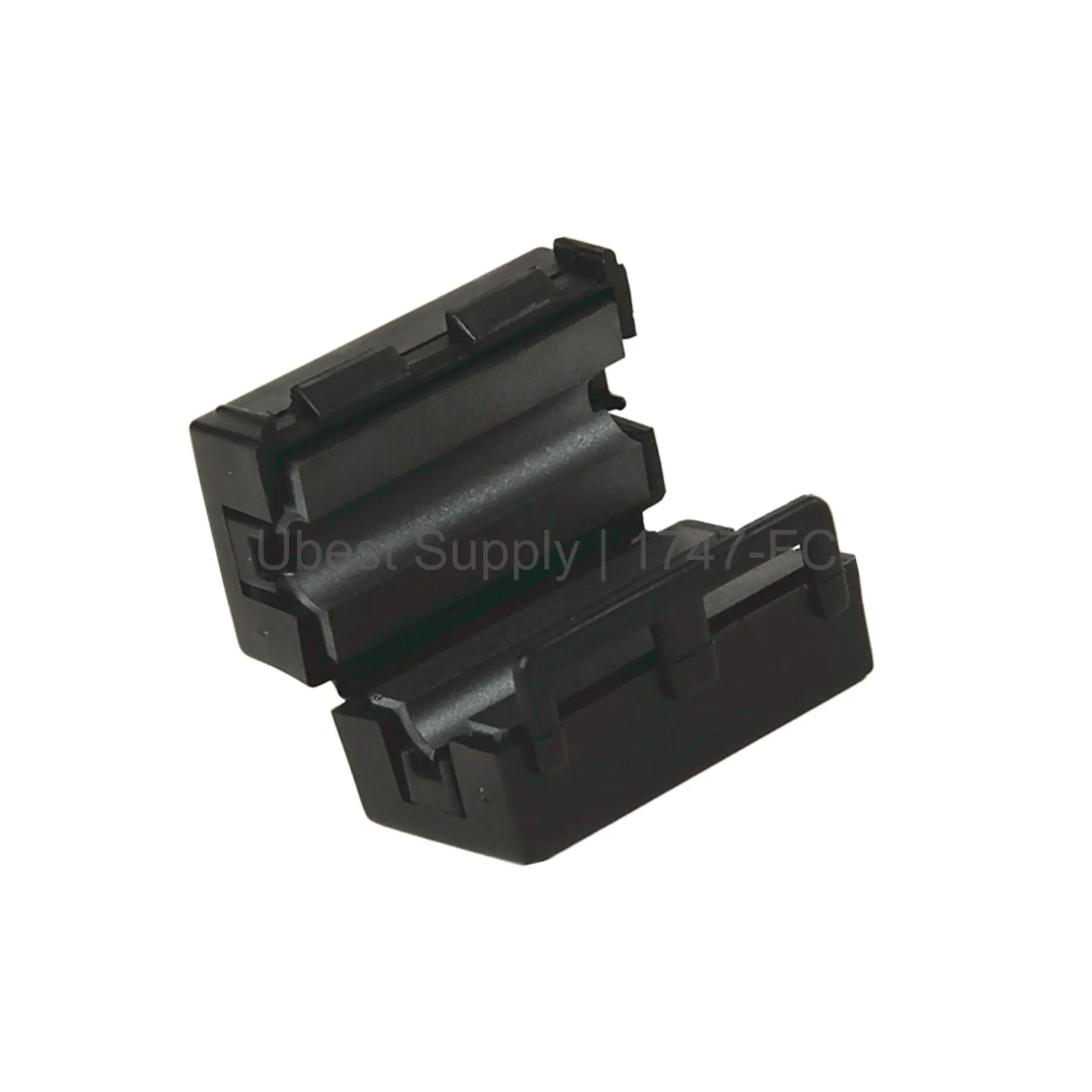

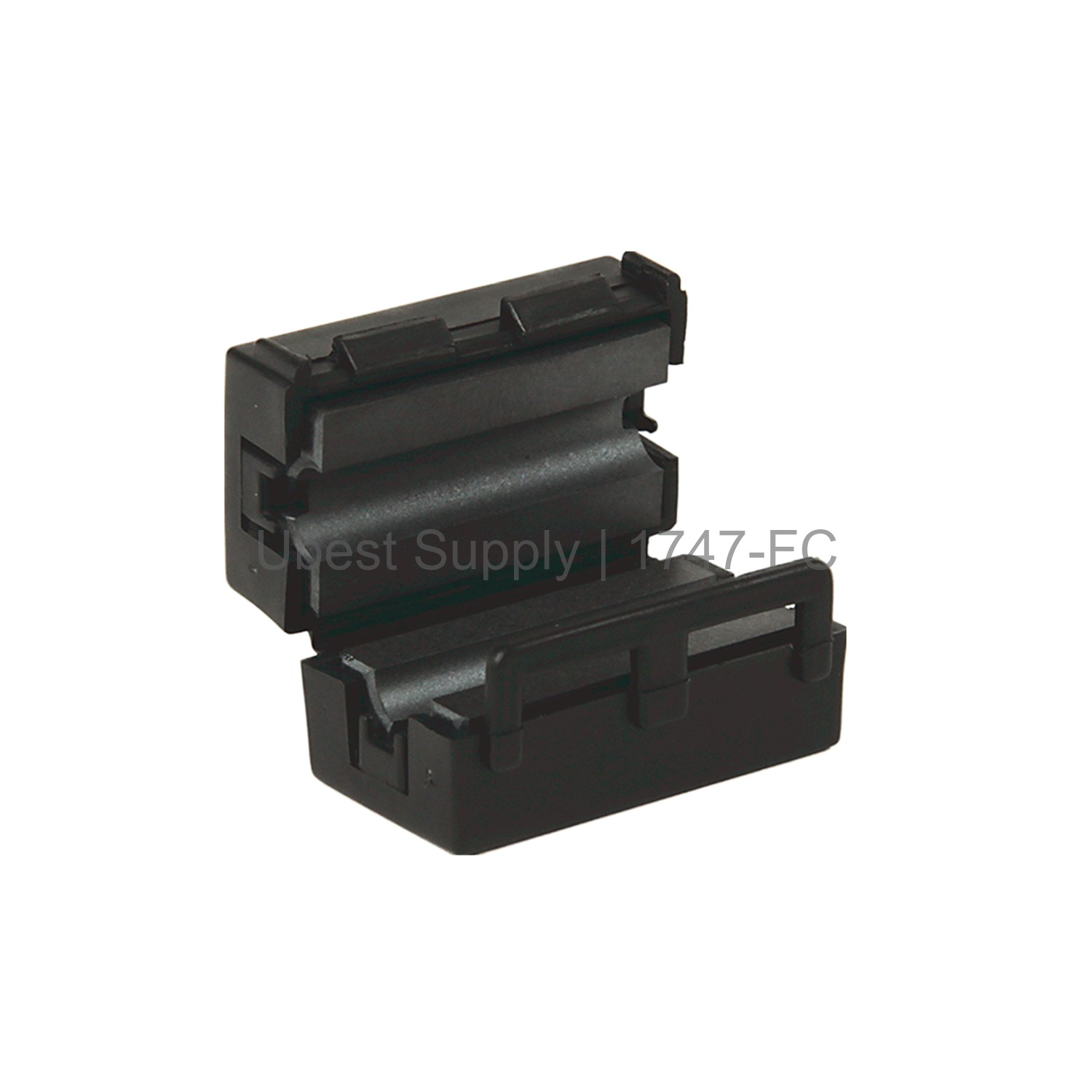

Ferrite Collar Allen-Bradley 1747-FC for EMI/RFI Suppression

Product Overview

The 1747-FC ferrite collar is a vital part of the SLC 500 series. It blocks electromagnetic and radio frequency noise. This collar works with RS-232 cables. It supports several SLC controllers. These include the 1747-L541, 1747-L542, and 1747-L543. The collar ensures clean data transmission. It prevents errors from electrical interference. The product meets the European EMC Directive. This makes it suitable for global use.

Application Scenarios

Use this collar in factory automation systems. Place it where cables exit modules. It is ideal for PLC communication links. The collar improves system reliability. It supports SCADA and HMI connections. Use it in environments with high electrical noise. The collar helps maintain signal integrity. It integrates easily into existing setups. No special training is needed.

Technical Specifications

• Manufacturer: Allen-Bradley
• Series: SLC 500
• Part Number: 1747-FC
• Product Type: Ferrite Collar
• Compatible Cable: RS-232
• Primary Function: EMI/RFI Suppression
• Compliance: European EMC Directive
• Core Material: Ferrite
• Housing Material: Plastic
• Installation Complexity: Low
• Placement: Where cable exits module
• Compatible Controllers: 1747-L541, 1747-L542, 1747-L543

Installation & Maintenance Guide

Installation is quick and simple. Open the collar and place it around the cable. Snap it closed at the cable exit point. No tools or brackets are required. The collar stays in place securely. It does not need any power. It operates without maintenance. The design is robust and durable. The plastic housing protects the ferrite core. The collar can withstand typical industrial conditions.

Packing List

• One 1747-FC Ferrite Collar
• Product documentation

We ship via FedEx, UPS, or DHL. Select your preferred carrier at checkout.
