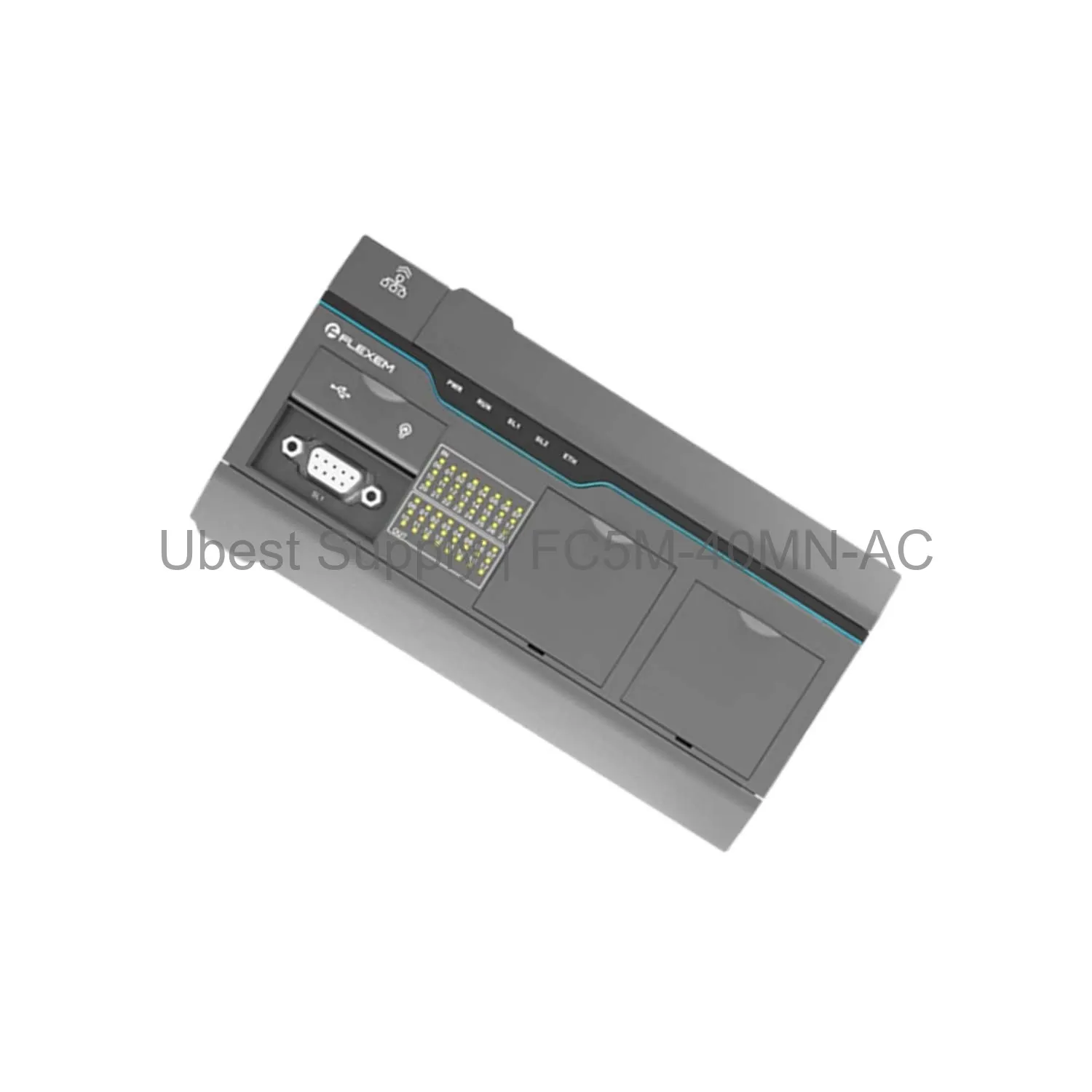

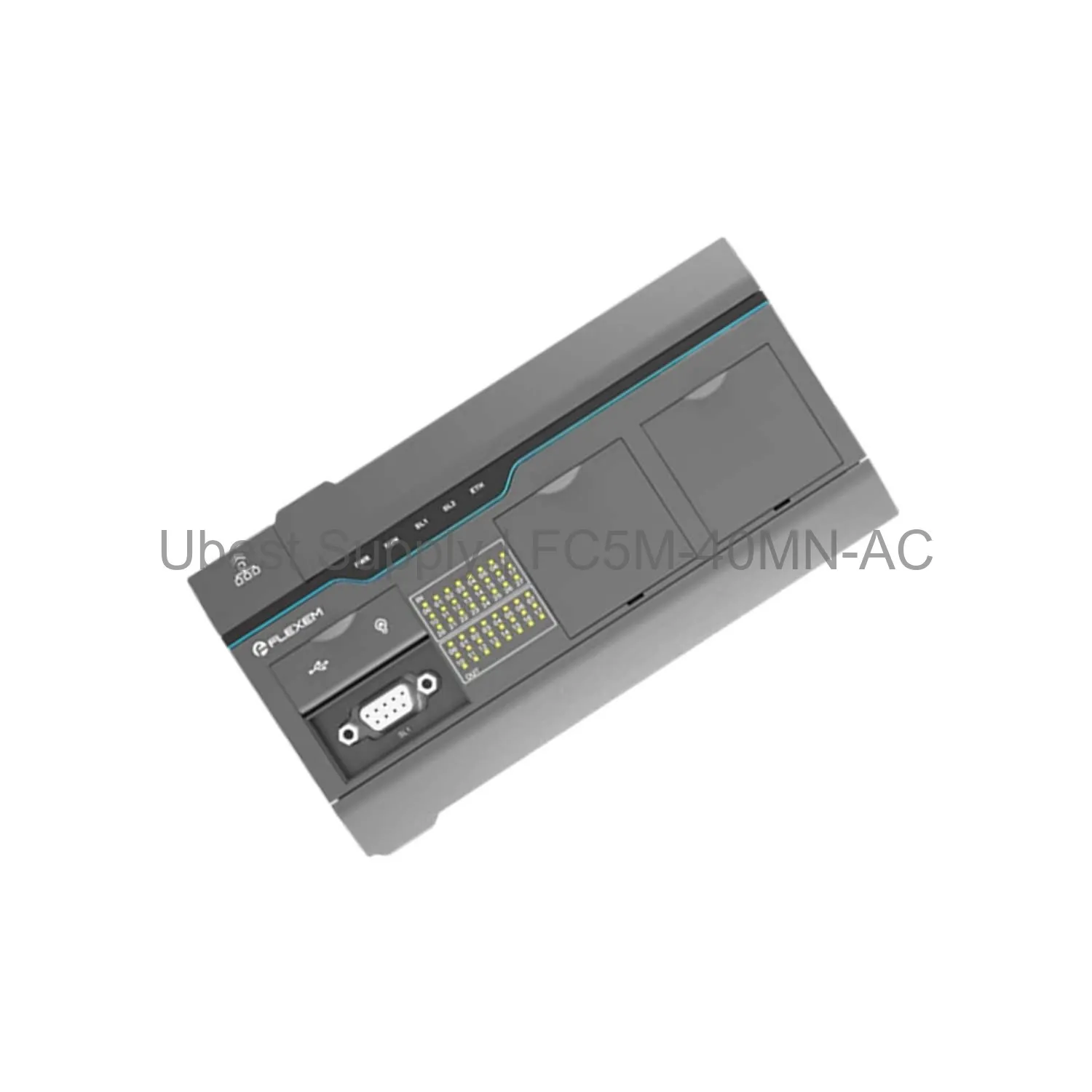

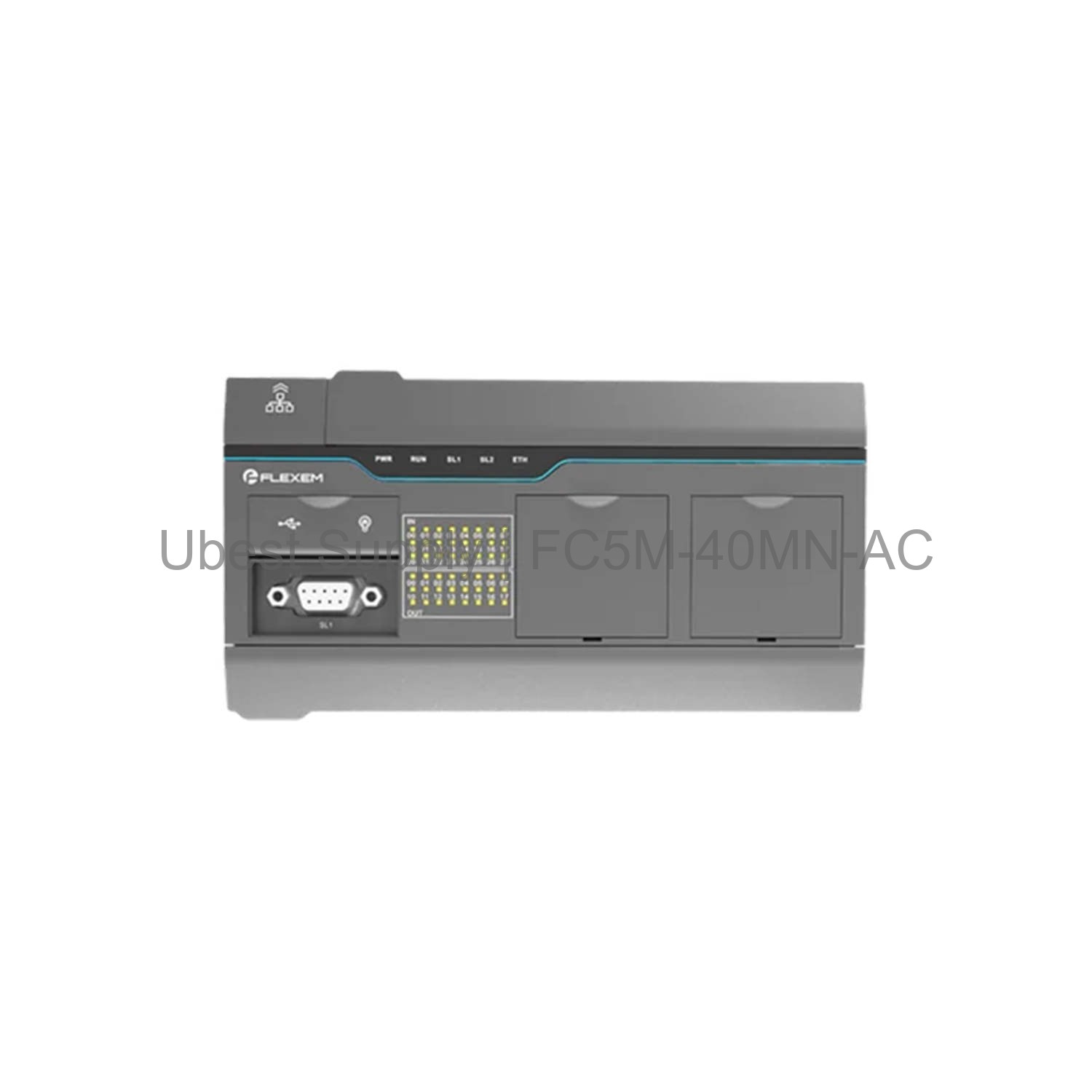

Flexem FC5M-40MN-AC PLC Controller 24 Input 16 Output

Product Overview

The Flexem FC5M-40MN-AC is a programmable logic controller from the FC5 series. It operates on an AC 220V power supply. This unit has 24 digital inputs, with 7 fast inputs. It also includes 16 transistor NPN outputs. Six of these outputs support high-speed operation. The FC5M-40MN-AC is built for reliable performance in industrial environments. Its design supports a wide range of automation tasks.

Application Scenarios

This controller works well in factory automation systems. Use it for machine control, packaging lines, and material handling. It can manage conveyor belts and sorting systems. The high-speed inputs connect to encoders for position tracking. The fast outputs drive stepper motors or actuators. It fits into small to medium-sized control panels.

Technical Specifications

The unit uses a 24V DC input with a range of 0V to 28.8V. Input current is 7mA typical. It supports both NPN and PNP sensor types. The high-speed counter inputs handle up to 200KHz. Outputs are NPN type with a voltage range of 5V to 30V. Each output can handle up to 2A. The total current per group is 4A. The PTO outputs reach 200KHz for pulse trains. Operating temperature ranges from -10°C to 60°C. The unit has an IP20 protection rating.

Installation & Maintenance Guide

Mount the FC5M-40MN-AC on a DIN rail inside a cabinet. Use shielded cables for high-speed signals. Keep cable lengths under 5 meters for fast inputs. For standard inputs, use up to 100 meters of shielded cable. Ensure proper grounding to reduce noise. Check all connections before powering on. Clean the unit with a dry cloth. Do not use solvents.

Packing List

One Flexem FC5M-40MN-AC PLC controller. One removable terminal block set. One product manual. The package is shipped via FedEx, UPS, or DHL. The unit is securely packed to prevent damage.
