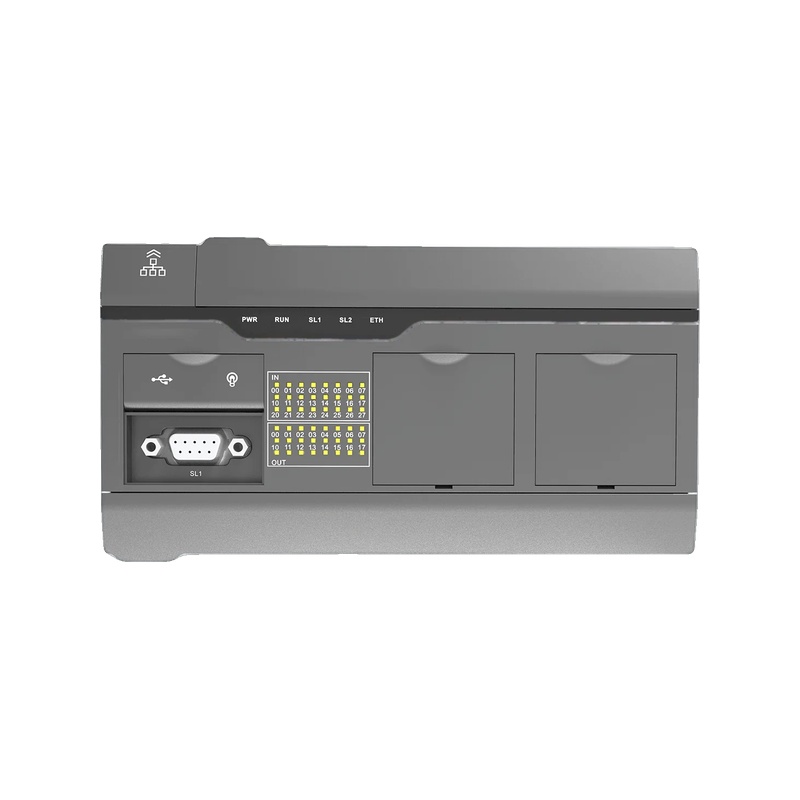

Flexem FC5M-40MN-DC PLC Controller - 24 Input, 16 Output

Product Overview

The FC5M-40MN-DC is a programmable logic controller from the Flexem FC5 series. It runs on a DC 24V power supply. This unit features 24 discrete inputs, with 7 of them being fast inputs for high-speed counting. It also has 16 discrete outputs, including 6 fast outputs for pulse train output (PTO) and PWM control. The controller uses the IEC 61131-3 standard and the PLC OPEN instruction set. This makes programming flexible and efficient. It supports advanced motion control like electronic cam, gear, and interpolation. Built-in Ethernet and serial ports allow for easy communication. The design uses an object-oriented programming concept. This PLC offers extreme cost-effectiveness for many industrial applications.

Application Scenarios

This PLC fits well in many automation tasks. Use it in packaging machines for precise motion control. It works great in assembly lines for sequential logic. The fast inputs and outputs make it suitable for small servo control systems. It can manage labeling machines and filling equipment. The FC5M-40MN-DC is also a good choice for material handling systems. Its built-in Ethernet port allows for easy connection to HMIs and SCADA systems. The serial port enables communication with drives and sensors. This controller is ideal for projects that need a balance of performance and low cost.

Technical Specifications

General Specifications

Product Type: Programmable Logic Controller. Rated Voltage: DC 24V. Input Range: DC 0V to 28.8V. Rated Current: 7mA. Operating Temperature: -10°C to 60°C. Storage Temperature: -20°C to 70°C. Protection Class: IP20. It has a coating that protects against moisture and dust.

Digital Inputs

Number of Inputs: 24 (7 are high-speed). Input Type: NPN/PNP. It supports 2-wire and 3-wire sensors. Voltage for State 1: >15V. Voltage for State 0: <5V. Filter time is adjustable from 1ms to 100ms. Cable length can be up to 100m shielded or 50m unshielded.

High-Speed Counter (HSC) Inputs

Max Frequency for A/B Phase: 100KHz. Max Frequency for Pulse/Direction: 200KHz. Max Frequency for Single Phase: 200KHz. It supports A/B phase counting, pulse/direction counting, and single/dual phase counting. Cable length for HSC must be less than 5m and shielded.

Digital Outputs

Number of Outputs: 16 (6 are fast). Output Type: Transistor NPN. Output Voltage: DC 5V to 30V. Max Current per Point: 2A. Max Current per Group: 4A. The fast outputs can be used as PTO or PWM outputs. Max PTO Frequency: 200KHz. Max PWM Frequency: 50KHz. The outputs have short circuit protection and can self-recover after a fault.

Installation & Maintenance Guide

Mount the FC5M-40MN-DC on a DIN rail inside a control cabinet. Ensure the environment is clean and dry. Use a DC 24V power supply with proper filtering. Connect all sensors and actuators using the correct wiring diagrams. For high-speed inputs and outputs, use shielded cables. Keep these cables short, under 5 meters. Do not run signal cables near high-power wires. Check all terminal connections periodically for tightness. The controller has a coating that helps in harsh environments. Do not expose the unit to temperatures above 60°C. Always disconnect power before changing any wiring.

Packing List

The package includes one Flexem FC5M-40MN-DC PLC unit. It comes with a set of removable terminal blocks. The package includes a quick start guide. It does not include the power supply or programming cable. These items must be ordered separately.
