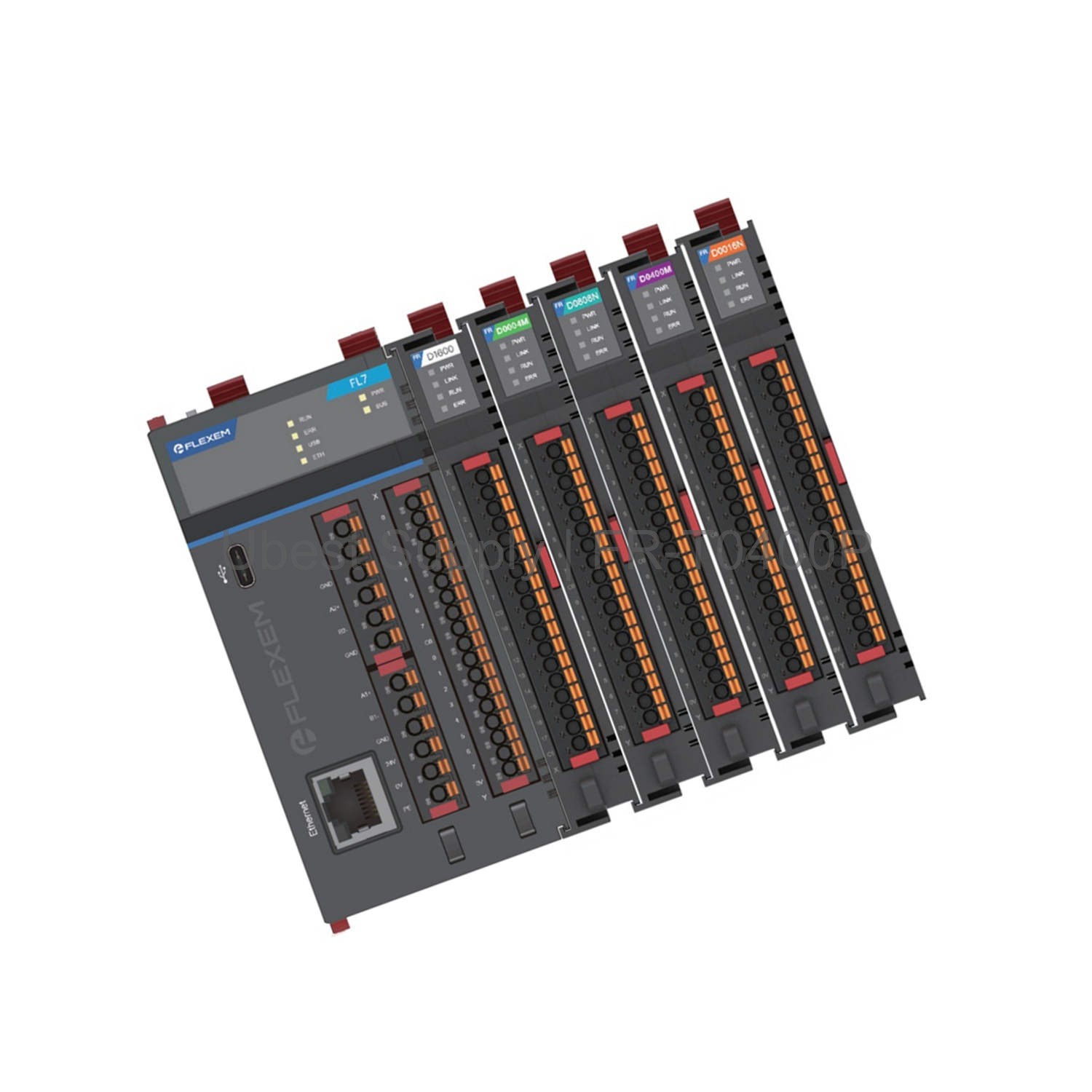

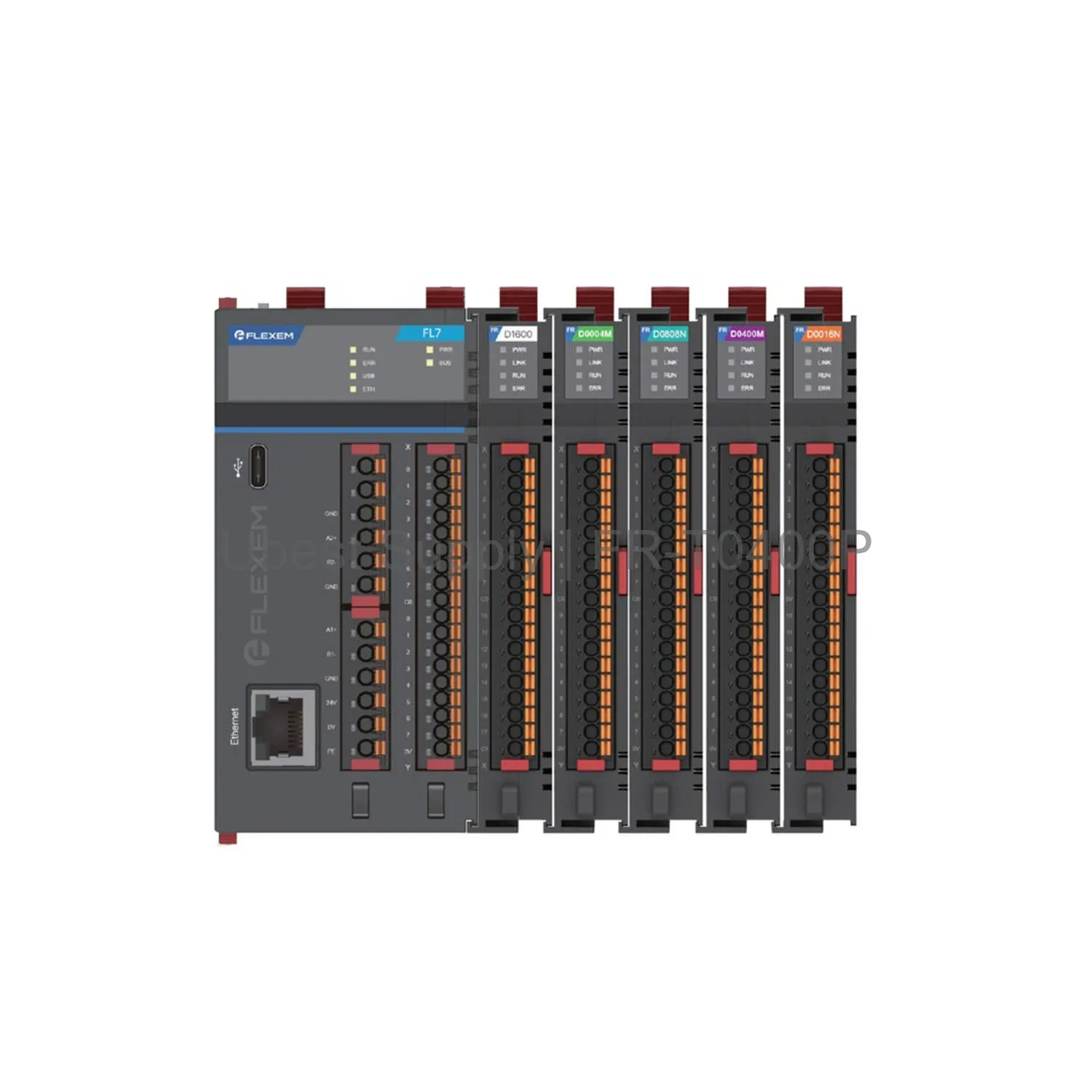

Flexem FR-T0400P 4-Channel RTD Temperature Input Module

Product Overview

The Flexem FR-T0400P is a reliable temperature acquisition module. It has 4 input points for RTD sensors. This module supports PT100, PT1000, Ni100, Ni1000, Cu50, and Cu100 types. It provides precise temperature readings for industrial control systems.

This device measures temperatures from -200°C to 850°C. The exact range depends on the sensor type used. It delivers a measurement accuracy of ±0.5% or ±1°C. The module takes the larger value between these two limits.

The FR-T0400P has a very compact design. It measures only 18mm in width. This saves valuable space inside your control cabinet. The module weighs just 65 grams.

Application Scenarios

Use the Flexem FR-T0400P in many industrial settings. It works well for HVAC system monitoring. It is ideal for plastic injection molding machines. It fits into packaging equipment temperature control.

This module suits food processing applications. It helps monitor oven and dryer temperatures. It works for chemical process temperature logging. It is perfect for building automation systems.

You can integrate it into PLC and DCS architectures. It connects easily with standard fieldbus networks. Its small size makes it great for distributed I/O stations.

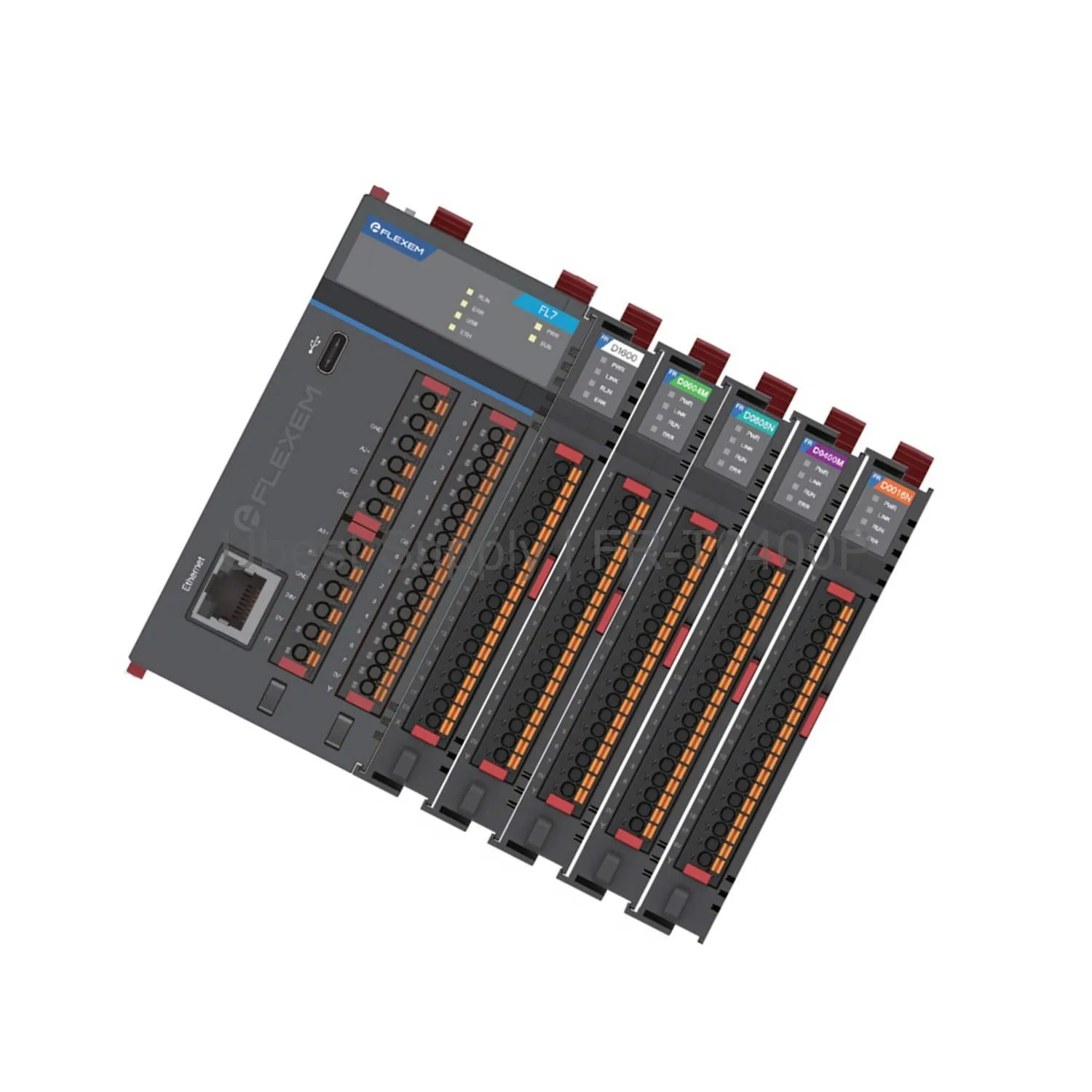

Technical Specifications

The module has 4 temperature input channels. It supports PT100 with a range of -200°C to 850°C. It supports PT1000 from -200°C to 600°C. It supports Cu50 from -50°C to 150°C.

It supports Ni100 from -60°C to 180°C. It supports Cu100 from -50°C to 150°C. It supports Ni1000 from -60°C to 180°C. All accuracy is ±0.5% or ±1°C at 25°C ambient.

The module consumes a maximum of 50mA at 5.0Vdc. Its dimensions are 111mm high, 18mm wide, and 76mm deep. The total weight is 65 grams.

Installation & Maintenance Guide

Mount the FR-T0400P on a standard DIN rail. Ensure the ambient temperature stays near 25°C for best accuracy. Use shielded twisted-pair cables for sensor connections.

Keep sensor wires away from high-voltage power lines. Tighten all terminal screws securely. Perform regular visual inspections of the module. Check for any signs of damage or loose connections.

Do not exceed the maximum power consumption limit. Ensure the power supply provides stable 5.0Vdc. The module requires no special calibration under normal use.

Packing List

Your shipment includes one Flexem FR-T0400P module. It includes the product manual. It includes a set of terminal blocks. It includes a quality certificate.

We ship all orders via Fedex, UPS, or DHL. This ensures fast and reliable delivery worldwide.
