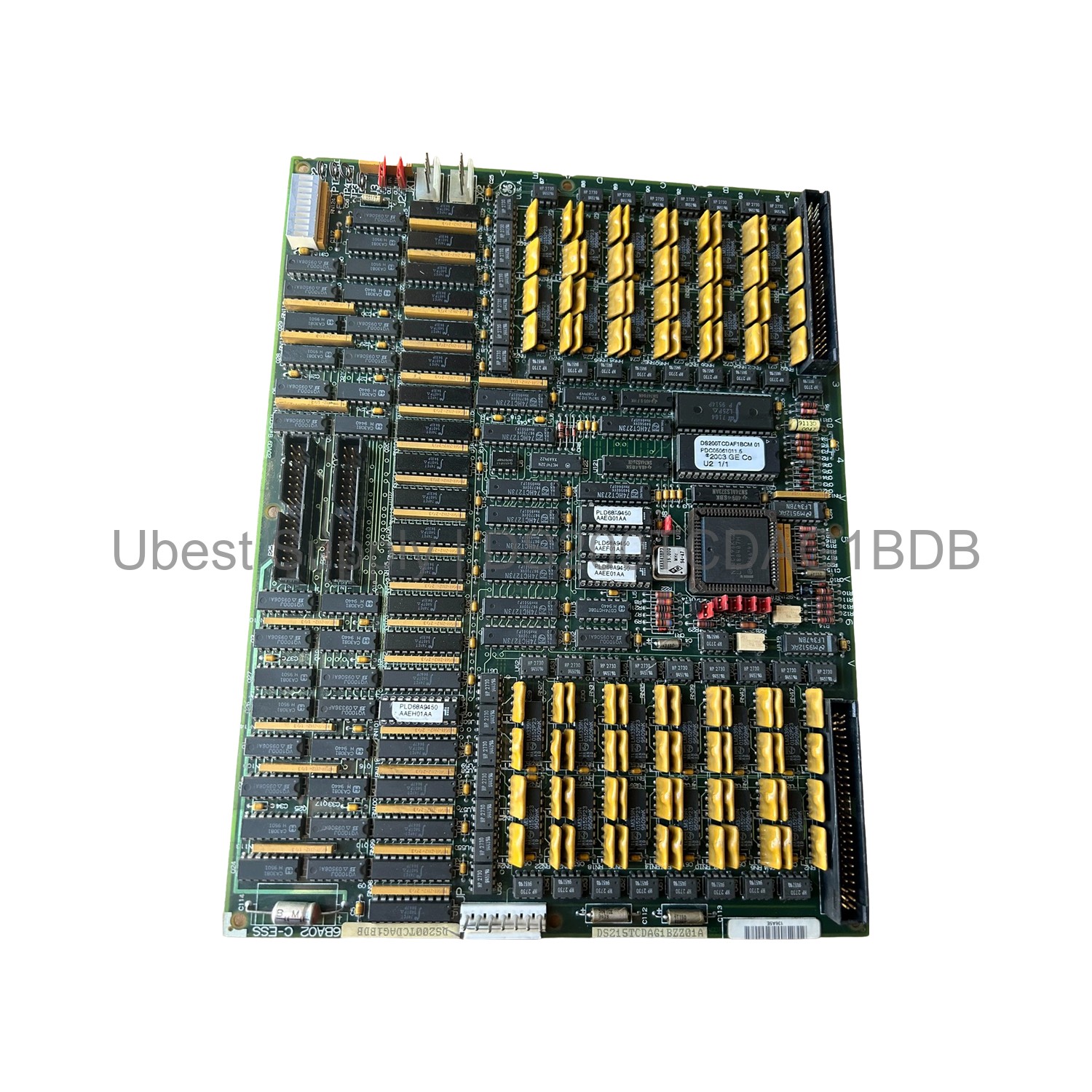

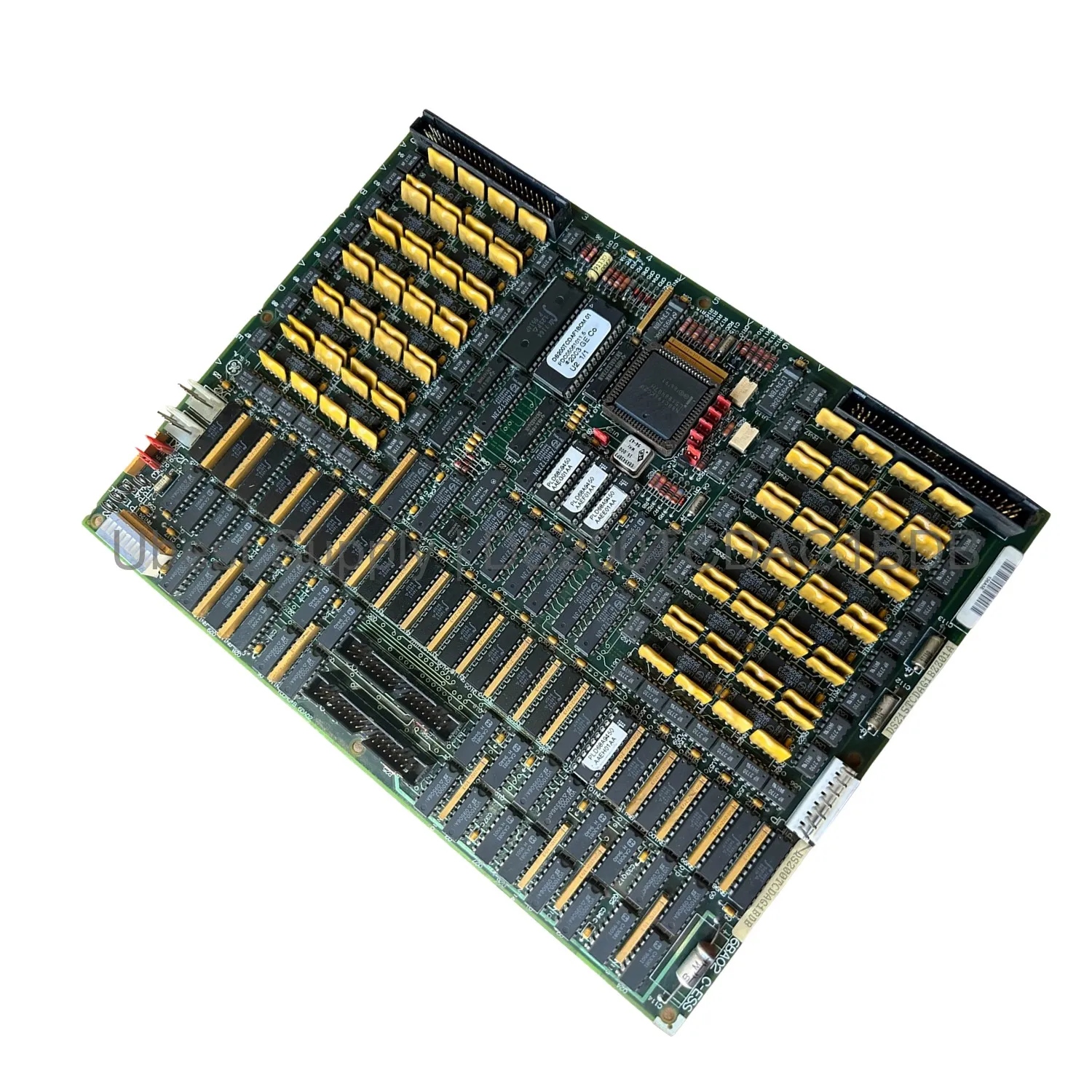

GE DS200TCDAG1BDB Digital I/O Board Mark V LM

Product Overview

The GE DS200TCDAG1BDB is a digital I/O board. It is part of the Mark V LM series. This board uses surface mount technology. It needs +5 V dc power. It draws 6 A of current. The board has 12 relay channels. Each channel works with 28 V dc. This design ensures reliable signal control. The board is compact and durable. It fits standard DIN-rail mounting. Its size is 15.9 cm high by 17.8 cm. The operating temperature range is wide. It works from -30 to +65°C. This makes it suitable for harsh environments. The board comes with manual GEI-100182BI. This manual provides setup details. The DS200TCDAG1BDB is a trusted component. It is a key part of turbine control systems.

Application Scenarios

This board is for industrial automation. It works in power generation plants. It controls steam and gas turbines. The Mark V LM system uses it. It handles digital input and output tasks. It manages relay switching functions. It is common in oil and gas facilities. It also works in chemical processing. The board operates in extreme temperatures. It fits in control cabinets easily. Its DIN-rail mount saves space. Technicians use it for reliable control. It replaces older I/O modules. It upgrades existing Mark V systems. The DS200TCDAG1BDB is a direct replacement. It ensures minimal system downtime. It is a critical part of machinery monitoring.

Technical Specifications

The board uses +5 V dc power. It draws 6 A maximum. It has 12 relay channels. The relay power supply is 28 V dc. It uses surface mount technology. This allows a compact design. The board size is 15.9 cm x 17.8 cm. It mounts on a standard DIN rail. The operating temperature is -30 to +65°C. It comes from the United States. The manual number is GEI-100182BI. The board is part of the Mark V LM series. It is a digital I/O board. It does not have analog functions. It is for on/off control only. The relays are robust. They handle industrial loads. The board is built for long life. It meets GE quality standards.

Installation & Maintenance Guide

First, turn off all power. Then mount the board on a DIN rail. Ensure the rail is clean. Slide the board into place. Connect the power supply. Use +5 V dc only. Connect the relay loads. Use 28 V dc for relays. Do not exceed voltage limits. Check all connections. They must be tight. Follow manual GEI-100182BI. It has wiring diagrams. Test the board after installation. Run a full system check. For maintenance, inspect the board. Look for dust or damage. Clean with dry air. Do not use liquids. Replace the board if faulty. The repair time is 3 to 7 days. We ship using Fedex, UPS, or DHL. The board is in stock now. Order quickly for fast delivery.

Packing List

1 x GE DS200TCDAG1BDB Digital I/O Board
1 x Installation Manual GEI-100182BI
1 x Anti-static packaging bag
No additional cables included. Ensure you have the correct wiring. The board is shipped securely. It is ready for immediate use. Check the package for damage. Report any issues right away. This ensures a smooth setup. The DS200TCDAG1BDB is a complete unit. It needs no extra hardware. Just mount and connect.
