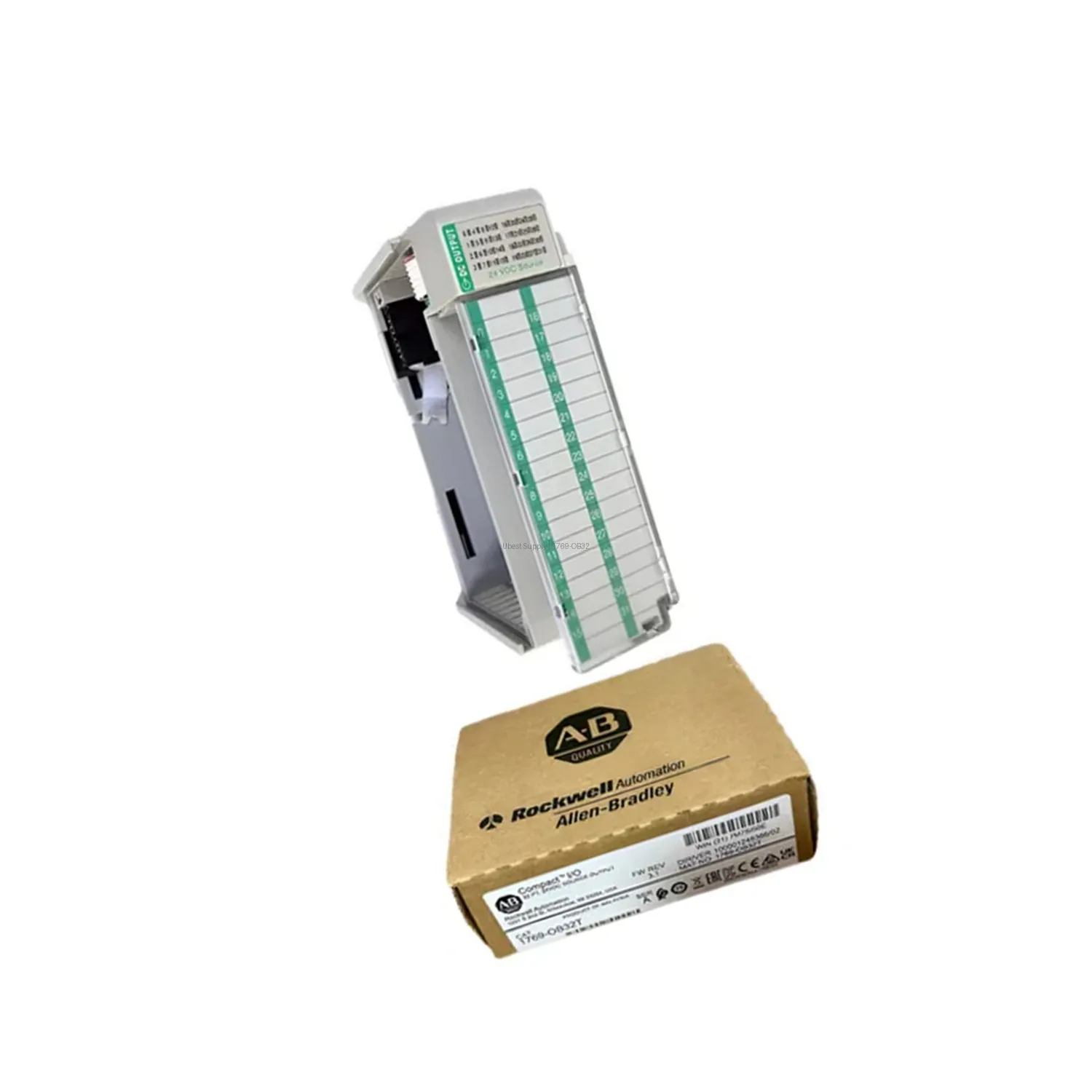

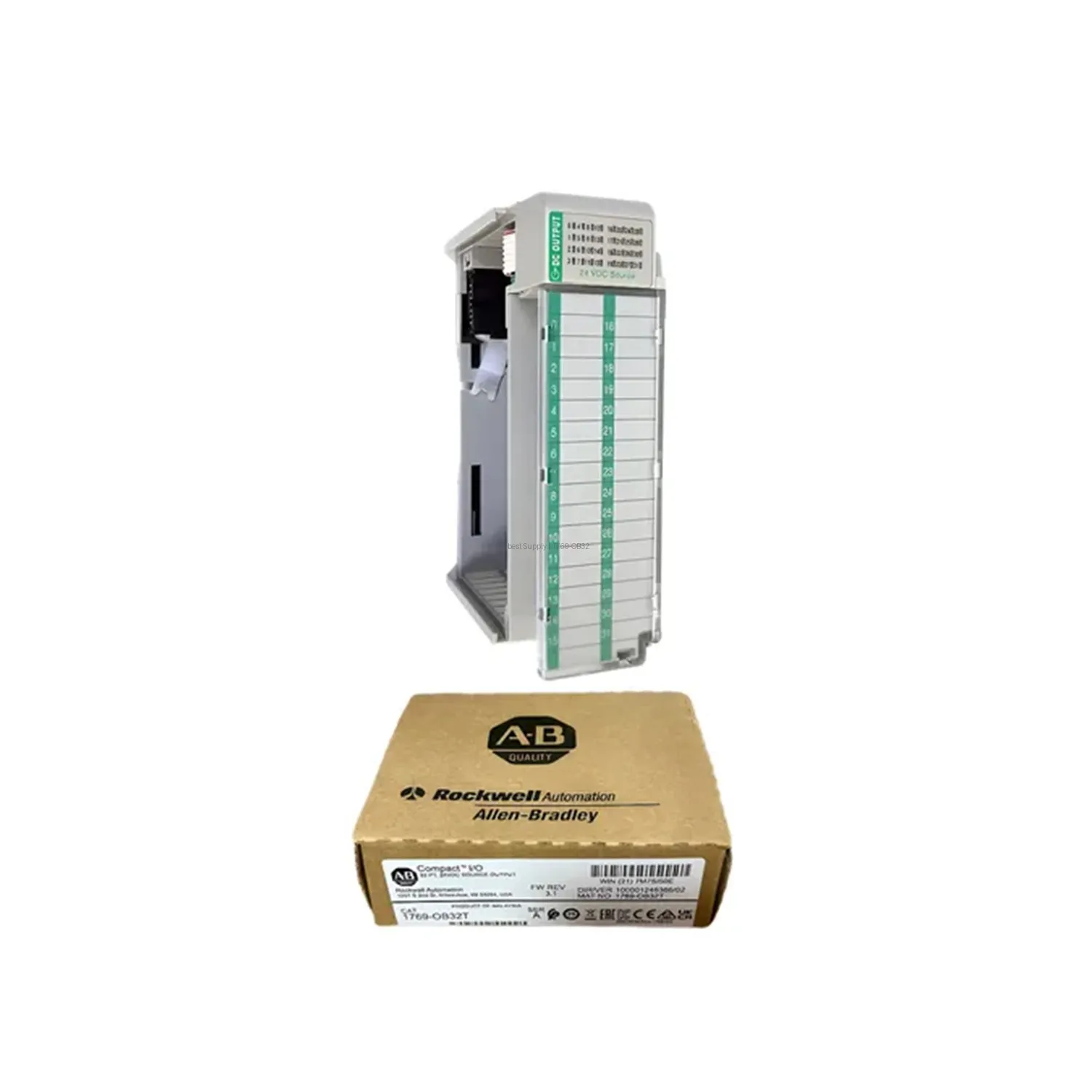

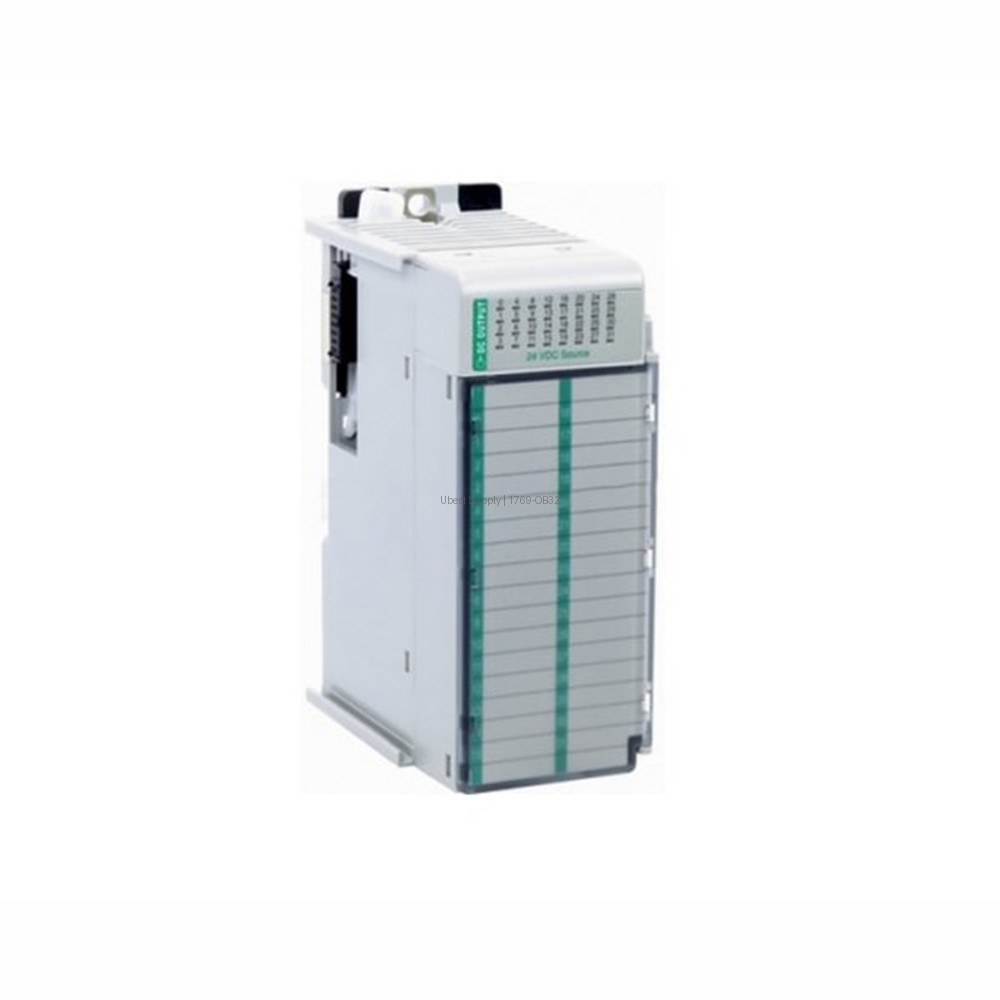

Discrete Output Module Allen-Bradley 1769-OB32 32 Point DC

Product Overview

The Allen-Bradley 1769-OB32 is a high-density discrete output module. It belongs to the Compact I/O family. This module provides 32 DC outputs. It is designed for use with CompactLogix controllers. The module supports two isolated groups. Each group has 16 outputs. It operates on a 24V DC supply voltage. The enclosure type is open. This module is suitable for industrial environments.

Application Scenarios

This output module is ideal for machine control. It can drive solenoids, relays, and indicator lights. Use it in packaging lines and material handling systems. It works well in automotive assembly stations. The module is perfect for high-density applications. It saves panel space with its compact design. Many engineers use it for discrete manufacturing.

Technical Specifications

The module has 32 outputs in a single slot. It draws 3000 mA at 5.1 Volts. The on-mode delay is 0.5 milliseconds. The off-mode delay is 4 milliseconds. Maximum heat dissipation is 4.5 Watts. The surge current rating is 2.0 Amps for 10 ms. Operating temperature range is 0 to 60 degrees Celsius. The wire size is 22 to 14 AWG solid. It has IEC Class 2 reinforced insulation.

Installation & Maintenance Guide

Mount the module on a panel or DIN rail. Use a torque of 0.68 N-m for terminal screws. Connect the power supply to the bus. The module requires a 6-module power supply distance. Use copper wire rated for 90 degrees Celsius. Replace the terminal block with part 1769-RTBN18. The replacement door is 1769-RD. Keep the module free from dust and moisture.

Packing List

1 x Allen-Bradley 1769-OB32 Output Module. 1 x Removable Terminal Block (1769-RTBN18). 1 x Installation Guide. Products are carefully packed for shipping. We ship via Fedex, UPS, or DHL. The shipping weight is 2 pounds. Shipping dimensions are 8 x 8 x 5 inches.
