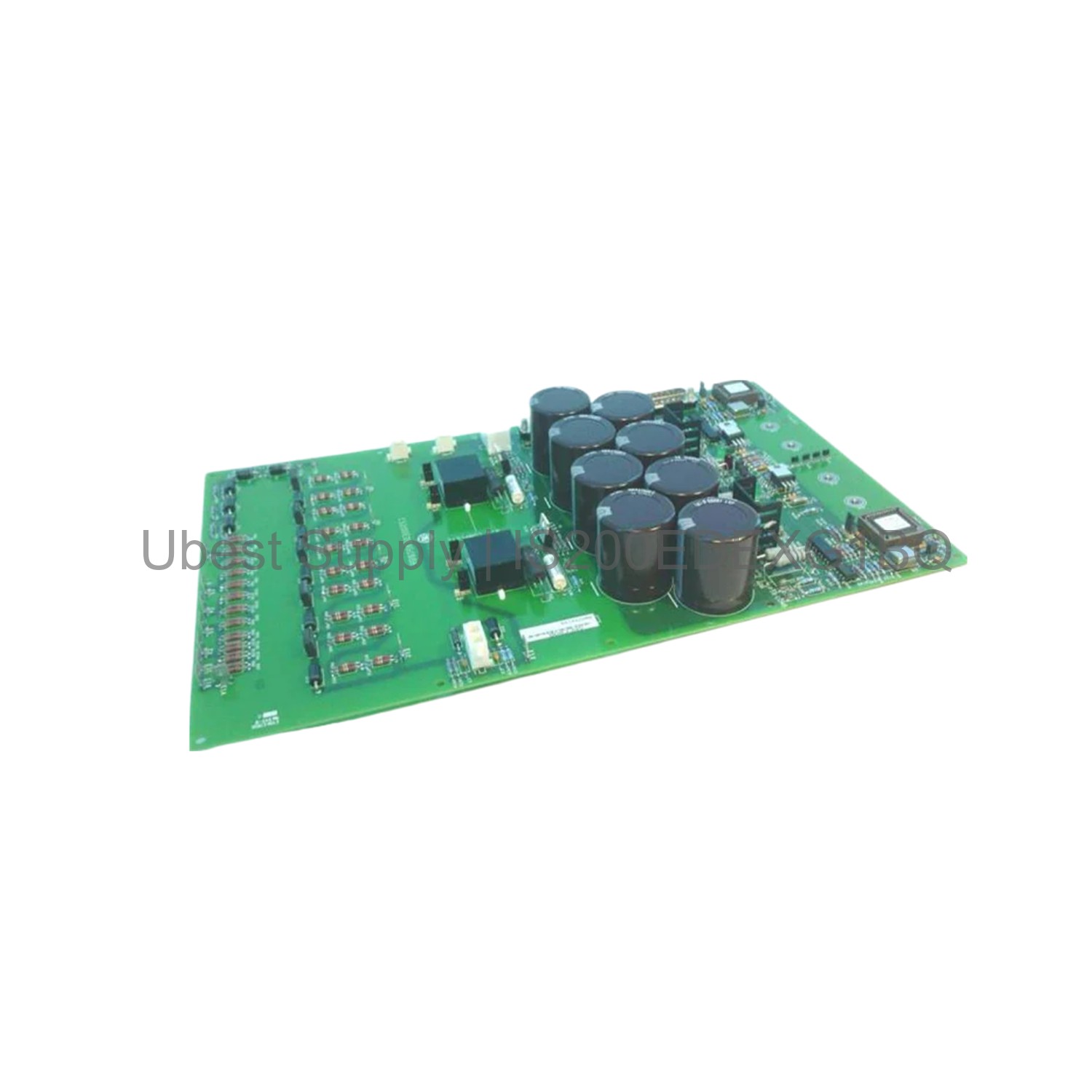

GE IS200EDEXG1BQ De-Excitation Bridge and Protection Board

Product Overview

The GE IS200EDEXG1BQ is a De-Excitation Bridge and Protection Board. It belongs to the Innovation Series. This board works with the EX2100 excitation control system. It provides critical de-excitation functions. The board ensures safe shutdown of generators. It uses configurable jumpers for flexible setup. This model has six jumpers: JP1 through JP6. It also includes two D-pin connectors. The board is compact and reliable. It weighs 3 lbs. 6 oz. This makes it easy to handle. The board meets GE high standards. It offers robust protection for your system. You can trust this board for demanding applications.

Application Scenarios

This board is ideal for power generation plants. It works with large turbine generators. The IS200EDEXG1BQ manages excitation system safety. It provides fast de-excitation during faults. This protects expensive generator equipment. Use it in thermal, hydro, or nuclear plants. It fits into EX2100 system racks. The board supports both new and retrofit projects. It is suitable for industrial automation setups. Engineers use it for reliable field control. It ensures compliance with safety standards. This board is a key part of emergency shutdown sequences.

Technical Specifications

The IS200EDEXG1BQ board has six configurable jumpers. These are JP1, JP2, JP3, JP4, JP5, and JP6. It includes two D-pin connectors for signal wiring. The board manual is GEH-6632. It is part of the Innovation Series. The board weighs exactly 3 lbs. 6 oz. It is designed for the EX2100 system. The board handles high-voltage protection tasks. It uses robust industrial-grade components. Operating temperature ranges are standard for GE boards. The board offers reliable performance in harsh environments. It supports quick installation and setup.

Installation & Maintenance Guide

First, power down the entire system. Then, locate the correct slot in the EX2100 rack. Insert the IS200EDEXG1BQ board firmly. Secure it with the provided screws. Connect the two D-pin cables. Set the jumpers JP1 through JP6 per your needs. Use the GEH-6632 manual for guidance. Check all connections before powering up. Perform a functional test after installation. For maintenance, inspect the board regularly. Look for dust or loose connections. Keep the board in a clean, dry area. Do not touch the board with static charge. Use proper ESD protection. Replace the board if any damage appears.

Packing List

Each order includes one IS200EDEXG1BQ board. The board comes in an anti-static bag. It includes a protective foam layer. You will receive the original GE packaging. No cables or connectors are included. The manual is available separately. We ship using Fedex, UPS, or DHL. All items are carefully packed for safety. Inspect the package upon arrival. Contact us if any damage is visible.
