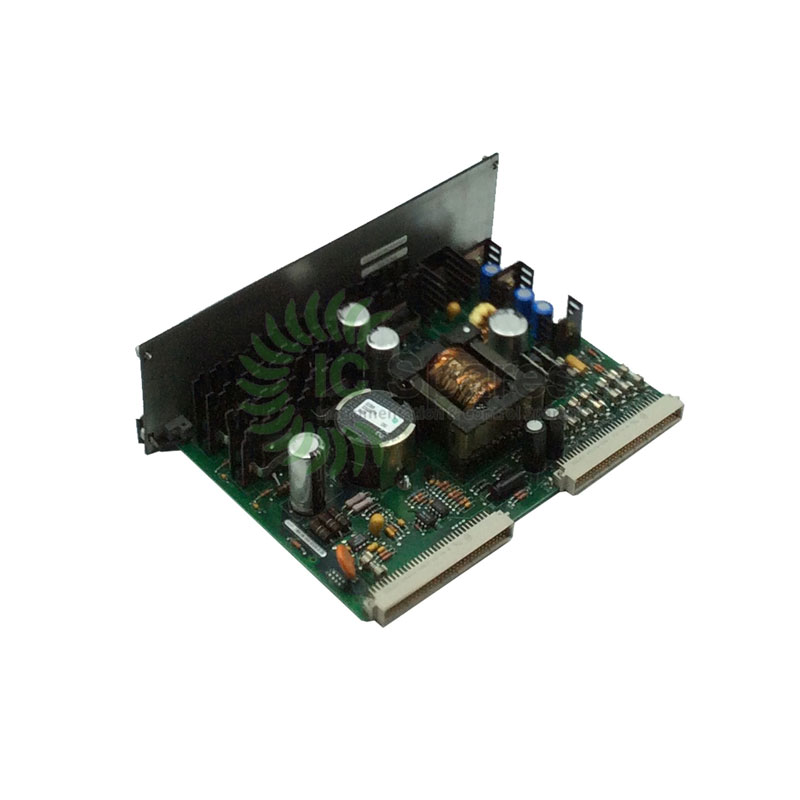

GE IS200EPSMG2A: Selection & Procurement Tips

The GE IS200EPSMG2A provides stable, conditioned power for the EX2100 excitation control system. This module solves the common engineering challenge of maintaining reliable exciter supply under fluctuating load conditions in power plants. Consequently, it reduces downtime risks in critical generation assets.

Core Value

The GE IS200EPSMG2A exciter power supply module directly addresses the pain point of voltage instability in turbine governor systems. Specifically, it delivers a 70 VDC contact wetting supply plus three regulated output voltages to support diverse auxiliary circuits. Therefore, operators in oil and gas, chemical, and power generation industries can expect enhanced equipment longevity and predictable performance in harsh environments. Furthermore, its wide operating temperature range ensures functionality from arctic to desert installations.

Technical Insights

A key parameter is the 70 VDC contact wetting supply, which prevents oxidation on switch contacts and sustains reliable signaling for decades. Additionally, the module provides 5 VDC, 15 VDC, and 24 VDC outputs to power microprocessor boards, analog sensors, and actuator interfaces. This triple-voltage capability eliminates the need for multiple individual supplies, reducing wiring complexity and potential failure points. Another critical specification is the -30 to +65°C temperature tolerance. Because the module operates reliably across this span, it maintains full performance during seasonal extremes and in unventilated cabinets. Consequently, plant engineers can avoid thermal derating or additional cooling costs. Finally, the design includes robust protection against surges and electrical noise, which is essential for excitation systems near high-current fields. These features collectively extend mean time between failures and simplify spare parts management.

Installation and Maintenance Guide

Based on extensive field experience, first install the IS200EPSMG2A on a properly grounded DIN rail inside a clean, dry enclosure. Ensure all input and output connections use the correct gauge stranded wire listed in the GEI-100462A manual. Second, verify that the incoming AC supply matches the module's nominal voltage range before applying power. After energization, measure each output under load to confirm regulation within ±2% of the rated value. For maintenance, periodically inspect connector pins for corrosion and tighten terminals to the specified torque. Third, always replace the module with an identical functional revision (1A) to maintain compatibility with existing EX2100 backplanes. Consequently, using mismatched revisions may cause communication errors or trigger protective shutdowns. Finally, keep the instruction manual accessible for quick troubleshooting of undervoltage or overvoltage alarms.
