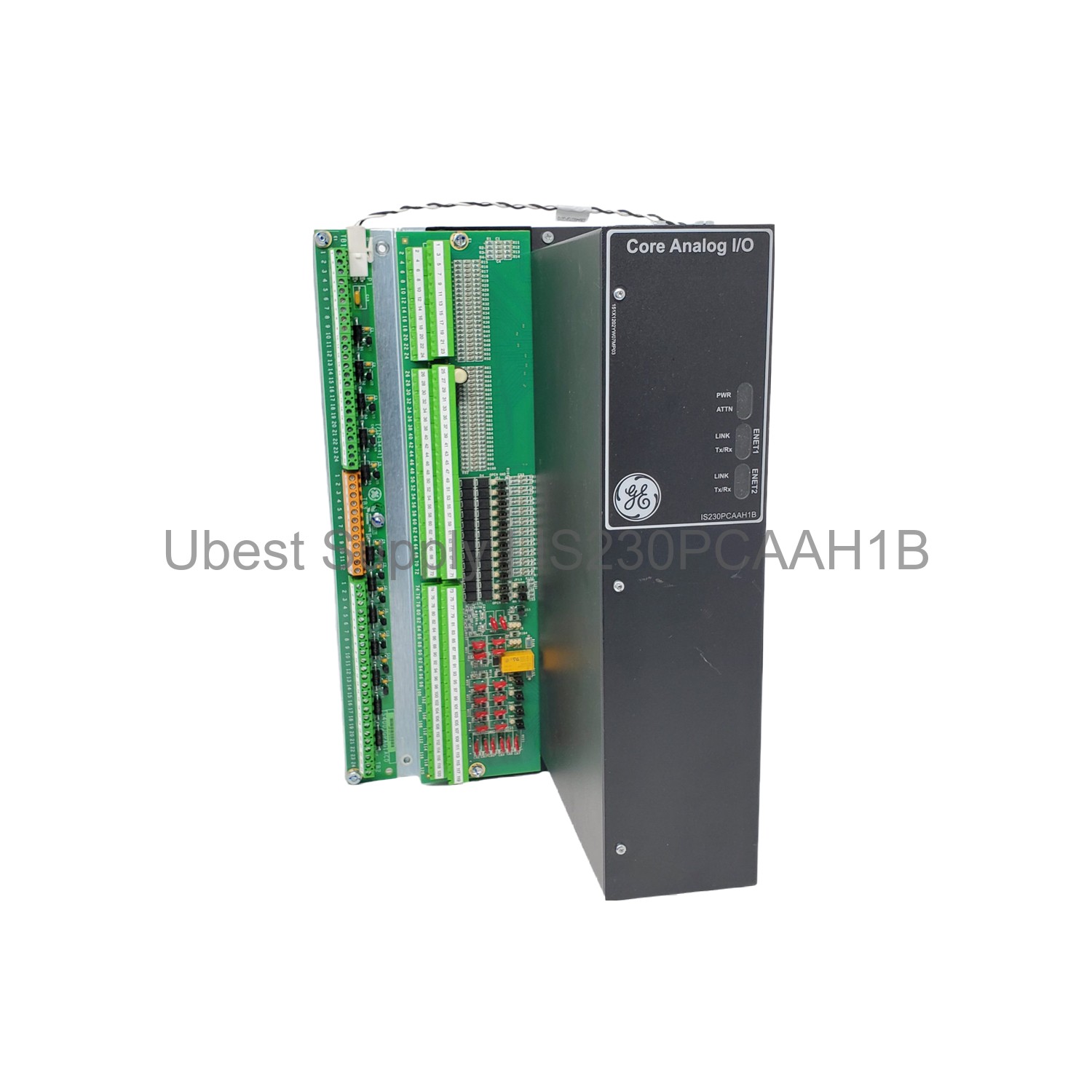

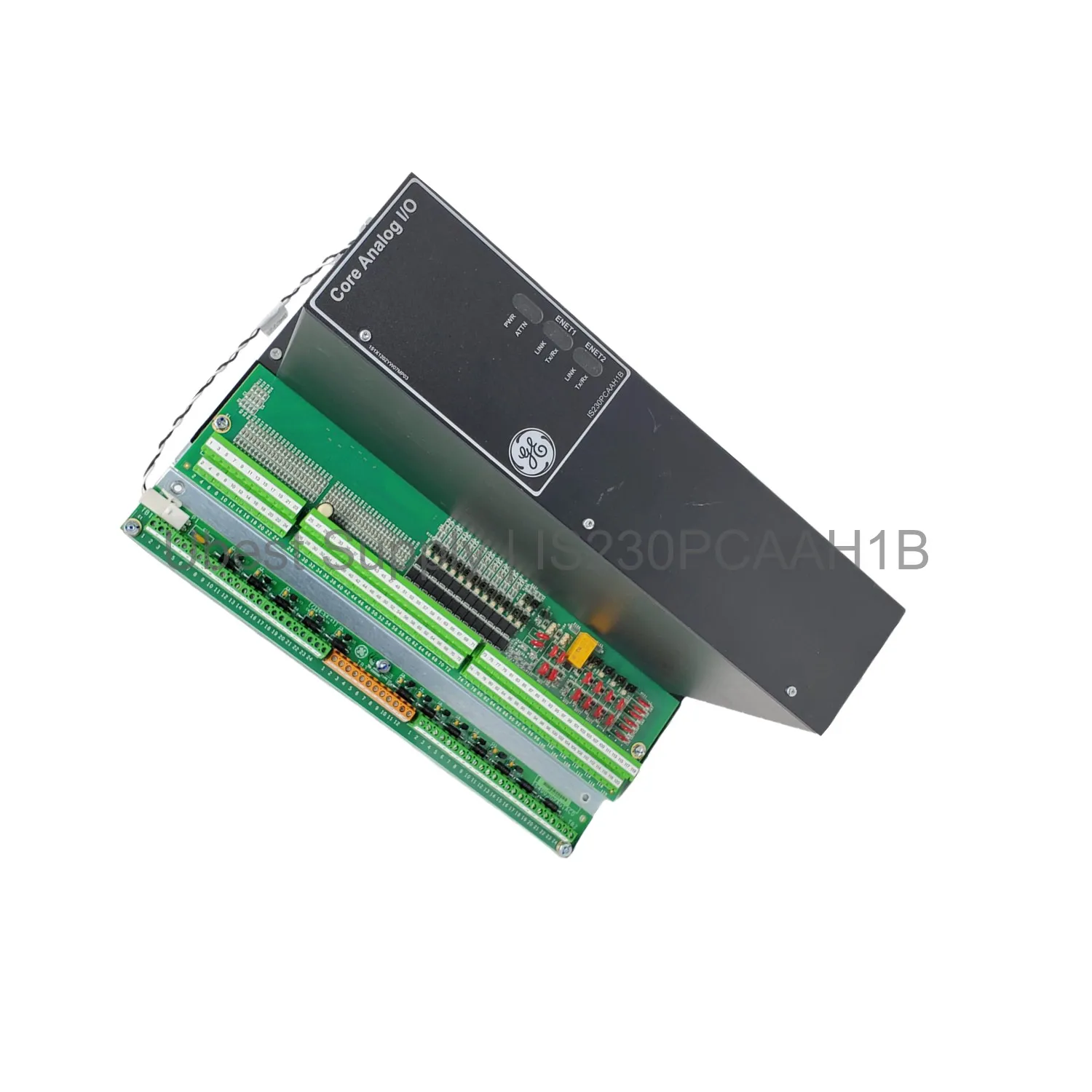

I/O Module GE IS230PCAAH1B Mark VIe In Stock

Product Overview

The GE IS230PCAAH1B is a robust I/O Module. It belongs to the Mark VIe series. This module uses advanced surface-mount technology. It provides reliable control for industrial systems. The unit supports 25 discrete inputs. It also features 4 analog outputs. These outputs handle 4-20 mA and 0-10 V DC signals. The module is ideal for turbine control applications.

Application Scenarios

This module works well in power generation plants. It is perfect for gas and steam turbine control. The unit manages LVDT excitation inputs. It also drives servo actuators. You can use it in oil and gas facilities. It fits into chemical processing plants too. The board handles harsh industrial environments. It operates from -30 to 65 degrees Celsius.

Technical Specifications

The IS230PCAAH1B requires a 28Vdc power supply. The input voltage tolerance is ±5 percent. The analog inputs have a ±0.50 percent accuracy. The LVDT excitation monitor has ±1.00 percent accuracy. The servo driver output has ±3.50 percent accuracy. The module measures 33.02 cm high. It is 17.8 cm wide. It uses surface-mount components for reliability.

Installation & Maintenance Guide

Mount the module in a clean dry panel. Ensure proper airflow for cooling. Connect the 28Vdc power supply first. Verify the voltage is within ±5 percent. Attach input devices to the terminal blocks. Use shielded cables for analog signals. Do not exceed the rated current limits. Check connections regularly for tightness.

Packing List

You will receive one GE I/O Module. The model number is IS230PCAAH1B. It includes the manual GEH-6721LI. The unit is packaged in an anti-static bag. It is placed in a sturdy cardboard box. We ship via Fedex, UPS, or DHL. The product is new in stock.
