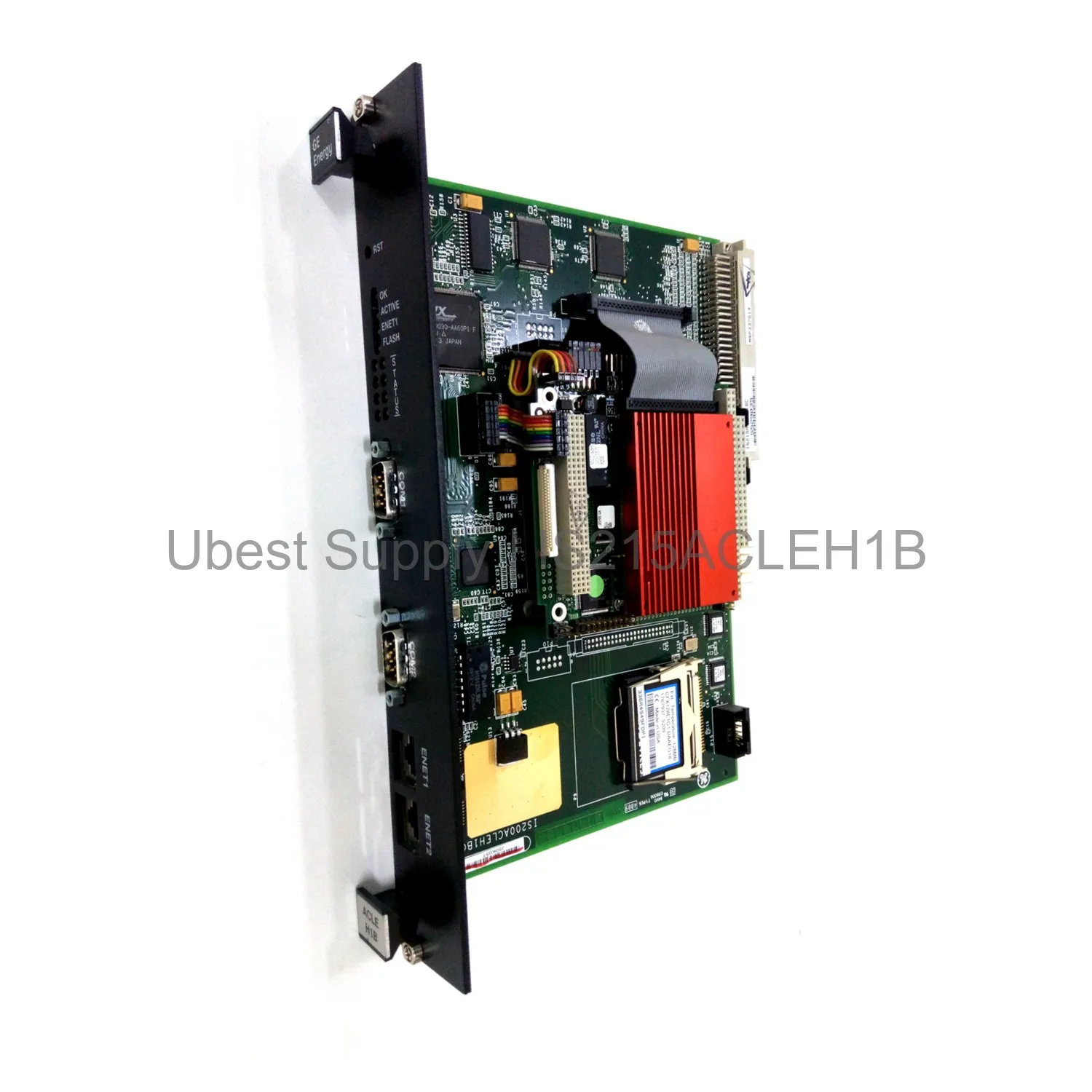

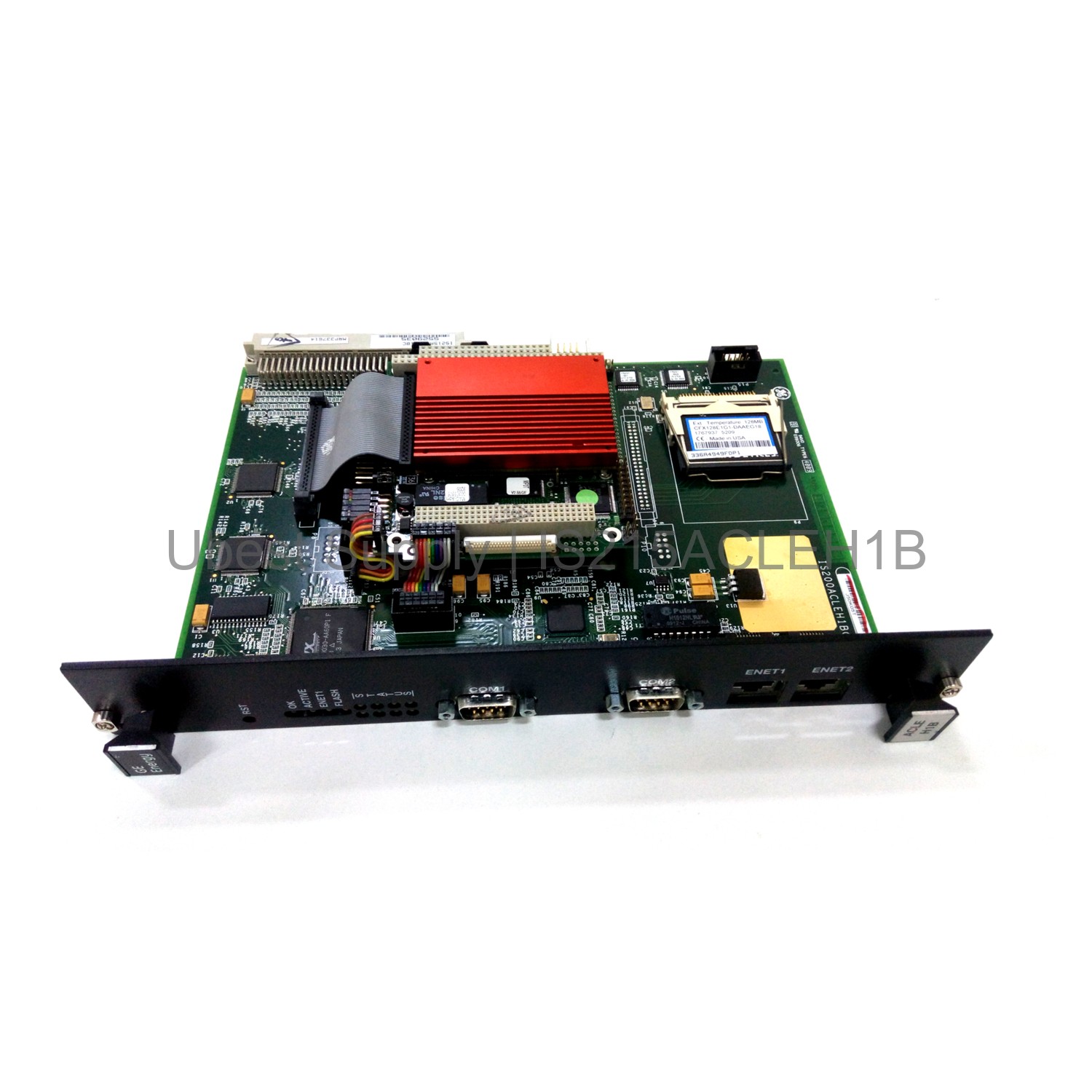

GE IS215ACLEH1B EX2100e Application Control Layer Module

Product Overview

The IS215ACLEH1B is a microprocessor-based controller. It belongs to the EX2100e series. This board performs many duties over ISBus and Ethernet.

It mounts in two half-slots in the EX2100 exciter board rack. It also fits in Innovation Series drives. The board uses a special modular assembly.

This assembly includes capacitors, resistors, transistors, and diodes. It also includes specialized integrated circuits. The ACLE board sits inside the control cabinet.

Software features include I/O points and Internal Booleans. It also supports Application control for Innovation Series drives. It has non-volatile flash memory.

The board supports online application configuration loading. It also has a control block feature. The IS215ACLEH1B board uses an Ethernet connection.

Application Scenarios

This module works in industrial excitation systems. It is ideal for turbine control applications. It manages communication in drive systems.

The board handles data exchange over Ethernet. It supports real-time control tasks. It fits in GE EX2100 and EX2100E Series systems.

It is suitable for Innovation Series drives. It also works in power generation plants. The board ensures reliable application control.

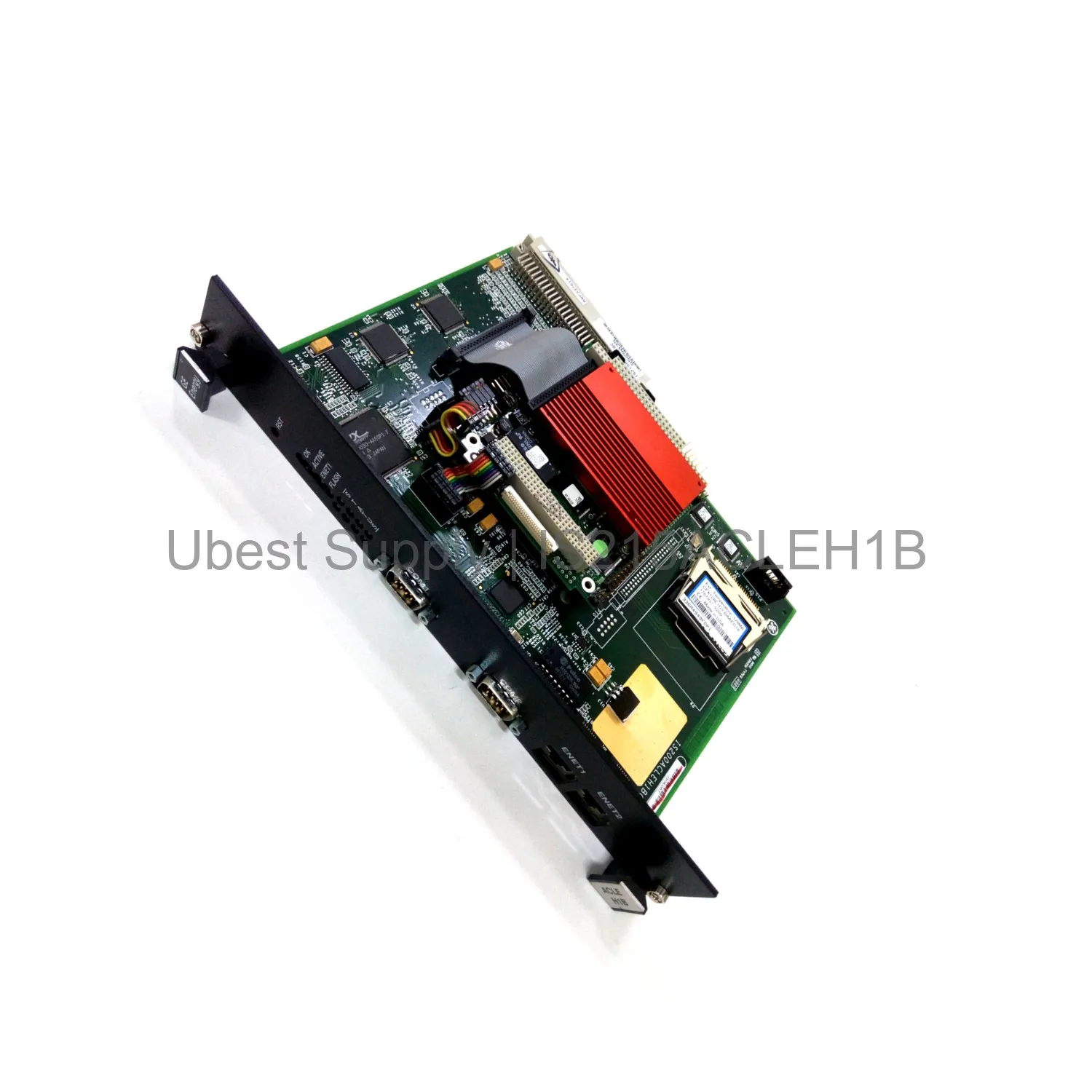

Technical Specifications

The Ethernet connection uses IRQ 5. It is initialized by the BIOS function. The connection is a 10baseT or RJ45 jack.

This jack is on the front panel. The board has a PCI controller. This controller manages inputs and outputs.

It also handles configuration transfers to the PCI bus. The controller manages memory functions. The model has a 128 KB L2 Cache.

This cache works with the PCI controller. It is set at a 152 NC cache line. This fills the line between L1 and L2 cache.

The board has flash memory. This memory is on the local bus side. It is known as Device 1.

The device can only be accessed in byte mode. The IS215ACLEH1B functional product number codes for hardware details. It includes the ACLE functional acronym.

It also includes the group one EX2100 Series grouping. It has a conformal PCB coating. It is a B-rated primary functional product revision.

Installation & Maintenance Guide

Mount the board in two half-slots. Ensure the cabinet is clean and dry. Check all connections before powering up.

Use proper ESD protection during handling. Verify the Ethernet cable is secure. Do not block ventilation areas.

Periodically inspect for dust buildup. Use compressed air for cleaning. Do not use liquid cleaners.

Ensure firmware is up to date. Use only authorized replacement parts. Follow GE installation manuals carefully.

Packing List

1 x GE IS215ACLEH1B Application Control Layer Module
1 x Anti-static packaging
1 x Product documentation (if available)
