170ENT11001 | Schneider Modicon Momentum Ethernet TCP/IP Communication Adapter

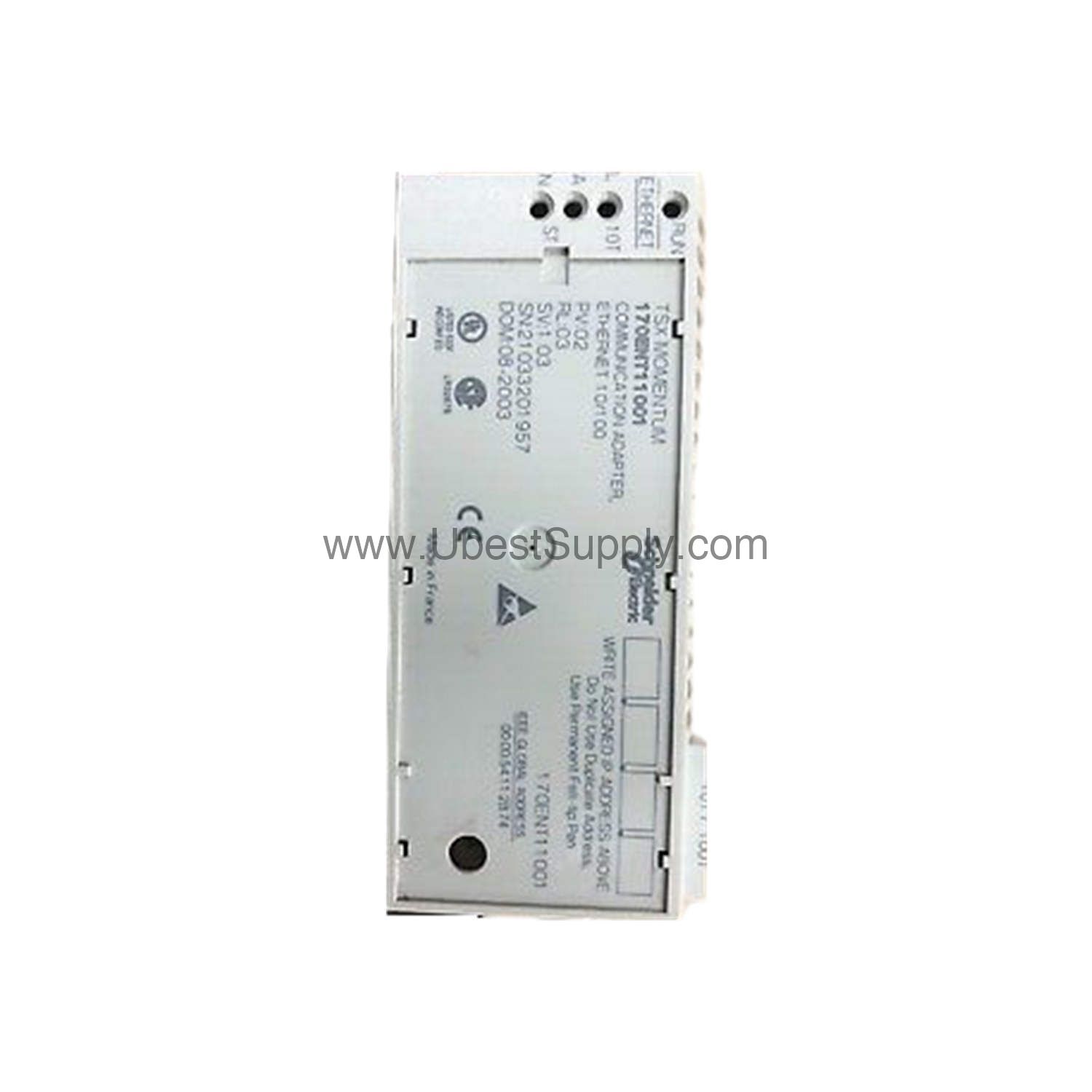

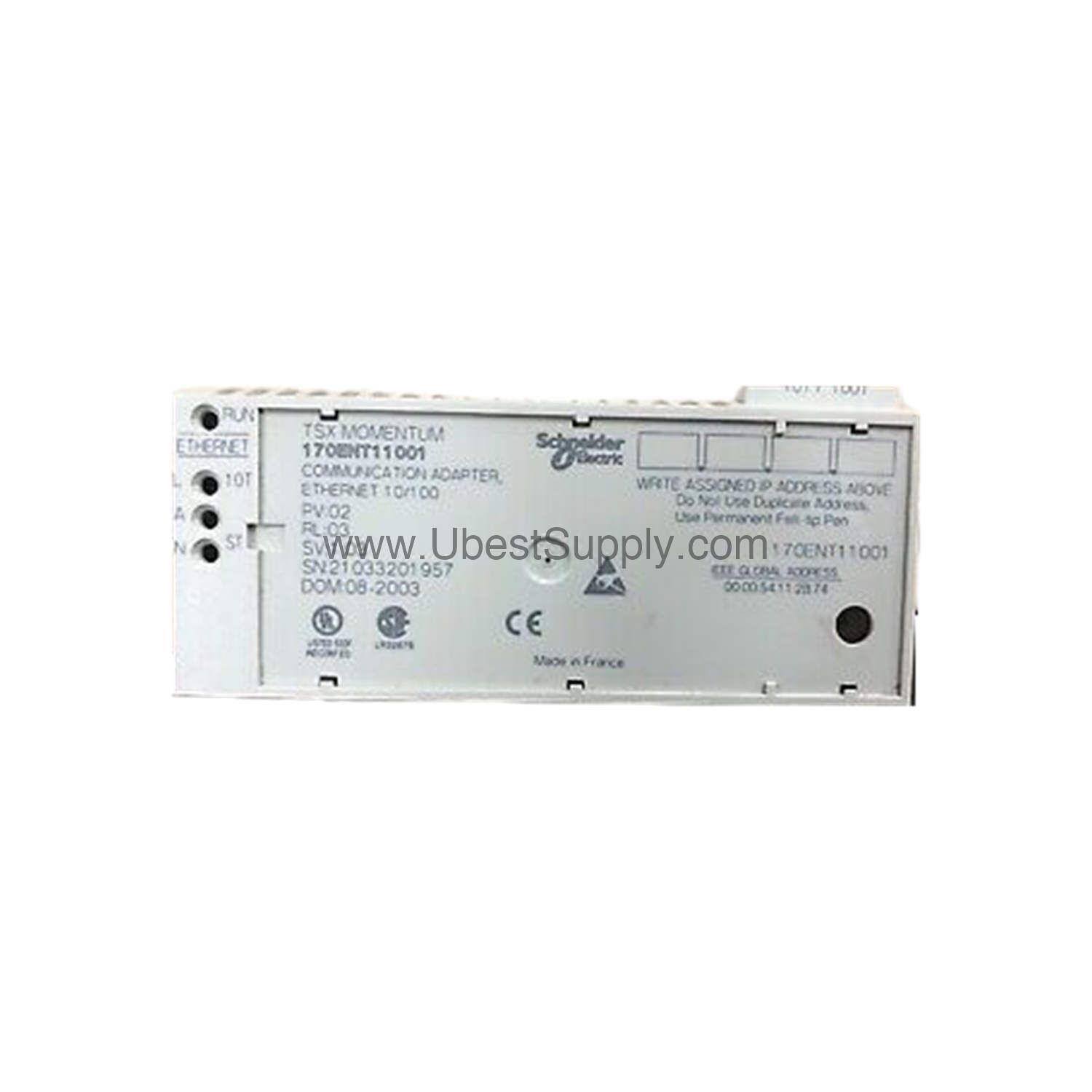

Introduction to the 170ENT11001

When you need dependable Ethernet communication for your Modicon Momentum automation platform, the 170ENT11001 from Schneider Electric delivers. This communication adapter supports both 10 and 100 megabits per second baud rates, giving you flexible speed options for various networking demands. It uses Ethernet TCP/IP protocol, a standard in industrial networking, ensuring broad compatibility.

Part of the Modicon Momentum series, this adapter is engineered for seamless integration. With its compact design and IP20 protection, it fits easily into control cabinets while safeguarding against dust and incidental contact.

Key Features and Technical Specifications

The 170ENT11001 offers a robust set of features that make it a practical choice for industrial networks. Here are the core specifications:

• Communication protocol: Ethernet TCP/IP, ensuring reliable data exchange.
• Baud rate: 10 or 100 Mbit/s, allowing adaptation to network speed requirements.
• Access method: Master/slave and peer-to-peer (P2P), supporting flexible network architectures.
• Transmission medium: Shielded twisted pair cable, reducing electromagnetic interference.
• Ethernet port: 100BASE-TX with RJ45 connector, a standard interface for easy wiring.
• Number of devices per segment: Up to 32, enabling scalable network design.
• Maximum cable distance: 3,280 feet (1,000 meters) between devices, offering placement flexibility.
• Status indicators: 4 LEDs (3 green, 1 yellow) for quick operational status checks.
• Control parameter: CRC-32, ensuring data integrity during transmission.
• Ambient operating temperature: 0 to 60°C, suitable for typical industrial environments.
• Storage temperature: -40 to 85°C, withstanding extreme conditions.
• Protection class: IP20, providing basic protection.

One distinctive aspect is the CRC-32 error-checking mechanism, which helps maintain data accuracy over long distances—a critical factor when you're transmitting across a 1,000-meter span.

Applications and Use Cases

The 170ENT11001 excels in scenarios where reliable, high-speed communication is essential. For instance, in a manufacturing plant with multiple PLCs, this adapter enables master/slave communication, allowing a central controller to coordinate with remote I/O modules. Its peer-to-peer capability also supports direct device-to-device data exchange, which is useful for synchronized operations.

Moreover, the adapter's support for up to 32 devices per segment and star or multi-drop topologies gives you design freedom. Whether you're setting up a new line or expanding an existing network, the 170ENT11001 adapts to your architecture.

Installation and Setup

Installing the 170ENT11001 is straightforward. The RJ45 connector simplifies wiring—just plug in your shielded twisted pair cable. Ensure the cable is properly shielded to maintain signal integrity, as recommended by the manufacturer.

For network configuration, the adapter supports BOOTP server to assign IP parameters, making initial setup efficient. You can also assign an IP address manually if preferred. The unique IEEE global address ensures each device is identifiable on the network.

When mounting, consider the ambient temperature range of 0 to 60°C. Position the adapter in a well-ventilated area to avoid overheating. The IP20 rating means it should be installed in a clean, dry environment, typically inside a control cabinet.

Maintenance and Reliability

To keep your 170ENT11001 operating reliably, periodic inspection is recommended. Check the LED indicators regularly—green lights signal normal operation, while the yellow LED may indicate activity or status changes. If you notice any anomalies, consult the Schneider Electric documentation for troubleshooting steps.

Since the adapter has no moving parts, maintenance is minimal. However, ensure the surrounding environment stays within the specified temperature and humidity limits (non-condensing). Regularly inspect cable connections for wear or looseness, as physical damage can affect communication quality.

Compatibility and Integration

The 170ENT11001 is designed for the Modicon Momentum automation platform, ensuring seamless integration with other Momentum modules. It uses standard Ethernet TCP/IP, so it can communicate with a wide range of industrial devices that support this protocol, such as PLCs, HMIs, and SCADA systems.

Its support for master/slave and peer-to-peer access methods means it can fit into both centralized and distributed control architectures. The adapter's ability to handle up to 32 devices per segment makes it scalable for growing networks.

Troubleshooting Common Issues

If you encounter communication issues, start by verifying the physical connection—ensure the RJ45 connector is securely plugged in and the cable is not damaged. Check the LED indicators: if no lights are on, power may not be reaching the adapter. If the yellow LED is blinking rapidly, it might indicate network traffic, which is normal.

For IP configuration problems, confirm that the BOOTP server is correctly set up or that the manual IP address is valid and not conflicting with another device. Also, verify that the cable length does not exceed the 1,000-meter limit, as longer runs can cause signal degradation.

If problems persist, refer to the official Schneider Electric manual or contact Petro Auto Tech for technical support.

FAQs about the 170ENT11001

Q: What is the maximum baud rate of the 170ENT11001?

A: The adapter supports baud rates of 10 or 100 megabits per second, giving you flexibility for your network speed requirements.

Q: How many devices can I connect per segment?

A: You can connect up to 32 devices per segment, allowing for scalable network designs.

Q: What type of cable should I use?

A: Use shielded twisted pair cable to ensure reliable communication and reduce interference.

Q: Can the 170ENT11001 operate in high-temperature environments?

A: The operating temperature range is 0 to 60°C, so it's suitable for typical industrial conditions, but avoid exceeding this range.

Product Support and Availability

The 170ENT11001 is available at Petro Auto Tech, an industrial automation parts supplier. We keep this model in stock and ready to ship. For detailed technical support or to verify lifecycle status, contact our team—we're here to help you integrate this adapter into your system.
