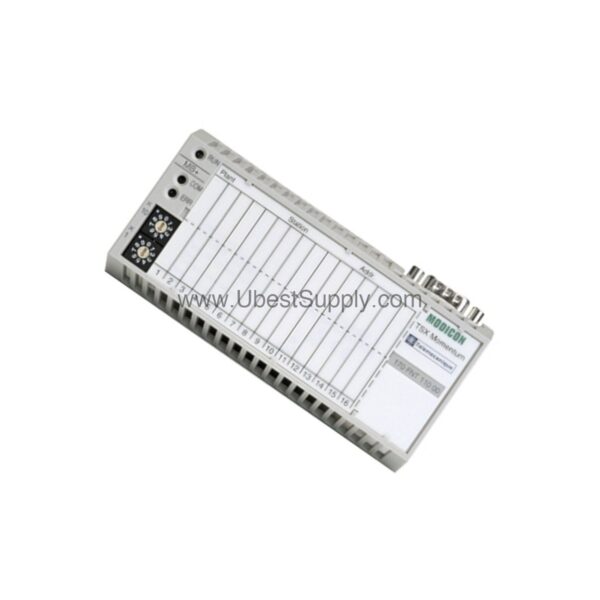

170FNT11001 | Schneider 1 Mbit/s FIPIO Communication Module

Introduction to the 170FNT11001

When network reliability is critical, the 170FNT11001 from Schneider Electric provides a dependable FIPIO communication solution. As part of the Modicon Momentum automation platform, this module enables efficient data exchange across industrial networks. It supports a transmission rate of 1 Mbit/s, ensuring timely and consistent communication for demanding applications.

The module's fail state functionality maintains the last known value or falls back to zero during interruptions, preserving system integrity. This feature is essential for processes where unexpected data loss could lead to operational issues.

Key Features and Technical Specifications

• Transmission rate: 1 Mbit/s for fast data transfer.
• Fail state: maintain value or fallback to zero for reliability.
• Protocol: FIPIO for standardized industrial communication.
• Power supply: from the I/O base, simplifying installation.
• Cable types: optical fiber (50/125, 62.5/125) and shielded twisted pairs.
• Devices per segment: up to 31 without repeater, 97 with repeater.
• Topology: extension or tap-off cable arrangements.
• Max cable distance: 5000 meters.
• Access method: producer/consumer principle for efficient data sharing.
• CE marking ensures compliance with EU regulations.

One distinctive spec is the ability to support up to 97 devices per segment with a repeater. This scalability allows system designers to expand networks without adding excessive infrastructure, reducing overall cost and complexity.

Applications and Use Cases

The 170FNT11001 is well-suited for factory automation, process control, and material handling systems. In a typical manufacturing line, this module can connect multiple sensors and actuators to a Premium PLC, enabling real-time monitoring and control. Its long cable length capability (up to 5000 m) makes it ideal for large facilities where devices are spread across wide areas.

For example, in a water treatment plant, the module can link remote pumps and valves to a central control room, ensuring reliable data transmission over extended distances. The fail-safe feature ensures that if a communication error occurs, the system defaults to a safe state, preventing potential damage.

Installation and Setup

Installing the 170FNT11001 is straightforward. The module draws power from the I/O base, eliminating the need for separate power wiring. When connecting cables, ensure that the fiber optic or twisted pair cables are properly terminated and routed to avoid interference. For twisted pair cables, maintain proper shielding and grounding to minimize electromagnetic interference.

For network expansion, plan the topology carefully. The module supports extension or tap-off cable arrangements, so you can choose the layout that best fits your facility. Verify cable lengths do not exceed the maximum of 5000 meters to maintain signal integrity.

Maintenance and Reliability

Regular inspection of the module and its connections is recommended to ensure long-term reliability. Check for loose connectors, damaged cables, or signs of wear. The fail-state feature reduces the risk of unexpected downtime by maintaining a known state during communication faults.

Because the module is lightweight (0.11 kg) and compact, it is easy to replace if needed. Following the manufacturer's guidelines for periodic checks will help extend the service life of the module and the overall system.

Compatibility and Integration

The 170FNT11001 is designed for the Modicon Momentum platform and works with Premium PLCs as bus managers. It uses the FIPIO protocol, which is widely supported in Schneider Electric's automation ecosystem. The producer/consumer access method allows multiple devices to share data efficiently, making integration with other FIPIO-compatible devices straightforward.

For existing systems, this module can be added to expand network capacity or replace older communication modules. Its compatibility with both optical fiber and twisted pair cables provides flexibility in retrofitting.

Troubleshooting Common Issues

If communication issues arise, first verify that the module is properly seated on the I/O base and that power is supplied. Check cable connections and ensure that the total cable length does not exceed the maximum specified distance. Also, confirm that the number of devices per segment is within the limit (31 without repeater, 97 with repeater).

If the fail state activates, it indicates a communication interruption. Investigate the network for faulty cables, loose connectors, or excessive noise. Using high-quality shielded cables can mitigate interference.

FAQ

Q: What is the maximum transmission rate of the 170FNT11001?

A: The 170FNT11001 supports a transmission rate of 1 Mbit/s.

Q: How many devices can be connected per segment?

A: Up to 31 devices without a repeater, and up to 97 with a repeater.

Q: What cable types are supported?

A: Optical fiber (50/125, 62.5/125) and shielded twisted pairs.

Q: What is the maximum cable distance?

A: The maximum cable distance is 5000 meters.

Q: Does the module have a fail-safe feature?

A: Yes, it can maintain the last value or fall back to zero.

Product Support and Availability

The 170FNT11001 is available from Petro Auto Tech, an industrial automation parts supplier. In stock and ready to ship, this module can be ordered with confidence. For technical assistance or lifecycle status, contact Petro Auto Tech for the latest information.
