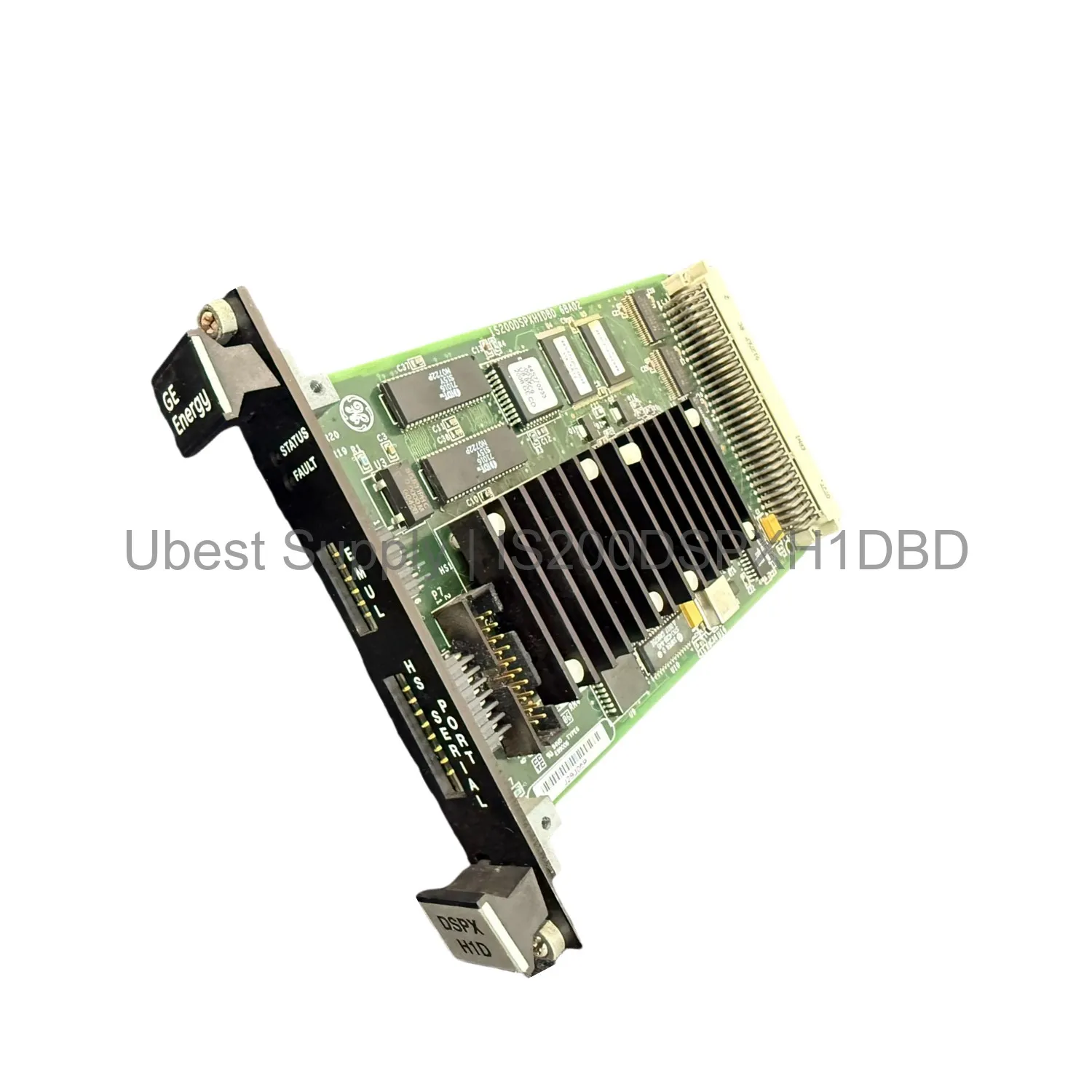

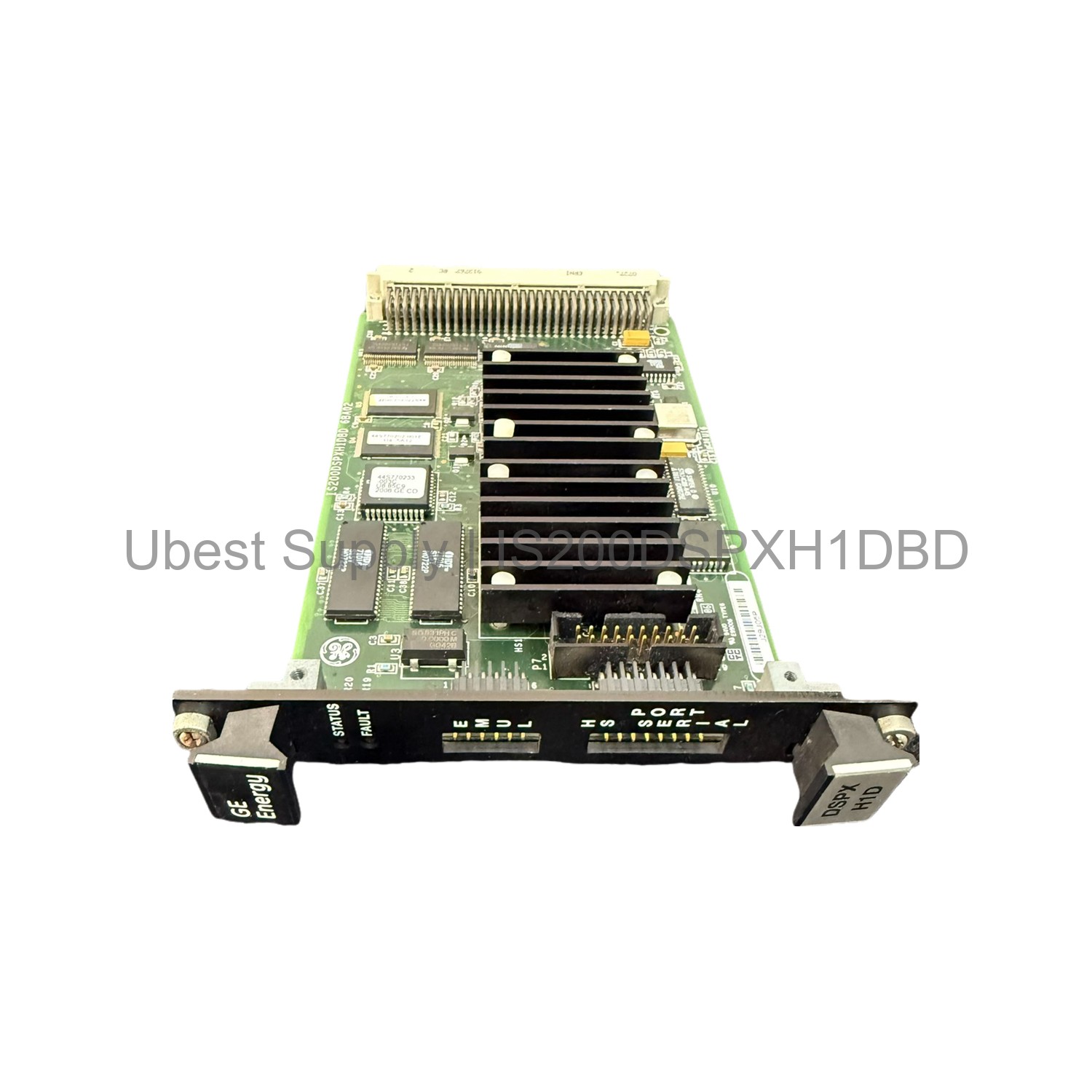

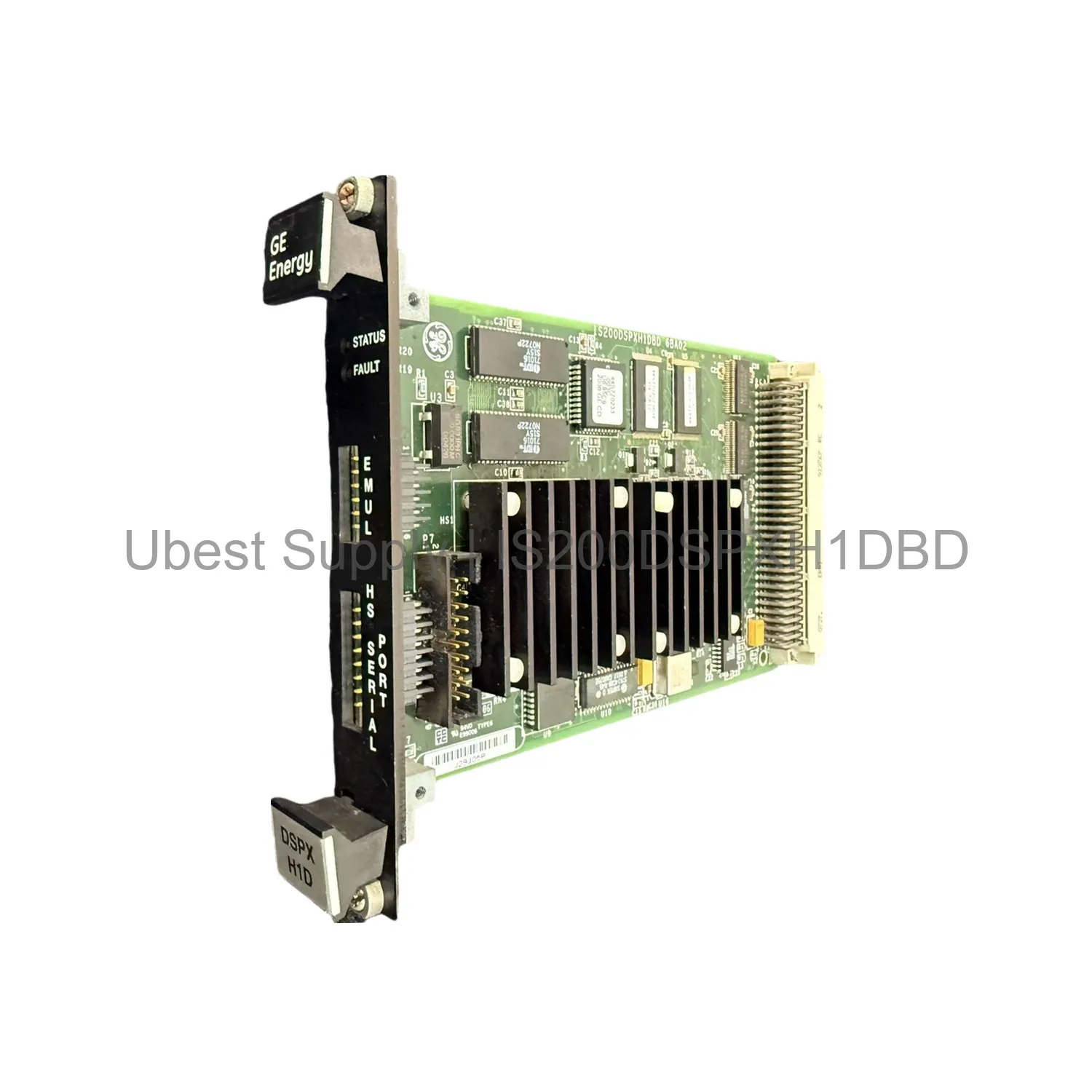

GE Mark VI DSPX Control Board IS200DSPXH1DBD

Product Overview

The GE IS200DSPXH1DBD is a digital signal processor control board. It belongs to the Mark VI Speedtronic series. This board handles critical control tasks. It has three total revisions. The design ensures backward compatibility with the first two revisions. This makes upgrades simple and cost-effective. The board uses a normal assembly type. It is a reliable component for turbine control systems.

Application Scenarios

This board works in industrial turbine control. It fits into Mark VI Speedtronic cabinets. Use it for gas or steam turbine management. It processes digital signals for precise control. The board suits power generation plants. It also works in oil and gas facilities. The backward compatibility helps legacy system upgrades. It reduces downtime during replacements.

Technical Specifications

The board is a normal assembly type. It has three revisions for improved performance. The functional abbreviation is DSPX. The part number is IS200DSPXH1DBD. It is backward compatible with the first two revisions. This ensures easy integration with older systems. The board uses standard Mark VI connectors. It operates within typical industrial temperature ranges.

Installation & Maintenance Guide

Install the board in a Mark VI rack. Ensure power is off before handling. Use anti-static precautions during installation. Align the board with the backplane slots. Secure it with the provided screws. Test connections after installation. For maintenance, inspect for dust or damage. Replace the board if errors appear. Always use compatible firmware versions.

Packing List

One GE IS200DSPXH1DBD control board. Anti-static packaging for safe transport. No additional cables or accessories included. The board is ready for immediate installation.
