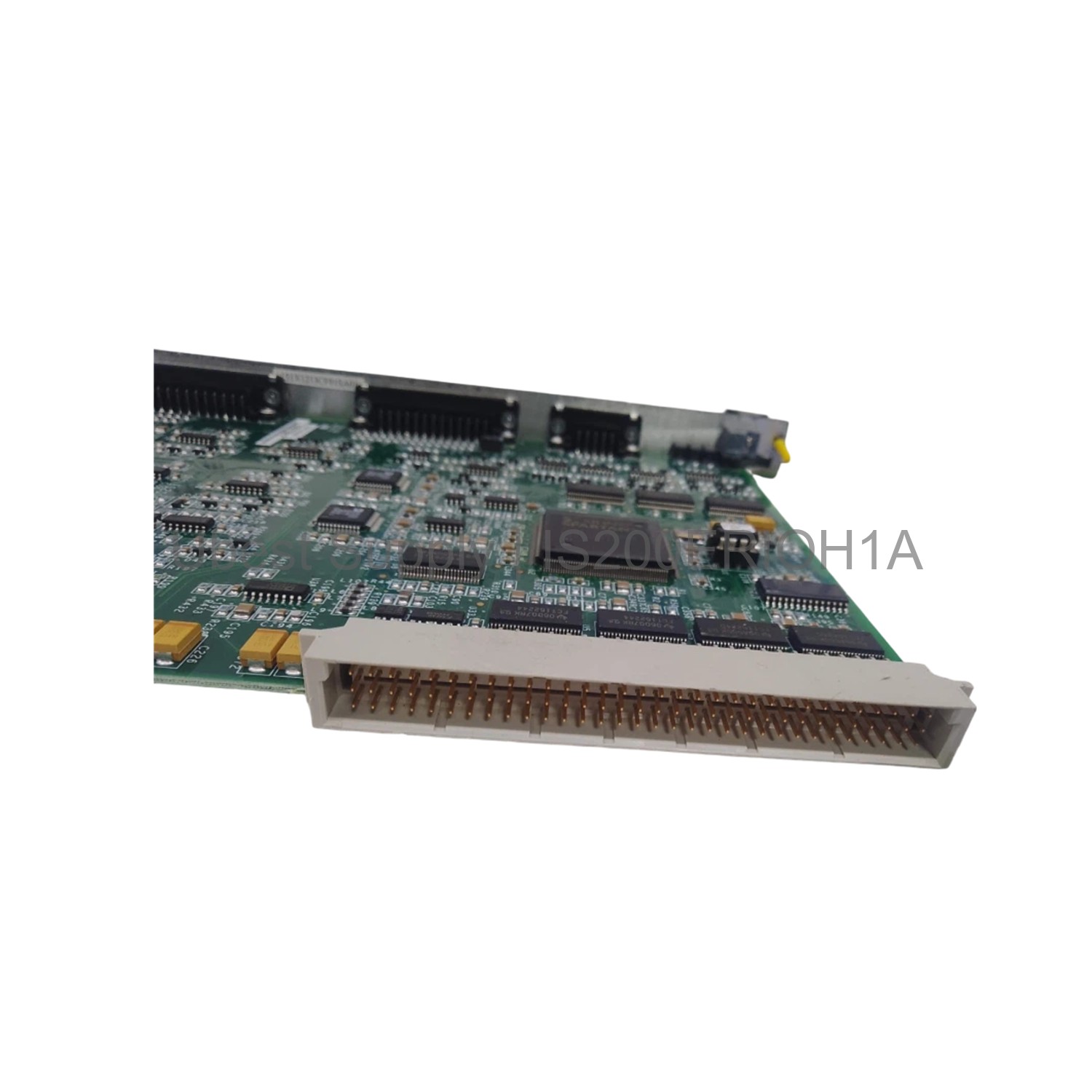

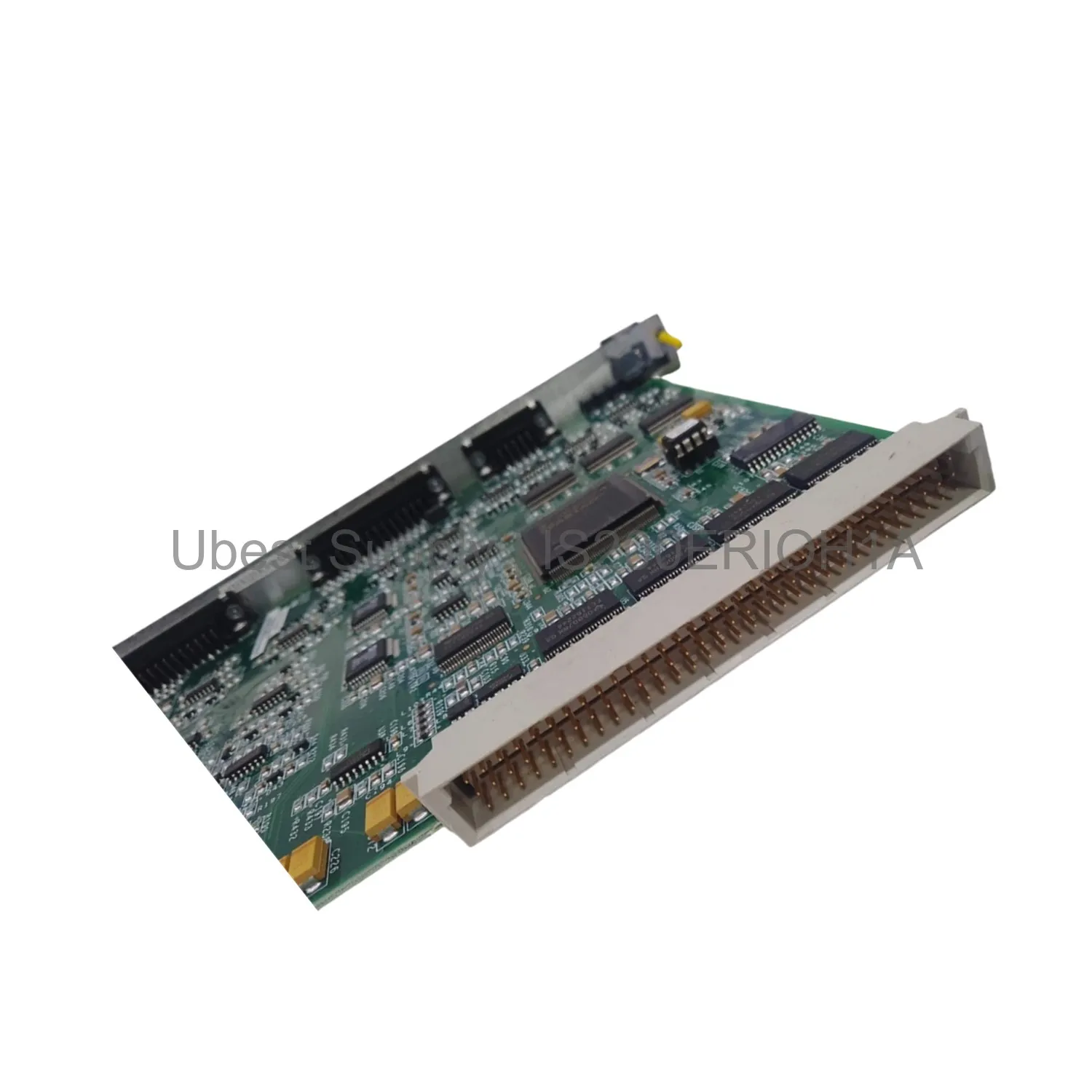

GE Mark VI IS200ERIOH1A Ground Detector Board

Product Overview

The GE IS200ERIOH1A is a ground detector board. It belongs to the Mark VI series. General Electric designed this board for exciter regulator I/O systems. It monitors ground faults in generator excitation circuits. This board works with both redundant and simplex configurations.

The IS200ERIOH1A board detects ground leakage currents. It provides critical protection for turbine control systems. This board uses advanced sensing technology. It ensures reliable operation in harsh industrial environments.

Application Scenarios

This board suits power generation plants. It works in gas turbine and steam turbine systems. The board monitors exciter field ground faults. It protects against insulation breakdown. Use it in redundant control systems for maximum safety.

This board also fits simplex configurations. It is ideal for retrofit projects. Many facilities use this board for Mark VI upgrades. The board helps prevent costly generator damage.

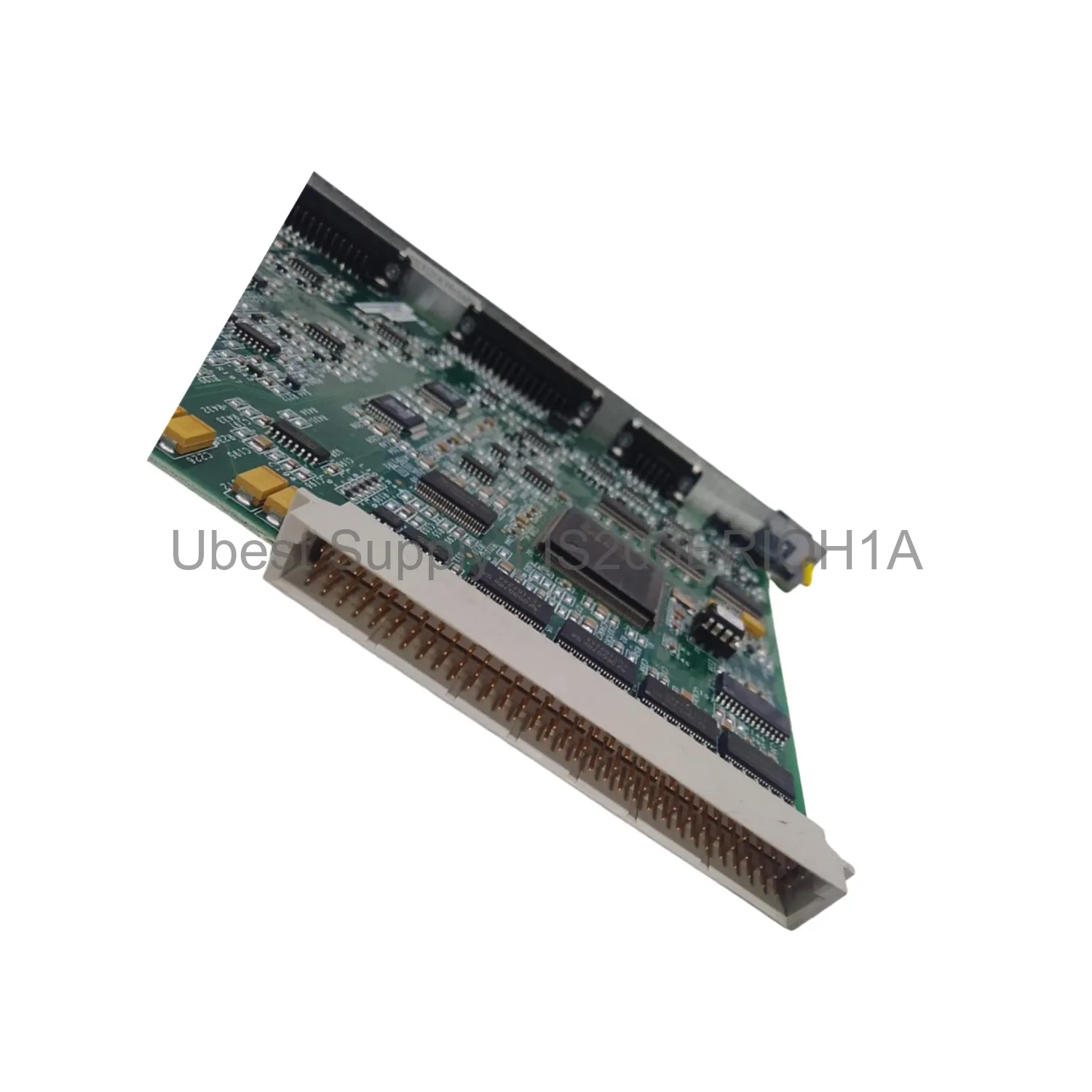

Technical Specifications

Manufacturer: General Electric. Series: Mark VI. Function: Ground Detector Board. Product Type: Exciter Regulator I/O. Applications: Redundant and Simplex. Manufacturing Location: Salem, VA, USA.

The board uses a standard Mark VI form factor. It connects directly to the backplane. It supports multiple voltage inputs. The board has LED indicators for status. It operates at industrial temperature ranges.

Installation & Maintenance Guide

Install the board in a Mark VI rack. Ensure the system is powered off first. Insert the board firmly into the slot. Secure it with the locking screws. Connect all required cables.

Test the board after installation. Check for proper LED status. Perform regular ground fault tests. Keep the board clean and dry. Replace the board if it shows damage.

Packing List

One GE IS200ERIOH1A Ground Detector Board. Anti-static packaging. Installation guide. All shipments use Fedex, UPS, or DHL.
