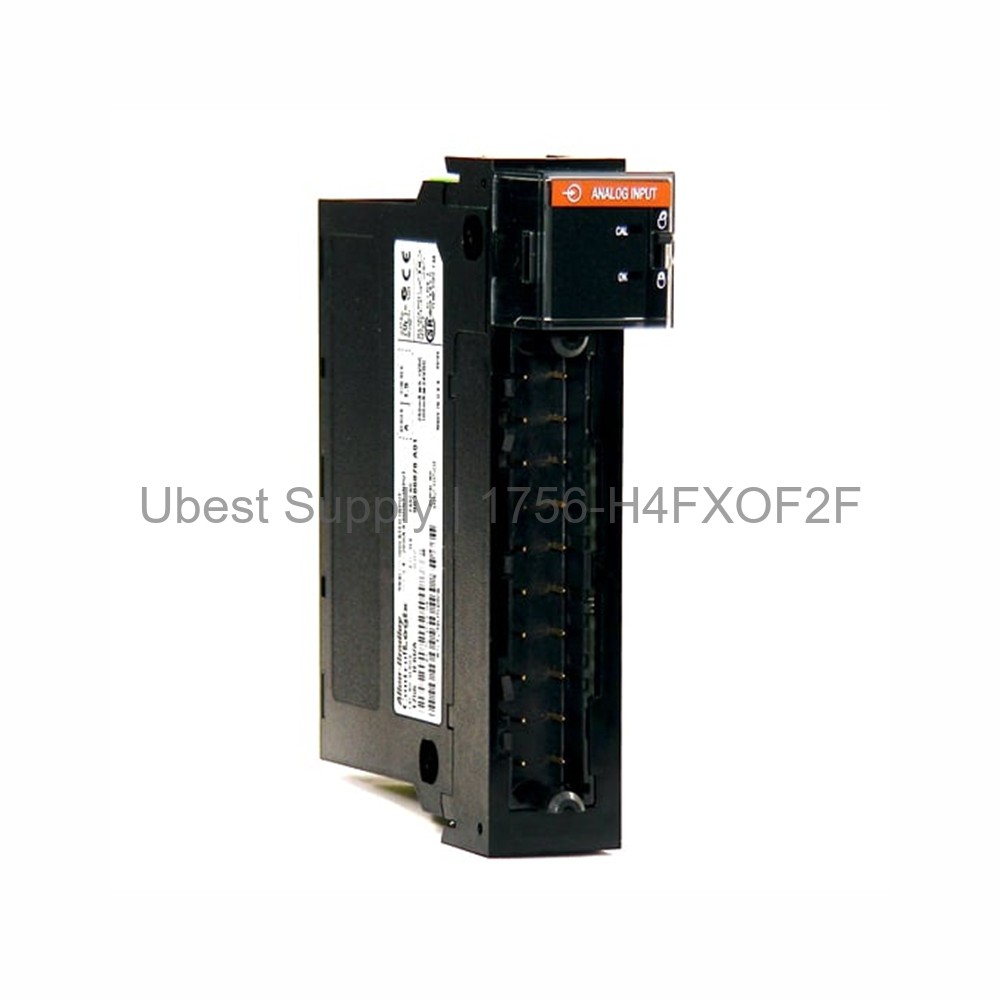

High Speed Analog I/O Module Allen-Bradley 1756-IF4FXOF2F

Product Overview

The Allen-Bradley 1756-IF4FXOF2F is a high-speed analog I/O module. It belongs to the ControlLogix system. This module has four differential inputs and two outputs. The inputs support sub-millisecond scan times. It works with 1756-TBS6H or 1756-TBCH terminal blocks.

Application Scenarios

Use this module for fast process control. It measures flow, level, and pressure. It also handles temperature and speed signals. The high-speed inputs suit precise motion control. Use the outputs for valve or actuator control.

Technical Specifications

The module has 4 high-speed differential inputs. Input ranges include ±10V, 0-10V, 0-5V, and 0-20 mA. Input resolution is 14 bits for voltage and 12 bits for current. It has 2 high-speed outputs. Output ranges are ±10V and 0-20 mA. Output resolution is 14 bits for voltage and 13 bits for current. Backplane current draw is 375 mA at 5V and 100 mA at 24V. Power dissipation is 4.3 Watts for voltage and 4.7 Watts for current.

Installation & Maintenance Guide

Install the module in a 1756 chassis. Use a compatible removable terminal block. Connect input and output signals correctly. Ensure the module is calibrated every 12 months. Check the display for module health and status.

Packing List

1 x 1756-IF4FXOF2F Module. 1 x Installation Manual. No terminal block is included. Order 1756-TBS6H or 1756-TBCH separately. Shipping via Fedex, UPS, or DHL.
