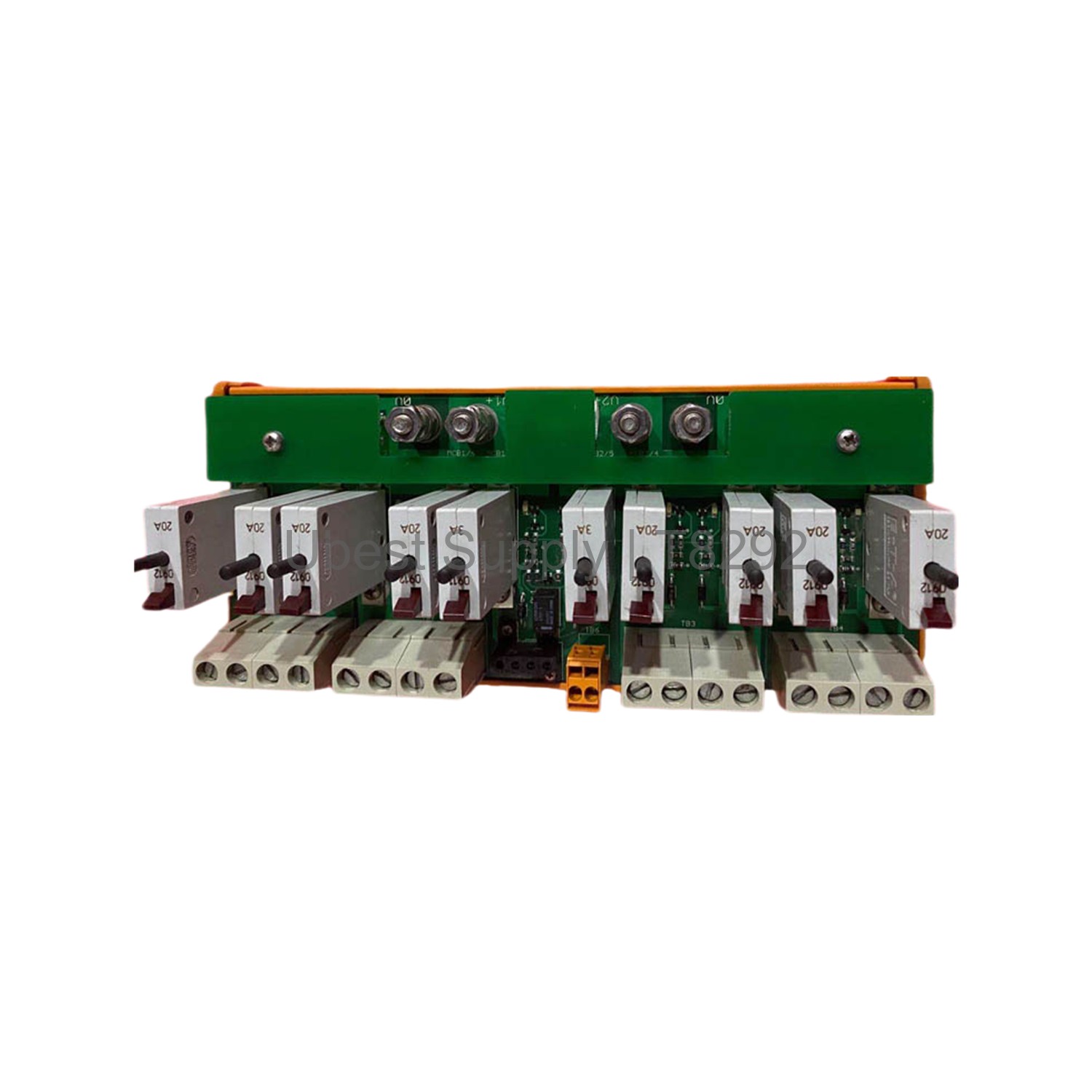

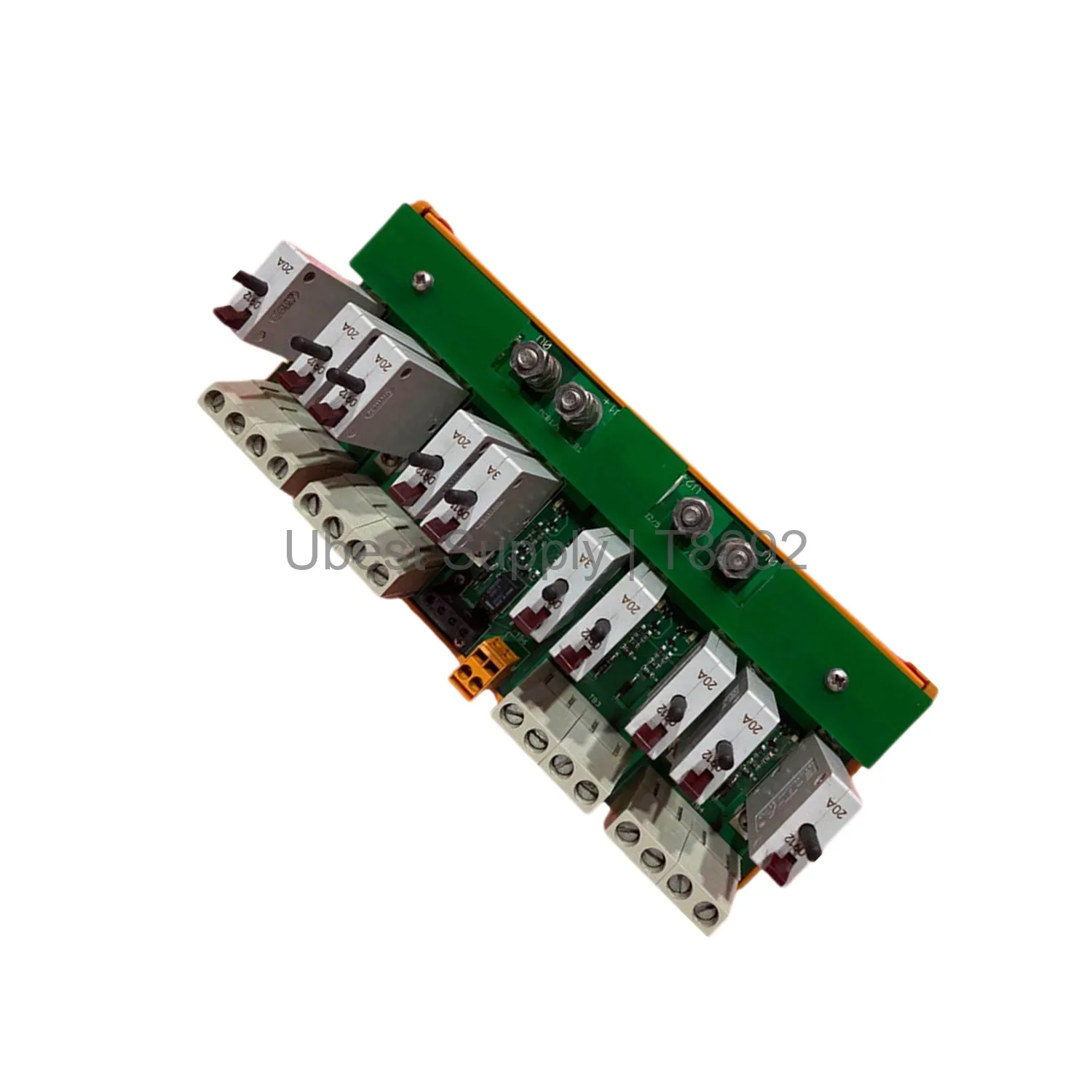

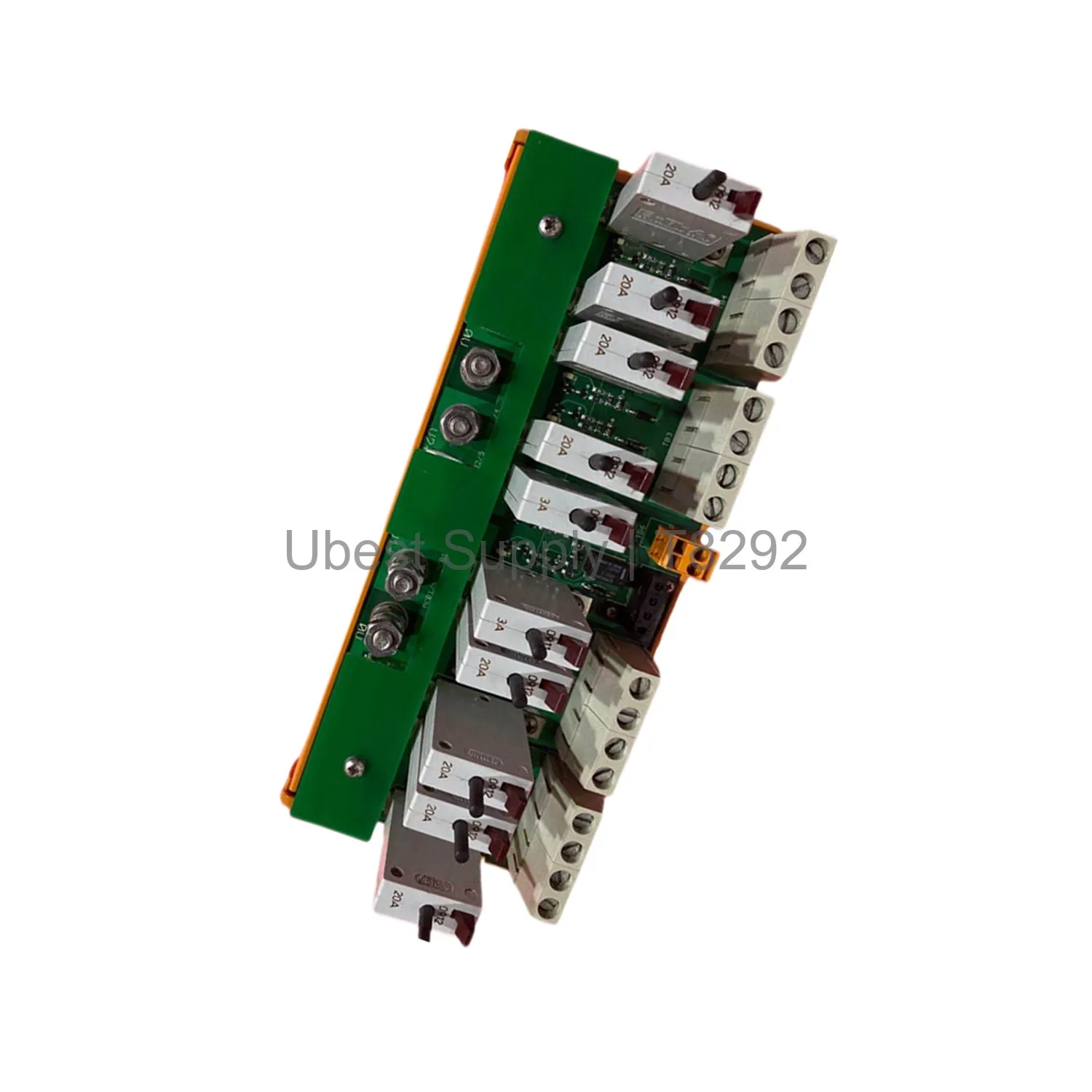

ICS Triplex T8292 Trusted Power Distribution Unit MCB 24Vdc

Product Overview

The ICS Triplex T8292 is a Trusted Power Distribution Unit. It comes with a Miniature Circuit Breaker (MCB). This unit works with a 24Vdc supply. It accepts input voltages from 18 to 28 Vdc. The output rating reaches a maximum of 60A. This device is certified for Ordinary Location (OrdLoc) use. It is part of the Trusted TMR System family. Engineers rely on this unit for safe power distribution. It ensures reliable operation in critical control systems.

Application Scenarios

This power distribution unit fits many industrial settings. Use it in oil and gas facilities. It works well in chemical processing plants. Power generation stations also use this unit. It supports safety instrumented systems. The T8292 distributes power to multiple field devices. It protects circuits with the integrated MCB. Operators use it in high-availability control networks. It is ideal for applications needing redundant power. The unit handles harsh industrial environments.

Technical Specifications

The T8292 has a model number of T8292. Its supply range is 18 to 28 Vdc. The input and output rating is 60A maximum. It uses a 24Vdc nominal supply. The certification is Ordinary Location (OrdLoc). The origin of this product is the United States. It is part of the ICS Triplex Trusted series. The unit integrates with TMR (Triple Modular Redundant) systems. It provides stable power distribution for critical loads.

Installation & Maintenance Guide

Install the T8292 in a suitable cabinet. Ensure proper ventilation around the unit. Connect the 24Vdc supply to the input terminals. Observe correct polarity during wiring. Use appropriate wire gauges for 60A loads. Secure all connections tightly. Test the MCB function after installation. Perform periodic visual inspections. Check for loose wires or signs of heat. Replace the unit if any damage appears. Always follow local electrical codes.

Packing List

One ICS Triplex T8292 Power Distribution Unit. One set of mounting hardware. One product documentation sheet. The unit is packed in anti-static material. The package is suitable for safe transit.
