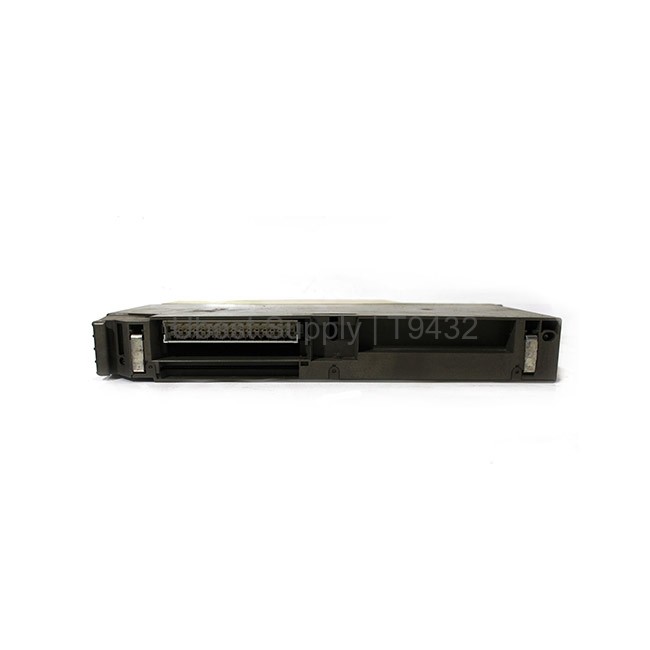

ICS Triplex T9432 Analogue Input Module 16 Channel

Product Overview

The ICS Triplex T9432 is an analogue input module. It has 16 isolated channels. It operates with a 24 Vdc supply. This module provides reliable signal acquisition. It supports simplex, dual, and triple architectures. Scan times are very fast. The module ensures high system availability.

Application Scenarios

This module fits into safety-critical systems. Use it in process control environments. It works well in oil and gas plants. It is also ideal for power generation. The T9432 handles high-speed data collection. It supports fault-tolerant control systems. Engineers trust it for harsh industrial settings.

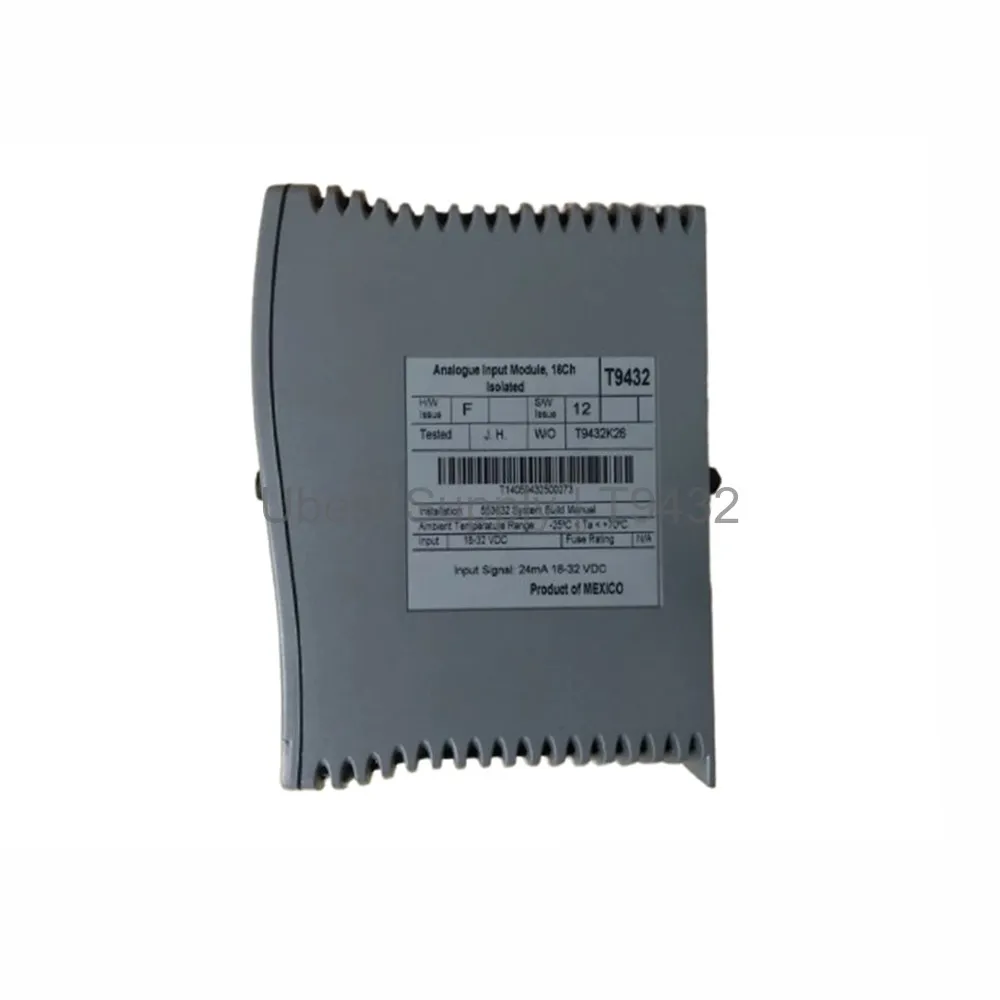

Technical Specifications

The module uses a back-plane voltage range of 18-32 Vdc. Its maximum current draw is 260 mA. Each input channel draws 24 mA. Power consumption is 4.0 W. Heat dissipation is also 4.0 W. The module weighs 340 grams. It measures standard rack dimensions. Scan times are 1.170 ms for simplex. Dual mode scans at 1.965 ms. Triple mode scans at 2.656 ms.

Installation & Maintenance Guide

Install the T9432 into a compatible chassis. Ensure the back-plane power is off. Slide the module firmly into the slot. Secure it with the locking screws. Connect field wiring to the terminal blocks. Follow the manual for proper grounding. Perform regular visual inspections. Keep the module free of dust. Replace it only with an identical unit.

Packing List

One ICS Triplex T9432 module. One user manual. One warranty card. No additional accessories included. The module is packed in an anti-static bag. It ships in a sturdy cardboard box. We use Fedex, UPS, or DHL for shipping.
