2097-V34PR6-LM | Allen-Bradley Kinetix 350 Servo Drive - Petro Auto Tech

Product Overview

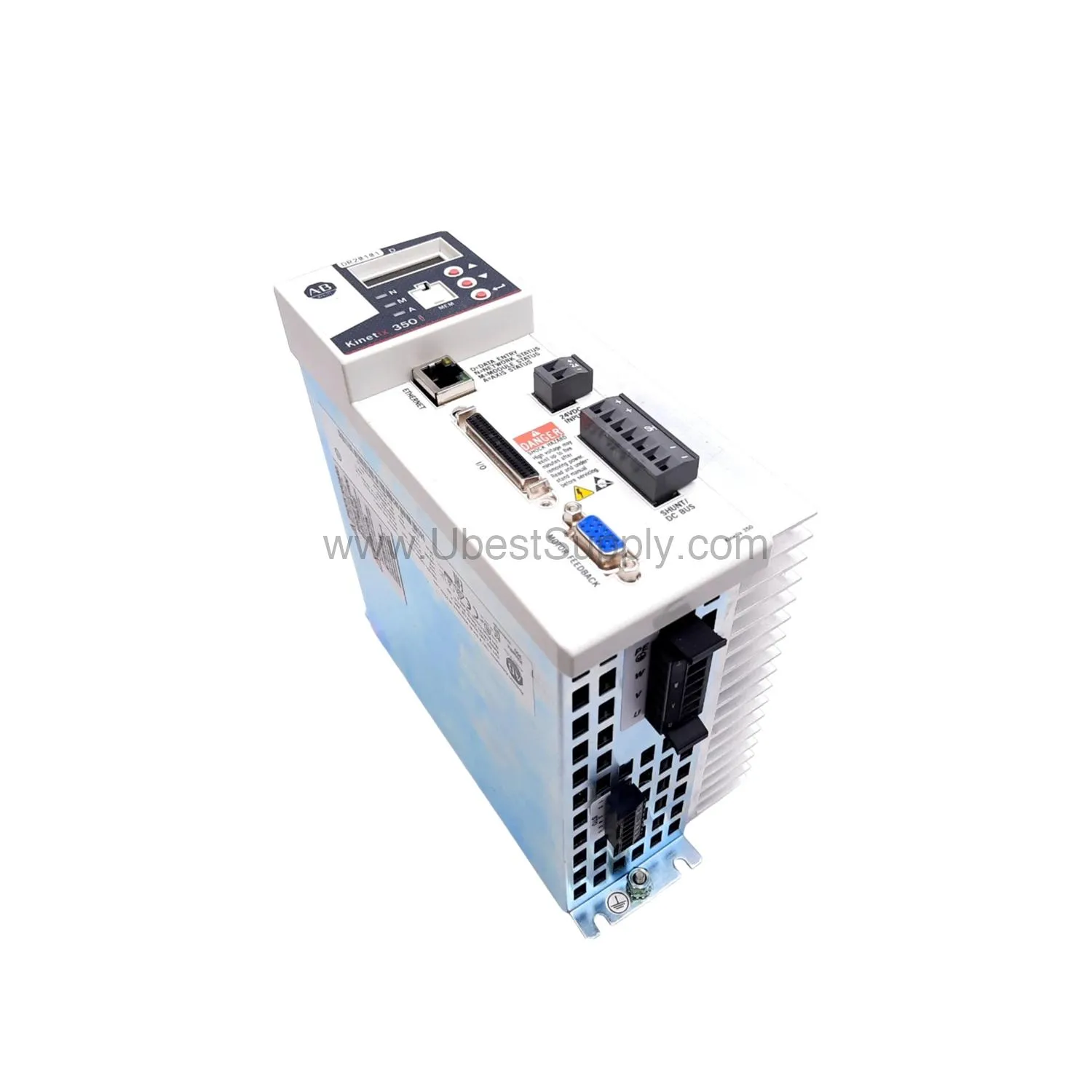

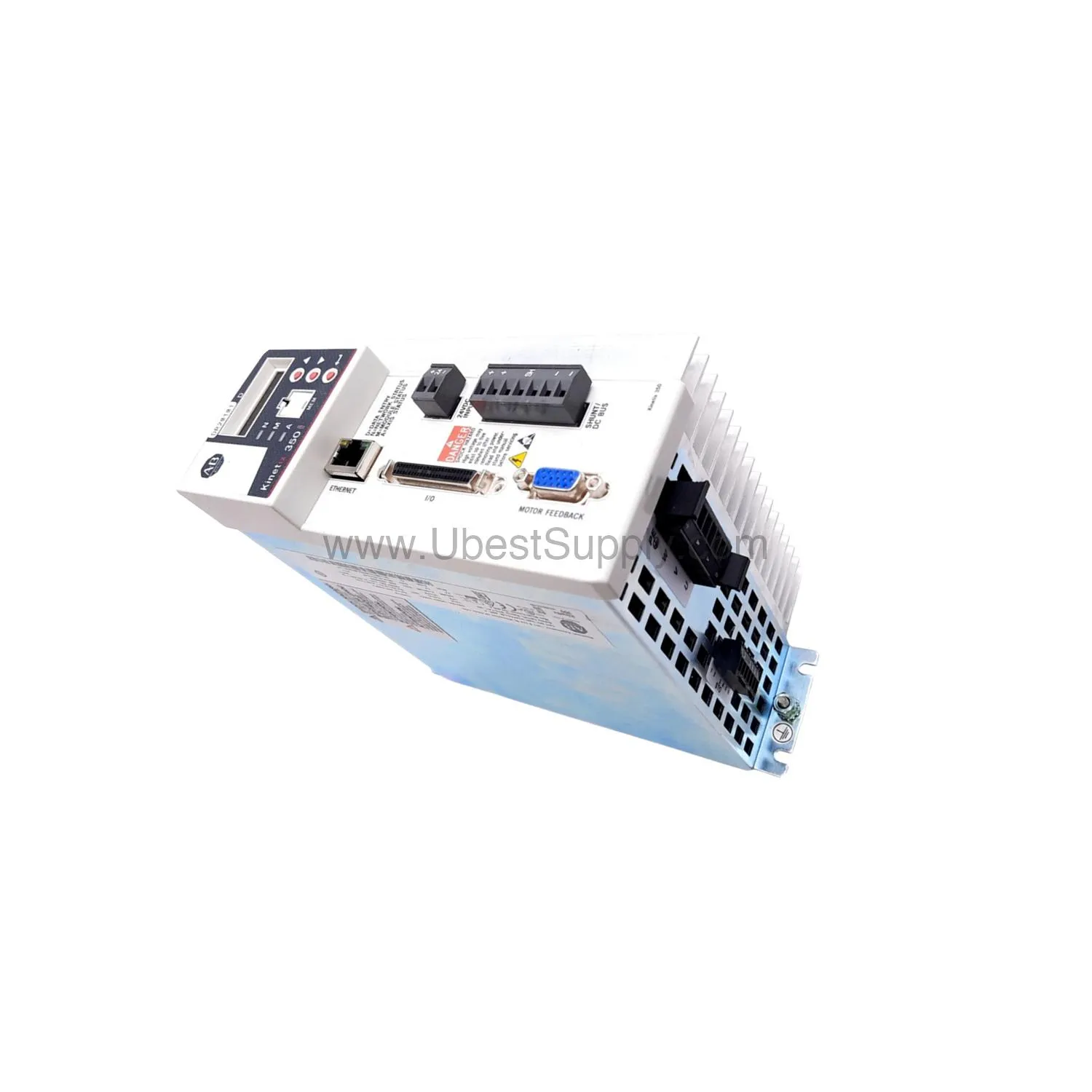

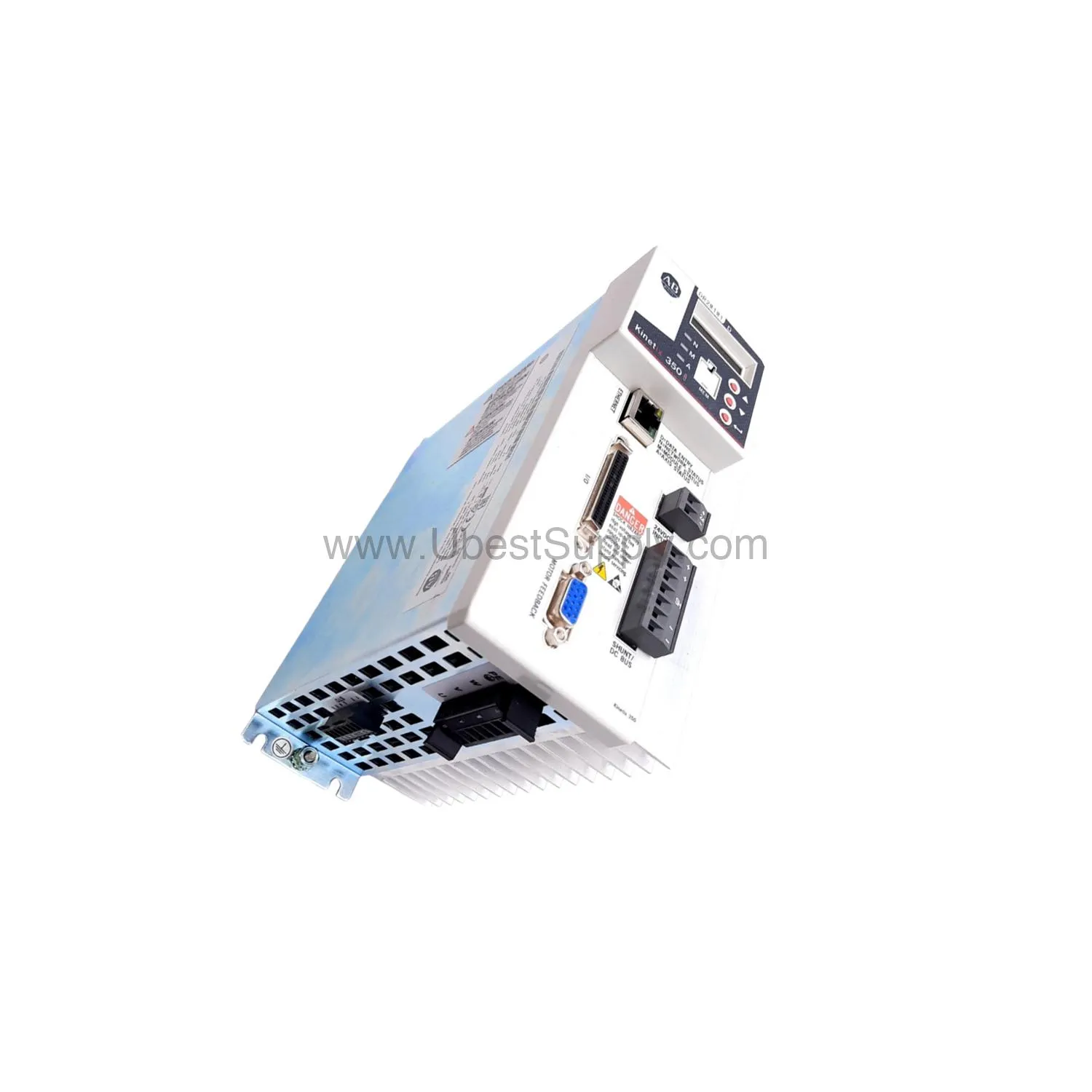

The 2097-V34PR6-LM is a Kinetix 350 Ethernet I/P single-axis servo drive from Allen-Bradley, part of the Rockwell Automation family. This drive delivers 3.0 kW continuous power output and integrates Safe Torque-Off functionality for enhanced safety. It is designed for precise motion control in demanding industrial automation environments.

Technical Specifications Analysis

The 2097-V34PR6-LM operates on an input voltage of 320…528V rms three-phase (480V nom) with an input frequency of 48…62 Hz. It provides a continuous output current of 6.0 A (rms) and 8.5 A (0-pk), with a peak output current of 18.0 A (rms) and 25.5 A (0-pk). The main AC input current is 7.9 A (rms) nominal and 22.6 A (0-pk). Control power back-up requires 20…26V DC at 500 mA nominal, with a max. inrush of 30 A. The drive weighs 4.0 lbs (1.8 kg) and measures 9.37 x 7.29 x 3.06 in (238 x 185.1 x 12.38 mm). It does not include an integrated AC (EMC) line filter and does not support 120 Volts Doubler Mode.

Application Scenarios & Usage Methods

This servo drive excels in packaging machinery, where precise speed and position control are critical. Use it with Ethernet/IP networks for seamless integration into existing Rockwell architectures. Another common application is in material handling systems, where the 3.0 kW continuous power output handles moderate loads efficiently. The Safe Torque-Off feature allows safe maintenance without disconnecting power, reducing downtime.

Installation Guide & Packing List

Mount the drive in a clean, dry enclosure with adequate ventilation. Ensure the three-phase input voltage matches the 320…528V rms range. Connect control power back-up to a 20…26V DC source. The package typically includes the drive unit, mounting hardware, and a quick-start guide. Always follow Rockwell Automation's installation manual for detailed wiring and configuration.

Purchasing Advice

When selecting the 2097-V34PR6-LM, verify that your application requires 3.0 kW continuous power and 480V three-phase input. This drive is ideal for new installations or upgrades needing Safe Torque-Off. Petro Auto Tech offers genuine Allen-Bradley products with reliable service and support for your automation needs.

Repair & Maintenance Tips

Regularly inspect the drive for dust buildup on heat sinks and ensure ambient temperature stays within specified limits. Check control power back-up connections for secure fit. Periodically test the Safe Torque-Off function to confirm proper operation. Store the drive in a static-free environment when not in use.

Frequently Asked Questions (FAQs)

Q: What is the continuous power output of the 2097-V34PR6-LM?

A: The continuous power output is 3.00 kW.

Q: Does this drive support Safe Torque-Off?

A: Yes, the 2097-V34PR6-LM includes Safe Torque-Off functionality.

Q: What is the input voltage requirement?

A: The input voltage is 320…528V rms three-phase (480V nom).

Q: What is the weight of this drive?

A: The drive weighs 4.0 lbs (1.8 kg).
