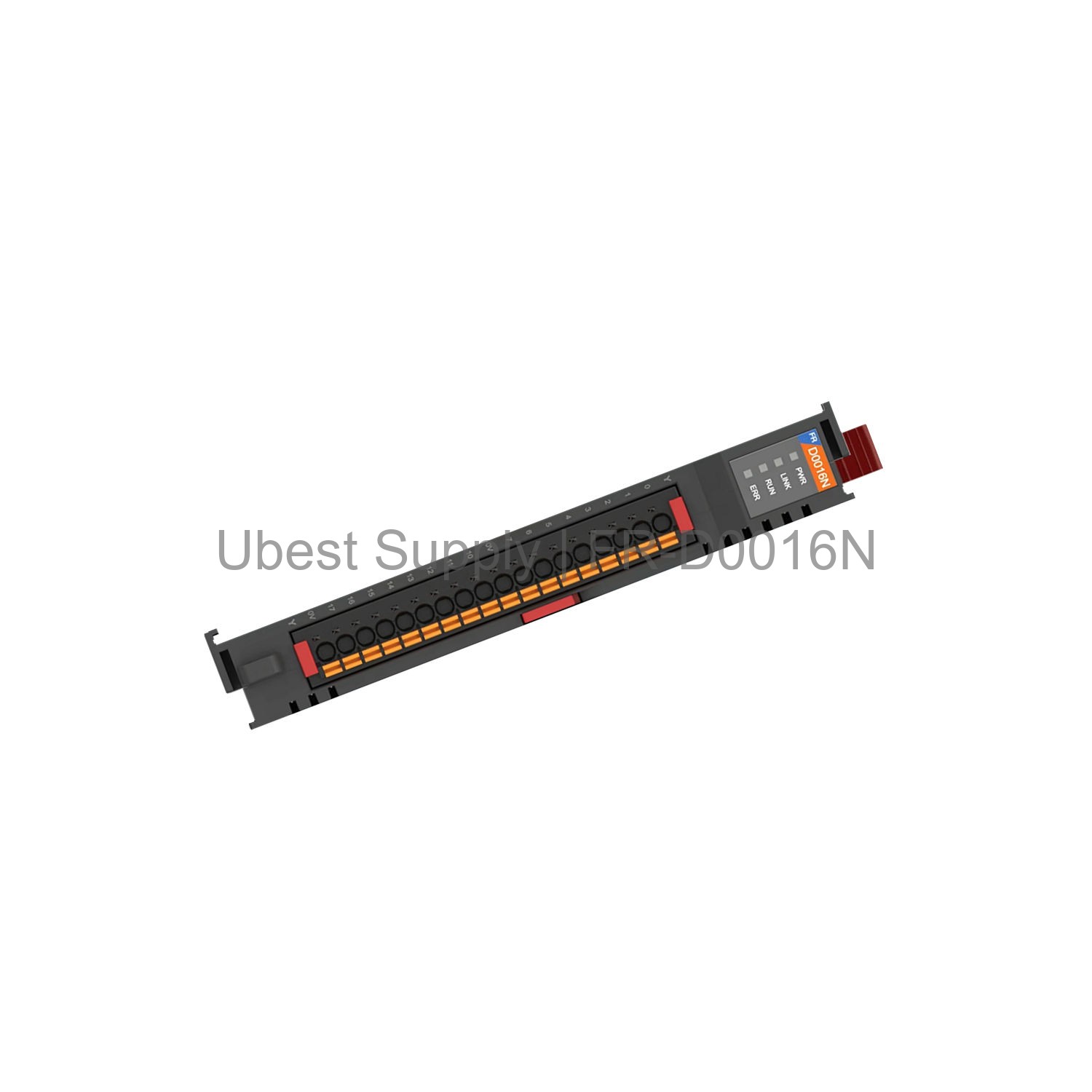

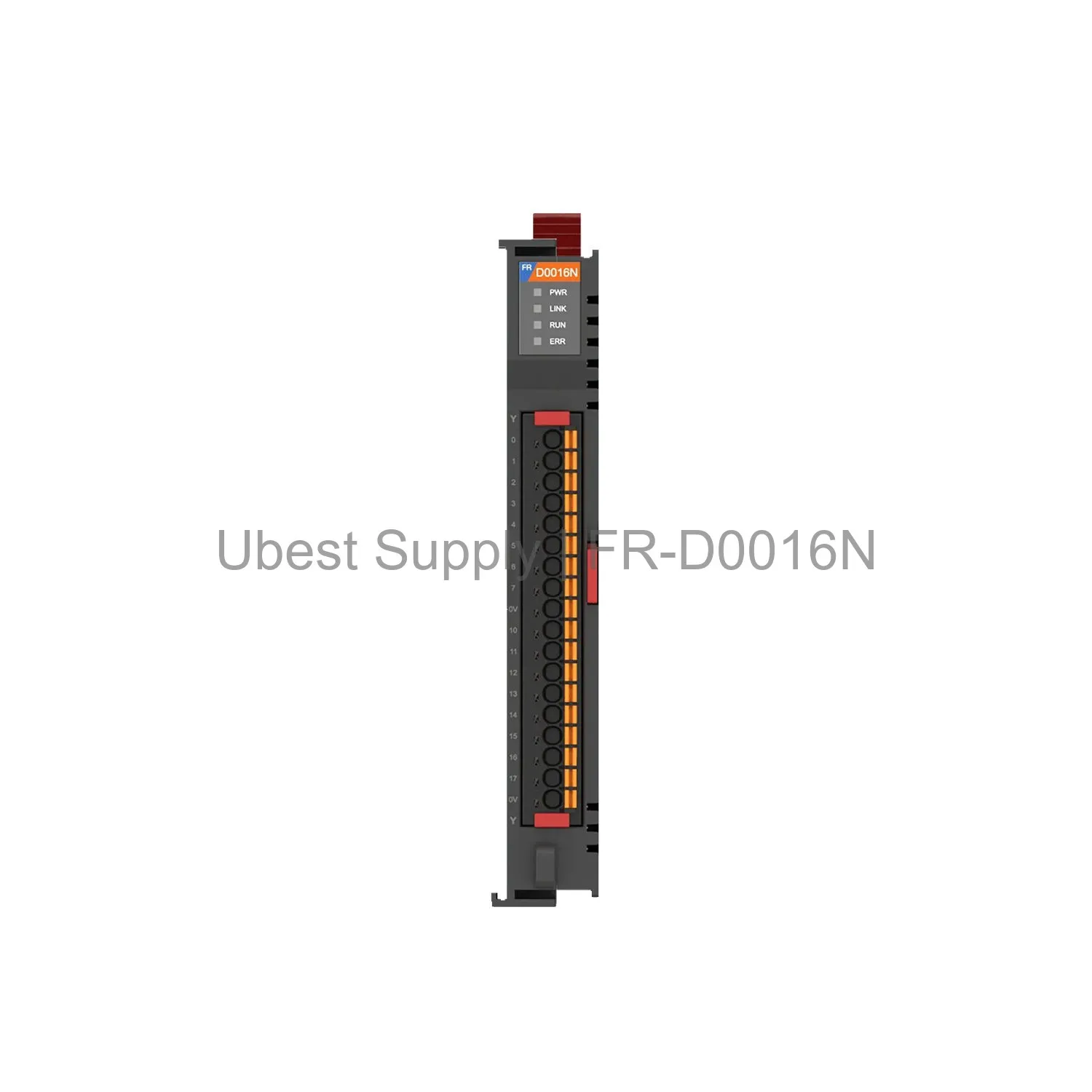

Output Module Flexem FR-D0016N 16-Point NPN Digital Output

Product Overview

The Flexem FR-D0016N is a digital output module. It has 16 output channels. These channels use NPN transistor outputs. This module is ideal for industrial control systems. It can drive various loads like relays and solenoids. Each channel can handle up to 1000mA. The module uses a 35mm DIN-rail mounting. This makes installation quick and easy. The compact size saves space in your panel. It weighs only 65 grams. This module is a reliable choice for your automation needs.

Application Scenarios

This output module works well in many settings. Use it in factory automation lines. It controls actuators and valves effectively. It also fits in packaging machinery. The module can manage conveyor systems. It is suitable for building automation. Use it for lighting and small motor controls. The high current rating supports demanding applications. It integrates easily with PLC systems. The Flexem FR-D0016N provides dependable performance in harsh environments.

Technical Specifications

The module offers 16 NPN outputs. It features a PNP indicator for each channel. The rated current per channel is 1000mA. For simultaneous output, the max is 500mA. The module measures 111mm by 18mm by 76mm. It weighs 65 grams. The mounting style is 35mm DIN-rail. The operating temperature range is standard for industrial use. The module ensures stable signal transmission. It provides reliable switching for your devices.

Installation & Maintenance Guide

Mount the module on a 35mm DIN rail. Ensure the rail is clean and secure. Snap the module onto the rail firmly. Connect the wiring according to your system. Use proper wire gauges for the current. Check all connections for tightness. The module requires no regular maintenance. Keep the area clean and dry. Avoid exposure to extreme temperatures. This ensures a long service life for the module.

Packing List

The package includes one Flexem FR-D0016N module. It also contains a quick start guide. No additional cables are included. The module is packed securely for shipping. We ship via Fedex, UPS, or DHL. This ensures fast and reliable delivery. Contact us for bulk order options.
