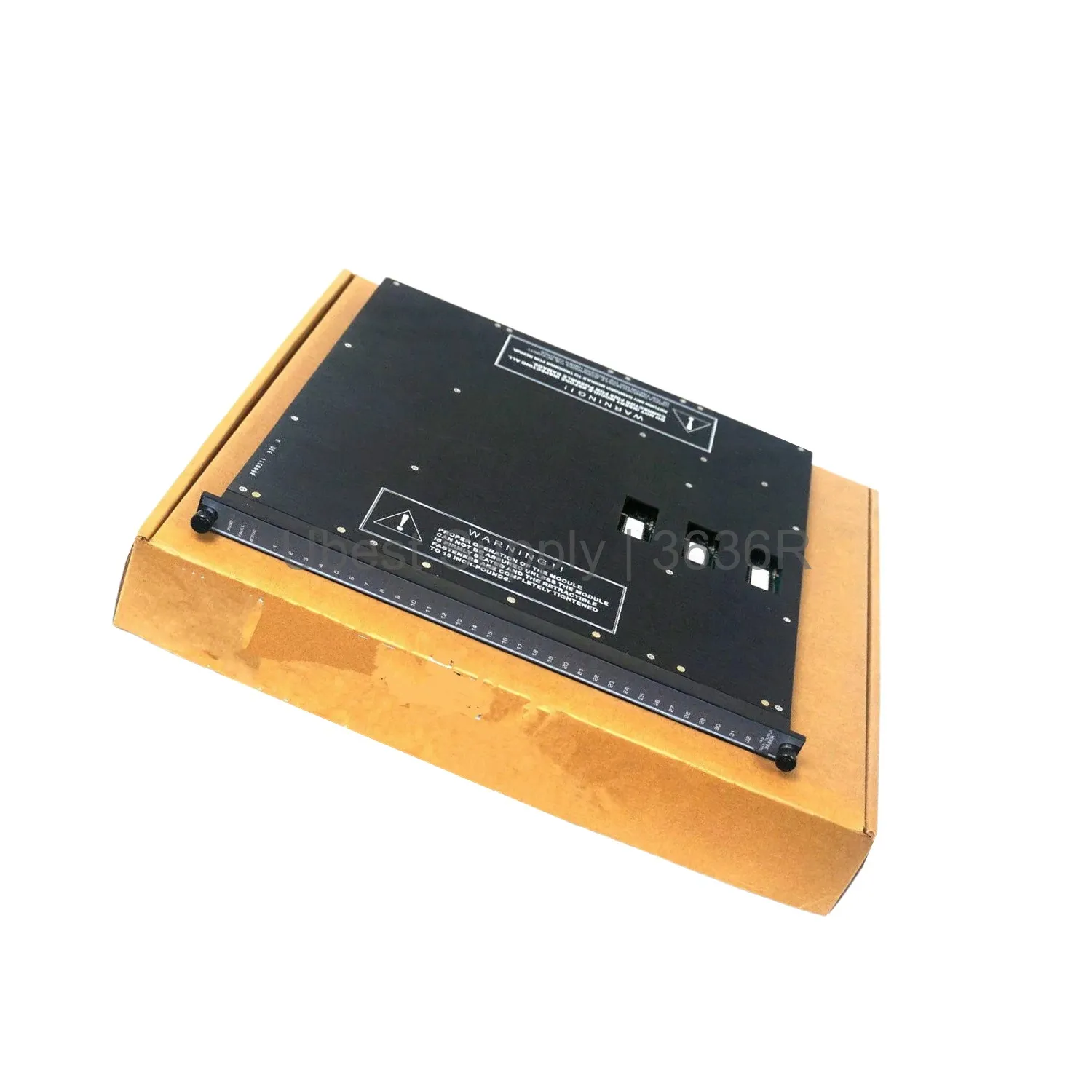

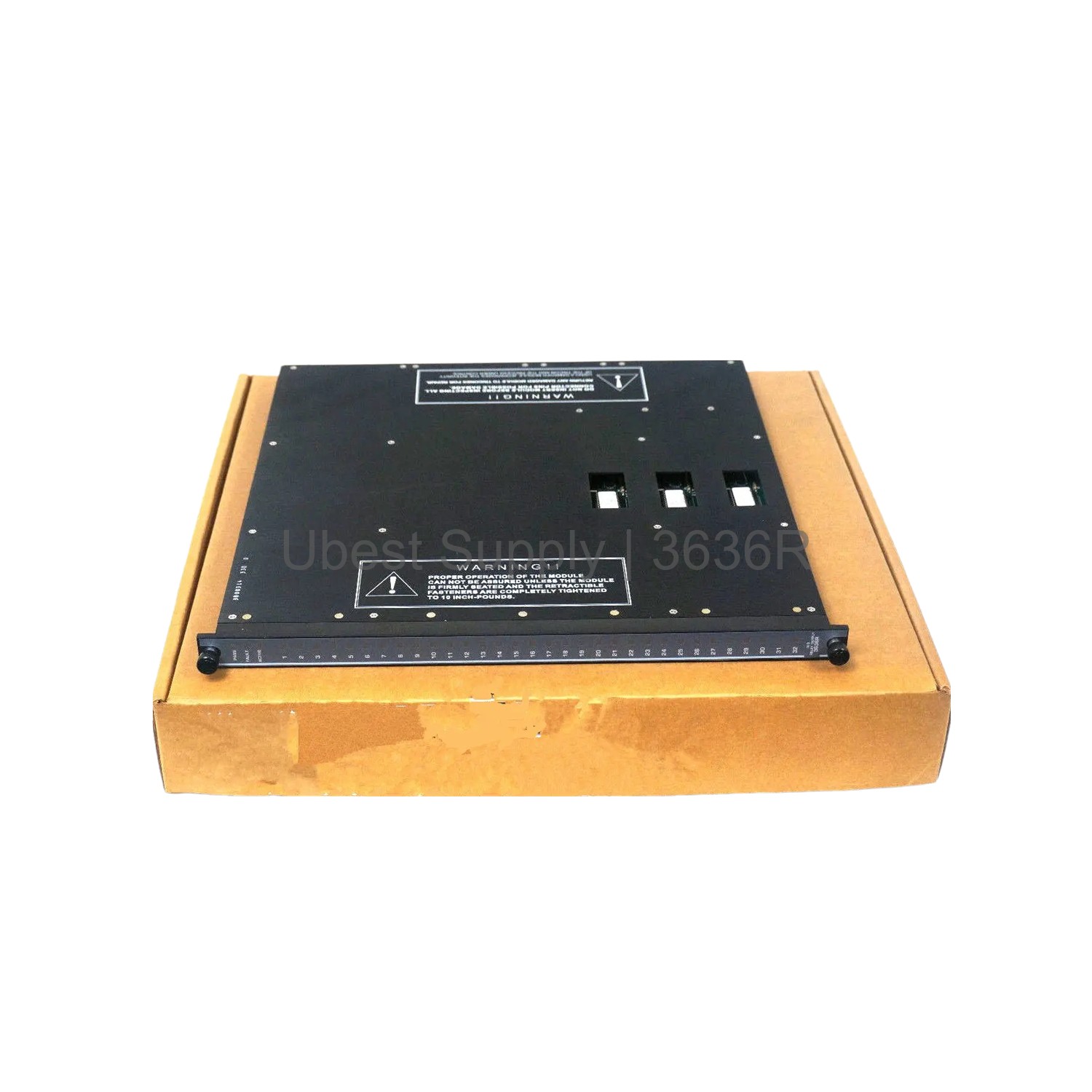

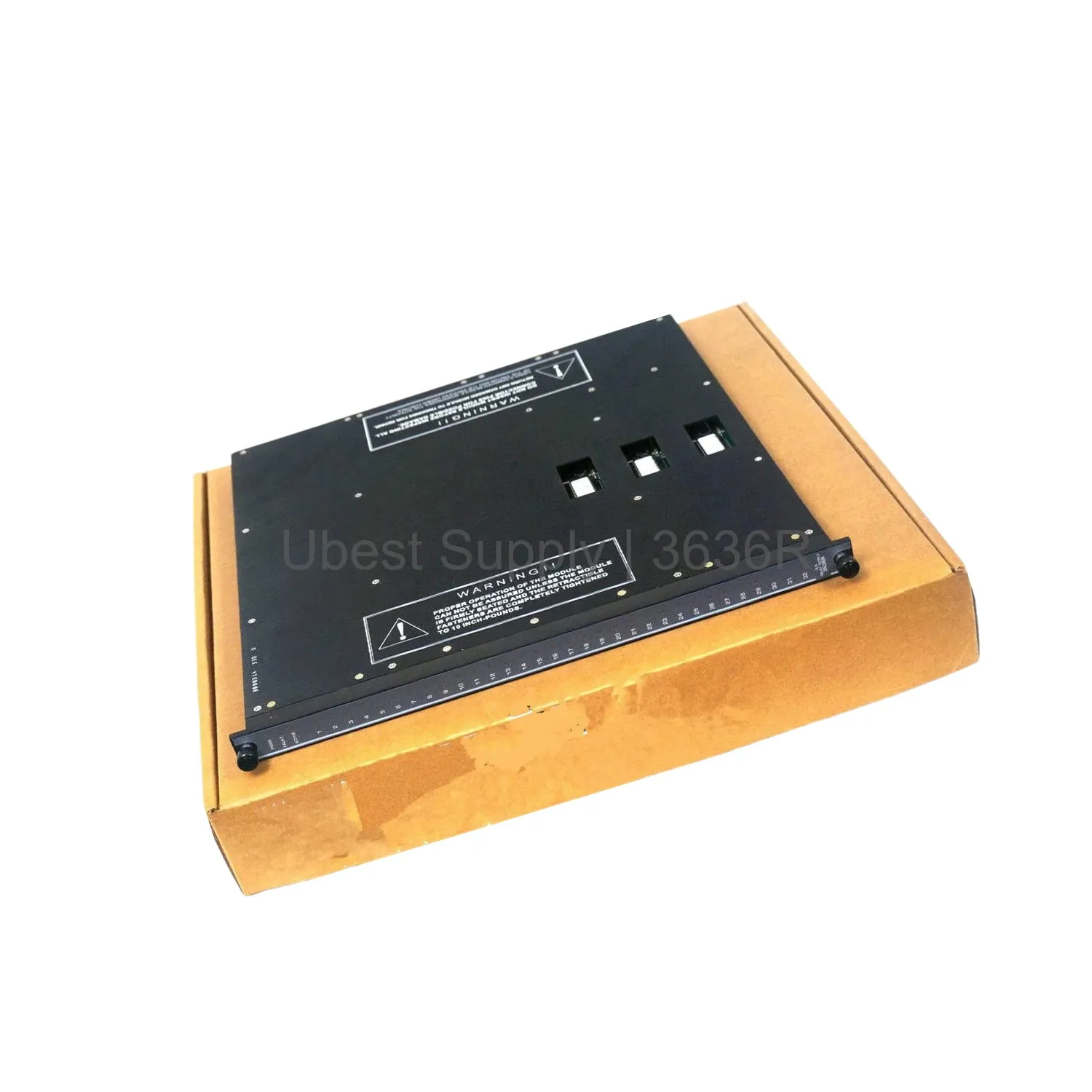

Output Module Triconex 3636R Relay Module

Product Overview

The Triconex 3636R is a robust relay output module. It is designed for demanding industrial safety applications. This module offers reliable switching for critical processes. It ensures safe shutdown and control in hazardous environments. The 3636R provides high isolation and signal integrity. It integrates seamlessly into Triconex safety systems. This module reduces downtime and enhances plant safety. It is a key component for emergency shutdown systems. The 3636R delivers consistent performance under harsh conditions.

Application Scenarios

This module works in oil and gas facilities. It controls actuators and solenoids in safety loops. It manages burner management systems. The module operates in chemical processing plants. It handles turbine and compressor control. It is ideal for fire and gas detection systems. The 3636R supports high-availability applications. It is used in power generation stations. It provides reliable output for safety-critical functions. It works in both onshore and offshore environments.

Technical Specifications

Output type: Relay. Number of channels: 8. Contact rating: 2A at 30 VDC. Isolation voltage: 1500 VAC. Response time: less than 10 ms. Operating temperature: 0 to 60 degrees Celsius. Power consumption: 5 W. Dimensions: 120 mm x 80 mm x 40 mm. Weight: 1.2 kg. It uses a standard backplane connector. It supports redundant power inputs. It meets safety integrity level 3 standards.

Installation & Maintenance Guide

Mount the module in a Triconex chassis. Ensure proper alignment with the backplane. Tighten screws to secure the module. Connect field wiring to the terminal block. Verify wiring polarity and voltage levels. Power on the system and check status LEDs. Perform a functional test after installation. Clean the module with a dry cloth. Inspect connections during routine maintenance. Replace the module only when the system is off.

Packing List

One Triconex 3636R relay output module. One user manual. One warranty card. One terminal block connector. Four mounting screws. One anti-static bag. One product certificate. One packing foam insert. One shipping box.
