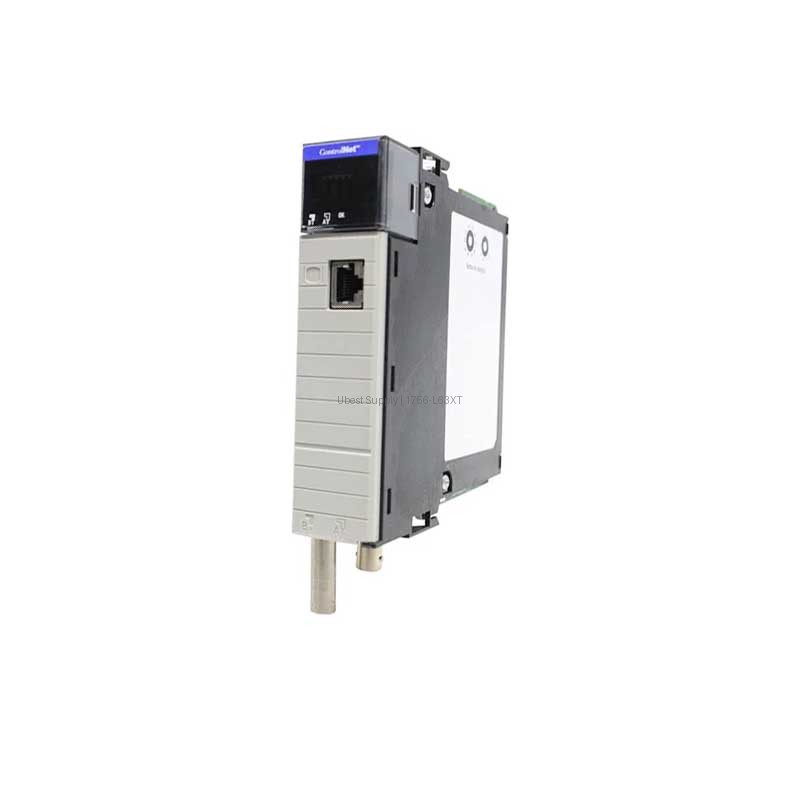

PLC Controller Allen-Bradley 1756-L63XT ControlLogix Processor

Product Overview

The Allen-Bradley 1756-L63XT is a powerful processor module. It belongs to the ControlLogix family. This unit handles complex control tasks with ease. It features 8 MB of user memory. The module also has 478 kilobytes of I-O memory. It supports up to 128,000 digital I-O points. This makes it ideal for large-scale applications. The 1756-L63XT uses a robust design for harsh environments. It operates from -25 to 70 degrees Celsius. The module draws 1200 milliamps at 5.1 volts DC. It dissipates only 3.5 watts of power. This ensures energy efficiency in your system.

Application Scenarios

This processor fits many industrial settings. Use it in manufacturing plants for assembly lines. It works well in process control for chemical plants. The module handles material handling systems. It also manages water and wastewater facilities. The 1756-L63XT supports multiple communication networks. These include EtherNet/IP and ControlNet. It also works with DeviceNet and Remote I-O. This flexibility allows integration with existing equipment. The module runs up to 32 tasks. Each task can have 100 programs. This supports complex automation sequences.

Technical Specifications

The module has 250 maximum controller connections. It includes one RS-232 serial port. The serial port supports DF1 and ASCII protocols. It also supports Modbus via logic. The unit uses a 64 MB or 128 MB CompactFlash card. This provides nonvolatile memory storage. The isolation voltage is 30 volts continuous. The module withstands 2 g vibration at 10 to 500 Hz. It handles 30 g operating shock. The storage temperature range is -40 to 85 degrees Celsius. Relative humidity tolerance is 5% to 95% noncondensing.

Installation and Maintenance Guide

Install the module in a ControlLogix chassis. Ensure the chassis is properly grounded. Slide the module into an available slot. Secure it with the locking mechanism. Connect the serial cable to the RS-232 port. Use a CompactFlash card for memory backup. Power up the system and verify communication. Regularly check the module for dust. Keep the enclosure clean. Update firmware as needed. Use Rockwell software for configuration.

Packing List

One Allen-Bradley 1756-L63XT processor module. One user manual. No cables or accessories are included. The module ships in an anti-static bag. It is packed in a sturdy cardboard box. Shipping is via Fedex, UPS, or DHL.
