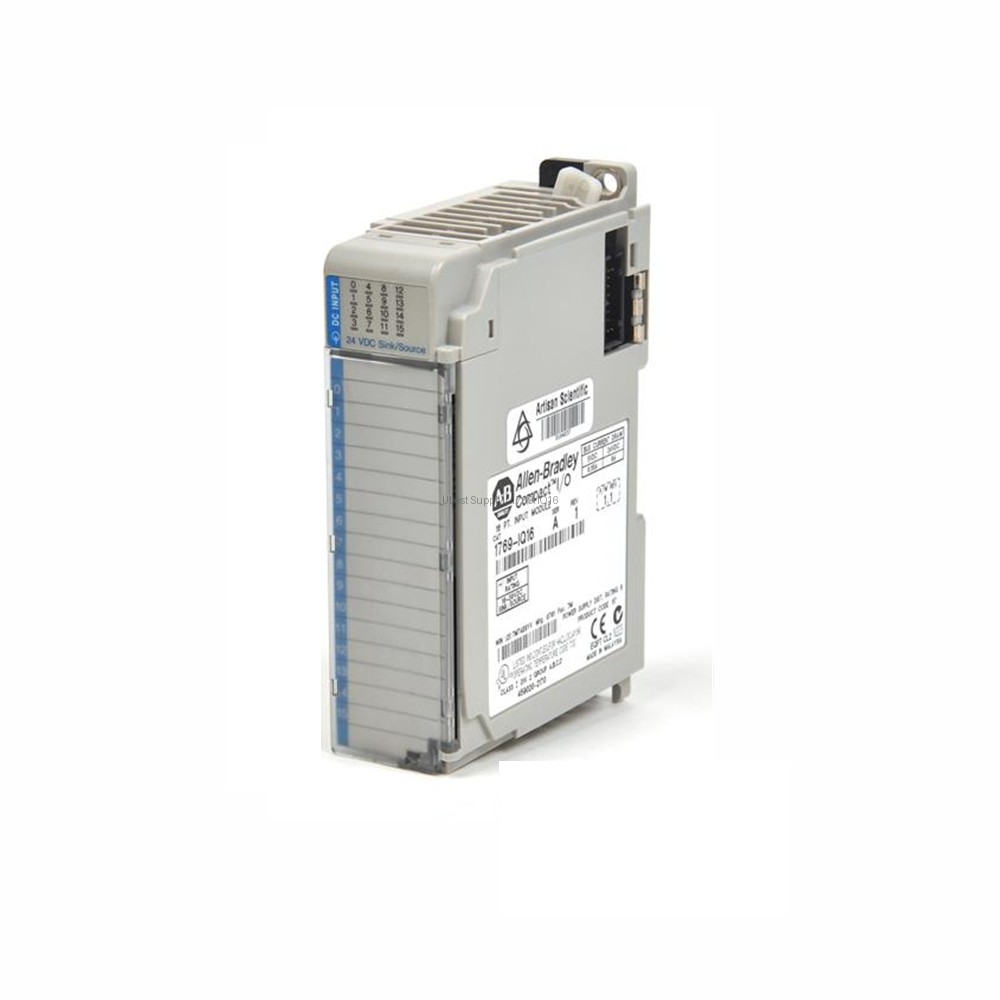

Allen-Bradley 1769-IQ16 CompactLogix 16-Point DC Input Module

Product Overview

The Allen-Bradley 1769-IQ16 is a discrete input module. It belongs to the Compact I/O family. This module provides 16 digital inputs. It operates at 24V DC. The module supports both sink and source wiring. It is designed for use with CompactLogix and MicroLogix 1500 controllers. The 1769-IQ16 offers reliable performance in industrial automation. It features two groups of eight inputs each. This module has a power supply distance rating of 8. The 1769-IQ16 is a key component for your control system.

Application Scenarios

This module is ideal for factory automation. Use it for monitoring machine status. It can read sensor signals. The 1769-IQ16 works well for push-button inputs. It is suitable for limit switch monitoring. Use it in packaging machines. It works in material handling systems. The module is great for conveyor control. It can handle various discrete input tasks. The 1769-IQ16 fits in many industrial environments.

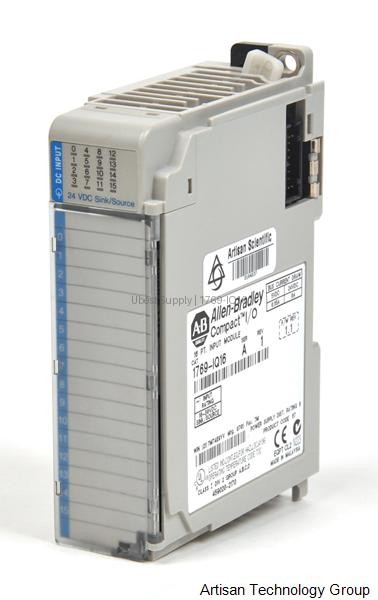

Technical Specifications

The 1769-IQ16 has an operating voltage range of 10 to 30V DC. The on-state voltage is 10V DC. The off-state voltage is 5V DC. Input delay is 8 milliseconds. The module draws 115mA at 5.1V DC. Maximum surge current is 250mA. Nominal input impedance is 3 kW. The module dissipates 3.55W of heat. It weighs about 0.60 pounds. Dimensions are 118 x 35 x 87 millimeters. The 1769-IQ16 works from 0 to 60 degrees Celsius.

Installation & Maintenance Guide

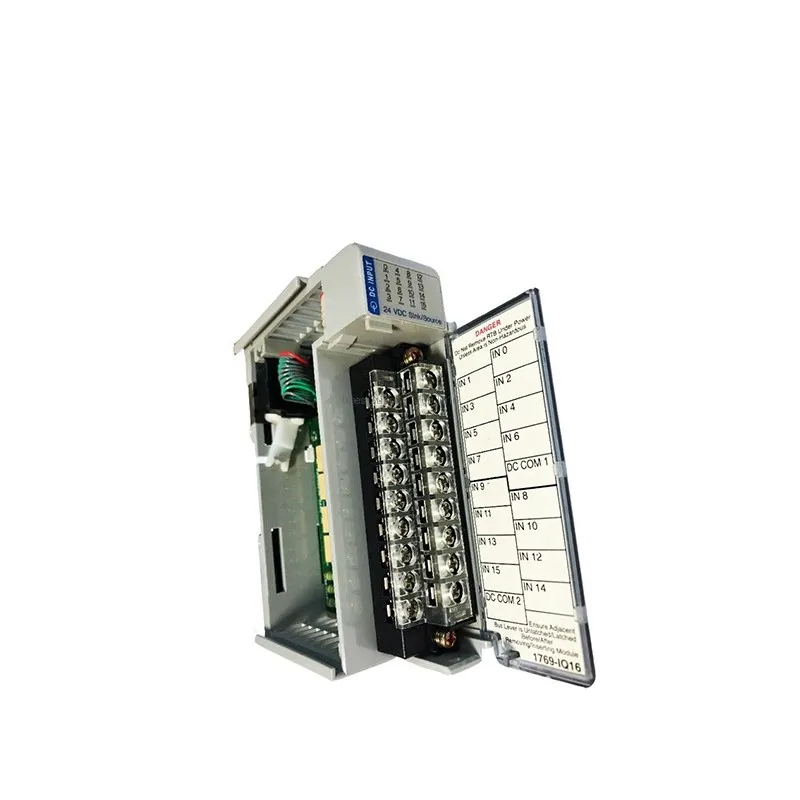

Mount the 1769-IQ16 on a panel or DIN rail. Use a six pounds on an inch terminal screw. Use copper wire rated for 90 degrees Celsius. Wire size can be 22 to 14 AWG solid. Use 22 to 16 AWG for stranded wire. Connect the power supply correctly. Use 1769-PA2, 1769-PB2, 1769-PA4, or 1769-PB4. The replacement terminal block is 1769-RTBN18. Ensure proper grounding for safety. Keep the module in a dry environment. Relative humidity should be 5 to 95 percent. No condensation is allowed.

Packing List

Each order includes one 1769-IQ16 module. The package does not include a terminal block. You must order the terminal block separately. The module comes in antistatic packaging. A quick start guide is included. No additional cables are provided. The product is new in the box. Shipping is done via FedEx, UPS, or DHL. We ensure safe delivery of your 1769-IQ16 module.
