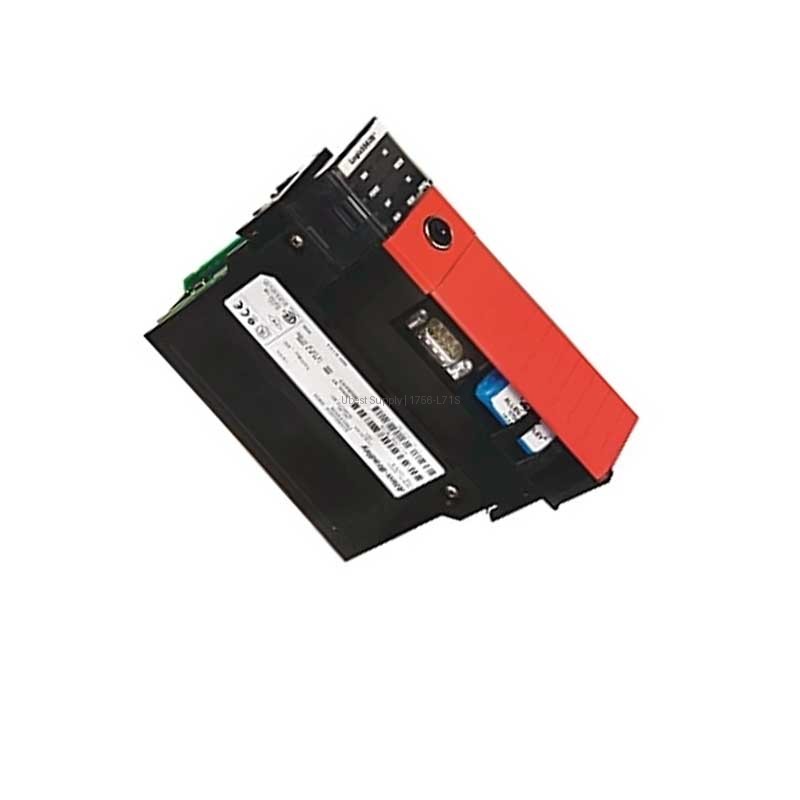

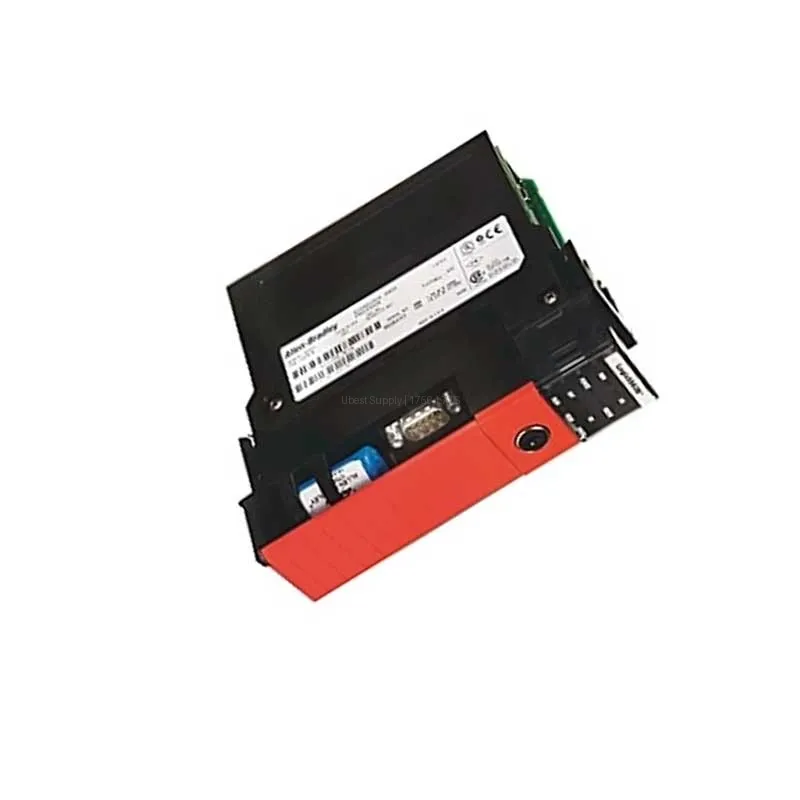

PLC Controller Allen-Bradley 1756-L71S GuardLogix 5570

Product Overview

The Allen-Bradley 1756-L71S is a GuardLogix 5570 processor module. It belongs to the ControlLogix family. This unit offers 2 MB of user memory. It also includes 1 MB of safety memory. The controller supports up to 128,000 I/O points. It ships with 1 GB of non-volatile storage. This model is ideal for safety applications. It operates without redundancy support. The module draws 800 mA at 5.1 Volts DC. Its power dissipation is just 2.5 Watts.

Application Scenarios

This controller works well in manufacturing plants. It controls robotic workcells safely. It manages conveyor systems with precision. The unit handles packaging machinery tasks. It monitors chemical processing lines. It also operates in automotive assembly lines. The safety tasks ensure machine protection. Use it for emergency stop functions. It fits into distributed control systems.

Technical Specifications

The 1756-L71S has 31 standard tasks. It has one dedicated safety task. Each task can run up to 100 programs. The module supports event tasks with all triggers. It has a built-in USB port for programming. Optional adapters include EtherNet/IP, ControlNet, and DeviceNet. The I/O memory is 0.98 MB. Maximum analog I/O is 4,000 points. Maximum digital I/O is 128,000 points. The current draw at 1.2 Volts DC is 5 mA. Thermal dissipation is 8.5 BTU per hour. Isolation voltage is 30 Volts continuous. The enclosure type is open-style.

Installation & Maintenance Guide

Mount the module in a ControlLogix chassis. Ensure the chassis is powered off. Insert the module into an available slot. Secure it with the locking mechanism. Connect the communication cables properly. Use the USB port for initial setup. Configure the safety tasks via software. Test the system before full operation. Keep the module free from dust. Check connections during routine maintenance.

Packing List

You will receive one 1756-L71S controller module. The package includes a quick start guide. It also contains a product documentation CD. No cables or power supplies are included. Shipping is via Fedex, UPS, or DHL.
