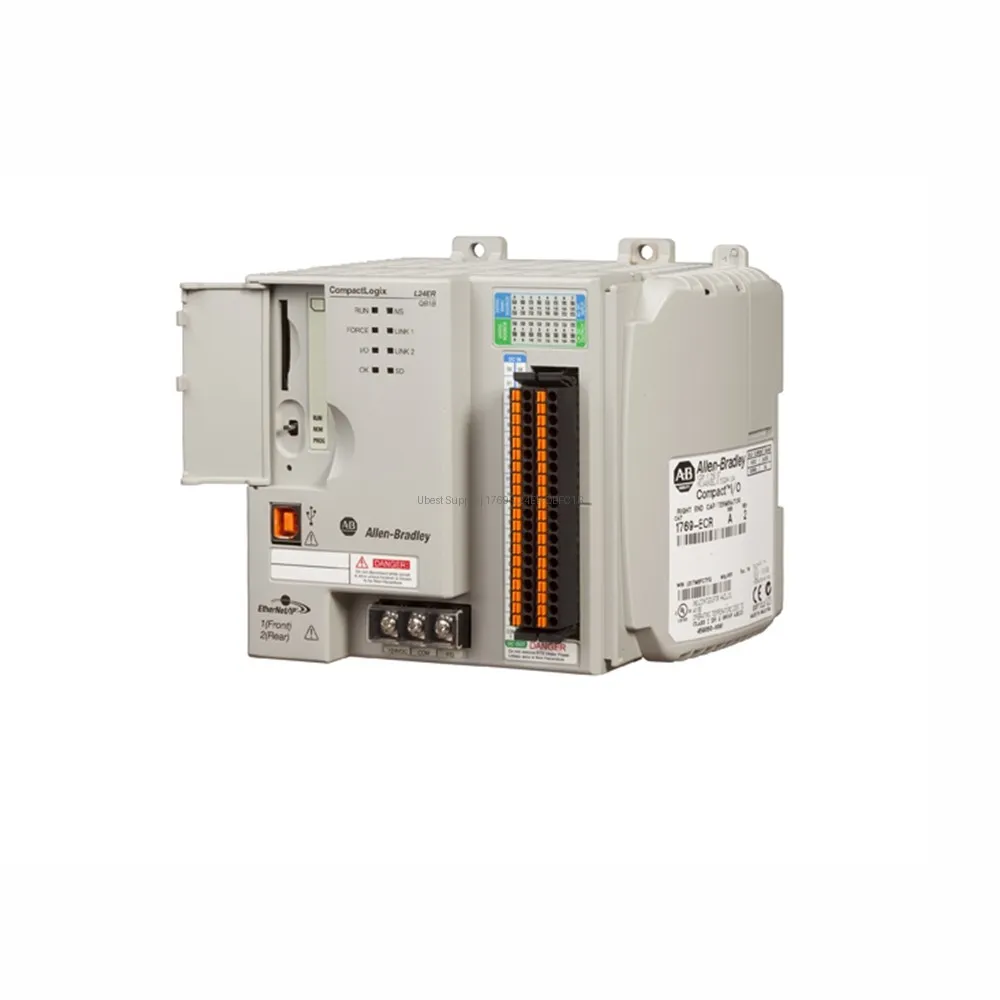

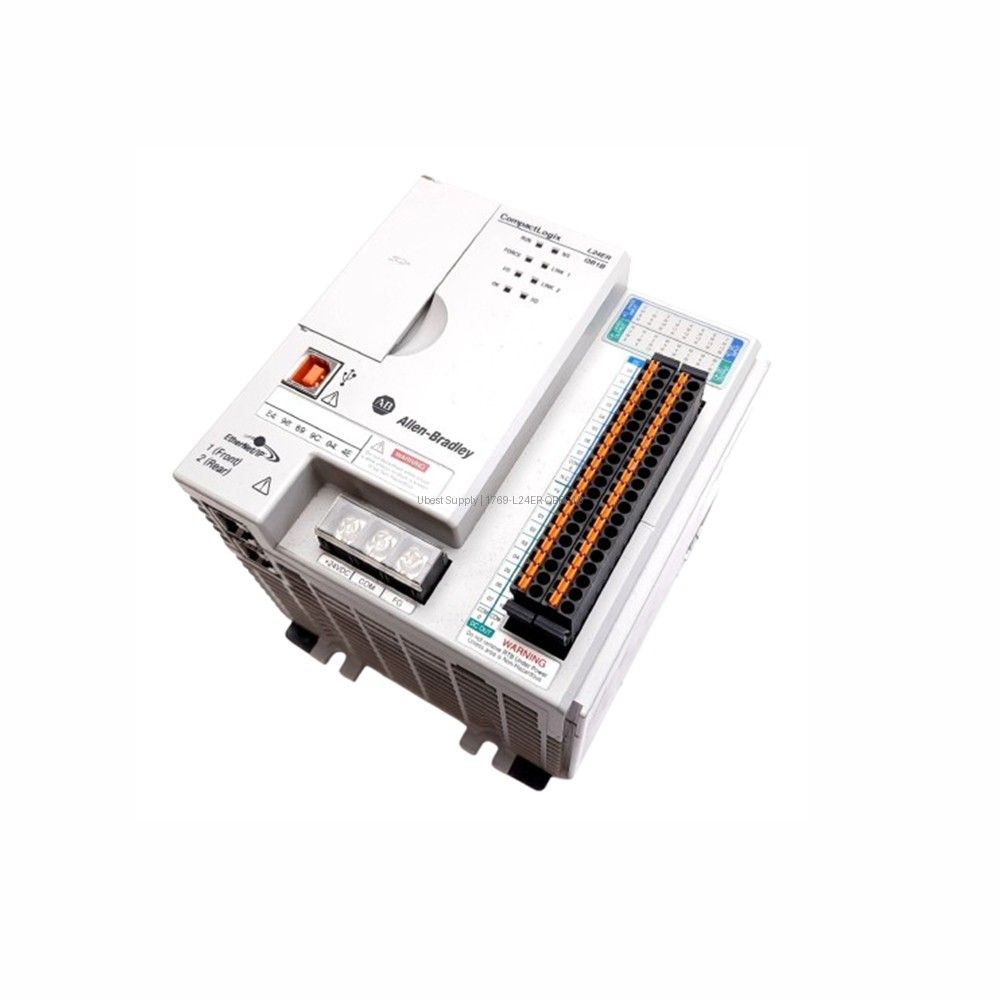

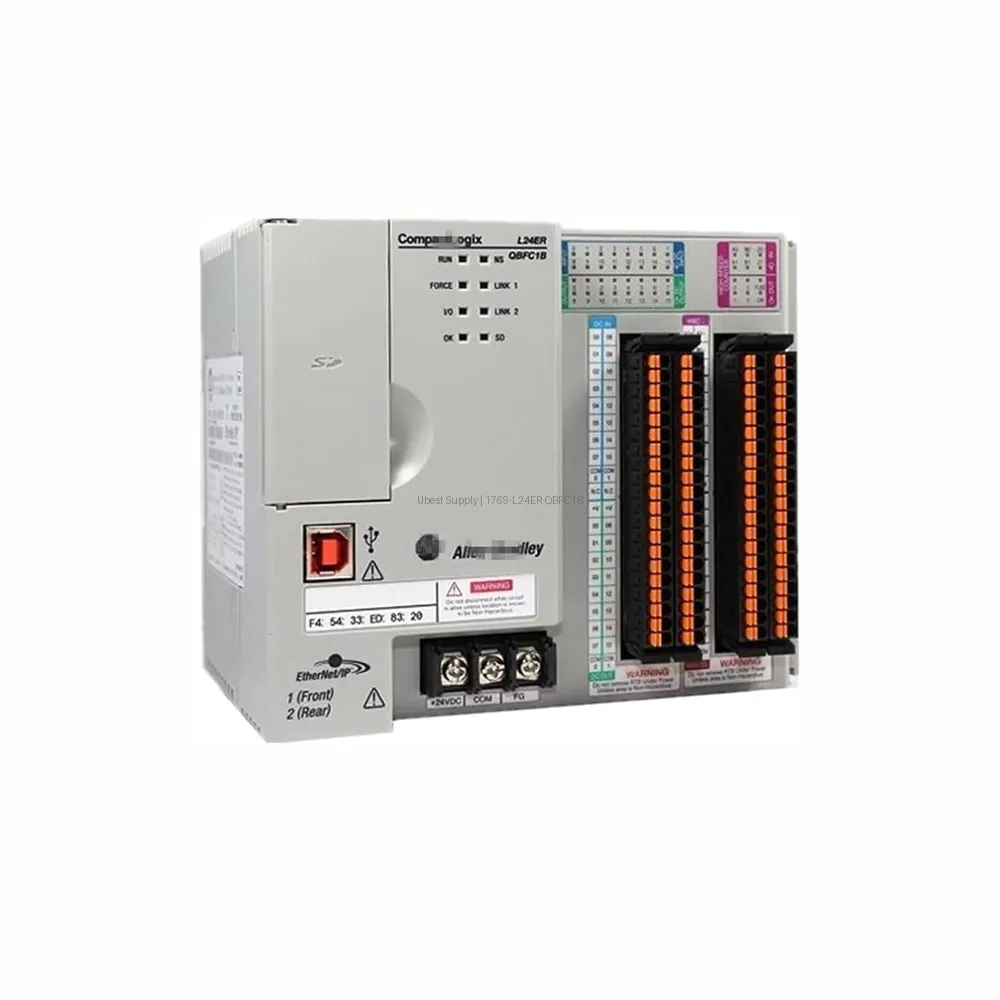

PLC Controller Allen-Bradley 1769-L24ER-QBFC1B CompactLogix

Product Overview

The Allen-Bradley 1769-L24ER-QBFC1B is a CompactLogix processor module. It comes with 1MB of memory. This controller supports 32 tasks and 100 programs per task. It handles up to 2 axes over Ethernet. The module includes 16 digital inputs and 4 analog inputs. It also has 2 analog outputs and 4 high-speed counter outputs. This unit ships with a 1784-SD1 memory card.

Application Scenarios

This controller works well in small to medium automation systems. Use it for machine control, packaging, and material handling. It fits in discrete manufacturing and process applications. The embedded I/O reduces wiring and saves panel space. Engineers use it for motion control and data collection tasks.

Technical Specifications

The 1769-L24ER-QBFC1B runs on 24 Volts DC. It draws 1 Amp at 5 Volts DC. The operating voltage range is 10 to 28.8 Volts DC. It has one USB port and two Ethernet I/P ports. It also includes one RS232 port. The module supports ASCII, DH485, DF1, and Ethernet protocols. It uses a DIN rail mounting method. The shipping weight is 3 pounds.

Installation & Maintenance Guide

Mount the controller on a DIN rail. Leave 50 mm or 2 inches of clearance around the module. Use copper wire rated for 90 degrees Celsius. Solid wire size ranges from 22 to 14 AWG. Stranded wire size ranges from 22 to 16 AWG. The replacement terminal block part number is 1769-RTBN18. Always disconnect power before servicing the unit.

Packing List

The package includes one 1769-L24ER-QBFC1B controller. It also includes a 1784-SD1 memory card with 1 Gb of storage. The shipping dimensions are 11X8X6 inches. We ship via Fedex, UPS, or DHL. Contact us for expedited shipping options.
