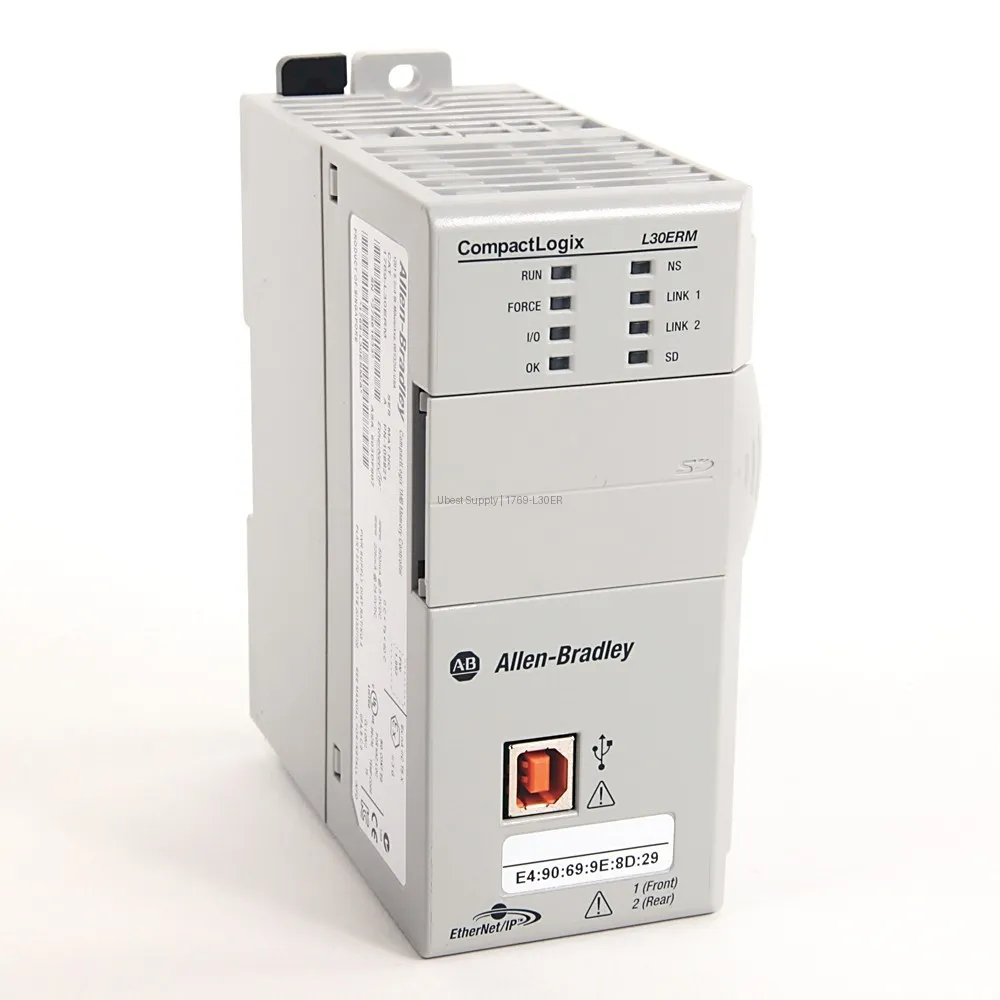

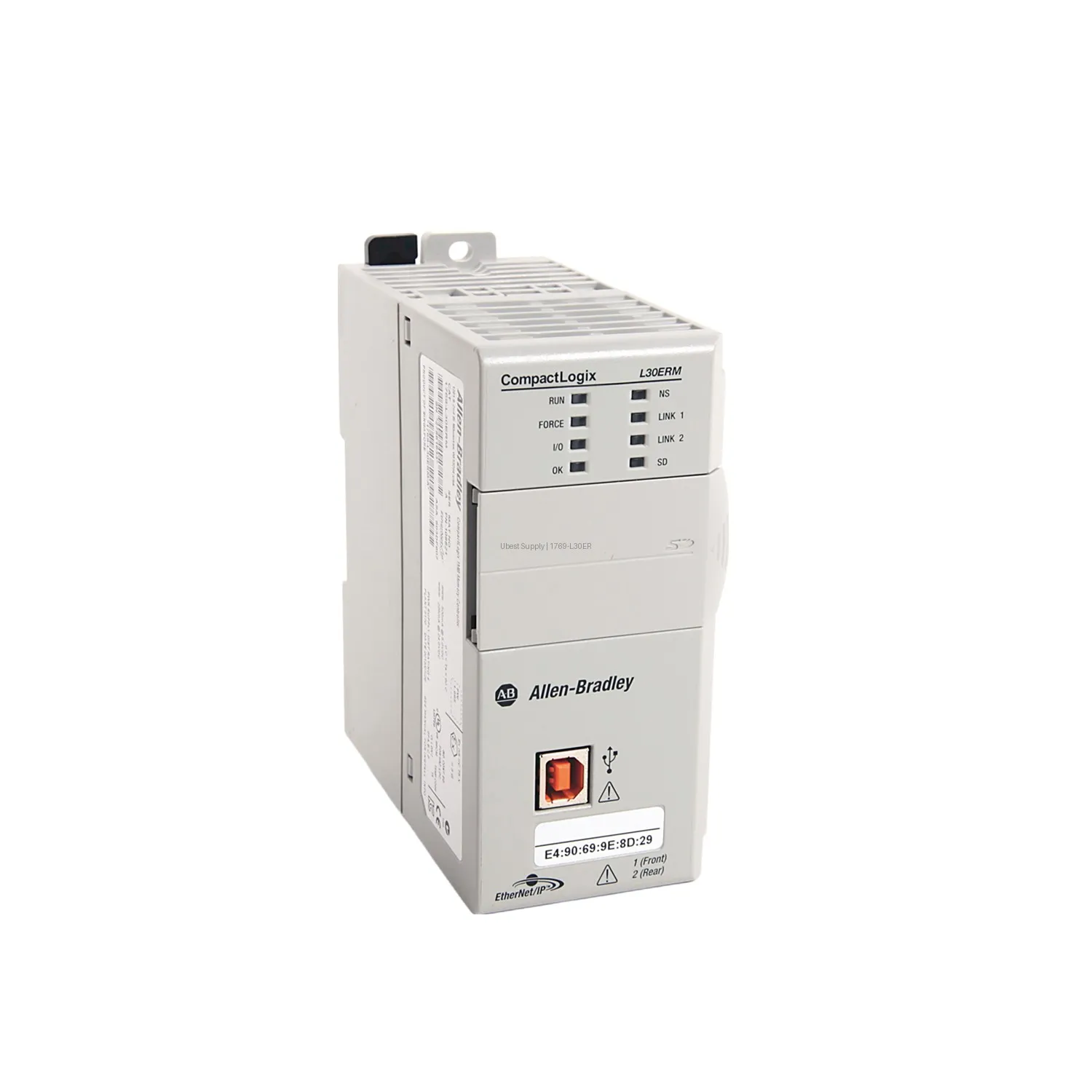

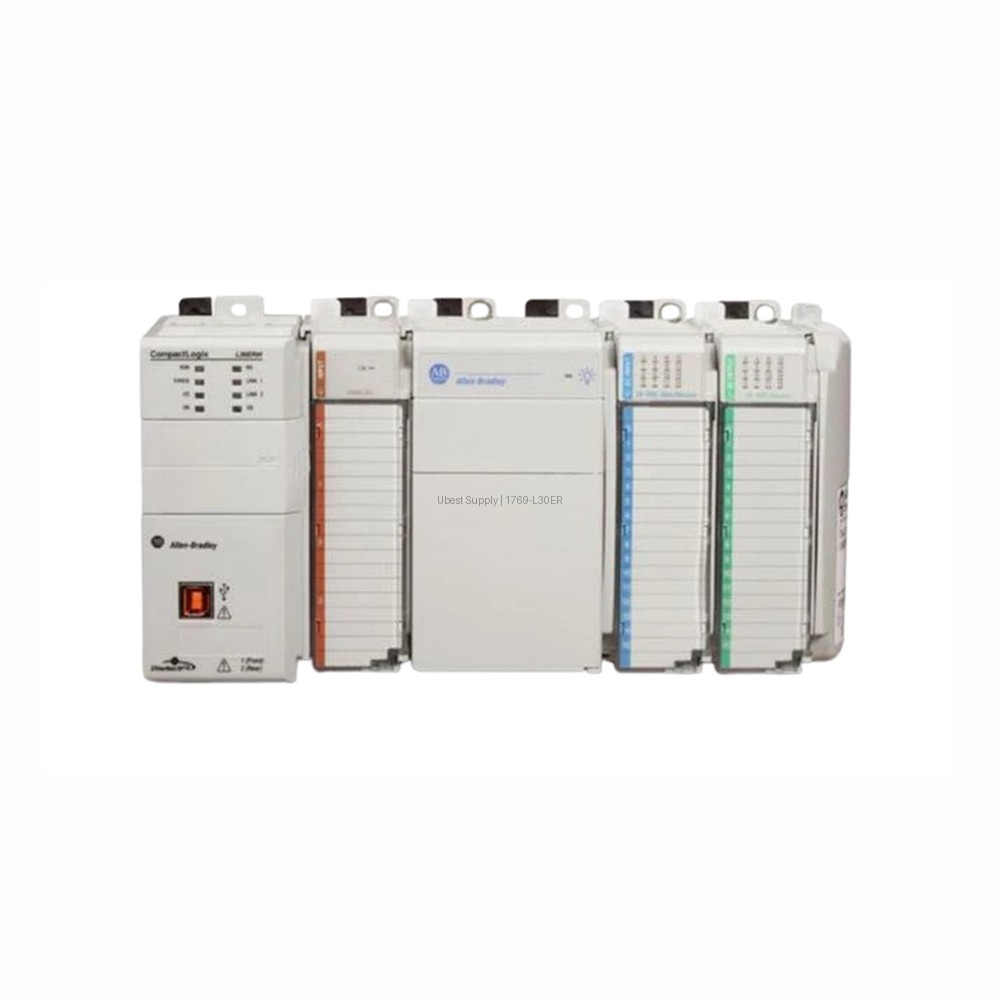

PLC Controller Allen-Bradley 1769-L30ER CompactLogix Processor

Product Overview

The Allen-Bradley 1769-L30ER is a powerful programmable automation controller. It belongs to the CompactLogix product line. This processor module delivers reliable performance for industrial applications. It features 1 MB of memory for complex control tasks. The module supports up to 16 Ethernet nodes. It includes two Ethernet I/P communication ports. A USB port is also available for local programming. This unit ships with a 1784-SD1 memory card. The card provides 1 Gb of non-volatile storage. This controller uses a 1747-BA battery for backup. It supports relay ladder, structured text, and function block programming.

Application Scenarios

This processor works well in discrete manufacturing environments. It can control packaging machines and assembly lines. The module also suits material handling systems. It manages conveyor belts and sortation equipment. The 1769-L30ER fits in small to medium control systems. It works with up to 8 local I/O modules. These modules can spread across 3 banks. The controller supports remote I/O via Ethernet. It integrates easily into existing plant networks. Many factories use this unit for machine control.

Technical Specifications

The 1769-L30ER operates from 0 to 60 degrees Celsius. It uses copper wire rated for 90 degrees Celsius. Solid wire size ranges from 22 to 14 AWG. Stranded wire size ranges from 22 to 16 AWG. The module withstands vibration from 10 to 500 Hz. It can handle 5G of acceleration. The peak-to-peak vibration is 0.030 inches. Its shipping weight is 4 pounds. The dimensions are 11 x 8 x 6 inches. It mounts on a DIN rail or panel. The power supply distance rating is 4. The replacement terminal block is 1769-RTBN18. This controller holds cULH certification for hazardous locations.

Installation & Maintenance Guide

Mount the controller on a standard DIN rail. Ensure proper clearance for ventilation. Connect the programming cable using an RJ45 connector. Follow IEC 60603-7 standards for the cable. Use copper wire with a temperature rating of 90 degrees Celsius. Tighten terminal screws to the specified torque. Install the 1747-BA battery for memory backup. Replace the battery every year for best results. Use the 1784-SD2 card for extra memory. This card offers 2 Gb of storage. Keep the operating temperature below 60 degrees Celsius. Do not exceed 500 Hz vibration during operation. Always power down before replacing modules.

Packing List

One 1769-L30ER CompactLogix processor module. One 1784-SD1 memory card with 1 Gb storage. One 1747-BA battery. One RJ45 programming cable. One installation manual. We ship all orders via Fedex, UPS, or DHL.
