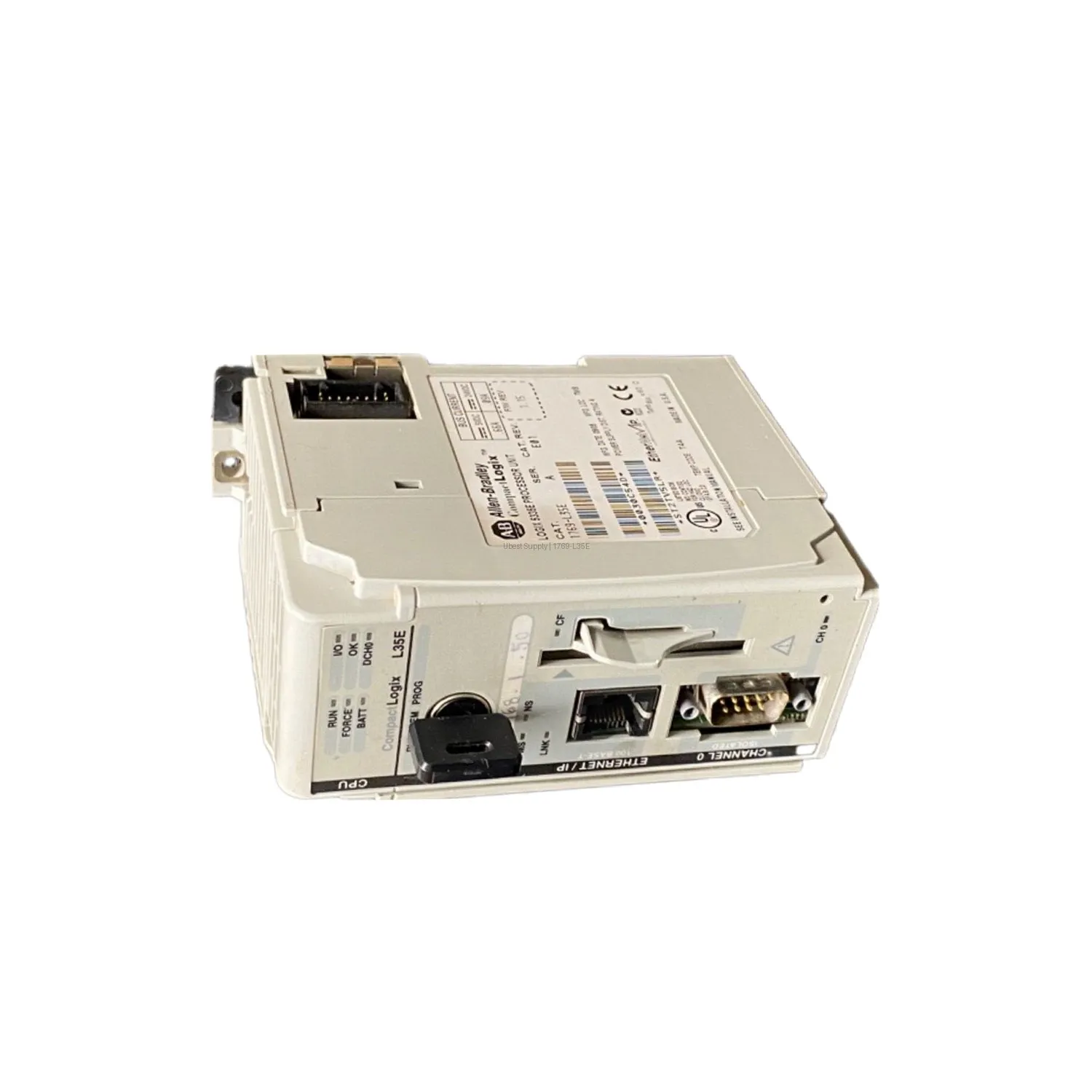

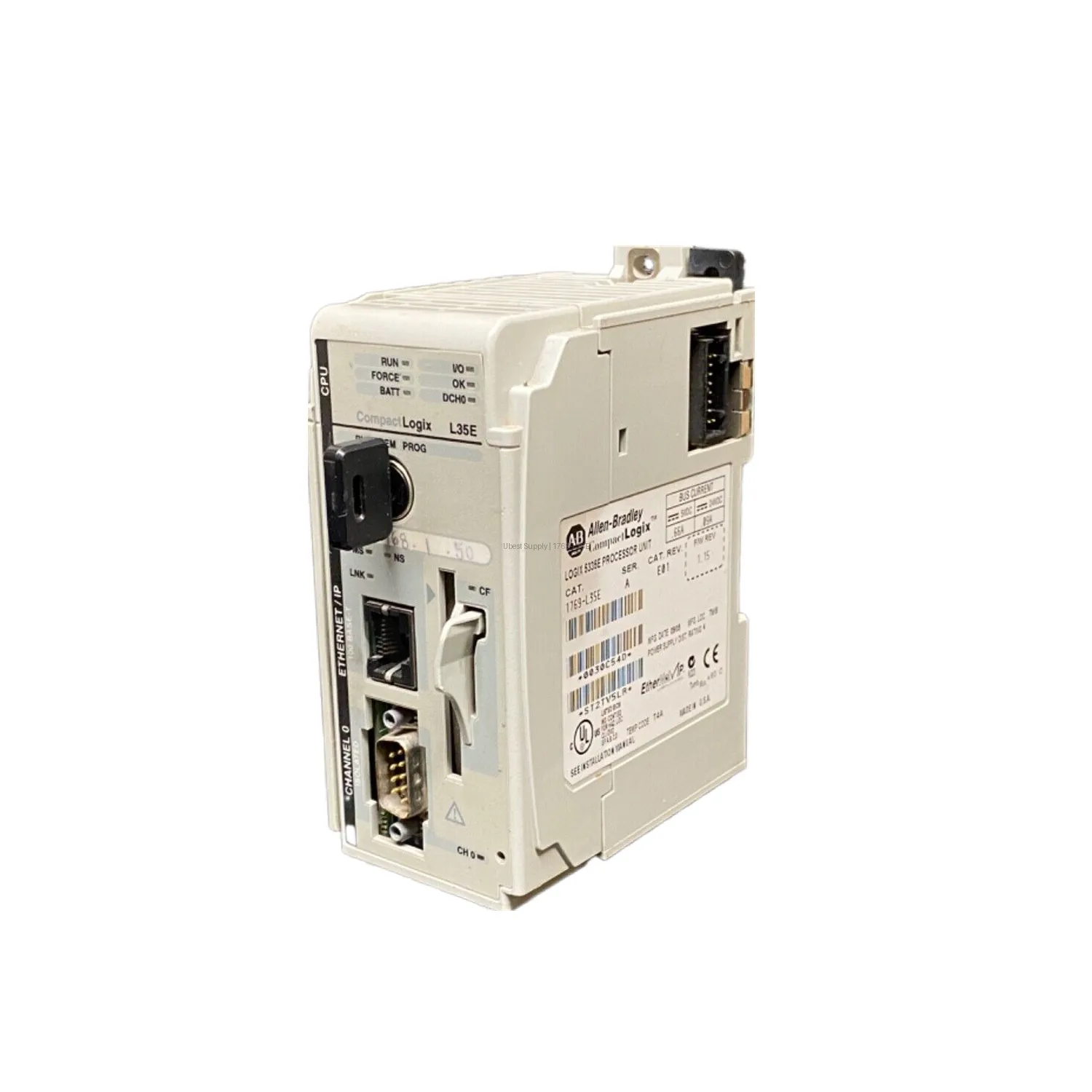

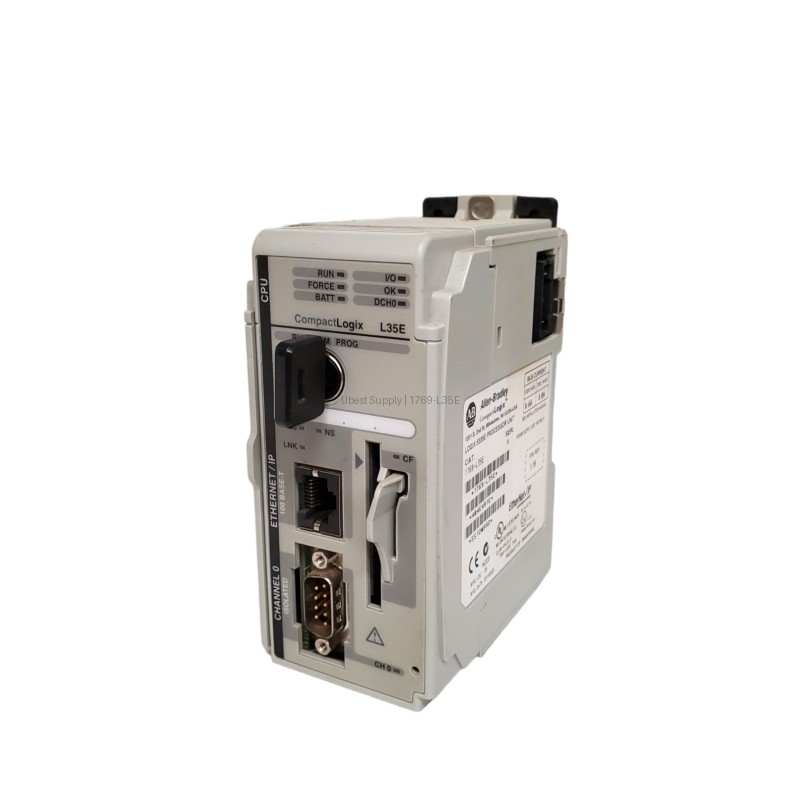

PLC Controller Allen-Bradley 1769-L35E CompactLogix Processor

Product Overview

The Allen-Bradley 1769-L35E is a powerful CompactLogix processor module. It delivers 1.5 MB of user memory for complex control tasks. This module supports both Ethernet and RS232 communication. It is ideal for medium-scale industrial automation systems. The 1769-L35E works with up to 30 local I/O modules. It also supports up to 3 I/O banks for system expansion. This processor uses a 1769-BA battery for backup. It can be mounted on a DIN rail or a panel. The compact design saves valuable cabinet space.

Application Scenarios

This controller is perfect for manufacturing lines. It handles machine control and process automation. The Ethernet port enables easy integration with plant networks. Use it for packaging, material handling, or assembly systems. It also works well for water treatment and HVAC control. The 1769-L35E supports multiple programming languages. These include ladder logic and structured text. This flexibility meets diverse application needs.

Technical Specifications

The module draws 660 mA at 5 Volts DC. It draws 90 mA at 24 Volts DC. Heat dissipation is only 5.5 Watts. It supports up to 100 Ethernet connections. The Requested Packet Interval ranges from 2 to 32 ms. Operating temperature is 0 to 60 degrees Celsius. It can withstand 20 G shock on a DIN rail. The enclosure is open style for easy access. It complies with IEC-61131-3 standards.

Installation & Maintenance Guide

Mount the module on a 35 mm DIN rail. Use a mounting torque of 1.1 to 1.8 N-m. Connect the 1769-BA battery for memory backup. Use a 1747-CP3 or 1756-CP3 cable for programming. Connect Ethernet with Cat5 or Cat6 cables. The RS232 cable length can be up to 15.2 meters. Ensure proper grounding for reliable operation. Store the module between -40 and 85 degrees Celsius.

Packing List

1 x 1769-L35E CompactLogix Processor Module
1 x 1769-BA Battery
1 x Quick Start Guide
Note: Programming cables and memory cards are sold separately.
