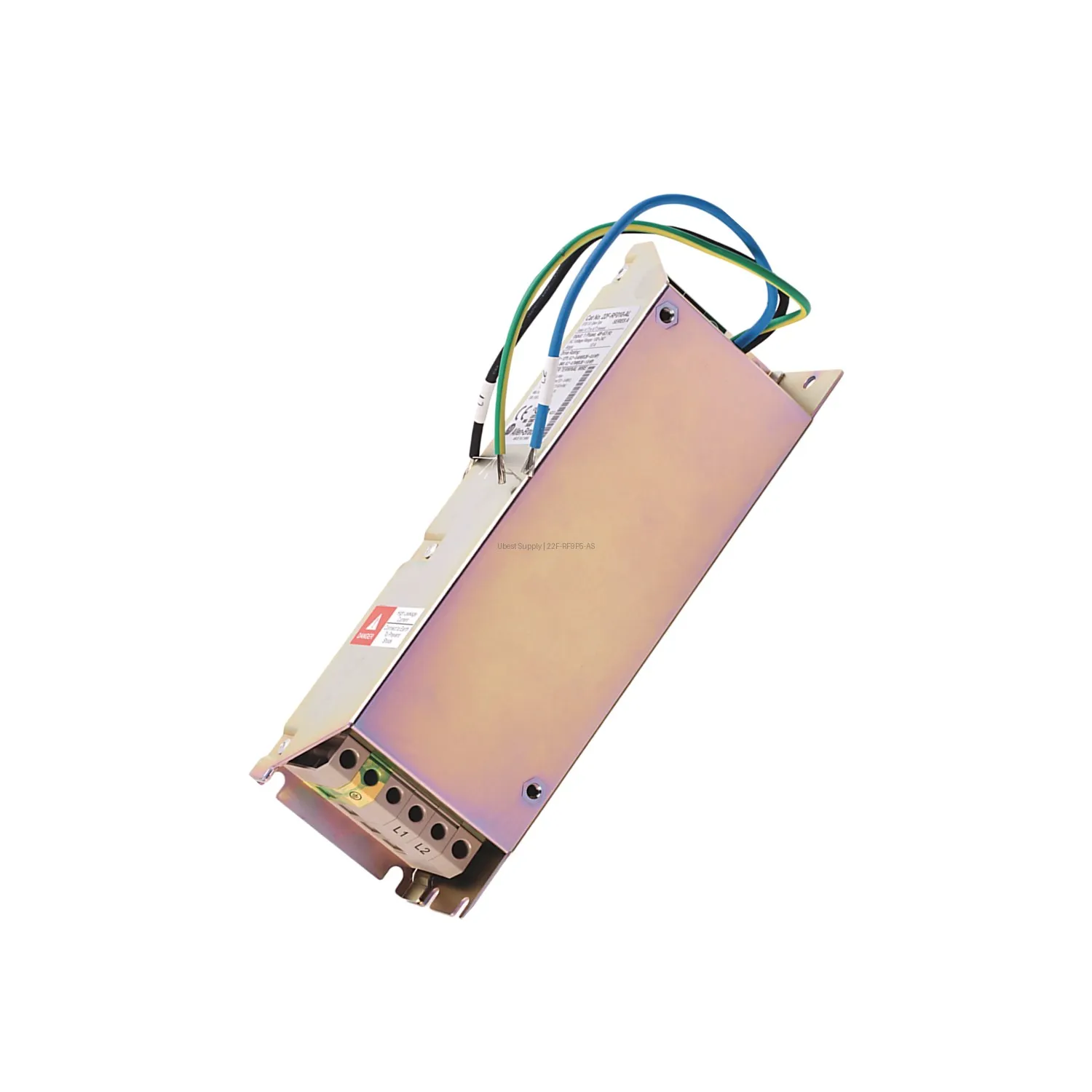

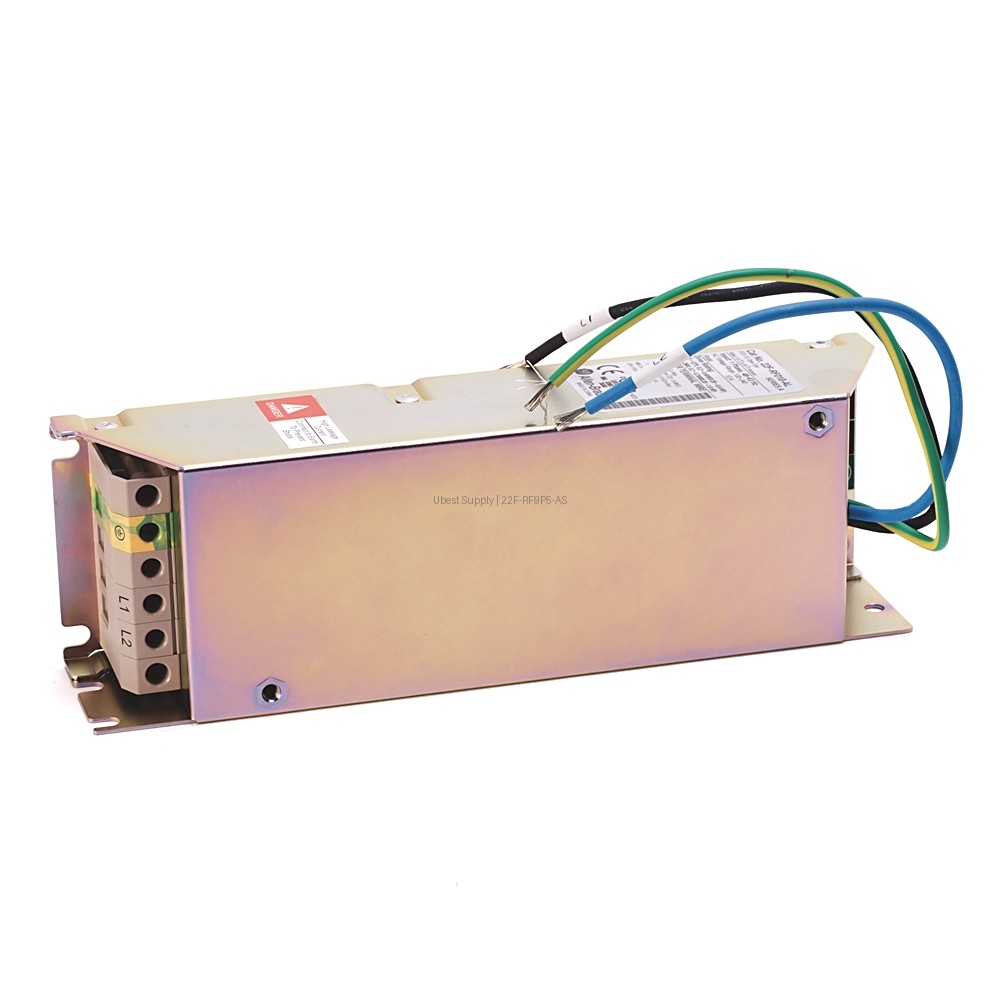

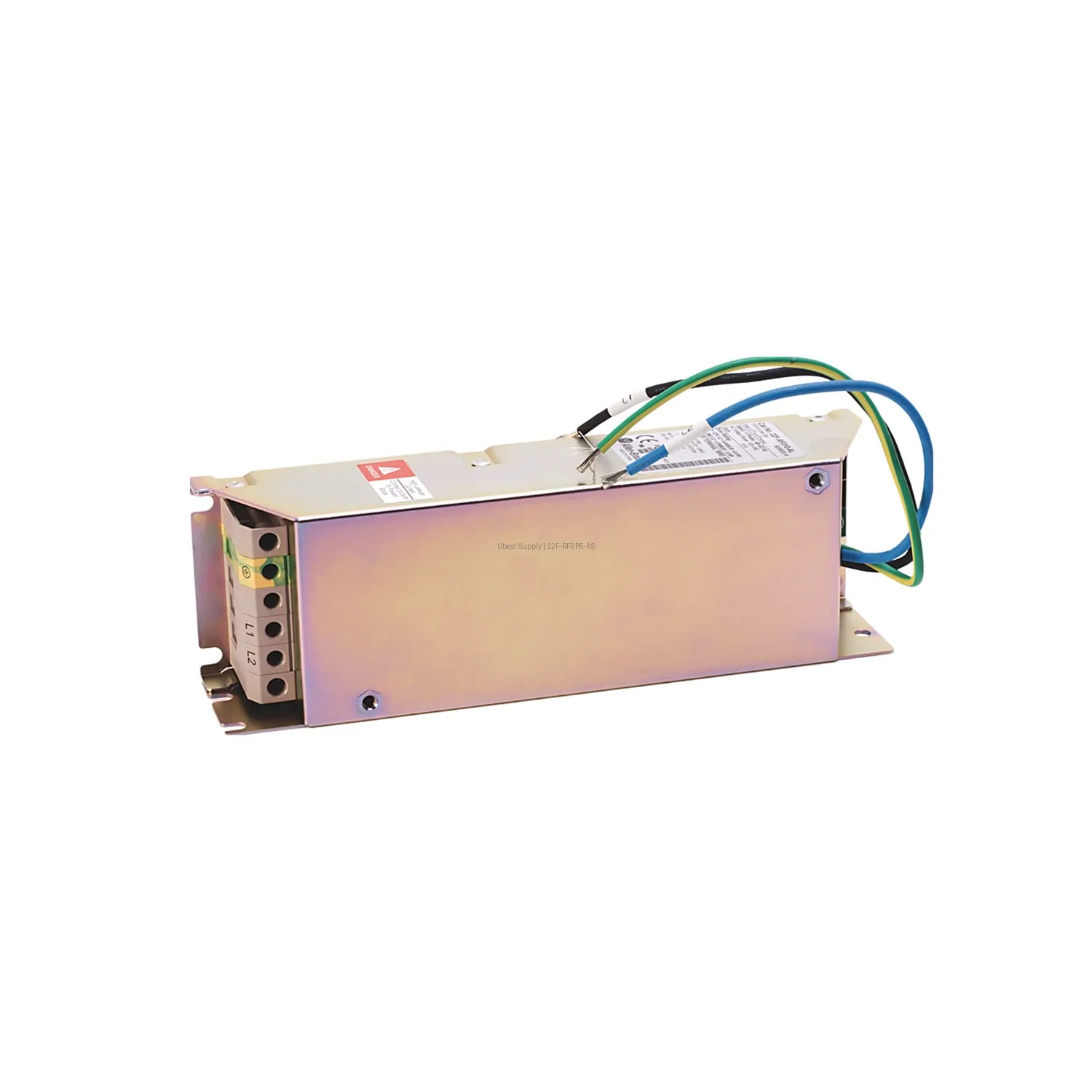

PowerFlex 4M EMC Filter Kit 22F-RF9P5-AS Line Filter

Product Overview

The Allen-Bradley PowerFlex 4M EMC Filter Kit is a line filter for drives. It helps reduce electrical noise. This kit works with PowerFlex 4M drives. It supports 0.2 to 1.5 kW power levels. The input voltage is 200-240V AC. It operates at 50/60 Hz. The current rating is 9.5A. This is a three-phase filter. It is an S Type filter. Use it with short cable lengths. The model is 22F-RF9P5-AS. This filter improves system reliability.

Application Scenarios

Use this filter in industrial automation. It works with conveyor systems. It fits packaging machines. It helps with material handling. Use it for pump and fan control. It reduces interference in sensitive areas. This kit is for new installations. It also works for upgrades. It meets EMC standards. It protects nearby equipment.

Technical Specifications

Brand: Allen-Bradley. Type: EMC Filter Kit. Model: 22F-RF9P5-AS. Voltage: 200-240V AC. Current: 9.5 Amps. Phase: 3-Phase. Frequency: 50/60 Hz. Power Range: 0.2 to 1.5 kW. Cable Length: Short. Filter Type: S Type. Series: PowerFlex 4M.

Installation & Maintenance Guide

Mount the filter near the drive. Use proper grounding. Follow the manual for wiring. Check connections before power up. Keep the area clean. Do not block airflow. Inspect the filter yearly. Replace if damaged. Use only with compatible drives.

Packing List

One EMC Filter Kit. Mounting hardware included. Installation guide included. Model 22F-RF9P5-AS is in the box. Ship via Fedex, UPS, or DHL.
