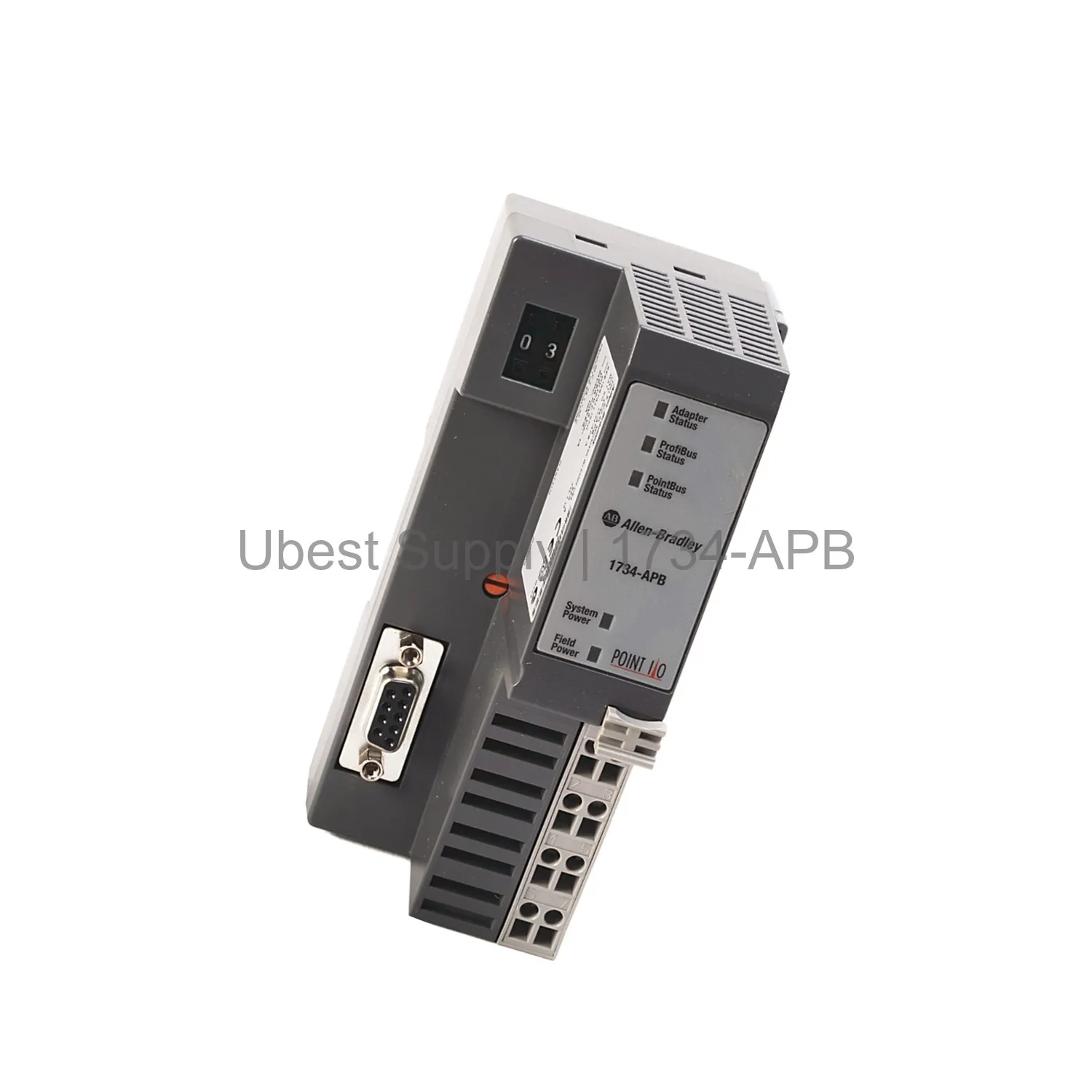

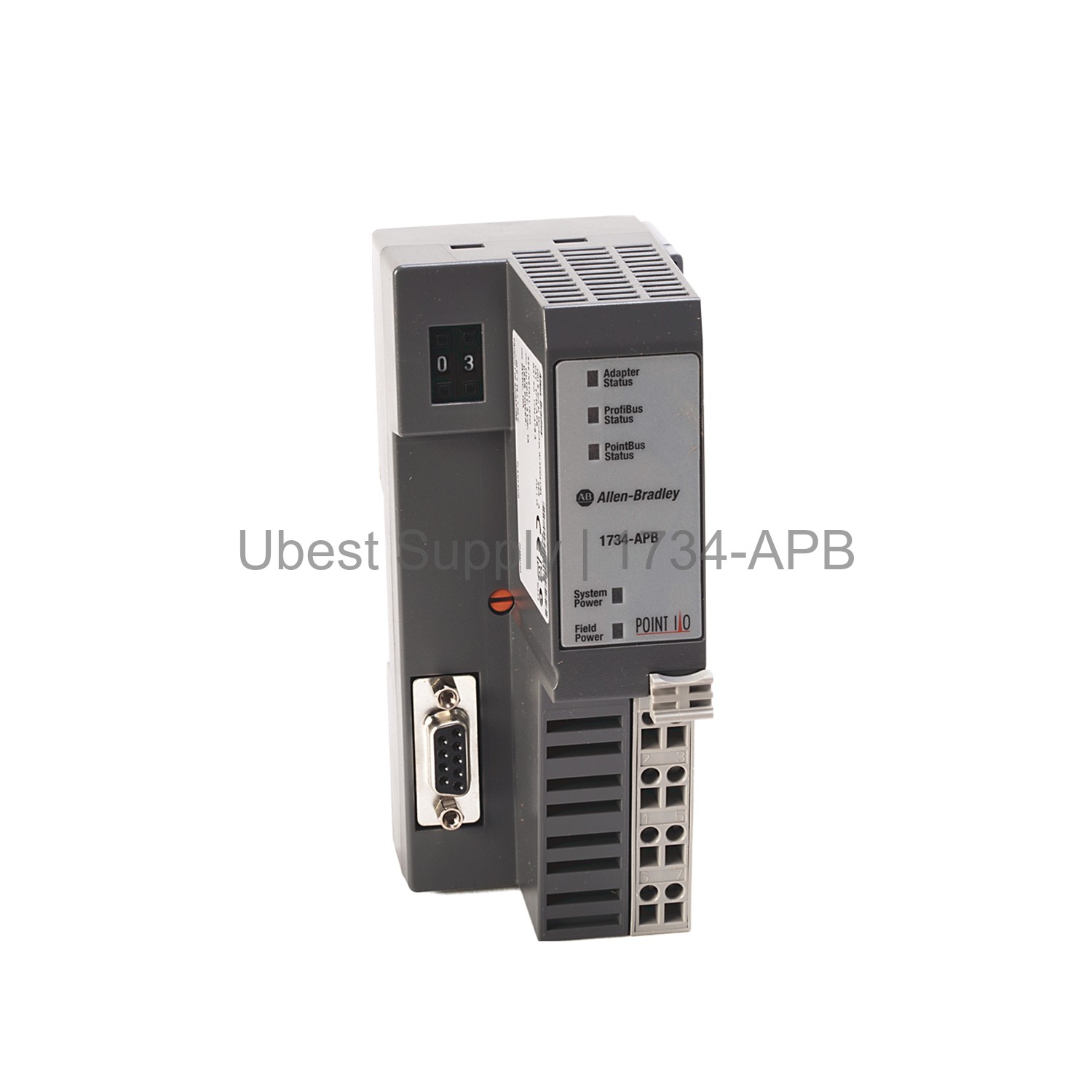

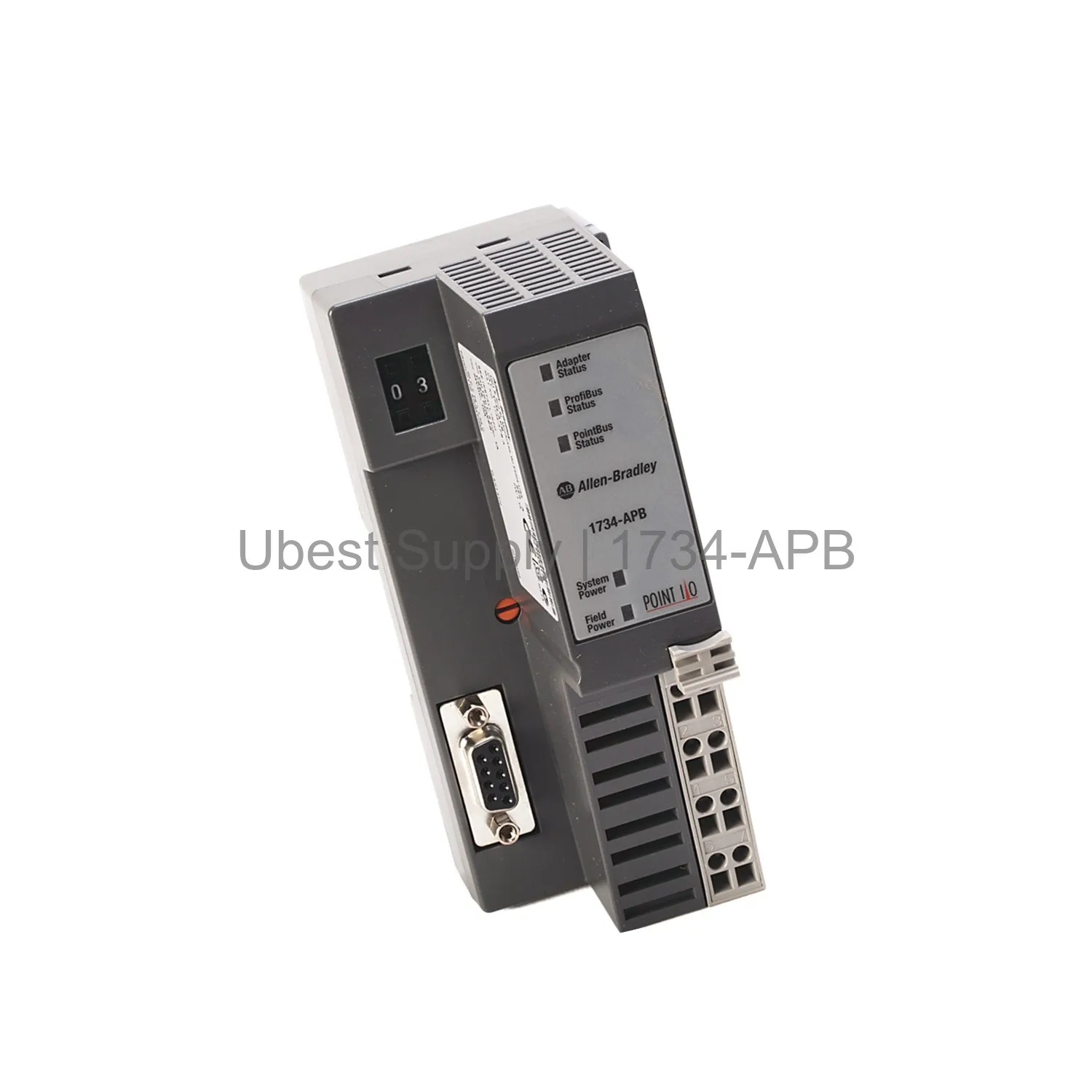

PROFIBUS DP Network Adapter Allen-Bradley 1734-APB

Product Overview

The Allen-Bradley 1734-APB is a PROFIBUS DP Network Adapter. It belongs to the POINT I/O series. This adapter links the PROFIBUS network to POINT I/O modules. On PROFIBUS, it acts as a slave device. On the PointBus backplane, it functions as a master. The 1734-APB uses a 24V DC input voltage. It provides field side power of 400 milliamps. The inrush current is 6 amps for 10 milliseconds. Power consumption is 8 watts. Power dissipation is 2.8 watts at 28.8 volts. The adapter includes reverse polarity protection for input overvoltage. It maintains output voltage for 10ms during drops at 10V with maximum load.

Application Scenarios

This adapter works well in industrial automation settings. Use it to connect a PROFIBUS DP master to I/O modules. It supports up to 63 POINT I/O modules. The 1734-APB is ideal for reliable data exchange. Common uses include manufacturing lines, process control, and machine building. It can power up to 14 I/O modules. The maximum field power is 10 amps. The current draw is 75 milliamps. It converts 12-24V DC field power to 5V logic power for modules. Use a SELV, Class 2, or PELV power supply for CE compliance.

Technical Specifications

Input voltage: 24V DC nominal, range 10-28.8V DC. Field side power: 400 milliamps. Inrush current: 6 amps max for 10ms. POINTBus current: 1000 milliamps at 5V DC. Power consumption: 8 watts. Power dissipation: 2.8 watts at 28.8V. Module type: PROFIBUS DP Network Adapter. Supports up to 63 modules. Maximum field power: 10 amps. Output voltage stays within spec for 10ms at 10V with max load. Reverse polarity protection is included. The adapter is a slave on PROFIBUS and a master on PointBus.

Installation and Maintenance Guide

Install the adapter at the left side of a 1734 system. Connect it to the PointBus and PROFIBUS network. Ensure a suitable power supply as per LVD directives. The 1734-APB provides 5V logic power to modules. For maintenance, keep the device clean and free of dust. Check connections periodically. Do not exceed maximum current ratings. The adapter has reverse polarity protection for safe installation. It operates within a 0-60°C temperature range. Store in a dry and clean environment.

Packing List

One 1734-APB adapter module. Product documentation. Mounting hardware not included. The adapter is shipped in an anti-static package. Ensure careful handling during installation. For shipping, we use FedEx, UPS, or DHL. Contact support for any missing items.
