TM3DM24R | Schneider Modicon Discrete I/O Module Supplier

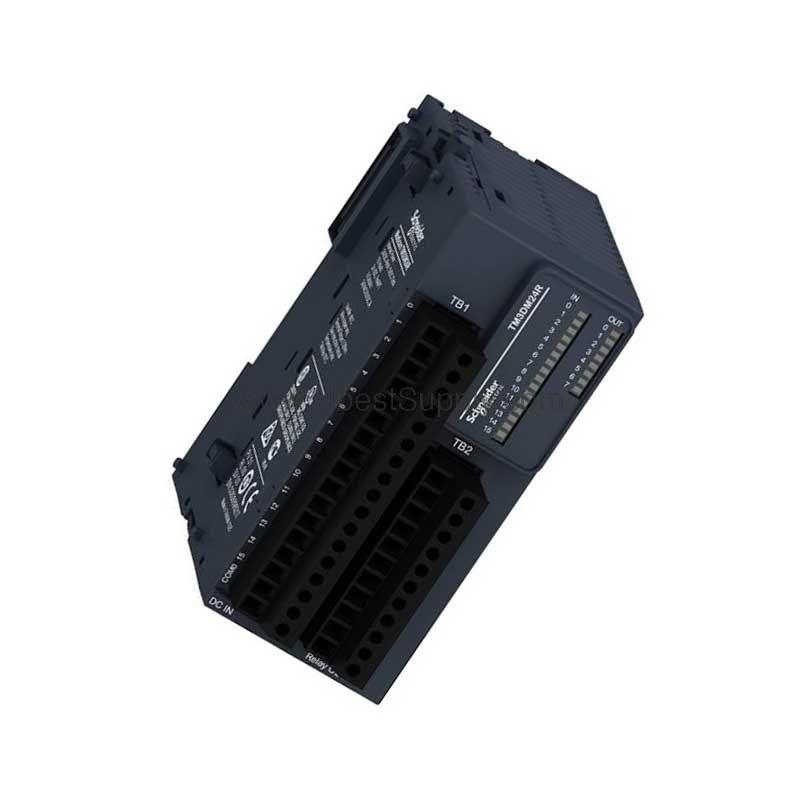

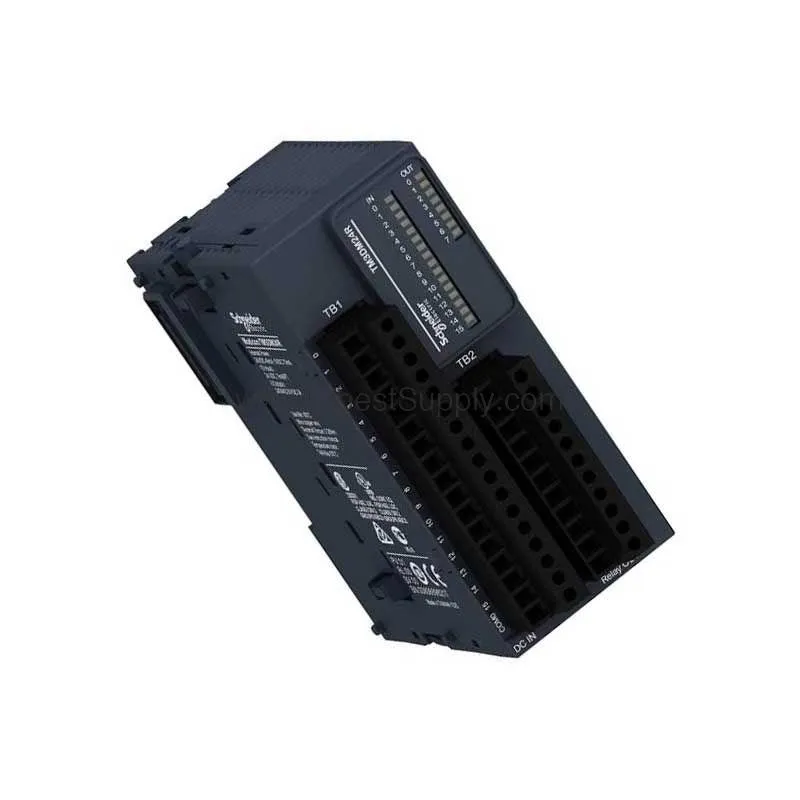

Introduction to the TM3DM24R

When automation systems demand reliable discrete I/O handling, the TM3DM24R from Schneider Electric delivers robust performance. This module, part of the Modicon TM3 family, integrates seamlessly with Modicon M221, M241, and M251 controllers. It provides 16 digital inputs and 8 relay normally open outputs, making it a versatile choice for manufacturing environments.

Key Features and Technical Specs

• 16 discrete inputs conforming to IEC 61131-2 Type 1 with sink or source logic.
• 8 relay normally open outputs rated at 24 V DC or 240 V AC, each handling up to 2000 mA.
• Input voltage range of 24 V DC with a guaranteed state 1 voltage of 15 to 28.8 V.
• Response time of 4 ms for both turn-on and turn-off, ensuring fast signal processing.
• Current consumption of 65 mA at 5 V DC via bus connector when outputs are on.
• Mechanical durability of 20,000,000 cycles for relay outputs, minimizing maintenance needs.
• IP20 protection with protective cover, suitable for controlled industrial environments.

A standout spec is the 7 A current per output common, which allows the module to drive multiple loads simultaneously without overloading.

Applications and Use Cases

In material handling systems, the TM3DM24R manages conveyor belt sensors and actuators efficiently. Its 24 V DC input logic supports both sink and source configurations, simplifying integration with existing sensors. For packaging lines, the relay outputs control solenoids and motors, while the 4 ms response time ensures precise timing. Additionally, the module's 1500 V AC isolation between input and output groups enhances safety in high-voltage environments.

Installation and Setup

Mount the TM3DM24R on a top hat DIN rail (TH35-15 or TH35-7.5) per IEC 60715, or use a fixing kit for panel installation. Connect inputs via a 17-terminal removable screw block (pitch 3.81 mm, 1.5 mm² capacity) and outputs via an 11-terminal block. Use unshielded cable up to 30 m for regular inputs. Ensure the module is powered via the bus connector, drawing 5 mA at 5 V DC when off and 65 mA when on.

Maintenance and Reliability

Routine inspection of the TM3DM24R focuses on verifying relay operation and checking for loose connections. The module operates reliably from -10 to 55 °C horizontally or -10 to 35 °C vertically, with storage from -25 to 70 °C. Its 20,000,000-cycle mechanical durability reduces downtime, while the IP20 cover protects against dust. Regular cleaning of the enclosure with a dry cloth maintains performance.

Compatibility and Integration

The TM3DM24R integrates with Modicon M221, M241, and M251 controllers via the bus connector. It supports both positive and negative output logic, adapting to diverse system architectures. The module complies with EN/IEC 61131-2 and carries CE, C-Tick, and cULus certifications, ensuring global acceptance.

Troubleshooting and Common Issues

If inputs fail to register, verify the voltage state 0 (0 to 5 V) and state 1 (15 to 28.8 V) thresholds. For relay output issues, check the minimum load of 10 mA at 5 V DC to ensure proper contact wetting. Use a multimeter to measure input impedance (3.4 kOhm) and confirm wiring integrity. If problems persist, consult the Schneider manual.

FAQ about TM3DM24R

Q: What is the input voltage range for the TM3DM24R?

A: The input voltage is 24 V DC, with a guaranteed state 1 range of 15 to 28.8 V and state 0 range of 0 to 5 V.

Q: How many relay outputs does the TM3DM24R have?

A: It has 8 relay normally open outputs, each rated for 2000 mA at 24 V DC or 240 V AC.

Q: What is the response time of the TM3DM24R?

A: Both turn-on and turn-off response times are 4 ms.

Q: Can the TM3DM24R be used with Modicon M221 controllers?

A: Yes, it is compatible with Modicon M221, M241, and M251 controllers.

Q: What is the mechanical durability of the relay outputs?

A: The relay outputs have a mechanical durability of 20,000,000 cycles.

Product Support and Availability

The TM3DM24R is in stock and ready to ship from Petro Auto Tech. As a trusted supplier of industrial automation parts, we ensure fast delivery and reliable service for your control system needs.
