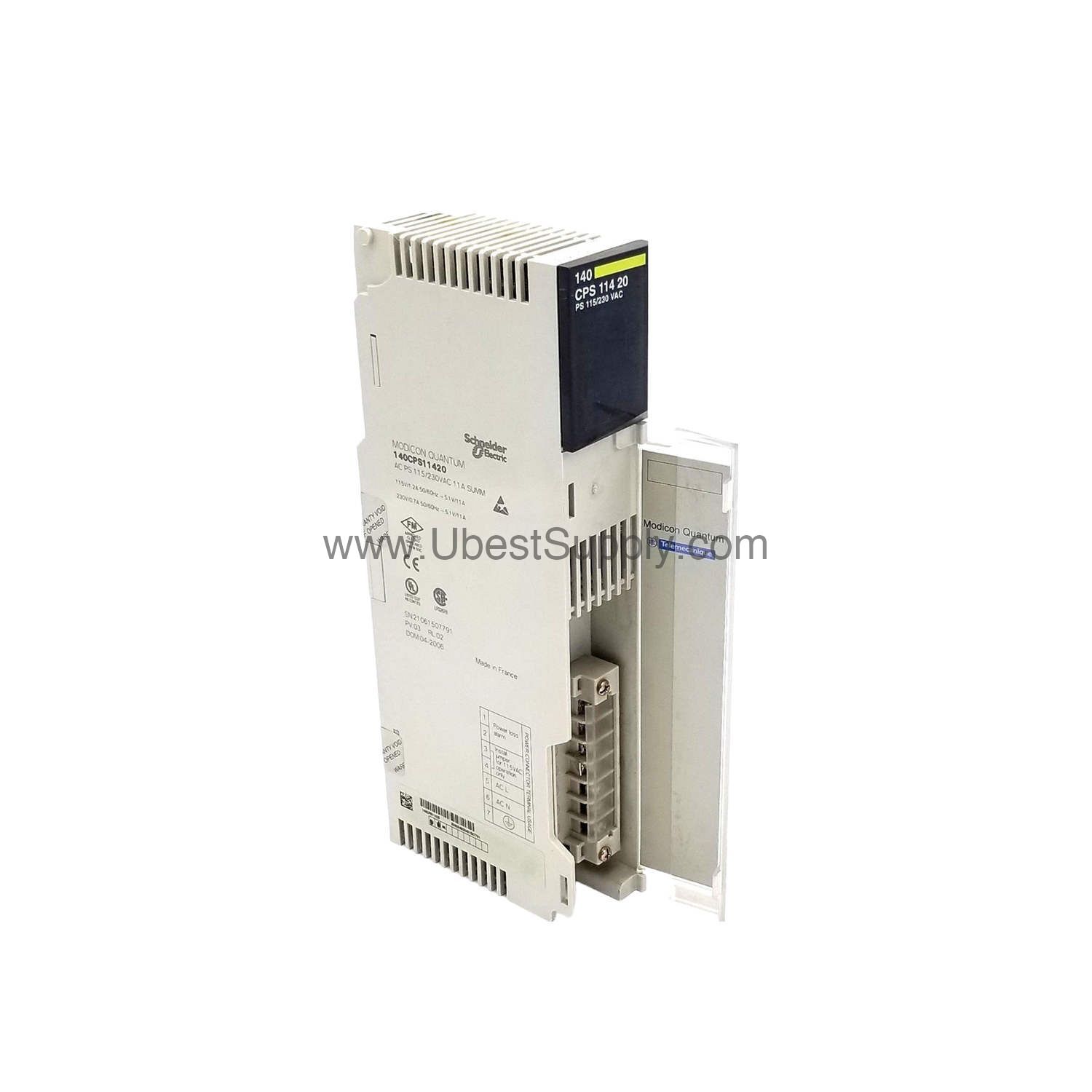

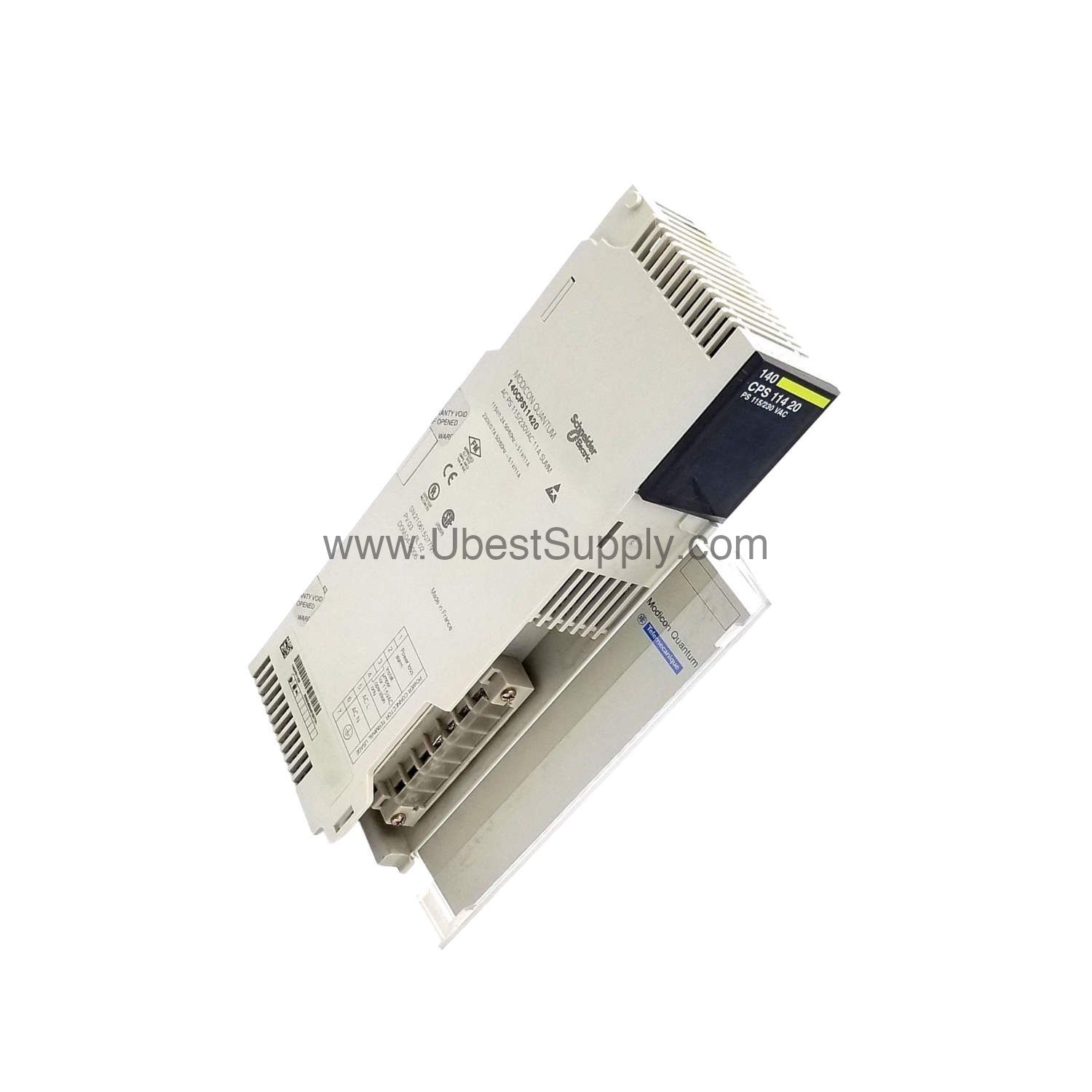

140CPS11420C | Schneider 5.1 VDC 11 A Power Supply Module

Introduction to the 140CPS11420C

When a Modicon Quantum control system demands stable and efficient power, the 140CPS11420C from Schneider Electric provides a dependable solution. This modular power supply is engineered to convert 115 or 230 VAC input into a consistent 5.1 VDC output, supporting up to 11 A of current. Designed for flexibility, it meets the needs of diverse automation applications while maintaining a compact footprint.

Key Features and Technical Specifications

The 140CPS11420C offers a range of specifications that ensure reliable performance:

• Input voltage options of 115/230 VAC accommodate various regional power standards.
• Output voltage of 5.1 VDC provides stable power for logic circuits.
• Maximum output current of 11 A supports moderate loads.
• Input current is 1300 mA at 115 V and 750 mA at 230 V, optimizing efficiency.
• Inrush current is 38 A at 115 V and 19 A at 230 V, handling startup demands.
• Rated power of 130 VA ensures adequate capacity for connected modules.
• Relay contacts are normally closed, rated at 220 VAC 6 A or 30 VDC 5 A, enhancing control capabilities.
• Operating temperature range of 0 to 60 °C suits typical industrial environments.

One distinctive aspect is the relay output, which provides a simple switching function for status indication or auxiliary control. This feature adds value by enabling direct integration with alarm or monitoring circuits.

Applications and Use Cases

In manufacturing lines, the 140CPS11420C powers PLC racks that control conveyors and robotic arms. For process industries, it ensures uninterrupted operation of critical control loops. Additionally, in building automation, it supports HVAC and lighting control systems. The power supply’s dual-voltage input simplifies installation in facilities with different electrical standards. Consequently, it proves versatile across sectors like automotive, food and beverage, and water treatment.

Installation and Setup

Mounting the 140CPS11420C is straightforward, given its compact dimensions of 40 mm width, 250 mm height, and 104 mm depth. Before installation, verify that the input voltage selector matches the local supply. Ensure adequate ventilation around the module to maintain the operating temperature range. Connect the input wires securely, observing correct polarity for DC outputs. After wiring, power up and check the output voltage with a multimeter to confirm 5.1 VDC. Finally, test the relay contact to ensure proper switching functionality.

Maintenance and Reliability

To maximize the lifespan of the 140CPS11420C, periodic inspection is recommended. Check for dust accumulation on the enclosure and clean with a dry cloth if necessary. Verify that all connections remain tight and free from corrosion. Monitor the ambient temperature to stay within the 0 to 60 °C range. Additionally, test the relay operation periodically to ensure it still switches correctly. By following these simple steps, you can reduce downtime and extend service life.

Compatibility and Integration

As part of the Modicon Quantum series, the 140CPS11420C integrates seamlessly with Quantum backplanes and controllers. It is designed to supply power to I/O modules, communication adapters, and processor modules within the same rack. While specific compatibility details should be confirmed with the official documentation, this power supply is a standard component for Quantum automation systems.

Troubleshooting and Common Issues

If the output voltage is absent, first check the input power source and fuse. Verify that the input voltage selector is set correctly for your supply (115 or 230 VAC). If the module overheats, ensure adequate airflow and reduce ambient temperature. Should the relay fail to operate, inspect the connected load and wiring. For persistent issues, consult the Schneider Electric manual or contact Petro Auto Tech for technical support.

FAQ

Q: What is the output voltage of the 140CPS11420C?

A: The output voltage is 5.1 VDC.

Q: What input voltages does the 140CPS11420C support?

A: It supports 115 VAC and 230 VAC.

Q: What is the maximum output current?

A: The maximum output current is 11 A.

Q: What is the rated power of this power supply?

A: The rated power is 130 VA.

Q: What is the operating temperature range?

A: It operates from 0 to 60 °C.

Product Support and Availability

The 140CPS11420C is available from Petro Auto Tech, an industrial automation parts supplier. In stock and ready to ship, this module can be ordered directly. For additional information or to confirm compatibility, contact Petro Auto Tech’s team.
