200152-25-10 | Bently Nevada 25m Accelerometer Interface Cable

What Is the Bently Nevada 200152-25-10?

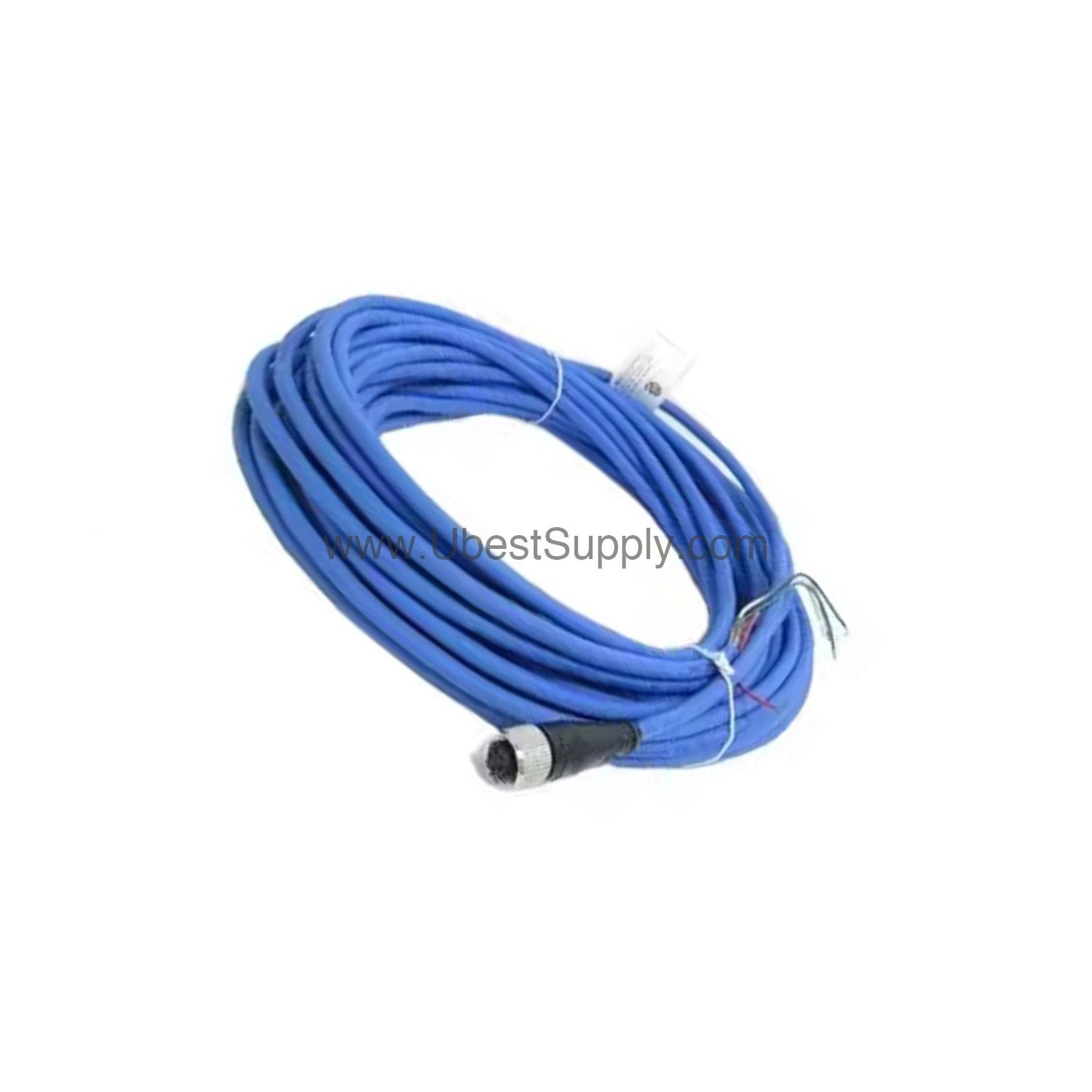

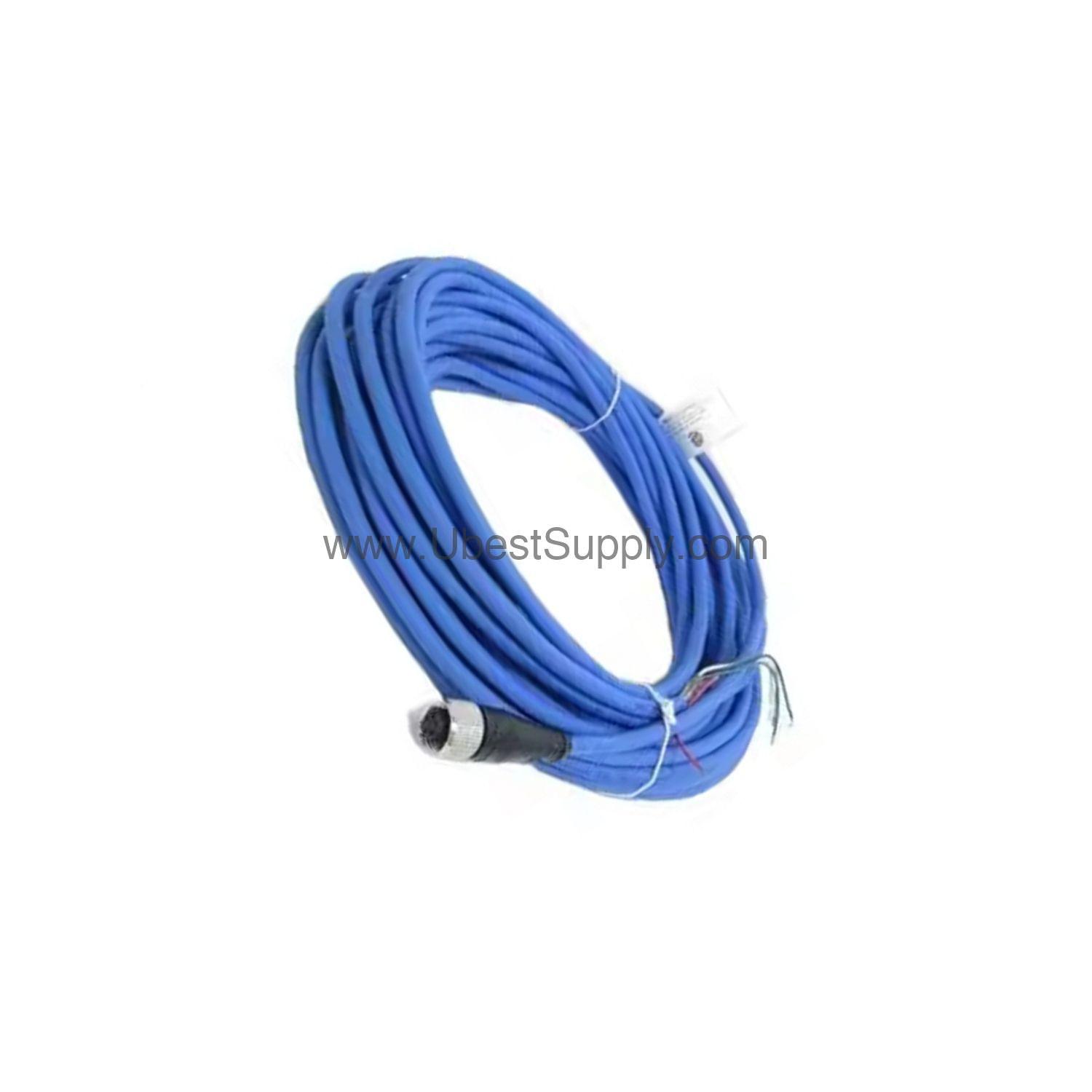

When a reliable connection between accelerometer and monitoring system is critical, the 200152-25-10 from Bently Nevada delivers. This accelerometer interface standard cable comes with a connector on the accelerometer end only and a 25-meter length. Its enhanced coupling nut provides a better grip for tightening the cable to the accelerometer, ensuring a secure fit in demanding industrial environments.

Key Features and Technical Specs

• Cable length: 25 meters, as indicated by the -25 suffix in the model number.
• Enhanced coupling nut (-10 option) offers improved grip for tightening to the accelerometer.
• Minimum bend radius: 73.7 mm (2.9 in) to protect cable integrity during routing.
• Operating temperature range: -20 ºC to +100 ºC (-4 ºF to +212 ºF).
• Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum) and PVC outer jacket.
• Connectors provide an IP67 seal to transducers and mating hardware, with molded construction for durability.
• Nickel-plated coupling nuts resist corrosion in harsh conditions.

Installation and Setup

Installing the 200152-25-10 is straightforward. Route the cable with a bend radius no smaller than 73.7 mm to avoid damage. Use the enhanced coupling nut to hand-tighten the connector onto the accelerometer. For installations below -20 ºC, avoid flexing the cable to prevent cracking. Apply DC4 electrical insulating compound inside the connectors for added moisture protection during thermal shock.

Maintenance and Reliability

From a maintenance engineer's perspective, the 200152-25-10 is built for long service life. The IP67-rated connectors resist dust and water ingress, while the nickel-plated coupling nuts withstand corrosion. Periodically inspect the cable for cuts or kinks, especially near the connector ends. The braided shield and drain wire provide reliable noise rejection, reducing false readings and downtime.

Compatible Systems

This cable works with Bently Nevada accelerometers that use the same connector interface. It is designed for use with standard monitoring systems requiring a 4-conductor, 22 AWG shielded cable. For specific compatibility details, refer to the Bently Nevada documentation or contact Petro Auto Tech.

Common Questions About the 200152-25-10

What is the maximum operating temperature?

The cable operates from -20 ºC to +100 ºC (-4 ºF to +212 ºF).

Does the cable come with connectors on both ends?

No, the connector is on the accelerometer end only.

What is the minimum bend radius?

The minimum bend radius is 73.7 mm (2.9 in).

Is the cable shielded?

Yes, it has a braided shield with drain wire providing at least 85% coverage.

What is the IP rating of the connectors?

The connectors provide an IP67 seal to transducers and mating hardware.

Product Support and Availability

The 200152-25-10 is available from Petro Auto Tech. Contact our team for current stock levels and lead times. We are ready to help you with your vibration monitoring needs.
