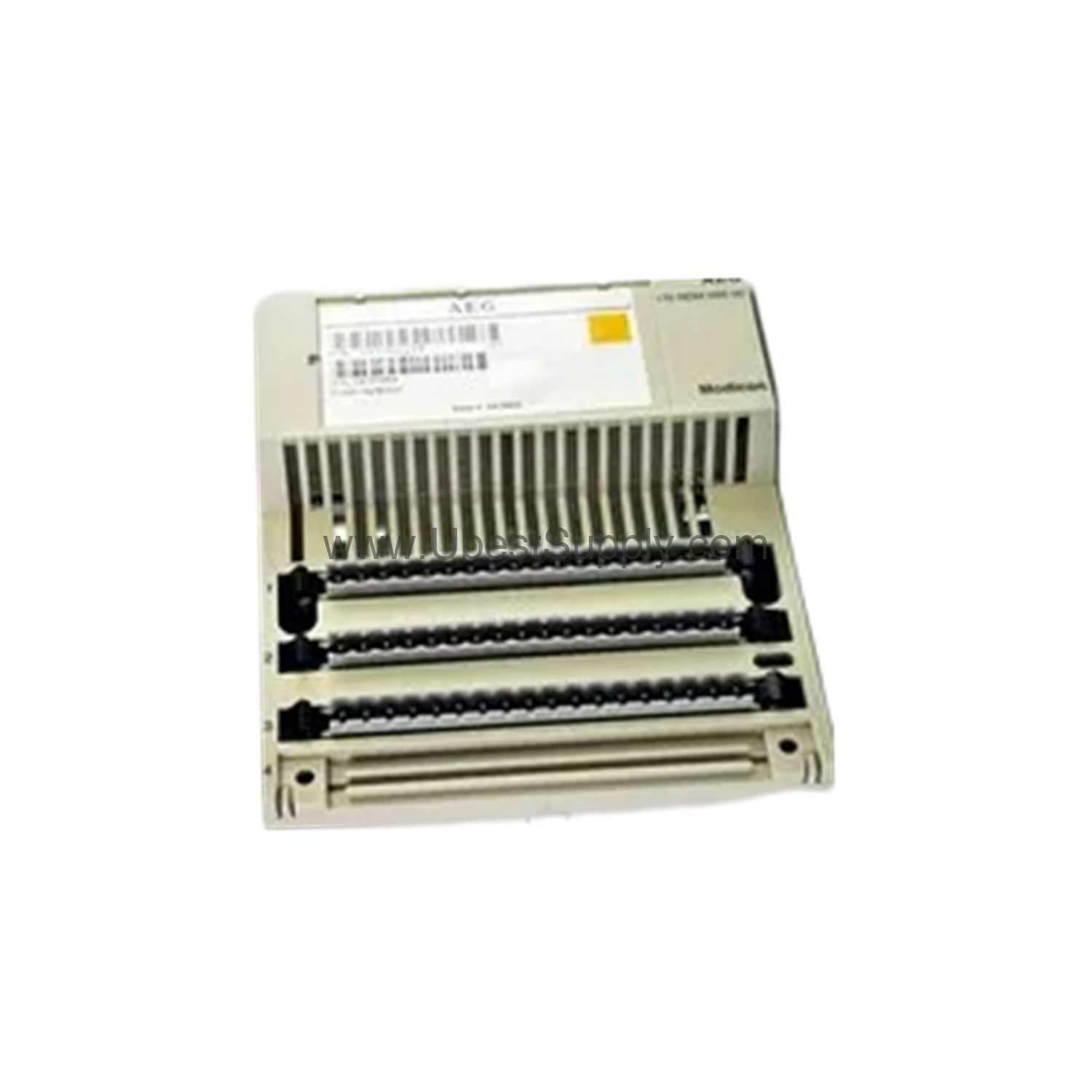

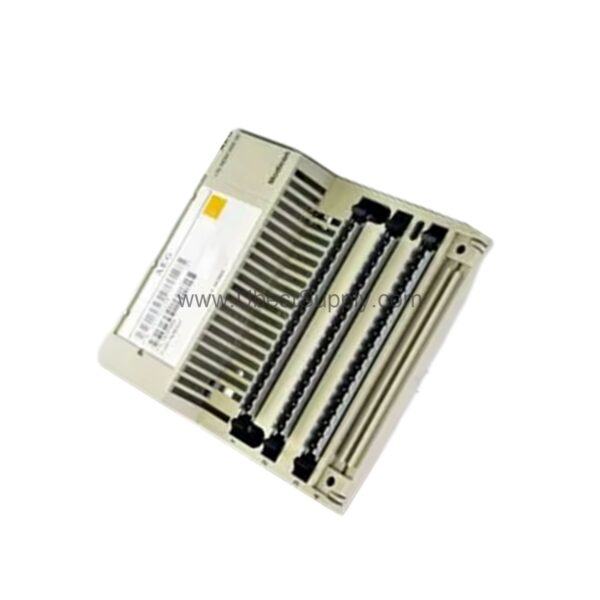

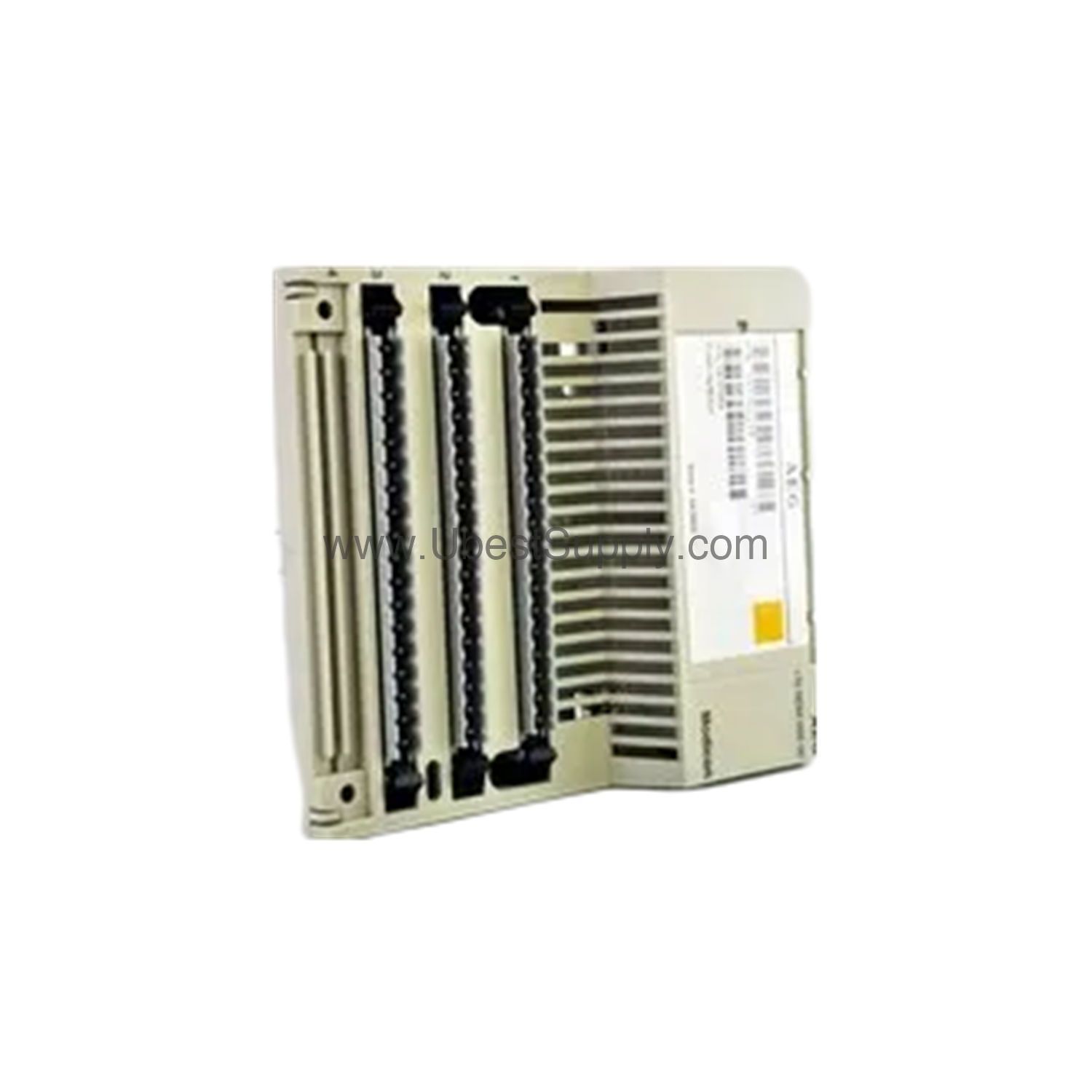

170BDM09000 | Schneider Modicon Momentum 4 Input 2 Output Discrete I/O Module

Introduction to the 170BDM09000

In the evolving landscape of industrial automation, the demand for compact and reliable I/O solutions continues to grow. The 170BDM09000 from Schneider Electric addresses this need within the Modicon Momentum series. It provides a straightforward way to connect field devices to a control system, ensuring smooth operation in various applications.

This discrete I/O module is designed for clean indoor environments, making it a dependable choice for many industrial settings. With its prewiring support, installation becomes more efficient, saving valuable time during setup.

Key Features and Technical Specifications

The 170BDM09000 offers a balanced set of features that enhance its usability:

• 4 digital inputs and 2 digital outputs for flexible signal handling.
• Compact design that fits easily into existing control panels.
• Prewiring support simplifies installation and reduces wiring errors.
• Operating temperature range of 0 to 40 degrees Celsius ensures reliable performance in typical indoor conditions.
• Maximum operating humidity of 80% RH (non-condensing) protects against moisture-related issues.
• Storage temperature from 0 to 50 degrees Celsius maintains integrity during downtime.
• Maximum storage humidity of 80% RH (non-condensing) preserves component quality.
• Designed for clean indoor environments with no corrosive chemicals, extending service life.
• Maximum operating and storage altitude of 1000 meters above sea level suits most industrial locations.

These specifications make the 170BDM09000 a practical choice for applications that require basic discrete I/O capabilities without unnecessary complexity.

Applications and Use Cases

The 170BDM09000 finds use in various sectors, including manufacturing, packaging, and material handling. For instance, it can monitor limit switches and control small actuators in a production line. Additionally, its compact size allows integration into space-constrained machinery, providing essential I/O functions where larger modules may not fit.

Moreover, the module's environmental ratings ensure reliable operation in typical factory floors, where temperature and humidity are controlled. This makes it suitable for continuous processes that demand consistent performance.

Installation and Setup

Installing the 170BDM09000 is straightforward, thanks to its prewiring support. Begin by mounting the module securely in the control panel, ensuring adequate clearance for ventilation. Next, connect the field wiring to the designated terminals, following the module's labeling for input and output channels.

After wiring, verify that all connections are tight and that the module is properly grounded. Finally, power up the system and check the status indicators to confirm normal operation. Always refer to the official Schneider Electric documentation for detailed wiring diagrams and configuration guidelines.

Maintenance and Reliability

To ensure long-term reliability, periodic inspection of the 170BDM09000 is recommended. Check for any signs of dust accumulation or moisture, and clean the enclosure gently if needed. Since the module is designed for clean indoor environments, maintaining a clean atmosphere around the module will help prevent issues.

Additionally, verify that the operating temperature and humidity remain within specified limits. Regular checks of the wiring connections can prevent intermittent faults. Following these simple practices will help maximize the module's service life.

Compatibility and Integration

The 170BDM09000 is part of the Modicon Momentum series, ensuring compatibility with other Momentum components. It integrates seamlessly into existing Momentum-based control systems, allowing for easy expansion of I/O capacity. However, specific compatibility with other controllers or networks should be verified using the official Schneider documentation.

Troubleshooting and Common Issues

If the module does not respond as expected, check the power supply and wiring connections first. Ensure that the input signals are within the module's specified range and that outputs are not overloaded. If problems persist, consult the troubleshooting section of the Schneider manual or contact Petro Auto Tech for assistance.

FAQ about the 170BDM09000

Q: What is the operating temperature range of the 170BDM09000?

A: The module operates from 0 to 40 degrees Celsius, making it suitable for typical indoor industrial environments.

Q: How many inputs and outputs does the 170BDM09000 have?

A: It has 4 digital inputs and 2 digital outputs, providing a compact I/O solution.

Q: Can the 170BDM09000 be used in humid conditions?

A: Yes, it can handle up to 80% relative humidity (non-condensing) during operation.

Q: Does the 170BDM09000 support prewiring?

A: Yes, prewiring is supported, which simplifies installation and reduces wiring errors.

Q: What is the maximum altitude for operating the 170BDM09000?

A: The module can operate at altitudes up to 1000 meters above sea level.

Support and Availability

The 170BDM09000 is available from Petro Auto Tech, a trusted industrial automation parts supplier. In stock and ready to ship, this module can be ordered with confidence. For any questions about compatibility or specifications, contact Petro Auto Tech for expert assistance.
