2094-BC02-M02-S IAM 400 Volt Class Allen-Bradley Module

Product Overview

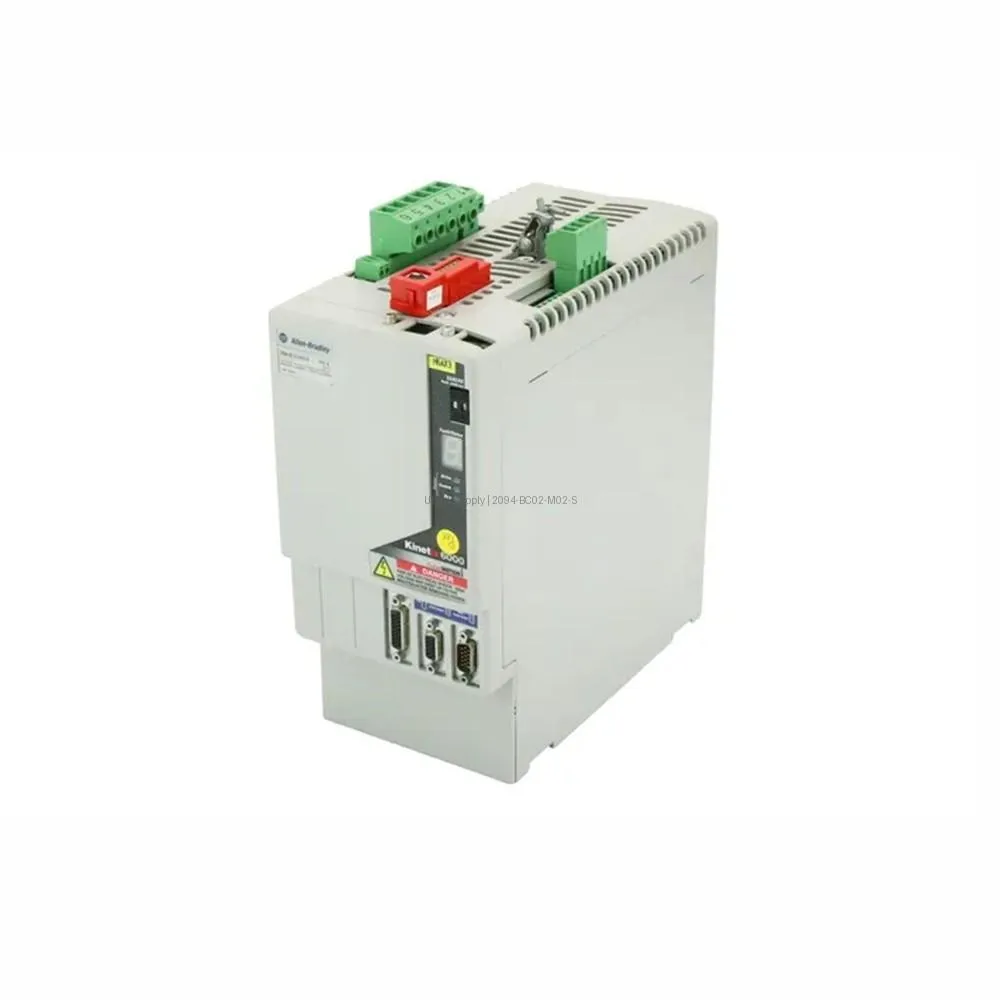

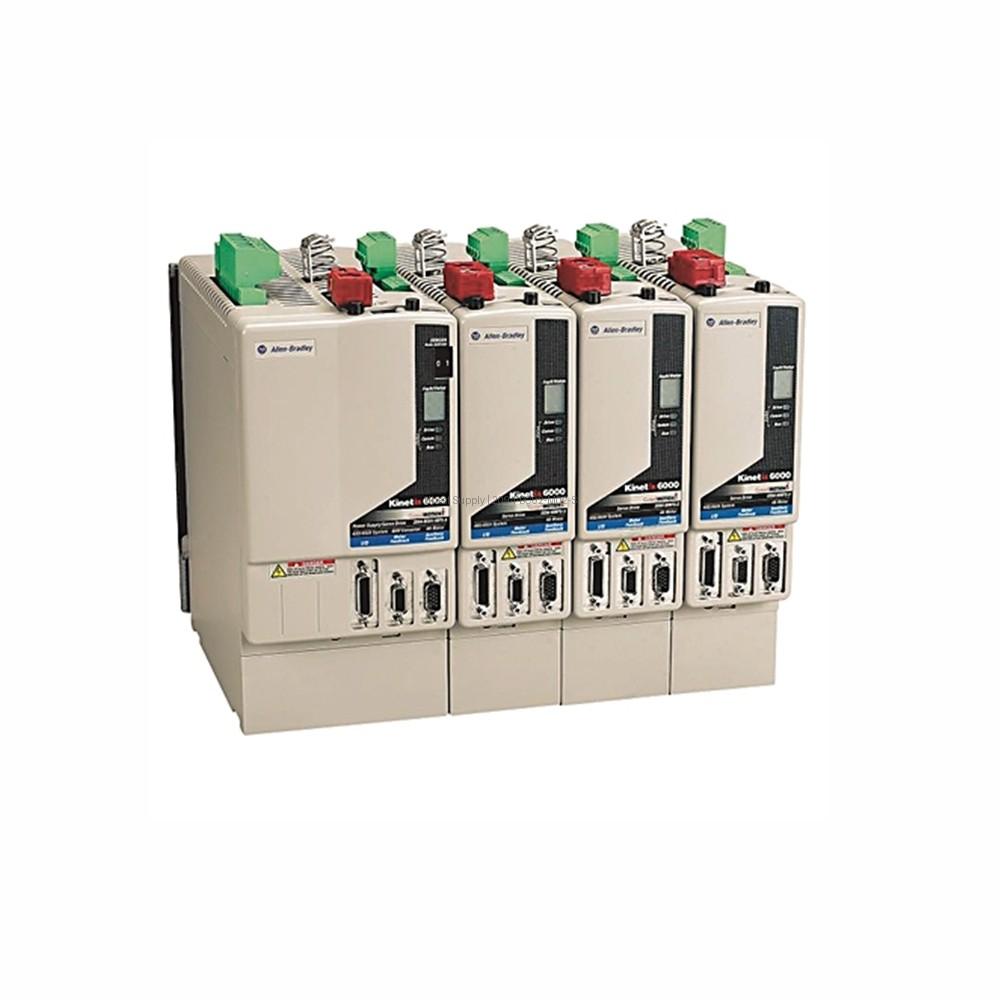

The Allen-Bradley 2094-BC02-M02-S is an IAM 400 Volt Class module. It delivers 97% efficiency. This unit provides 15 kW of continuous output power to the bus. It includes an internal shunt resistor rated at 115 Ohms. The module supports Safe-Torque Off functionality for enhanced safety. It weighs 11.2 pounds (5.08 kilograms).

Application Scenarios

This module is ideal for high-performance motion control systems. It works well in industrial automation applications. Use it with Kinetix 6000 drives. It fits common bus configurations. The module handles demanding peak power needs up to 37.5 kW. It is suitable for packaging, converting, and material handling equipment.

Technical Specifications

AC input voltage range is 324 to 528 Volts RMS 3 Phase. The nominal AC input is 360 to 480 Volts. AC input frequency is 47 to 63 Hertz. The nominal bus output voltage is 650 VDC. The shunt turns on at 805 VDC and off at 755 VDC. Continuous output current to bus is 22.6 Amps. Peak output current reaches 56.4 Amps for Series B, C, D units. The module has a short-circuit current rating of 200,000 A symmetrical.

Installation & Maintenance Guide

Mount the module in a clean, dry cabinet. Ensure proper airflow for cooling. Use the specified control input fuse: FNQ-R-10 (10 Amps) or FNQ-R-7.5 (7.5 Amps). Connect AC input power to the correct terminals. Verify bus voltage does not exceed 825 VDC. Regularly check the internal shunt for heat damage. Keep the module free of dust and debris.

Packing List

The package includes one Allen-Bradley 2094-BC02-M02-S IAM module. It also contains a documentation sheet. No additional cables or accessories are included. The module is securely packed in an anti-static bag. Shipping is handled via FedEx, UPS, or DHL.
