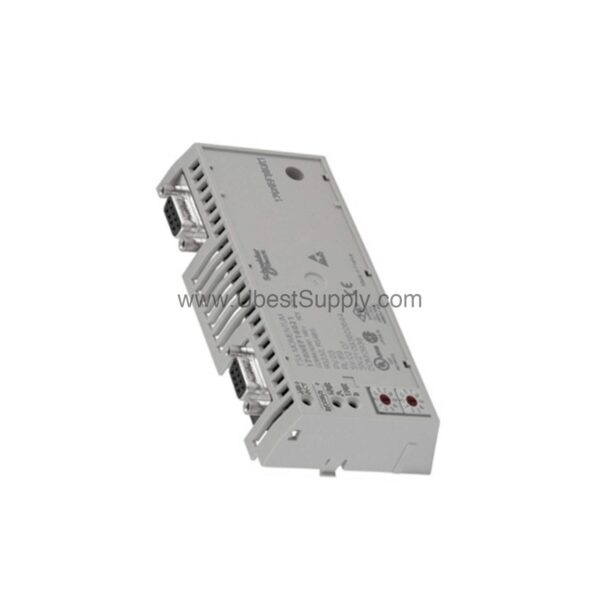

170PNT11020 | Schneider Modbus Plus Communication Adapter

Introduction to the Schneider 170PNT11020

When your Modicon Momentum system demands dependable communication, the 170PNT11020 from Schneider Electric delivers. This communication adapter uses the Modbus Plus protocol at a baud rate of 1 megabit per second, ensuring fast and stable data exchange across your industrial network.

Designed for the Modicon Momentum automation platform, the 170PNT11020 supports token bus and peer-to-peer (P2P) access methods. This flexibility allows you to build network topologies that suit your specific application, whether you are connecting a few devices or scaling up to a larger installation.

Key Features and Technical Specifications

• Communication protocol: Modbus Plus with 1 Mbit/s baud rate.
• Access method: Token bus and peer-to-peer (P2P).
• Transmission medium: Twisted pair cable.
• Supports up to 31 devices per segment and 64 devices across all segments.
• Maximum cable distance between devices: approximately 16,404 feet (5,000 meters) with repeater.
• Ambient operating temperature: 0 to 60°C (non-condensing).
• Storage temperature: -40 to 85°C (non-condensing).
• Protection class: IP20.

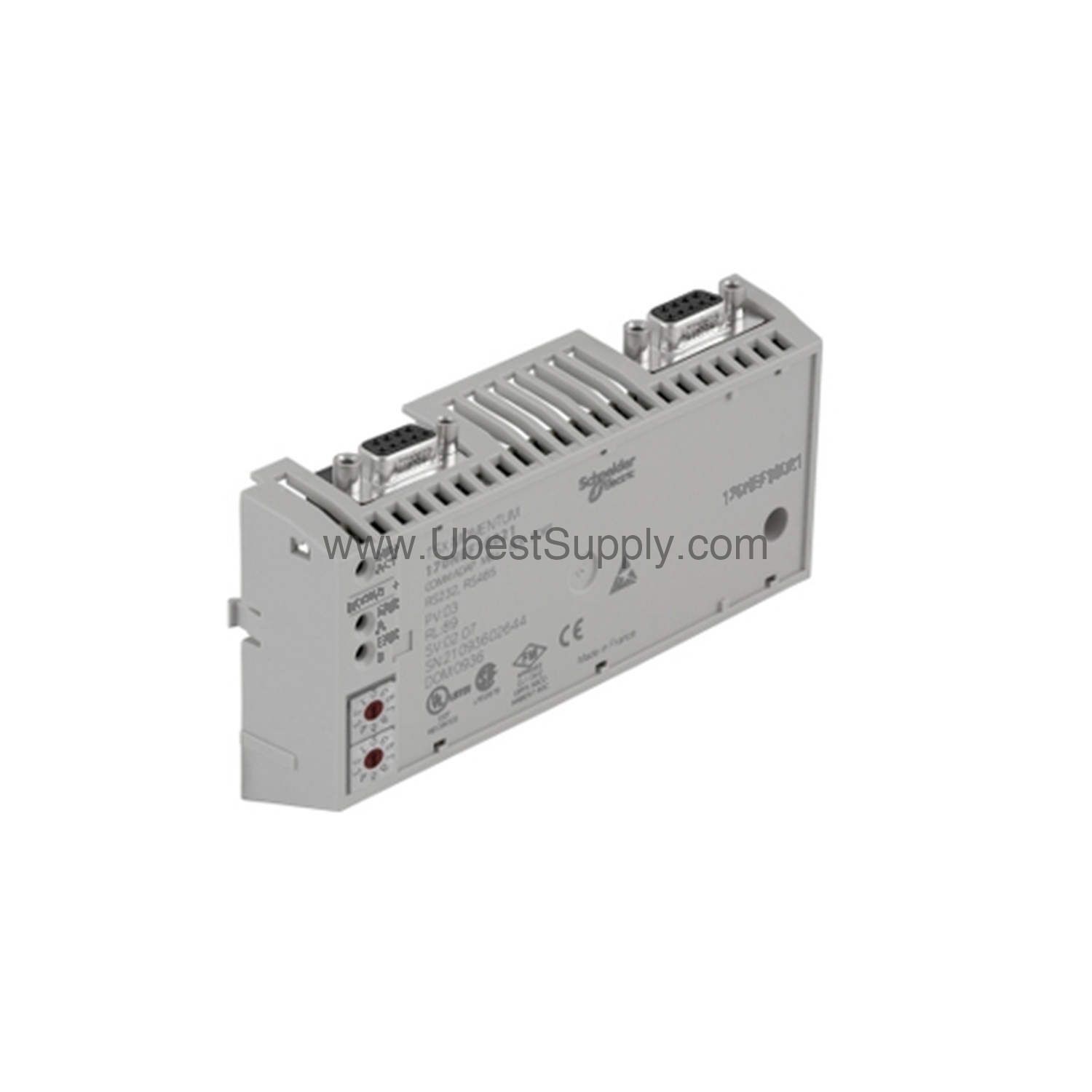

• Electrical connection: two 9-pin D-Sub connectors for redundant Modbus Plus network.
• Compliance: UL, CSA, and CE safety standards.

One distinctive feature is the redundant D-Sub connectors, which provide network redundancy. This means if one network path fails, the adapter can continue communicating through the second path, reducing downtime and improving system reliability.

Applications and Use Cases

The 170PNT11020 is ideal for industrial automation environments where reliable communication is critical. It is commonly used in manufacturing plants, process control systems, and material handling applications. Because it supports up to 64 devices across all segments, it can handle medium-sized networks with ease.

For example, in a packaging line, the adapter can connect multiple PLCs and sensors, ensuring real-time data flow. Its wide operating temperature range (0 to 60°C) makes it suitable for most factory floors, and the IP20 protection class offers basic dust protection.

Installation and Setup

Installing the 170PNT11020 is straightforward. The adapter mounts onto the Modicon Momentum I/O base, and you connect the twisted pair cable to the 9-pin D-Sub connectors. Ensure the network is properly terminated and that each device address is set correctly to avoid communication errors.

For redundant networks, connect both D-Sub connectors to separate Modbus Plus segments. This setup provides automatic failover if one segment experiences a fault. Always follow the Schneider Electric installation manual for detailed wiring and configuration instructions.

Maintenance and Reliability

To keep the 170PNT11020 operating reliably, perform periodic inspections. Check the cable connections for tightness and look for any signs of wear or damage on the twisted pair cable. Verify that the LED indicators (green for power/communication, red for network errors) are functioning as expected.

Because the adapter is rated for a wide storage temperature range (-40 to 85°C), it can be stored in harsh conditions without degradation. Regular maintenance, such as cleaning dust from the enclosure and ensuring proper ventilation, will extend the service life of the adapter.

Compatibility and Integration

The 170PNT11020 is part of the Modicon Momentum platform and is compatible with Premium and Quantum bus manager PLCs. It uses the Modbus Plus protocol, which is widely supported in Schneider Electric ecosystems. The adapter also supports multidrop topology, allowing devices to be connected by extension or tap-off cables.

When integrating with existing systems, verify that your PLC firmware supports Modbus Plus communication. The adapter's data format complies with IEC 61131-2, ensuring seamless integration with standard industrial control programs.

Troubleshooting and Common Issues

If you encounter communication errors, start by checking the LED indicators. A red LED on ERR A or ERR B indicates a network fault on that segment. Inspect the cable connections and ensure that the network is properly terminated.

Another common issue is exceeding the maximum number of devices per segment. Remember, the 170PNT11020 supports up to 31 devices per segment and 64 total. If you need more devices, use a repeater to extend the network.

For persistent problems, consult the Schneider Electric documentation or contact Petro Auto Tech for technical support.

FAQ about the 170PNT11020

Q: What is the maximum baud rate of the 170PNT11020?

A: The 170PNT11020 operates at a baud rate of 1 megabit per second.

Q: How many devices can be connected to the 170PNT11020?

A: It supports up to 31 devices per segment and up to 64 devices across all segments.

Q: What is the maximum cable distance between devices?

A: The maximum cable distance is approximately 16,404 feet (5,000 meters) when using a repeater.

Q: Does the 170PNT11020 support redundant networks?

A: Yes, it has two 9-pin D-Sub connectors for connecting to redundant Modbus Plus networks.

Q: What are the operating temperature limits?

A: The operating temperature range is 0 to 60°C, and the storage temperature range is -40 to 85°C.

Product Support and Availability

The 170PNT11020 is available from Petro Auto Tech, your trusted industrial automation parts supplier. We stock this adapter and can ship it quickly to minimize downtime. For assistance with selection or technical questions, contact our team.
