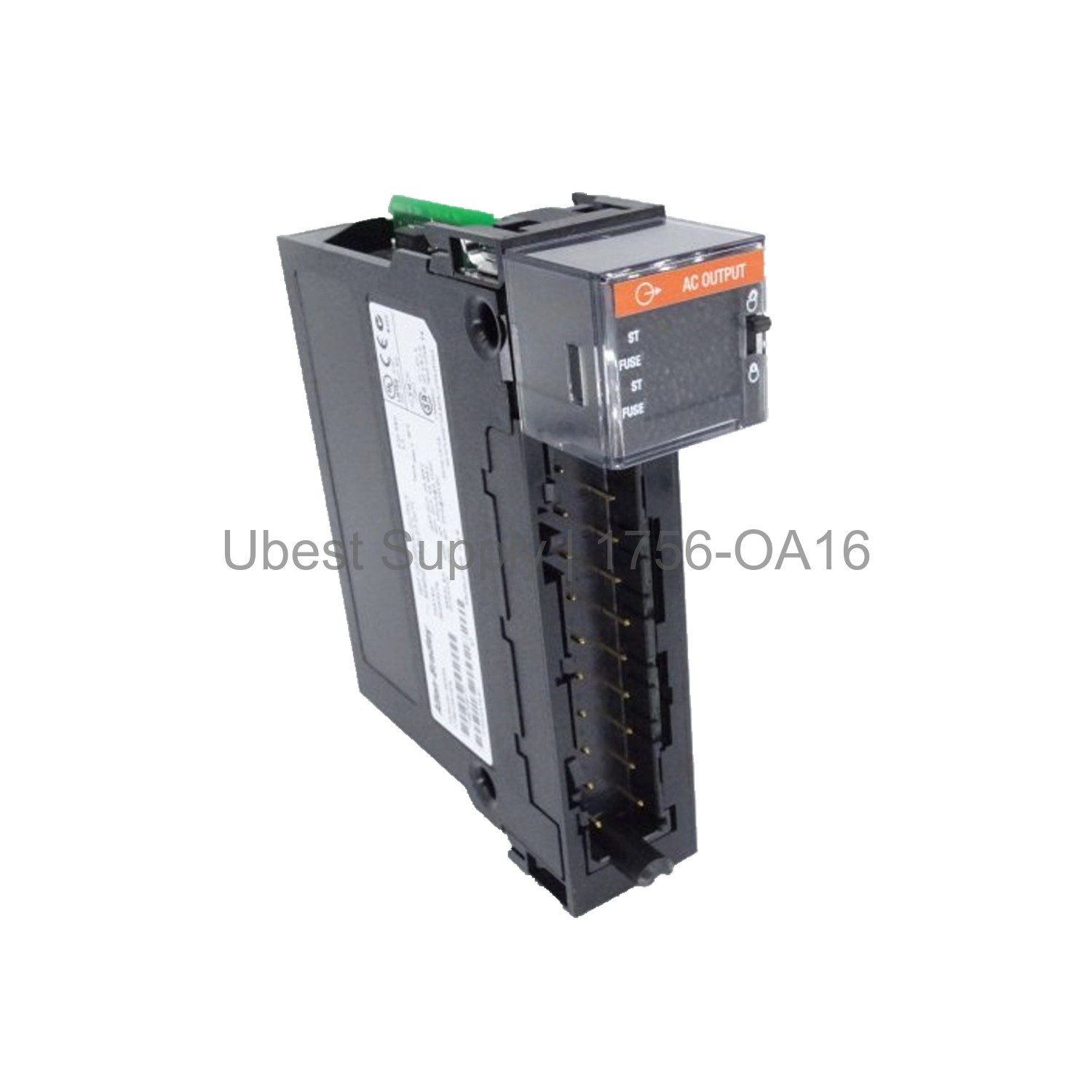

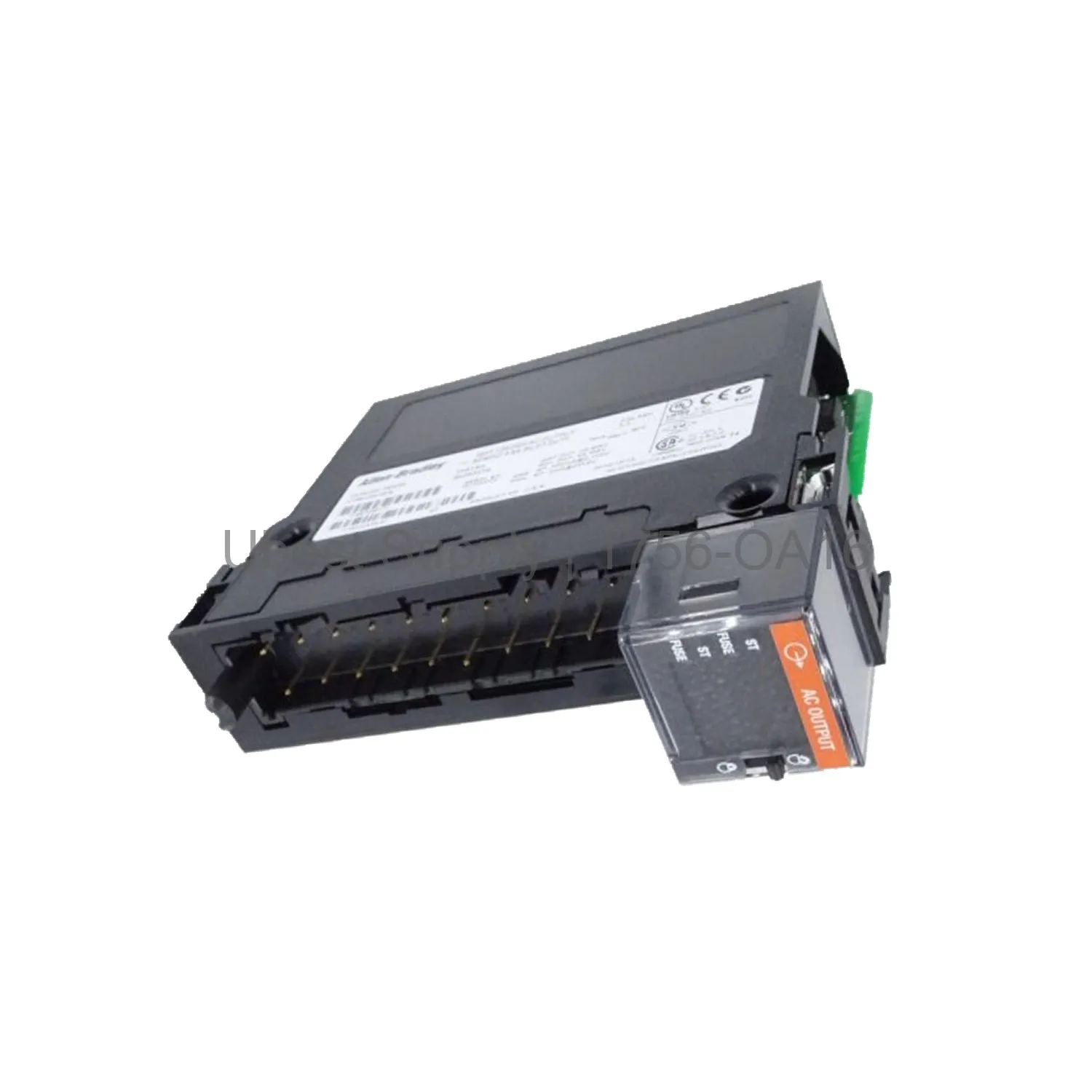

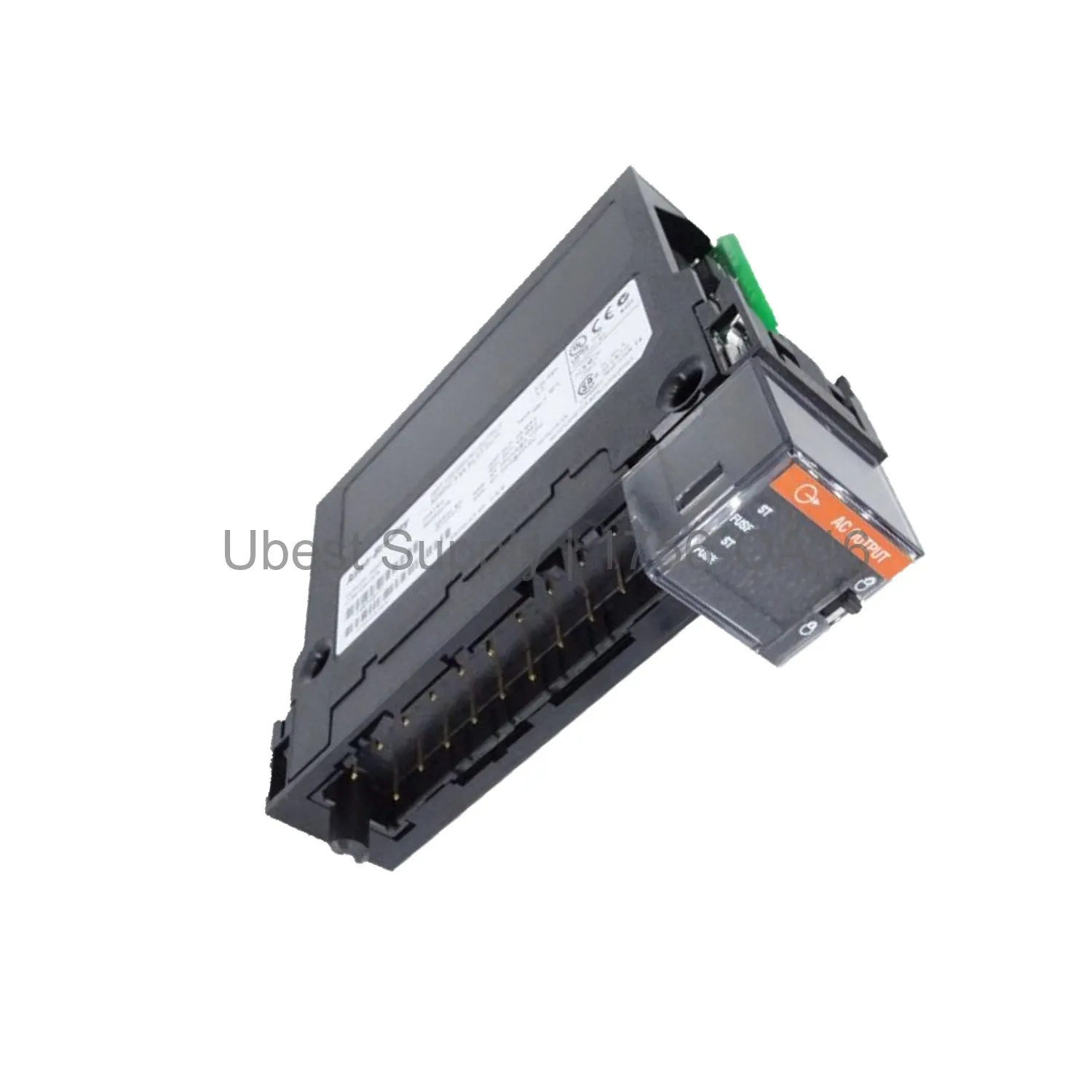

Discrete Output Module Allen-Bradley 1756-OA16 ControlLogix

Product Overview

The Allen-Bradley 1756-OA16 is a digital AC output module. It belongs to the ControlLogix series. This module has 16 outputs. It works with 120-140 Volts AC. Each point handles up to 0.5 Amps. The module supports 4 Amps total. It uses a removable terminal block. This design makes wiring easy. The 1756-OA16 is a reliable choice for industrial control.

Application Scenarios

Use this module for machine control. It works well for conveyor systems. It can switch motors and lights. It is ideal for factory automation. The 1756-OA16 fits in ControlLogix chassis. It handles high voltage AC loads. Use it in packaging lines. It also works in material handling. This module suits many industrial tasks.

Technical Specifications

Voltage: 120-140 Volts AC. Operating range: 74-265 Volts AC. Output current per point: 0.5 Amps. Output current per module: 4 Amps. Output delay: 9.3 or 11 ms. Backplane current at 5 Volts: 400 mA. Backplane current at 24 Volts: 2 mA. Power dissipation: 6.5 Watts. Isolation voltage: 50 Volts. It uses 1756-TBNH or 1756-TBSH terminal blocks.

Installation & Maintenance Guide

Install the module in a ControlLogix chassis. Use the correct terminal block. Wire the outputs carefully. Check voltage ratings before use. Keep the module clean. Do not exceed current ratings. Replace fuses as needed. Test outputs regularly. Follow Rockwell guidelines. Use proper safety gear.

Packing List

One 1756-OA16 module. No terminal block included. No manual included. Ship via Fedex, UPS, or DHL.
