170XCP20000 | Schneider Modicon Momentum Cable Coding Kit

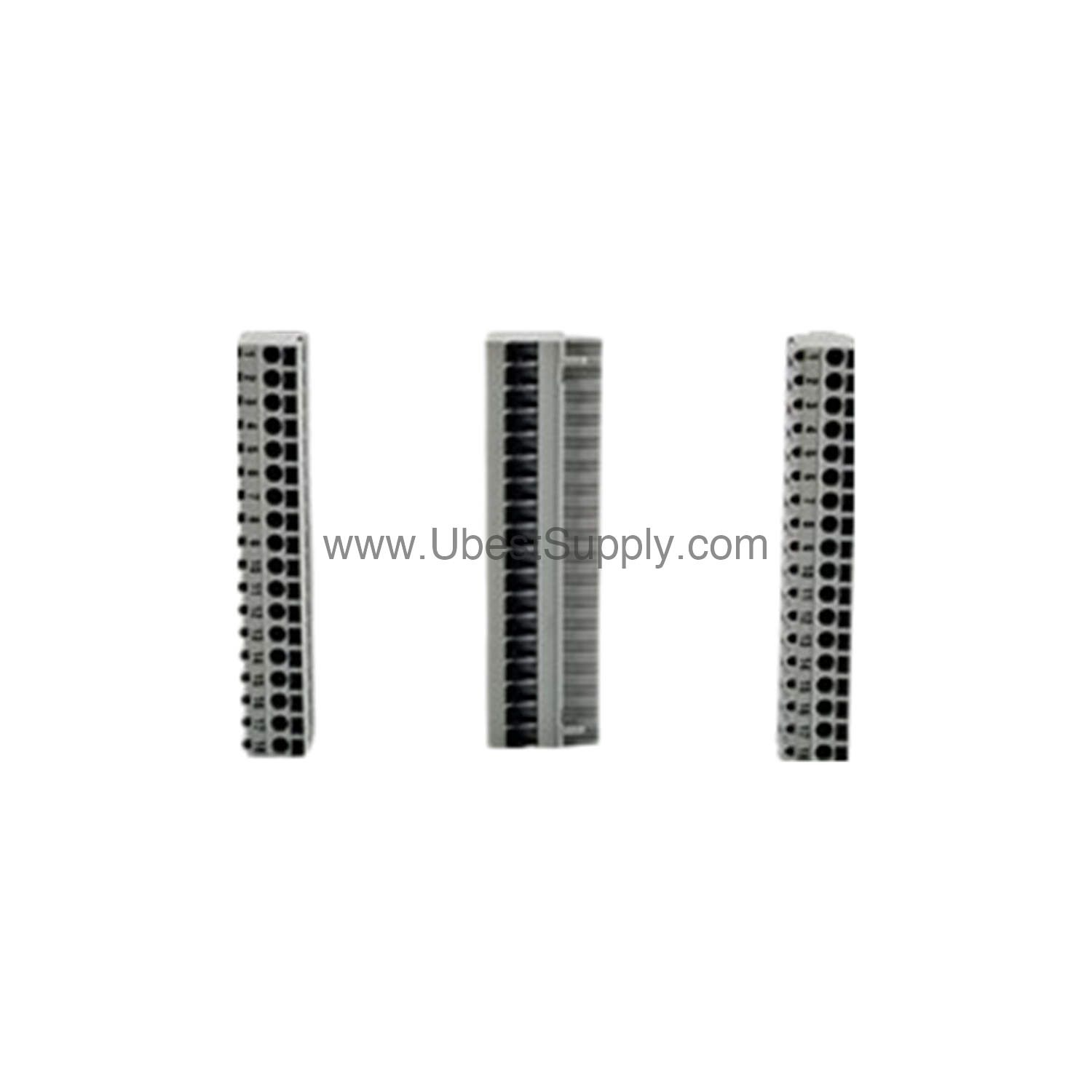

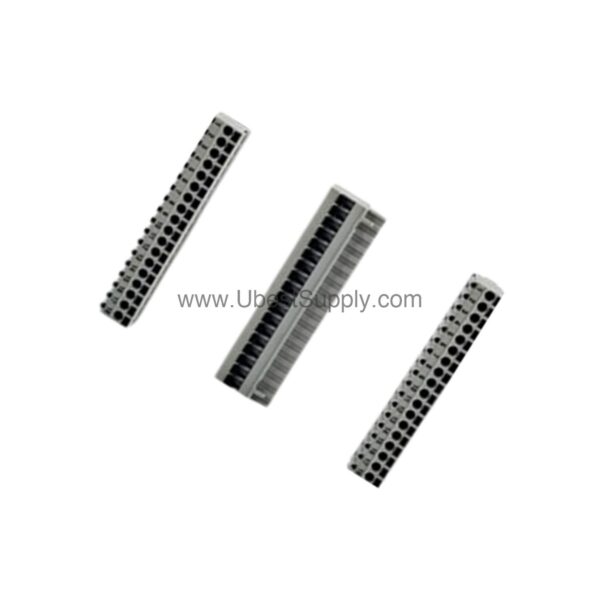

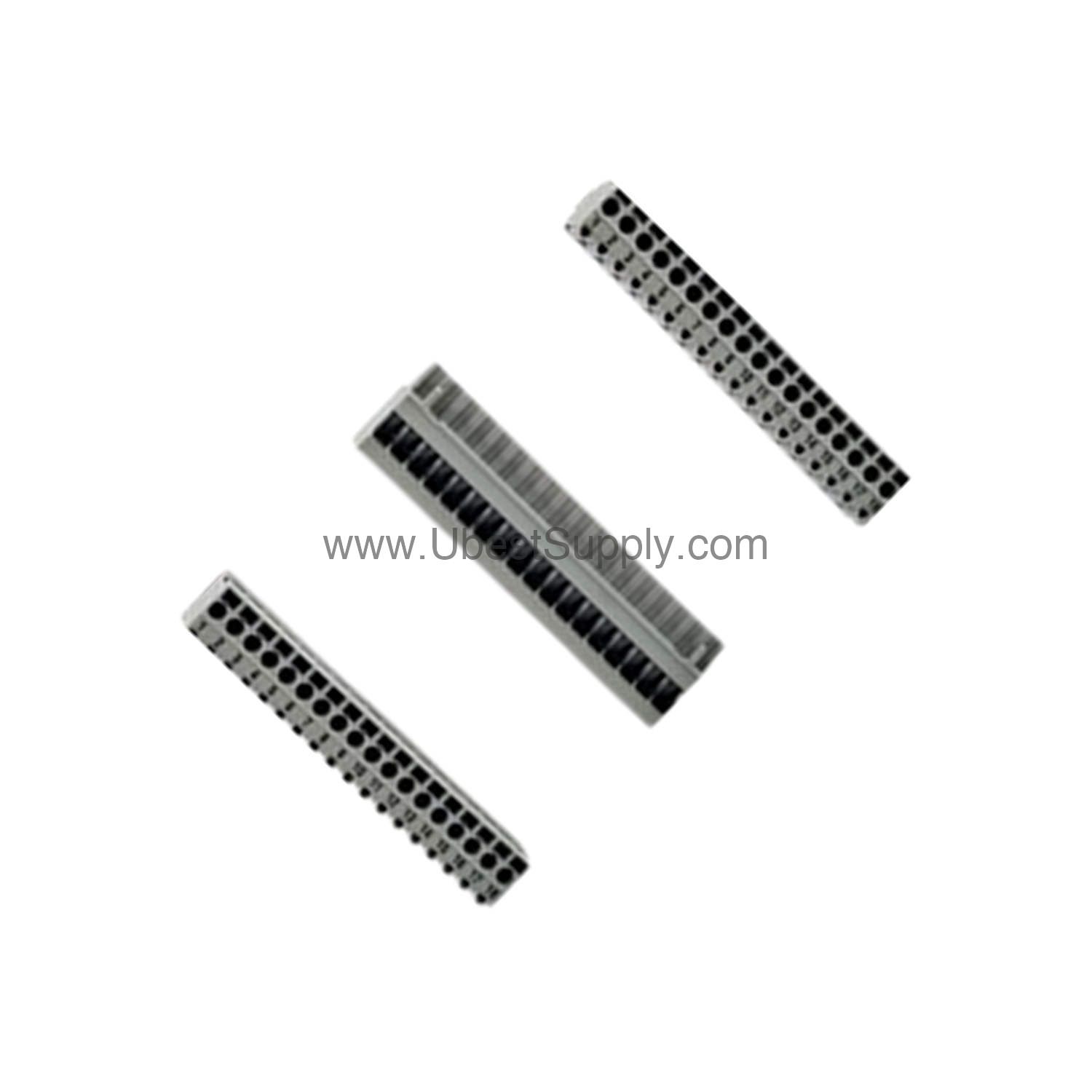

Introduction to the 170XCP20000 Cable Coding Kit

When cable management becomes a challenge in dense control panels, the 170XCP20000 from Schneider Electric provides a practical solution. This cable coding kit, part of the Modicon Momentum series, helps you identify and organize wiring with precision. Its compact design simplifies installation and reduces the risk of connection errors.

Engineered for industrial environments, the 170XCP20000 supports natural cooling and operates reliably across a wide ambient temperature range. By maintaining clear cable identification, this kit contributes to efficient maintenance and troubleshooting, ultimately lowering downtime and operational costs.

Key Features and Technical Specifications

The 170XCP20000 is built with attention to detail, offering dimensions that fit neatly into standard enclosures. Its lightweight construction ensures easy handling during installation. Here are the core specifications:

• Manufacturer: Schneider Electric
• Product Type: Cable Coding Kit
• Product Line: Modicon Momentum
• Dimensions: 1.18 in height, 4.33 in width, 9.84 in length
• Weight: 53 grams
• Cooling: Natural
• Ambient Temperature Range: 0 to 60 °C
• Humidity Tolerance: Up to 95% non-condensing
• Maximum Altitude: 1000 m above sea level
• Standard Compliance: CE

These specifications ensure the kit performs consistently in various industrial settings. The wide temperature range and high humidity tolerance protect cable integrity, reducing the need for frequent replacements and saving long-term costs.

Applications and Use Cases

The 170XCP20000 is suitable for a variety of industrial automation applications where organized cabling is critical. In manufacturing plants, it helps technicians quickly trace wires during maintenance, minimizing downtime. In process control systems, clear cable coding reduces the risk of misconnections, enhancing overall system reliability.

Moreover, the kit's compact size makes it ideal for retrofitting existing panels where space is limited. Its robust environmental ratings allow deployment in areas with high humidity or temperature fluctuations, ensuring consistent performance. By improving cable management, this kit indirectly contributes to lower operational costs through reduced labor time and fewer errors.

Installation and Setup

Installing the 170XCP20000 is straightforward, thanks to its lightweight design and compact footprint. Begin by planning the cable layout to maximize clarity. Use the coding elements to label each cable according to your system's documentation. Ensure the kit is mounted in a location that allows natural airflow, as it relies on natural cooling.

During setup, verify that all cables are securely fastened and that the coding markers are legible. This practice not only aids in future maintenance but also speeds up troubleshooting. For best results, follow the guidelines in the Schneider Electric user manual for your specific application.

Maintenance and Reliability

Routine inspection of the 170XCP20000 helps maintain its effectiveness. Periodically check that the coding markers remain attached and readable. Since the kit is designed for natural cooling, ensure that ventilation paths are not obstructed by dust or debris. Operating within the specified temperature and humidity limits will prolong the life of the coding materials.

By investing in reliable cable identification, you reduce the time spent tracing wires during maintenance, which translates into direct labor savings. The durable construction of the kit minimizes the need for replacements, offering a favorable return on investment over time.

Compatibility and Integration

The 170XCP20000 is part of the Modicon Momentum series, ensuring compatibility with other Momentum components. This integration simplifies procurement and maintenance, as you can rely on a consistent product family. While the kit itself does not require electrical connections, it complements any control system by bringing order to the wiring infrastructure.

For specific compatibility details with your existing setup, consult the official Schneider documentation or contact Petro Auto Tech for assistance.

Troubleshooting and Common Issues

Common issues with cable coding kits include markers becoming loose or fading over time. To avoid this, ensure that markers are applied to clean, dry surfaces and are not exposed to excessive abrasion. If a marker becomes unreadable, replace it promptly to maintain clarity.

Another potential issue is incorrect labeling, which can lead to wiring errors. Always double-check that the coding matches your system's documentation. If you encounter persistent problems, refer to the Schneider Electric manual or reach out to Petro Auto Tech for guidance.

Support and Availability

The 170XCP20000 is available through Petro Auto Tech, your trusted industrial automation parts supplier. We keep this item in stock and ready to ship, ensuring you can maintain your operations without delay. For pricing and availability, contact our team today.
