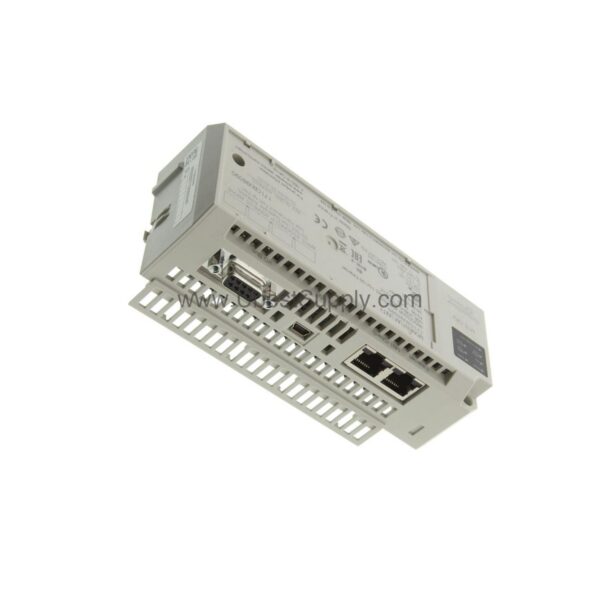

171CBU98090 | Schneider 333 MHz Modbus PLC Automation Platform

Product Overview: The 171CBU98090 from Schneider Electric

When your production line demands reliable communication and extensive I/O handling, the 171CBU98090 from Schneider Electric's Modicon Momentum series stands ready. This automation platform PLC combines robust processing with flexible networking, making it a solid choice for modern industrial environments. With support for both Modbus and Modbus TCP, the 171CBU98090 integrates smoothly into existing architectures, reducing integration costs and downtime.

Built for performance, the 171CBU98090 operates at a clock frequency of 333 MHz, ensuring swift execution of control logic. Its 3584 kB program memory accommodates complex sequences, while the 2048 inputs and 2048 outputs handle extensive field devices. This capacity translates into fewer controllers needed per line, lowering hardware and maintenance expenses.

Key Features and Technical Specifications

• I/O Capacity: 2048 inputs and 2048 outputs for large-scale automation tasks.
• Memory: 3584 kB program memory supports intricate control routines.
• Clock Frequency: 333 MHz for rapid processing and reduced cycle times.
• Supply Voltage: 4.75–5.25 V DC, ensuring stable operation.
• Communication Protocols: Modbus and Modbus TCP for versatile connectivity.
• Addressing: 1–247 Modbus addresses plus a unique IEEE global address for Modbus TCP.
• Topology: Supports multidrop Modbus and star Modbus TCP networks.
• Mounting: 35 mm symmetrical DIN rail for standard installation.
• Environmental Protection: IP20 rated for indoor use.
• Certifications: CE, FM, C-Tick, UL 508, CSA C22.2 No 142, EN/IEC 61131-2.

One distinctive feature is the dual addressing scheme—1–247 Modbus and a unique IEEE global address for Modbus TCP. This simplifies device identification and reduces configuration errors, saving engineering time and minimizing commissioning costs.

Applications and Use Cases

The 171CBU98090 excels in material handling, packaging, and process control applications where high I/O counts and reliable networking are essential. For example, in a bottling plant, the PLC can manage hundreds of sensors and actuators while communicating with a central SCADA system via Modbus TCP. This reduces wiring complexity and improves data visibility, leading to faster troubleshooting and lower operational costs.

Additionally, its compact dimensions (144 x 53.47 x 60.6 mm) and light weight (0.94 kg) allow for space-efficient panel layouts, saving enclosure space and cooling requirements. The DIN rail mounting simplifies installation, cutting labor time and associated expenses.

Installation and Setup

Mounting the 171CBU98090 on a standard 35 mm DIN rail is straightforward. Ensure the rail is clean and level before clipping the module into place. Connect the supply voltage (4.75–5.25 V DC) using appropriate gauge wires, and verify polarity to avoid damage. For communication, use the RS232/485, Ethernet, or USB ports as needed. It is advisable to follow the Schneider Electric user manual for detailed wiring diagrams and configuration steps.

Proper grounding and shielding of communication cables can prevent electromagnetic interference, enhancing system reliability and reducing downtime.

Maintenance and Reliability

Regularly inspect the 171CBU98090 for dust accumulation and ensure ventilation is not obstructed. Because it is IP20 rated, the module should be installed in a clean, dry enclosure. Periodically verify that all connections remain tight and that the DIN rail mounting is secure. Following the manufacturer's maintenance guidelines helps extend the life of the PLC and avoids unexpected failures.

By investing in preventive maintenance, you reduce the risk of costly production stoppages. The robust design of the 171CBU98090, combined with routine checks, delivers long-term value.

Integration and Compatibility

The 171CBU98090 supports Modbus and Modbus TCP, making it compatible with a wide range of Schneider Electric and third-party devices. It also supports Modicon STB I/O bus, allowing you to expand I/O capabilities using STB modules. This flexibility enables you to tailor the system to your specific needs without replacing the main controller, saving capital expenditure.

For existing Modicon Momentum installations, the 171CBU98090 can serve as a drop-in replacement or an upgrade, preserving your investment in field wiring and I/O modules.

Common Questions About the 171CBU98090

Q: What is the supply voltage requirement for the 171CBU98090?

A: The 171CBU98090 requires a supply voltage of 4.75–5.25 V DC.

Q: How many I/O points can the 171CBU98090 handle?

A: It supports up to 2048 inputs and 2048 outputs, providing extensive capacity for large applications.

Q: Which communication protocols are supported?

A: The module supports Modbus and Modbus TCP, along with RS232/485, Ethernet, and USB ports.

Q: Can the 171CBU98090 be mounted on a DIN rail?

A: Yes, it mounts on a standard 35 mm symmetrical DIN rail, simplifying installation.

Q: What certifications does the 171CBU98090 hold?

A: It is certified to CE, FM, C-Tick, UL 508, CSA C22.2 No 142, and EN/IEC 61131-2 standards.

Product Support and Availability

The 171CBU98090 is available through Petro Auto Tech, an industrial automation parts supplier. Please verify current lifecycle status and availability with Petro Auto Tech before ordering. Their team can provide technical documentation and support to ensure a smooth integration.
