How the STBEPI2145K Evolved with Industrial Automation

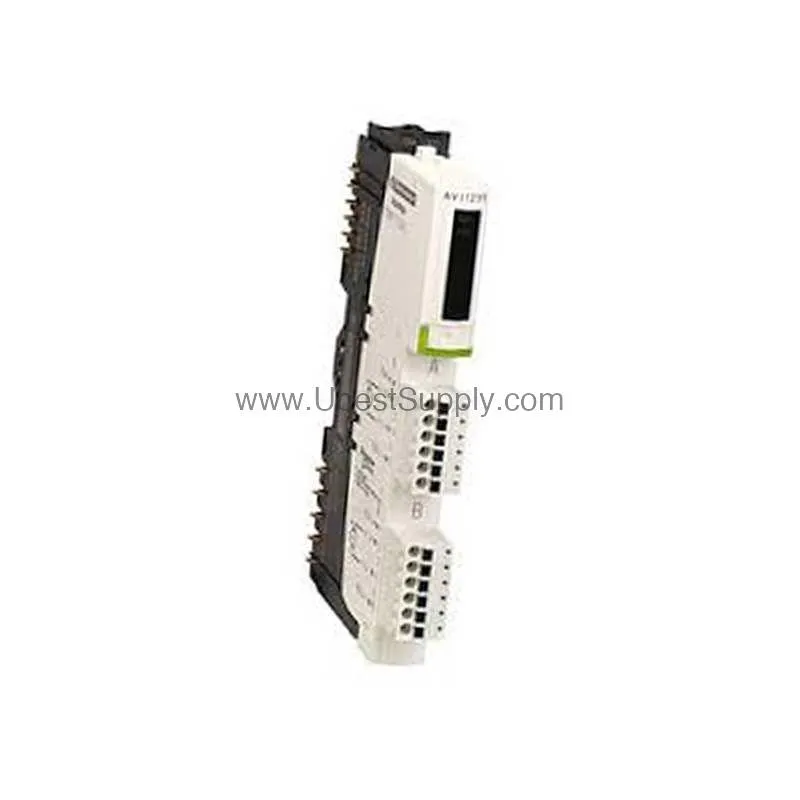

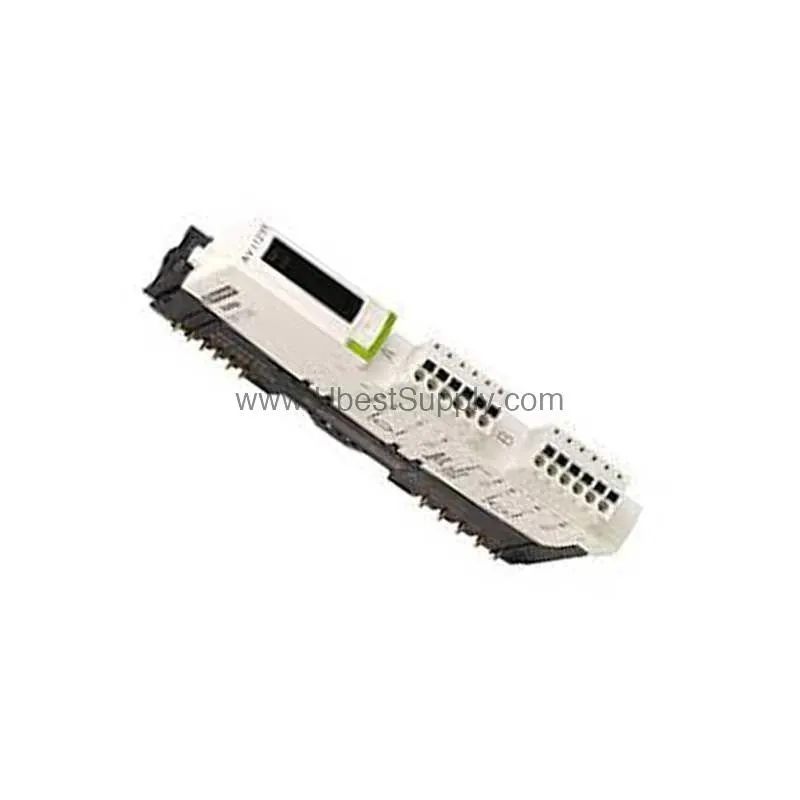

Industrial automation has shifted from centralized control to distributed, modular systems. The STBEPI2145K parallel interface kit from Schneider reflects this evolution, providing a compact interface for TeSys Quickfit and TeSys U applications. With 12 input channels and 8 output channels, it integrates seamlessly into Modicon STB distributed I/O solutions.

Key Features & Technical Specs of the STBEPI2145K

• Input voltage: 24 V DC, with limits of 15...30 V at state 1 and -3...5 V at state 0.
• Output voltage: 24 V DC, protected by a power protection integrated fuse on PDM time lag 10 A.
• Current consumption: ≤100 mA at 24 V DC for sensor bus, ≤220 mA at 24 V DC for actuator bus for 150 ms.
• Hot swapping supported for standard NIMs, with fallback state 0 for basic NIMs.
• Electrical connection via 4 RJ45 connectors, with CE marking and IP20 protection.
• Dimensions: 170 mm depth, 28.1 mm height, 128.3 mm width; net weight 0.165 kg.

A distinctive spec is the 50 mA at 24 V DC for actuator bus with all 8 outputs at state 0, ensuring low standby power consumption.

Applications & Use Cases for the STBEPI2145K

In manufacturing lines, the STBEPI2145K interfaces with TeSys motor starters for reliable control. It also suits packaging systems where modular I/O reduces wiring complexity. For example, in a conveyor system, its hot swapping capability minimizes downtime during maintenance.

Installation & Setup Guide

Mount the STBEPI2145K on a STBXBA3000 base using the included terminal spring clamp connector. Ensure the power distribution module STBPDT3100/3105 supplies 24 V DC. Connect via RJ45 cables to the NIM, and configure fallback states per your application.

Maintenance & Reliability Tips

Inspect the module periodically for dust or moisture, as IP20 protection requires a clean environment. The integrated fuse on PDM protects against overloads, reducing maintenance needs. Operating between -25…70 °C without derating ensures long-term reliability.

Compatibility & Integration

The STBEPI2145K works with Modicon STB distributed I/O solutions, including standard NIMs for hot swapping and basic NIMs for fallback state 0. It integrates with TeSys Quickfit and TeSys U motor starters, and uses power distribution modules STBPDT3100/3105.

FAQ about STBEPI2145K

Q: What is the input voltage range for state 1?

A: 15...30 V DC at state 1, with a minimum current of 2 mA.

Q: Can the STBEPI2145K be hot swapped?

A: Yes, hot swapping is supported for standard NIMs.

Q: What protection does the output have?

A: Outputs have power protection via an integrated fuse on PDM time lag 10 A, plus overload and short-circuit protection.

Q: What is the operating temperature range?

A: -25…70 °C without derating, and storage from -40…85 °C.

Q: How many input and output channels does it have?

A: 12 input channels and 8 output channels.

Product Support & Availability

The STBEPI2145K is in stock and ready to ship from Petro Auto Tech. Contact our team for bulk pricing or technical questions.
